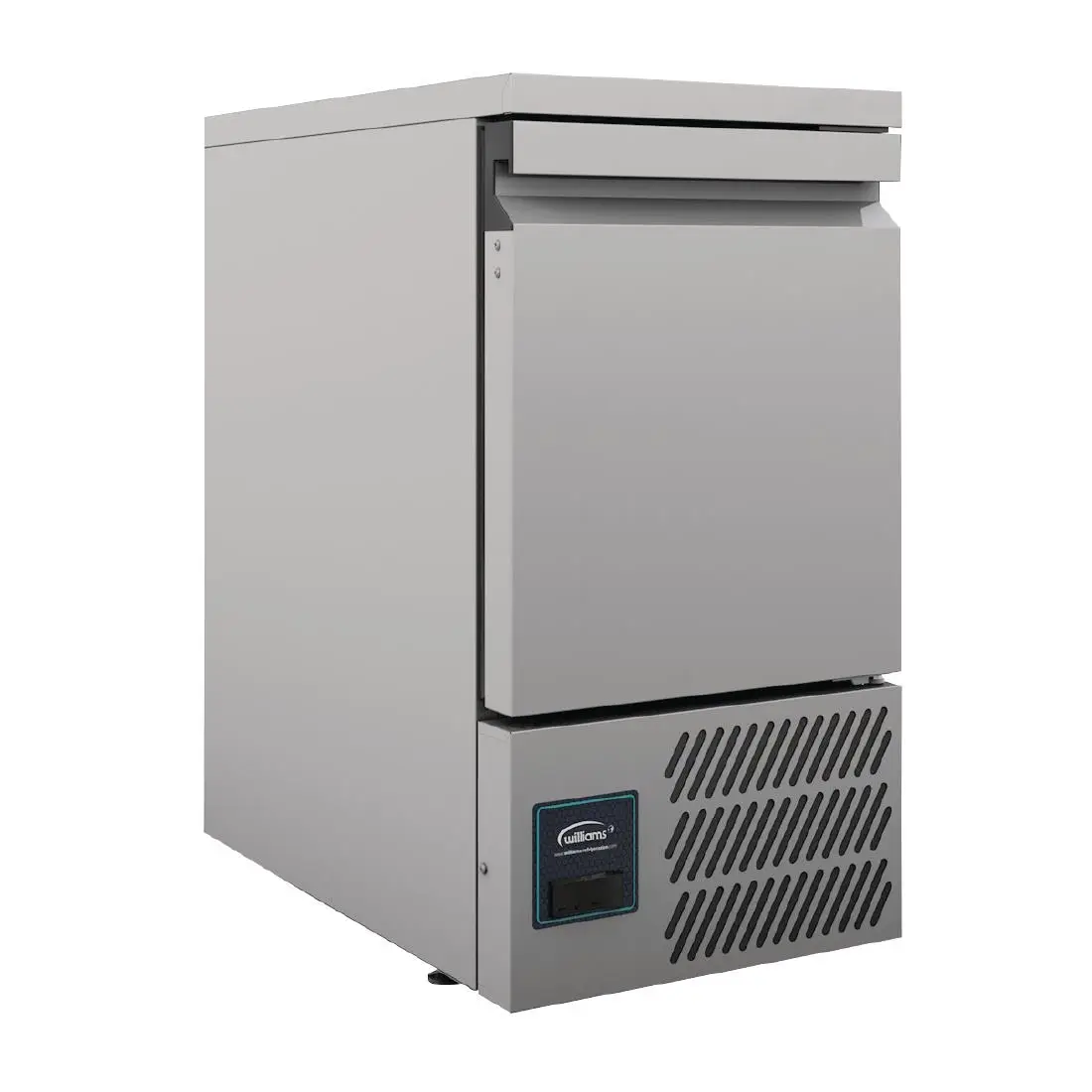

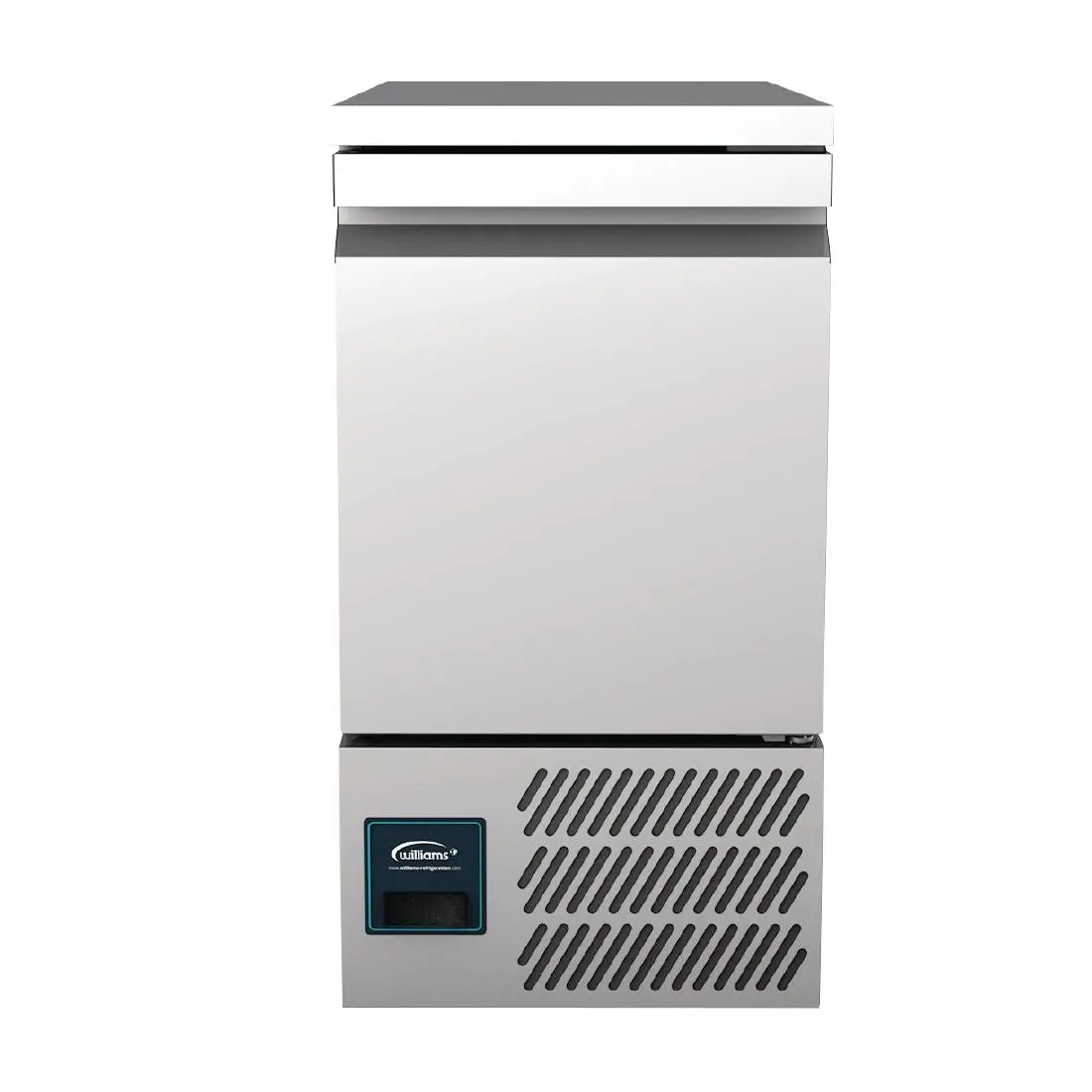

Williams Aztra Undercounter Freezer 109Ltr LAZ5CT-SA FD363

£1,847.19

+vat

Availability: 999 in stock

Brand:

SKU: FD363

Product summary

231W. Total usable capacity: 76Ltr. R290

Product description

The Aztra range of single and double door undercounter gastronorm cabinets save space while offering practical storage solutions, even in ambient up to 43°C.

Self-closing door with integrated easy-grab handle
Two removable shelves offer adjustable storage space
1/1GN compatibility for easy transfer of gastronorms
76Ltr of usable capacity from a 455 x 734mm footprint
CoolSmart controller for easy use and clear displays
Front-vented for easy installation into tight spaces
Rear castors with adjustable front feet for stability
Operates efficiently in ambient temperatures up to 30°C
Advanced airflow design eliminates potential warm spots
Stainless steel exterior with aluminium interior walls
75mm polyurethane insulation with low GWP and zero ODP
Magnetic balloon door gasket with 100% tight seal

The Williams Aztra LAZ5CT-SA is a 109Ltr single-door undercounter freezer with 76 litres net capacity, two 1/1 GN shelves and a -18 to -22 °C range for compact frozen storage at the point of use.

Downloads

SPECIFICATION 32 facts · tap for all Width455 mmDepth734 mmHeight870 mmGross weight67 kgVoltage230VTemperature range-22 to -18 °C

Identity6

Brand Williamssite
Model ref LAZ5CT HC R2catalogue
Product code FD363site
Range / series Aztracatalogue
Type Under Counter Freezerscatalogue
Warranty 2 Yearscatalogue

Size & weight5

Depth 734 mmcatalogue
External (W×D×H) 870 × 455 × 734 mmcatalogue
Gross weight 67 kgcatalogue
Height 870 mmcatalogue
Width 455 mmsite

Capacity6

Capacity 109Ltrcatalogue
Doors 1catalogue
Gastronorm size 1/1 GN fullcatalogue
Net volume 76 litrescatalogue
Product capacity 109catalogue
Shelves 2catalogue

Performance4

Climate class 4catalogue
Cooling Aircatalogue
Refrigerant R290 / GWP 3catalogue
Temperature range -22 to -18 °Ccatalogue

Power & energy3

Fuel type Plugcatalogue
Rated input 231 Wcatalogue
Voltage 230Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steel & Aluminiumcatalogue

Other stated facts6

EEI 48.47 %catalogue
Energy (24h) 3.75 kWh/24hcatalogue
Energy class Ccatalogue
Energy consumption 1369 kWh/yearcatalogue
Mobility Feetcatalogue
Plug notice Yescatalogue
THE WORKING VIEW

Why this under counter freezer earns its place

The Williams Aztra LAZ5CT-SA is the compact single-door freezer in the Aztra undercounter range. It is listed as a 109Ltr model with 76 litres of net frozen storage, giving a station its own controlled freezer space under the worktop rather than sending staff back to a bulk cabinet mid-service.

Inside, two shelves and 1/1 GN full-size compatibility make it easier to keep portioned frozen stock in a sensible service layout. The operating band is -18 to -22 °C, with air cooling and R290 refrigerant with GWP 3, so it is built around commercial frozen holding rather than occasional domestic back-up.

The cabinet is stainless steel and aluminium, finished in silver, with a 230V supply and 231 W rated input. Its source-listed external size is 870 × 455 × 734 mm, with a 67 kg gross weight, so it is worth checking access, the undercounter aperture and ventilation clearance before delivery.

BEFORE YOU BUY

Questions, answered straight

It is listed as a 109Ltr cabinet with 76 litres net capacity, two shelves and 1/1 GN full-size compatibility. That makes it a point-of-use freezer rather than bulk frozen storage for a whole kitchen.

It is built as an undercounter Aztra cabinet, with source-listed external dimensions of 870 × 455 × 734 mm and a 67 kg gross weight. Check the route in, counter opening and ventilation before ordering.

The specified operating range is -18 to -22 °C, using air cooling and R290 refrigerant with GWP 3.

The stated energy figures are class C, 1369 kWh/year and 3.75 kWh/24h. Put those through the energy label decoder with your own tariff for a pounds-per-year estimate.

The specification lists a 230V supply and 231 W rated input. Have the socket position confirmed before delivery so the freezer can be sited cleanly.

Craven Cooling supports the units it supplies, and this Williams model has a listed two-year warranty. For servicing, breakdown cover or siting advice, call 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Williams Aztra Undercounter Freezer 109Ltr LAZ5CT-SA FD363 Product Data

Brand Williams
Type Under Counter Freezers
Range Aztra
Dimensions 870(H) x 455(W) x 734(D)mm
Capacity 109Ltr
Material Stainless Steel & Aluminium
Colour / Finish Silver
Temperature Range -18°C to -22°C
Refrigerant R290 / GWP 3
Cooling Air
Number of Doors 1
Number of Shelves 2
Energy Rating C
Annual Energy Use 1369kWh/annum
Power 231W
Voltage 230V
Fuel / Supply Plug
Warranty 2 Years
Weight 67kg
Manufacturer Ref LAZ5CT-SA
If you have any questions about the Williams Aztra Undercounter Freezer 109Ltr LAZ5CT-SA FD363 then please get in touch.
