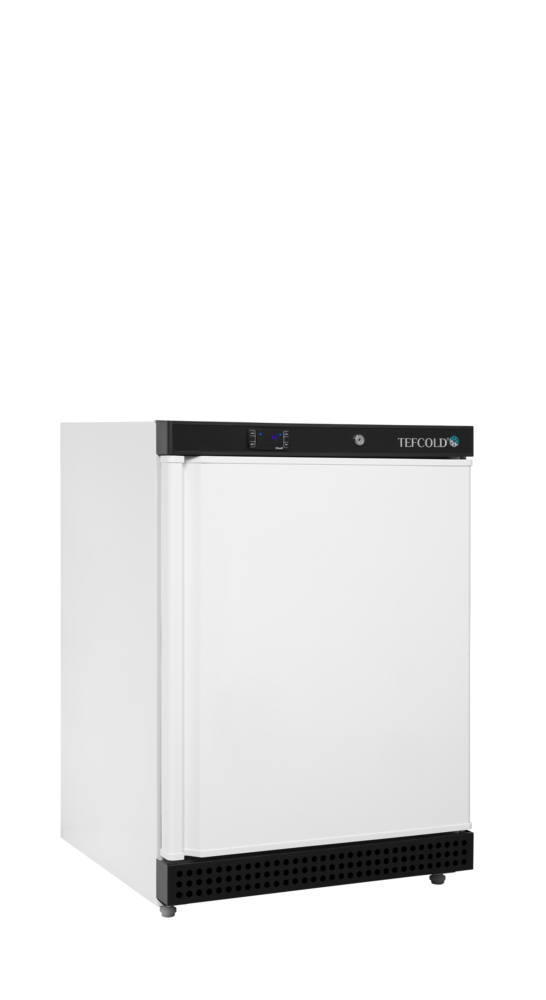

TEFCOLD UF200 Undercounter Freezer

£595.00 £378.00

+vat

Brand:

SKU: 32314

Energy Arrow

Product summary

  • Integrated handle
  • Electronic thermostat
  • Fixed freezing shelves
  • Adjustable feet with rollers to rear

Product description

The UF range of upright freezers offers high quality and reliability at a competitive price. It comes in various sizes that all have a clean design with an integrated full-length door handle. The standard freezer cabinet comes with fixed freezing shelves, which help ensure an even temperature throughout the cabinet. Set the temperature on the easy-to-use digital thermostat display.

The TEFCOLD UF200 is a compact single-door under-counter freezer that adds frozen storage where floor space is tight, holding 120 litres net between -24 and -10 °C on a standard 600 mm-wide footprint.

Sale!
SPECIFICATION 44 facts · tap for all External W × D × H600 x 585 x 855 mmWidth600 mmDepth585 mmGross / net weight52 / 47 kgGross weight52 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181992132site
Product code 32314site
Sub title Undercounter Freezercatalogue
Type Commercial Under Counter Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 585 mmsite
External (W×D×H) 600 × 585 × 855 mmcatalogue
External W × D × H 600 x 585 x 855 mmsite
Gross / net weight 52 / 47 kgsite
Gross weight 52 kgcatalogue
Height 855 mmsite
Internal (W×D×H) 484 × 470 × 620 mmcatalogue
Internal W × D × H 484 x 470 x 620 mmsite
Packed (W×D×H) 690 × 650 × 910 mmcatalogue
Packed W × D × H 690 x 650 x 910 mmsite
Width 600 mmsite

Capacity3

Doors 1catalogue
Gross volume 200 litrescatalogue
Shelves 2catalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 60 gsite
Temperature range -24 to -10site
Thermometer Yessite

Power & energy5

Annual energy consumption 438 kWh/yearsite
Energy consumption 1.2 kWh/24hsite
Input power 105 Wsite
Noise level 40 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings6

Castors 2 rollerssite
Exterior finish Whitesite

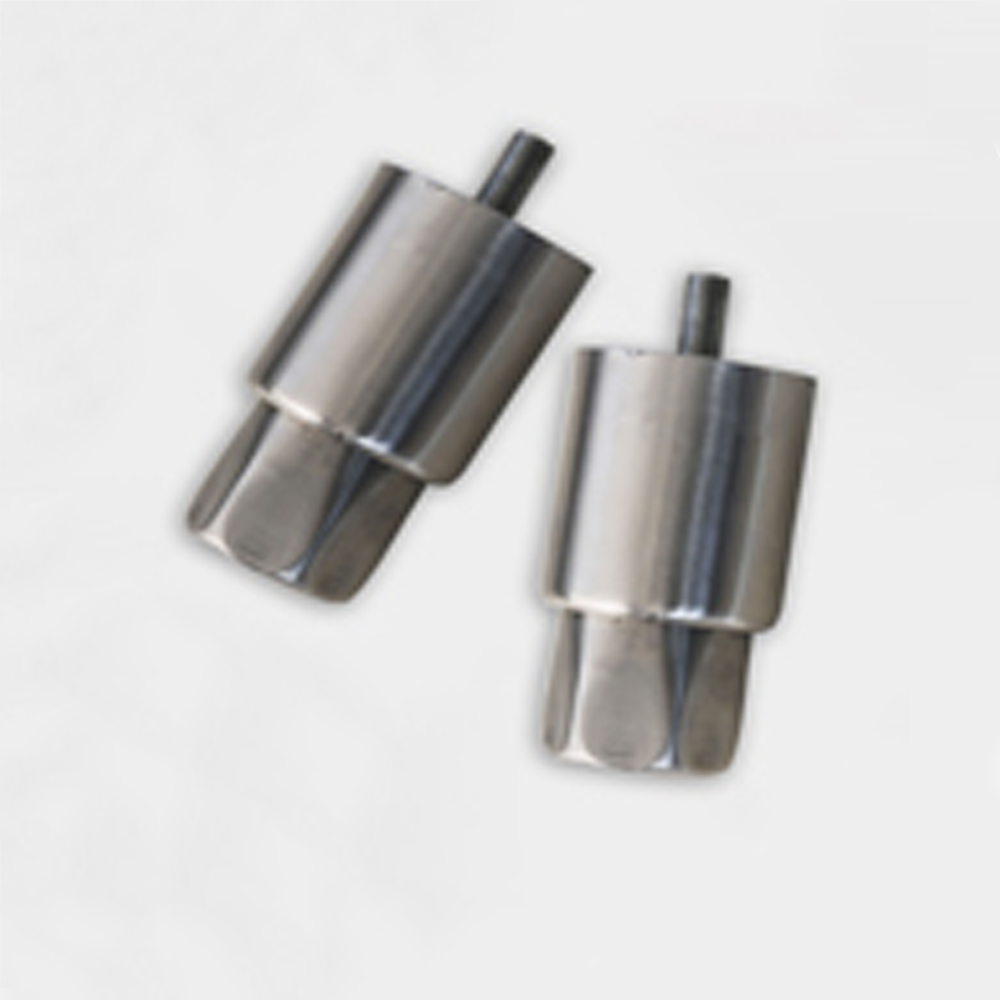

Feet / legs 4 adjustable feetsite
Interior light Nosite
Max load per shelf 110site
Shelf dimensions 490 x 380 mmsite
THE WORKING VIEW

Why this commercial under counter freezer earns its place

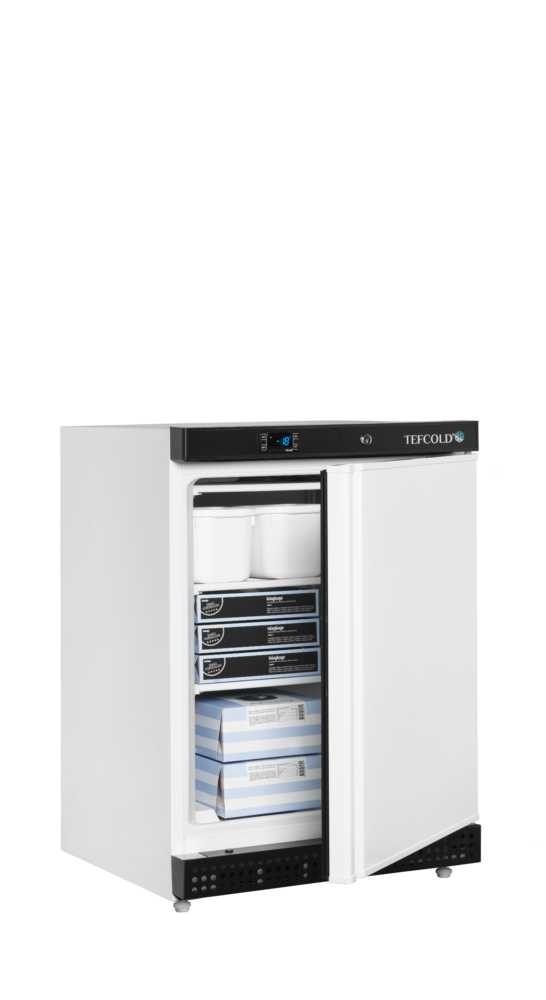

The TEFCOLD UF200 is a single-door undercounter freezer built to add frozen storage where floor space is tight. It holds 200 litres gross and 120 litres net across two fixed freezing shelves behind one hinged solid door, giving back-of-house a dedicated frozen store within reach of the prep section rather than a trek to a walk-in.

It runs between -24 and -10 °C on static cooling with an electronic controller, holding frozen stock at a safe temperature through service. Defrost is manual, so build it into the cleaning routine. The cabinet is rated to climate class 4 for use in warmer kitchen ambients and runs at 40 dB. At 438 kWh a year that works out at about £110 a year at 25p/kWh.

The cabinet measures 600 × 585 × 855 mm externally, so it slots into a standard 600 mm counter run; allow for the packed size of 690 × 650 × 910 mm when planning the delivery route. It runs from a standard 13 A supply on 220–240 V and uses R600a refrigerant with a 60 g charge. Net weight is 47 kg, finished white outside with a white ABS interior.

BEFORE YOU BUY

Questions, answered straight

The cabinet is 855 mm high and 600 mm wide, so it slots into a standard 600 mm counter run. Allow for the packed size of 690 × 650 × 910 mm when planning the delivery route.

It operates between -24 and -10 °C, a safe holding band for frozen stock. An electronic controller manages the temperature.

Rated at 438 kWh a year, it works out at about £110 a year at 25p/kWh. Actual cost depends on your tariff, kitchen ambient and how often the door is opened.

No, defrost is manual, so plan it into your cleaning schedule. Static cooling keeps the cabinet simple with fewer moving parts.

A standard 13 A socket on 220–240 V. It uses R600a refrigerant with a 60 g charge and runs at 40 dB.

Yes, our engineers cover commercial refrigeration servicing and repairs. Call 01792 732702 to arrange a visit.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 484 x 470 x 620 mm
External Dimension (WxDxH): 600 x 585 x 855 mm
Packed Dimension (WxDxH): 690 x 650 x 910 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R600a
Refrigerant Charge: 60 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 1.2 kWh/24h
Temperature Range: -24 to -10 °C
Annual Energy Consumption: 438 kWh/year m³
Input Power: 105 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 40 dB(A)

Measures and Content

Temperature Range: -24 to -10 °C
Climate Class: 4
Gross / Net Weight: 52 / 47 kg
Gross / Net Volume: 200 / 120 l
Max Ambient: +30°C, 55% RH

Design and Material

Door Reversible: Yes
Shelf Color: White
Shelf Dimensions: 490 x 380 mm
Max load on Shelves: 110 kg/m²
Feet / Legs: 4 adjustable feet
Castors: 2 rollers
Exterior Finish: White
Interior Finish: White
Interior Light: No
Lock: Yes
If you have any questions about the TEFCOLD UF200 Undercounter Freezer then please get in touch.
