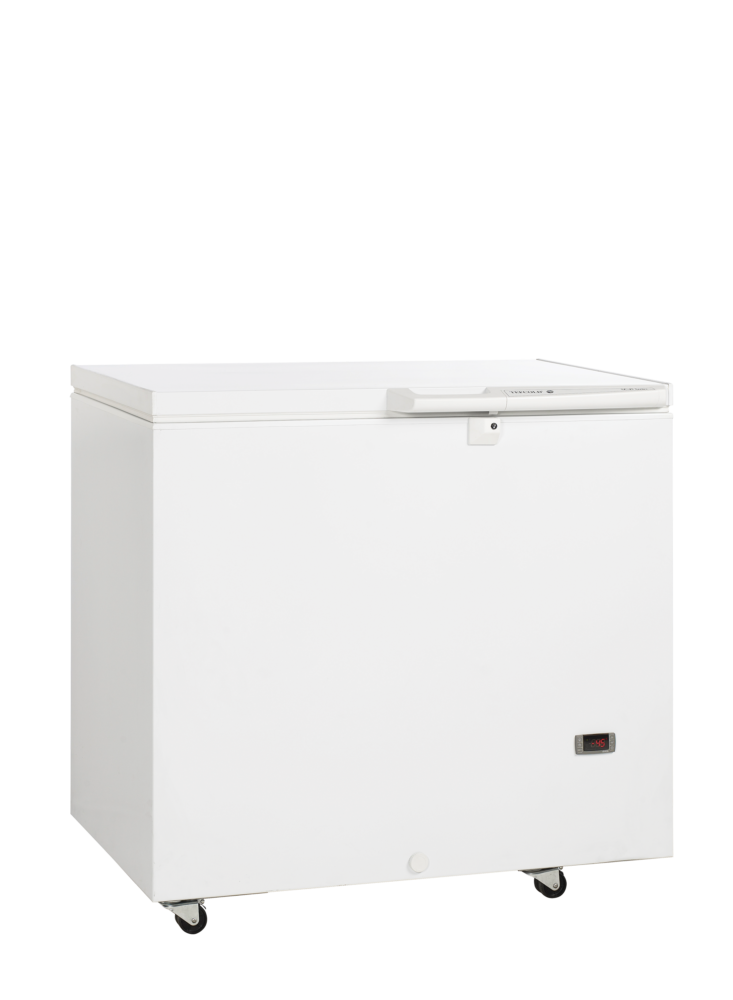

TEFCOLD SE20-45 Low Temperature Chest Freezer

£651.00

+vat

Brand:

SKU: 20148

Energy Arrow

Product summary

  • Static cooling
  • Lock
  • Castors

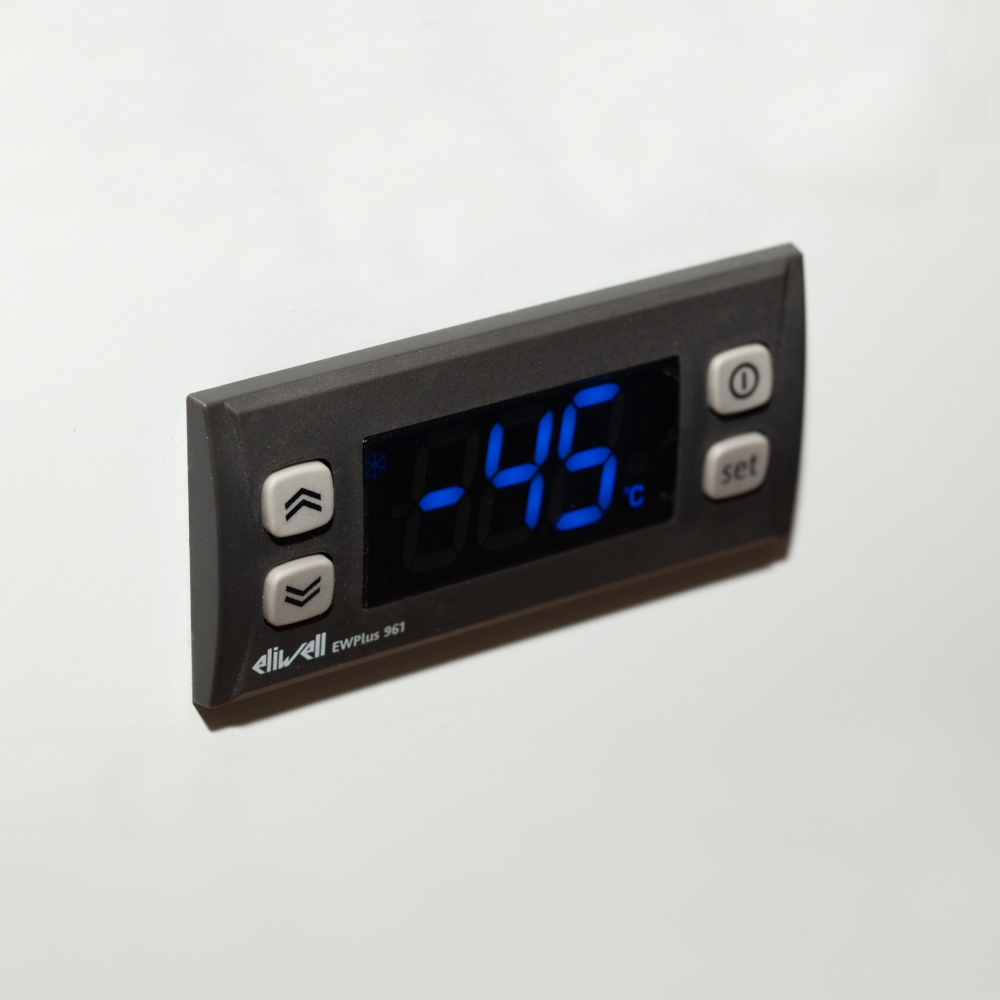

  • Digital controller and temperature display
  • 80mm insulation
  • Defrost drain

Product description

The TEFCOLD SE20-45 is a low-temperature chest freezer holding 235 litres gross down to -45 °C, measuring 984 × 705 × 945 mm, running on a standard 13 A supply with R290 refrigerant and electronic control for deep-freeze storage below a standard freezer’s reach.

SPECIFICATION 38 facts · tap for all External W × D × H984 x 705 x 945 mmWidth984 mmDepth705 mmGross / net weight62 / 57 kgGross weight62 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181355913site
Product code 20148site
Sub title Low Temperature Chest Freezercatalogue
Type Low Temperature Chest Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 705 mmsite
External (W×D×H) 984 × 705 × 945 mmcatalogue
External W × D × H 984 x 705 x 945 mmsite
Gross / net weight 62 / 57 kgsite
Gross weight 62 kgcatalogue
Height 945 mmsite
Internal (W×D×H) 820 × 440 × 705 mmcatalogue
Internal W × D × H 820 x 440 x 705 mmsite
Packed (W×D×H) 1050 × 710 × 990 mmcatalogue
Packed W × D × H 1050 x 710 x 990 mmsite
Width 984 mmsite

Capacity1

Gross volume 235 litrescatalogue

Performance10

Climate class 3site
Controller Electronicsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 55 gsite
Temperature range -45 to -5site
Thermometer Yessite

Power & energy5

Annual energy consumption 1296 kWh/yearsite
Energy consumption 3.55 kWh/24hsite
Input power 300 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings2

Castors 4 wheels, 2 with brakesite
Exterior finish Whitesite
THE WORKING VIEW

Why this low temperature chest freezer earns its place

The SE20-45 is the mid-size model in the low-temperature chest range, sitting between the compact and large-volume cabinets for kitchens that need real deep-freeze capacity without a full-width unit. It offers 235 litres gross and 230 litres net across an internal space of 820 × 440 × 705 mm, and runs down to -45 °C, far colder than a standard commercial freezer.

It holds a temperature band of -45 to -5 °C under an electronic controller, with static cooling and a manual defrost, so plan the defrost into your cleaning routine. Running noise is rated at 45 dB, and it carries climate class 3, so keep it clear of ovens and other heat sources to hold that deep-freeze temperature reliably.

The cabinet is 984 × 705 × 945 mm externally and weighs 62 kg, so measure your floor space and access route before delivery. It plugs into a standard 13 A socket on a 220–240 V supply and uses R290 hydrocarbon refrigerant with a 55 g charge. It draws about 1,295.8 kWh a year — roughly £324 a year at 25p/kWh.

BEFORE YOU BUY

Questions, answered straight

It holds a temperature band of -45 to -5 °C, well below a standard commercial freezer, so it suits deep-freezing and specialist low-temperature storage.

It offers 235 litres gross and 230 litres net, inside an internal space of 820 × 440 × 705 mm. The external cabinet measures 984 × 705 × 945 mm.

No. It uses a manual defrost with static cooling, so you will need to build a defrost into your cleaning routine rather than relying on an automatic cycle.

It uses about 1,295.8 kWh a year, which is roughly £324 a year at 25p/kWh. Your actual bill depends on tariff, ambient temperature and how often the lid is opened.

It carries climate class 3, so keep it away from ovens, direct sun and other heat sources. It runs on a standard 13 A socket at 220–240 V and is rated at 45 dB.

It runs on R290, a low-GWP hydrocarbon refrigerant, with a 55 g charge. For servicing or breakdown support, call Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 820 x 440 x 705 mm
External Dimension (WxDxH): 984 x 705 x 945 mm
Packed Dimension (WxDxH): 1050 x 710 x 990 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R290
Refrigerant Charge: 55 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 3.55 kWh/24h
Temperature Range: -45 to -5 °C
Annual Energy Consumption: 1296 kWh/year m³
Input Power: 300 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Temperature Range: -45 to -5 °C
Climate Class: 3
Gross / Net Weight: 62 / 57 kg
Gross / Net Volume: 235 / 230 l
Max Ambient: +25°C, 60% RH

Design and Material

Castors: 4 wheels, 2 with brake
Exterior Finish: White
Interior Finish: White
Lock: Yes
If you have any questions about the TEFCOLD SE20-45 Low Temperature Chest Freezer then please get in touch.
