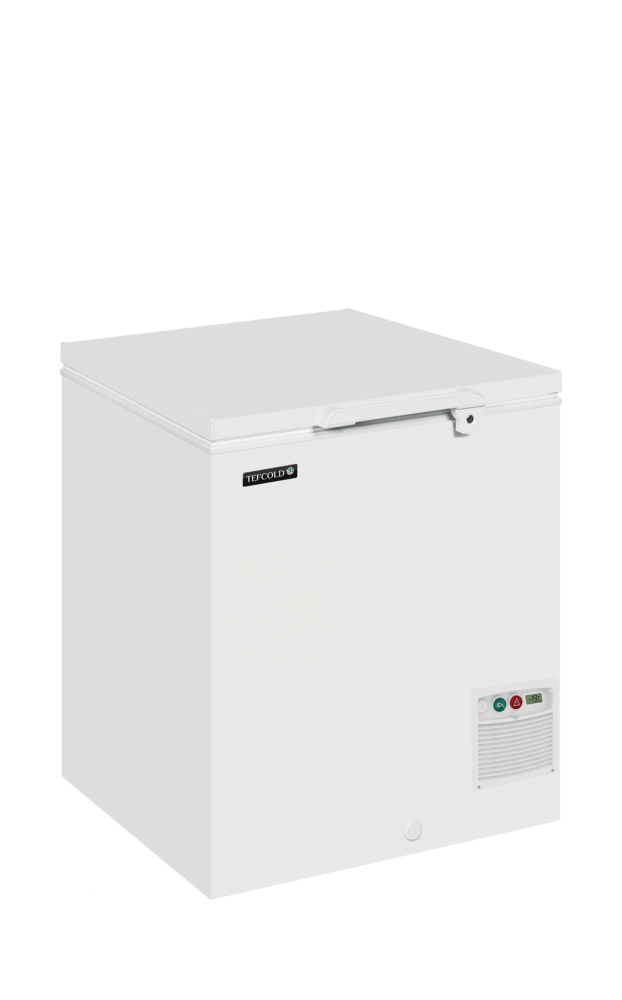

Elcold EL11LT Low Temperature Chest Freezer

£868.00

+vat

- +

Brand:

SKU: 18704

Energy Arrow

Product summary

  • Static cooling
  • Lock
  • Feet
  • Digital controller and temperature display
  • Temperature alarm (visual only)
  • 100mm insulation
  • Defrost drain
  • Baskets optional extra POA

Product description

The EL is a range of low temperature horizontal freezers, operating from -45 to -10 degrees. They are fitted with a thermometer and a visual temperature alarm, and are ideal for such purposes as laboratories or optimal storage of fish.

SPECIFICATION 36 facts · tap for all External W × D × H725 x 650 x 865 mmWidth725 mmDepth650 mmGross / net weight49 / 46 kgGross weight49 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand Elcoldsite
GTIN / EAN 5708181602802site
Product code 18704site
Sub title Low Temperature Chest Freezercatalogue
Type Low Temperature Chest Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight10

Depth 650 mmsite
External (W×D×H) 725 × 650 × 865 mmcatalogue
External W × D × H 725 x 650 x 865 mmsite
Gross / net weight 49 / 46 kgsite
Gross weight 49 kgcatalogue
Height 865 mmsite
Internal (W×D×H) 520 × 450 × 660 mmcatalogue
Internal W × D × H 520 x 450 x 660 mmsite
Packed W × D × H mmsite
Width 725 mmsite

Capacity1

Gross volume 130 litrescatalogue

Performance8

Climate class 4site
Defrost type Manualsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 65 gsite
Temperature range -45 to -10site
Thermometer Yessite

Power & energy6

Annual energy consumption 377 kWh/yearsite
Energy consumption 1.03 kWh/24hsite
Energy efficiency index 31.4 %site
Input power 210 Wsite
Noise level 49 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings1

Exterior finish Whitesite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this low temperature chest freezer earns its place

The EL11LT is a compact low-temperature chest freezer for kitchens and businesses that need to hold stock colder than a standard freezer. It reaches -45 °C, well below the usual frozen band, in a white cabinet holding 130 litres. The small footprint suits it to specialist frozen storage where the volume is modest but the temperature has to go low.

It holds a band of -45 to -10 °C, so it covers both deep-cold storage and ordinary freezing. Defrost is manual, cleared on a routine that suits your schedule. It runs at 49 dB and is rated to climate class 4 for warm surroundings. On energy class C at 375.9 kWh a year, running cost works out at about £94 a year at 25p/kWh.

External dimensions are 725 × 650 × 865 mm, a compact chest that fits where a full-size freezer would not. It weighs 46 kg net, runs from a standard 13 A supply on 220-240 V, 50 Hz, and uses 65 g of R290 refrigerant.

BEFORE YOU BUY

Questions, answered straight

It reaches -45 °C, holding a band of -45 to -10 °C, so it covers deep-cold storage as well as ordinary freezing.

130 litres, gross and net, in a compact chest cabinet measuring 725 × 650 × 865 mm externally.

On energy class C at 375.9 kWh a year, about £94 a year at 25p/kWh, depending on your tariff and how often the lid is opened.

No, defrost is manual, so build it into your cleaning routine.

A standard 13 A supply on 220-240 V, 50 Hz. Input power is 210 W and it uses 65 g of R290 refrigerant.

The EL11LT runs on R290, a natural hydrocarbon refrigerant, with a 65 g charge. For servicing or spares, call Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 520 x 450 x 660 mm
External Dimension (WxDxH): 725 x 650 x 865 mm
Packed Dimension (WxDxH): mm

Cooling and Functions

Type of Defrost: Manual
Refrigerant: R290
Refrigerant Charge: 65 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 1.03 kWh/24h
Temperature Range: -45 to -10 °C
Annual Energy Consumption: 377 kWh/year m³
EEI: 31.4 %
Input Power: 210 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 49 dB(A)

Measures and Content

Temperature Range: -45 to -10 °C
Climate Class: 4
Gross / Net Weight: 49 / 46 kg
Gross / Net Volume: 130 / 130 l
Max Ambient: +30°C, 55% RH

Design and Material

Exterior Finish: White
Interior Finish: White
If you have any questions about the Elcold EL11LT Low Temperature Chest Freezer then please get in touch.
