TEFCOLD SE10-45 Low Temperature Chest Freezer

£531.00

+vat

Brand:

SKU: 20145

Energy Arrow

Product summary

  • Static cooling

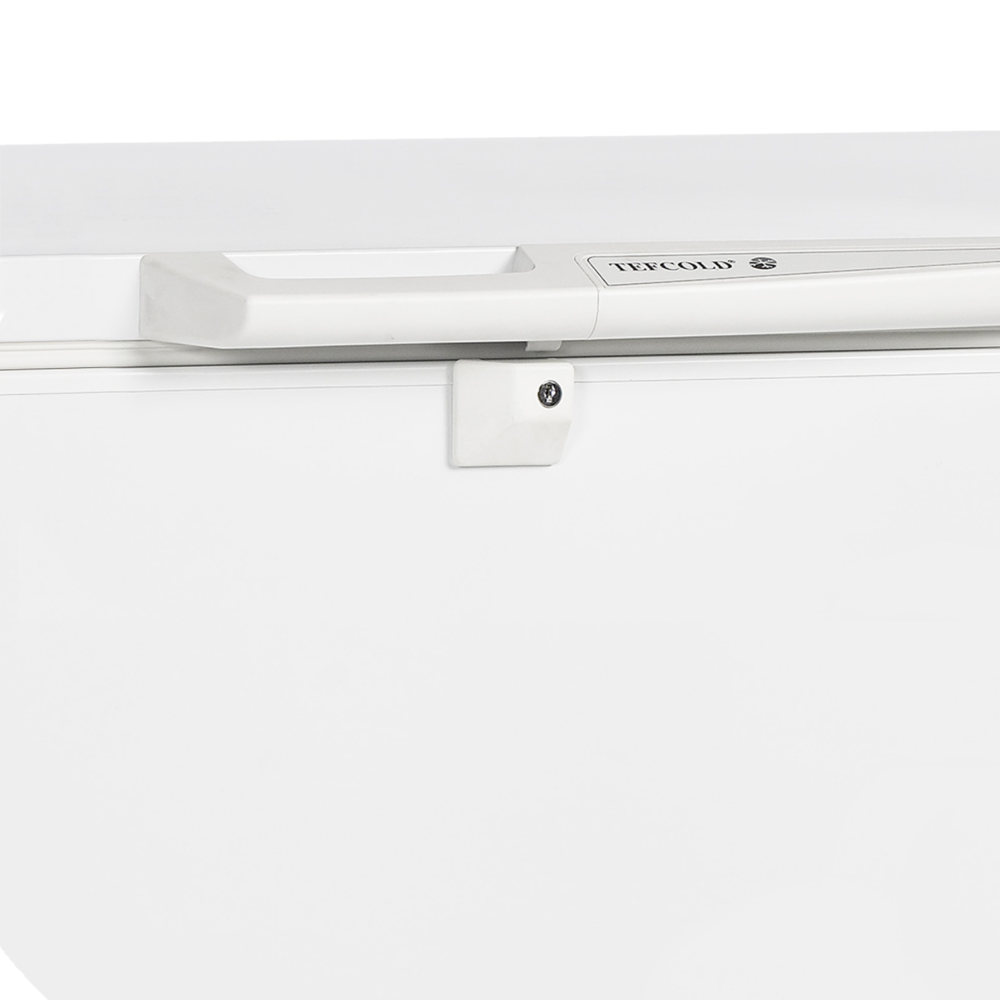

  • Lock
  • Castors

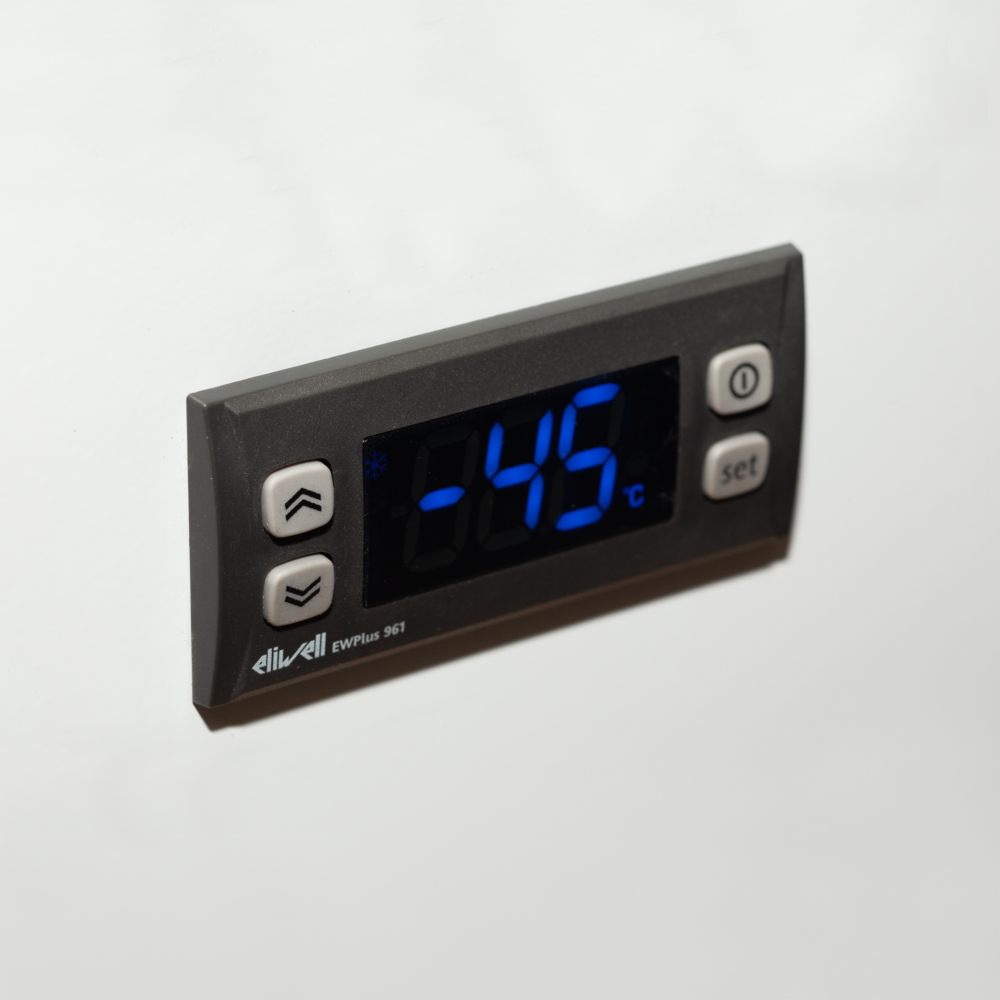

  • Digital controller and temperature display
  • 80mm insulation
  • Defrost drain

Product description

The SE range is a range of low temperature horizontal freezers, operating from -45 to -5 degrees. They are fitted with an electronic thermostat with an alarm, and are ideal for such purposes as laboratories or optimal freezing of fish.

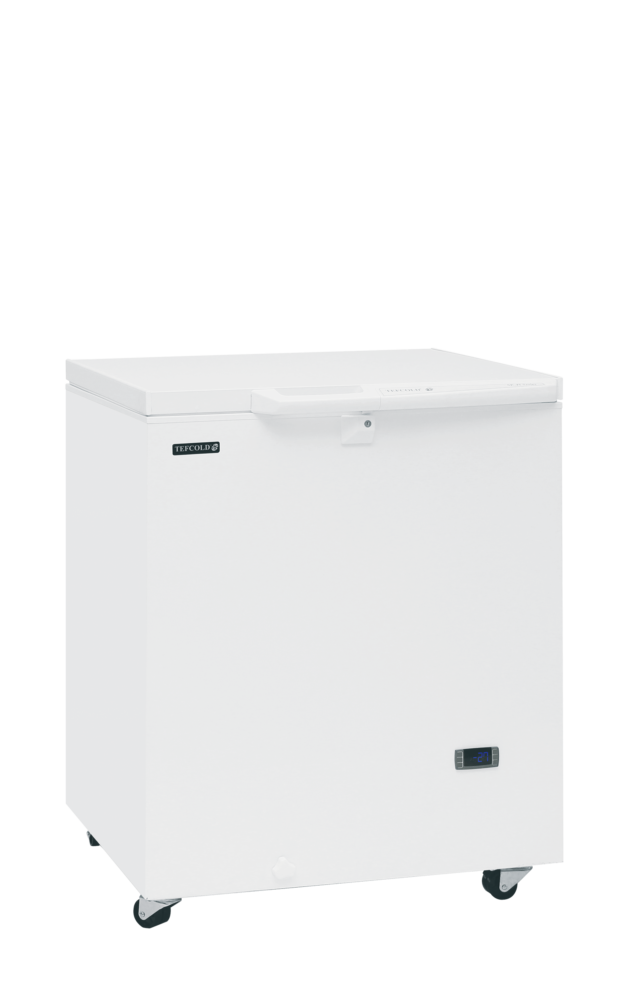

The TEFCOLD SE10-45 is a low-temperature chest freezer holding 155 litres gross down to -45 °C, measuring 734 × 705 × 945 mm, running on a standard 13 A supply with R290 refrigerant and electronic control for deep-freeze storage that standard commercial freezers cannot reach.

SPECIFICATION 38 facts · tap for all External W × D × H734 x 705 x 945 mmWidth734 mmDepth705 mmGross / net weight54 / 49 kgGross weight54 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181008673site
Product code 20145site
Sub title Low Temperature Chest Freezercatalogue
Type Low Temperature Chest Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 705 mmsite
External (W×D×H) 734 × 705 × 945 mmcatalogue
External W × D × H 734 x 705 x 945 mmsite
Gross / net weight 54 / 49 kgsite
Gross weight 54 kgcatalogue
Height 945 mmsite
Internal (W×D×H) 570 × 440 × 705 mmcatalogue
Internal W × D × H 570 x 440 x 705 mmsite
Packed (W×D×H) 850 × 710 × 1000 mmcatalogue
Packed W × D × H 850 x 710 x 1000 mmsite
Width 734 mmsite

Capacity1

Gross volume 155 litrescatalogue

Performance10

Climate class 3site
Controller Electronicsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 40 gsite
Temperature range -45 to -5site
Thermometer Yessite

Power & energy5

Annual energy consumption 1259 kWh/yearsite
Energy consumption 3.45 kWh/24hsite
Input power 250 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings2

Castors 4 wheels, 2 with brakesite
Exterior finish Whitesite
THE WORKING VIEW

Why this low temperature chest freezer earns its place

The SE10-45 is a compact low-temperature chest freezer built for stock that has to be held far colder than a standard freezer manages. It offers 155 litres gross and 152 litres net inside a cabinet of 570 × 440 × 705 mm, so it stores a useful volume of deep-frozen product without taking much floor. Unlike a standard commercial freezer, this unit runs down to -45 °C.

It holds a temperature band of -45 to -5 °C under an electronic controller, with static cooling and a manual defrost, so plan the defrost into your cleaning routine. Running noise is rated at 45 dB, and it carries climate class 3, so keep it clear of ovens and other heat sources to hold temperature reliably.

The cabinet is 734 × 705 × 945 mm externally and weighs 54 kg, making it manageable to position and easy to route through a standard doorway. It plugs into a 13 A socket on a 220–240 V supply and uses R290 hydrocarbon refrigerant with a 40 g charge. It draws about 1,259.2 kWh a year — roughly £315 a year at 25p/kWh.

BEFORE YOU BUY

Questions, answered straight

It holds a temperature band of -45 to -5 °C, well below a standard commercial freezer. That makes it suitable for deep-freezing and specialist low-temperature storage.

It offers 155 litres gross and 152 litres net, inside an internal space of 570 × 440 × 705 mm. The external cabinet measures 734 × 705 × 945 mm.

No. It uses a manual defrost with static cooling, so you will need to build a defrost into your cleaning routine rather than relying on an automatic cycle.

It uses about 1,259.2 kWh a year, which is roughly £315 a year at 25p/kWh. Your actual figure depends on tariff, ambient temperature and how often the lid is opened.

It carries climate class 3, so keep it away from ovens, direct sun and other heat sources. It runs on a standard 13 A socket at 220–240 V and is rated at 45 dB.

It runs on R290, a low-GWP hydrocarbon refrigerant, with a 40 g charge. For servicing or breakdown support, call Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 570 x 440 x 705 mm
External Dimension (WxDxH): 734 x 705 x 945 mm
Packed Dimension (WxDxH): 850 x 710 x 1000 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R290
Refrigerant Charge: 40 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 3.45 kWh/24h
Temperature Range: -45 to -5 °C
Annual Energy Consumption: 1259 kWh/year m³
Input Power: 250 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Temperature Range: -45 to -5 °C
Climate Class: 3
Gross / Net Weight: 54 / 49 kg
Gross / Net Volume: 155 / 152 l
Max Ambient: +25°C, 60% RH

Design and Material

Castors: 4 wheels, 2 with brake
Exterior Finish: White
Interior Finish: White
Lock: Yes
If you have any questions about the TEFCOLD SE10-45 Low Temperature Chest Freezer then please get in touch.
