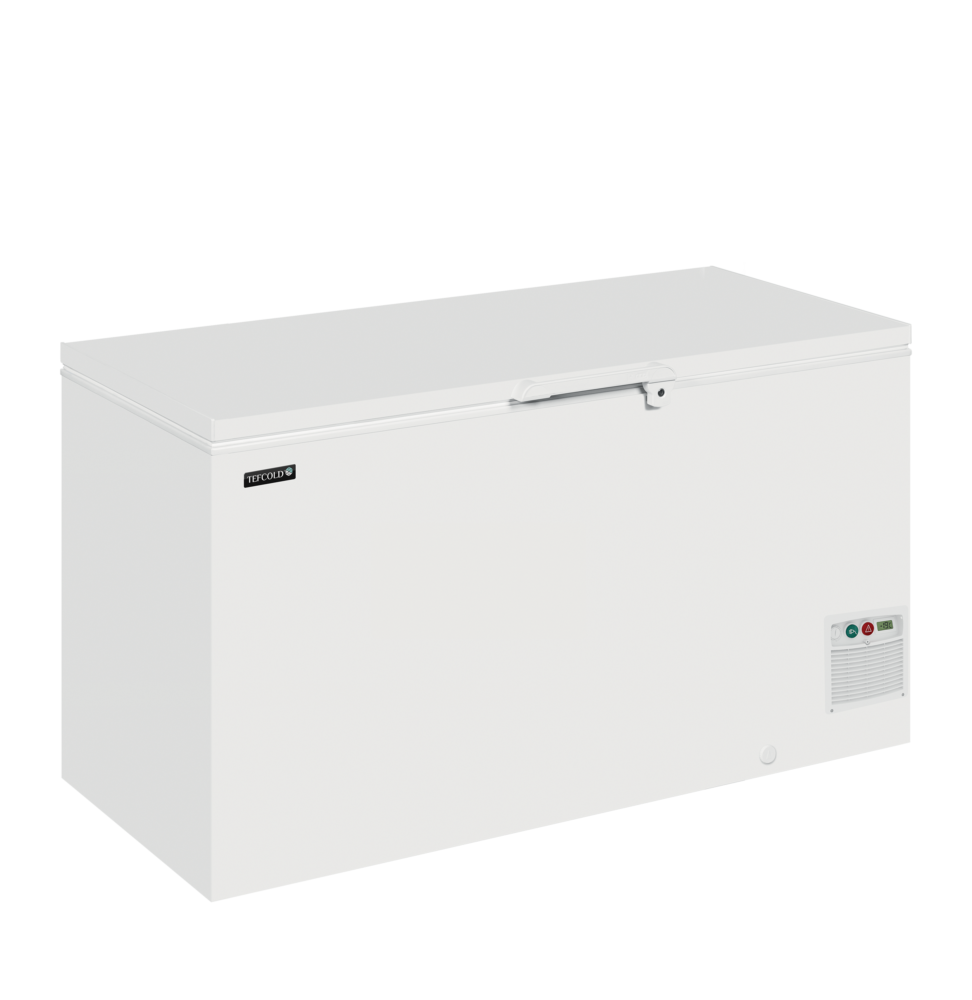

Elcold EL51LT Low Temperature Chest Freezer

£1,379.00

+vat

- +

Brand:

SKU: 18708

Energy Arrow

Product summary

  • Static cooling
  • Lock
  • Feet
  • Digital controller and temperature display
  • Temperature alarm (visual only)
  • 100mm insulation
  • Baskets optional extra POA
  • Defrost drain

Product description

The Elcold EL51LT is a 416-litre low-temperature commercial chest freezer holding -45 to -10 °C, measuring 1705 × 650 × 865 mm, running from a standard 13 A supply on R290 refrigerant and drawing about 726.4 kWh a year.

SPECIFICATION 37 facts · tap for all External W × D × H1705 x 650 x 865 mmWidth1705 mmDepth650 mmGross / net weight85 / 80 kgGross weight85 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand Elcoldsite
GTIN / EAN 5708181602840site
Product code 18708site
Sub title Low Temperature Chest Freezercatalogue
Type Low Temperature Chest Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 650 mmsite
External (W×D×H) 1705 × 650 × 865 mmcatalogue
External W × D × H 1705 x 650 x 865 mmsite
Gross / net weight 85 / 80 kgsite
Gross weight 85 kgcatalogue
Height 865 mmsite
Internal (W×D×H) 1500 × 450 × 660 mmcatalogue
Internal W × D × H 1500 x 450 x 660 mmsite
Packed (W×D×H) 1760 × 760 × 940 mmcatalogue
Packed W × D × H 1760 x 760 x 940 mmsite
Width 1705 mmsite

Capacity1

Gross volume 416 litrescatalogue

Performance8

Climate class 4site
Defrost type Manualsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 95 gsite
Temperature range -45 to -10site
Thermometer Yessite

Power & energy6

Annual energy consumption 725 kWh/yearsite
Energy consumption 1.99 kWh/24hsite
Energy efficiency index 33.2 %site
Input power 420 Wsite
Noise level 49 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings1

Exterior finish Whitesite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this low temperature chest freezer earns its place

The Elcold EL51LT is a low-temperature chest freezer for kitchens and back-of-house stores that need to hold high volumes of stock far colder than a standard freezer. With 416 litres of gross and net capacity behind a solid lid, it takes bulk frozen and ultra-cold inventory off the floor and keeps it at a steady deep-freeze temperature. The top-opening chest format suits high-throughput sites with the floor space for a wide cabinet and stock that is loaded and rotated by hand.

The freezer works across a -45 to -10 °C band, giving headroom well below what standard frozen storage needs, for products that require a harder freeze. Defrost is manual, so build a periodic defrost into the cleaning rota. It runs at 49 dB, quiet enough for a working kitchen, and carries a climate class 4 rating so it holds temperature in warm back-of-house ambients. Energy class C at an EEI of 33.2% works out to about £182 a year at 25p/kWh.

The cabinet measures 1705 × 650 × 865 mm (W×D×H) and weighs 80 kg empty, so check the delivery route and doorway clearances against that 1705 mm width before siting. It connects to a standard 13 A supply on 220-240 V and draws 420 W, with no drain to plumb. Cooling uses R290 hydrocarbon refrigerant with a 95 g charge. The exterior is white with a white painted steel interior.

BEFORE YOU BUY

Questions, answered straight

It operates across a -45 to -10 °C band, colder than standard frozen storage. That gives headroom for products that need a harder freeze.

The EL51LT is energy class C and uses 726.4 kWh a year, which is about £182 a year at 25p/kWh. Actual cost depends on your tariff, the ambient temperature and how often the lid is opened.

No. It runs from a standard 13 A socket on a 220-240 V supply and draws 420 W. There is no drain to plumb, and defrost is manual.

Gross and net capacity are both 416 litres behind the solid lid, with internal dimensions of 1500 × 450 × 660 mm (W×D×H).

The cabinet is 1705 mm wide, 650 mm deep and 865 mm high. Depth and height clear most doorways, but plan the delivery route carefully for the 1705 mm width.

It connects to a standard 13 A supply with no plumbing, so siting is straightforward once it is in position. For servicing or advice, call Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1500 x 450 x 660 mm
External Dimension (WxDxH): 1705 x 650 x 865 mm
Packed Dimension (WxDxH): 1760 x 760 x 940 mm

Cooling and Functions

Type of Defrost: Manual
Refrigerant: R290
Refrigerant Charge: 95 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 1.99 kWh/24h
Temperature Range: -45 to -10 °C
Annual Energy Consumption: 725 kWh/year m³
EEI: 33.2 %
Input Power: 420 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 49 dB(A)

Measures and Content

Temperature Range: -45 to -10 °C
Climate Class: 4
Gross / Net Weight: 85 / 80 kg
Gross / Net Volume: 416 / 416 l
Max Ambient: +30°C, 55% RH

Design and Material

Exterior Finish: White
Interior Finish: White
If you have any questions about the Elcold EL51LT Low Temperature Chest Freezer then please get in touch.
