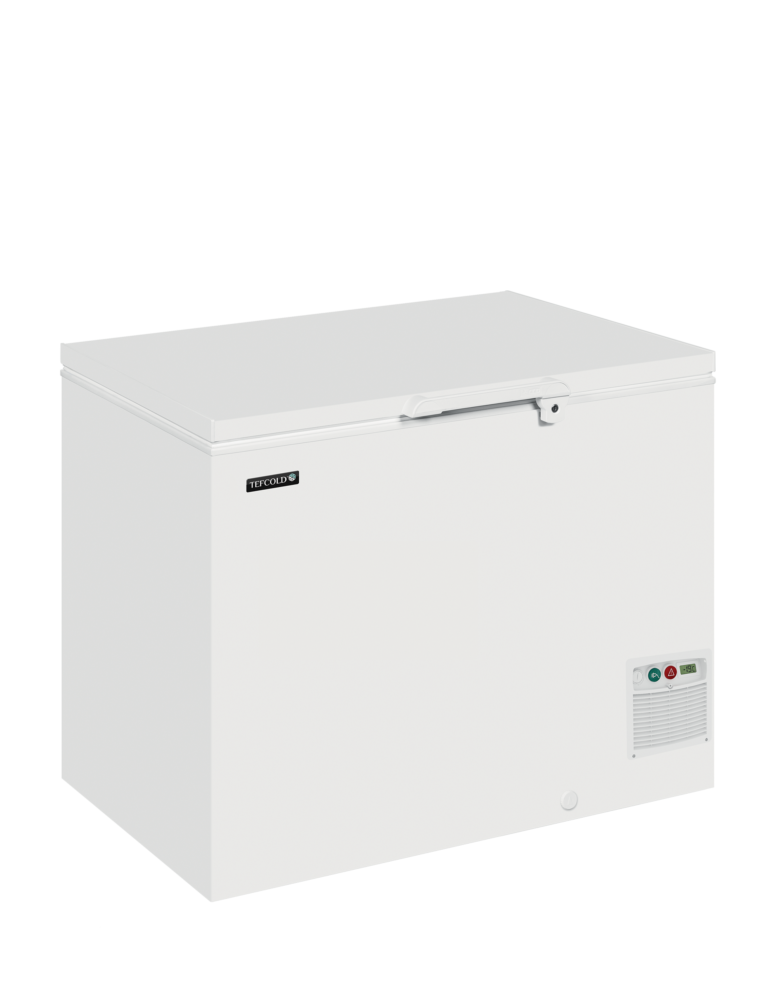

Elcold EL31LT Low Temperature Chest Freezer

£1,075.00

+vat

- +

Brand:

SKU: 18706

Energy Arrow

Product summary

  • Static cooling
  • Lock
  • Feet
  • Digital controller and temperature display
  • Temperature alarm (visual only)
  • 100mm insulation
  • Defrost drain
  • Baskets optional extra POA

Product description

The EL is a range of low temperature horizontal freezers, operating from -45 to -10 degrees. They are fitted with a thermometer and a visual temperature alarm, and are ideal for such purposes as laboratories or optimal storage of fish.

SPECIFICATION 37 facts · tap for all External W × D × H1305 x 650 x 865 mmWidth1305 mmDepth650 mmGross / net weight71 / 67 kgGross weight71 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand Elcoldsite
GTIN / EAN 5708181602826site
Product code 18706site
Sub title Low Temperature Chest Freezercatalogue
Type Low Temperature Chest Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 650 mmsite
External (W×D×H) 1305 × 650 × 865 mmcatalogue
External W × D × H 1305 x 650 x 865 mmsite
Gross / net weight 71 / 67 kgsite
Gross weight 71 kgcatalogue
Height 865 mmsite
Internal (W×D×H) 1100 × 450 × 660 mmcatalogue
Internal W × D × H 1100 x 450 x 660 mmsite
Packed (W×D×H) 1350 × 760 × 940 mmcatalogue
Packed W × D × H 1350 x 760 x 940 mmsite
Width 1305 mmsite

Capacity1

Gross volume 300 litrescatalogue

Performance8

Climate class 4site
Defrost type Manualsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 81 gsite
Temperature range -45 to -10site
Thermometer Yessite

Power & energy6

Annual energy consumption 555 kWh/yearsite
Energy consumption 1.52 kWh/24hsite
Energy efficiency index 31.1 %site
Input power 380 Wsite
Noise level 49 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings1

Exterior finish Whitesite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this low temperature chest freezer earns its place

The Elcold EL31LT is a low-temperature chest freezer for kitchens and back-of-house stores that need to hold stock far colder than a standard freezer. With 300 litres of gross and net capacity behind a solid lid, it takes bulk frozen and ultra-cold inventory off the floor and keeps it at a steady deep-freeze temperature. The top-opening chest format suits sites where the floor space is available and stock is loaded and rotated by hand.

The freezer works across a -45 to -10 °C band, giving headroom well below what standard frozen storage needs, for products that require a harder freeze. Defrost is manual, so build a periodic defrost into the cleaning rota. It runs at 49 dB, quiet enough for a working kitchen, and carries a climate class 4 rating so it holds temperature in warm back-of-house ambients. Energy class C at an EEI of 31.1% works out to about £139 a year at 25p/kWh.

The cabinet measures 1305 × 650 × 865 mm (W×D×H) and weighs 67 kg empty, so check the delivery route and final siting against that footprint. It connects to a standard 13 A supply on 220-240 V and draws 380 W, with no drain to plumb. Cooling uses R290 hydrocarbon refrigerant with an 81 g charge. The exterior is white with a white painted steel interior.

BEFORE YOU BUY

Questions, answered straight

It operates across a -45 to -10 °C band, colder than standard frozen storage. That gives headroom for products that need a harder freeze.

The EL31LT is energy class C and uses 554.8 kWh a year, which is about £139 a year at 25p/kWh. Actual cost depends on your tariff, the ambient temperature and how often the lid is opened.

No. It runs from a standard 13 A socket on a 220-240 V supply and draws 380 W. There is no drain to plumb, and defrost is manual.

Gross and net capacity are both 300 litres behind the solid lid, with internal dimensions of 1100 × 450 × 660 mm (W×D×H).

It runs at 49 dB, quiet enough for most back-of-house and kitchen settings. Its climate class 4 rating means it holds temperature in warmer ambient rooms.

The cabinet is 1305 × 650 × 865 mm and connects to a standard 13 A supply with no plumbing, so siting is straightforward. For servicing or advice, call Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1100 x 450 x 660 mm
External Dimension (WxDxH): 1305 x 650 x 865 mm
Packed Dimension (WxDxH): 1350 x 760 x 940 mm

Cooling and Functions

Type of Defrost: Manual
Refrigerant: R290
Refrigerant Charge: 81 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 1.52 kWh/24h
Temperature Range: -45 to -10 °C
Annual Energy Consumption: 555 kWh/year m³
EEI: 31.1 %
Input Power: 380 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 49 dB(A)

Measures and Content

Temperature Range: -45 to -10 °C
Climate Class: 4
Gross / Net Weight: 71 / 67 kg
Gross / Net Volume: 300 / 300 l
Max Ambient: +30°C, 55% RH

Design and Material

Exterior Finish: White
Interior Finish: White
If you have any questions about the Elcold EL31LT Low Temperature Chest Freezer then please get in touch.
