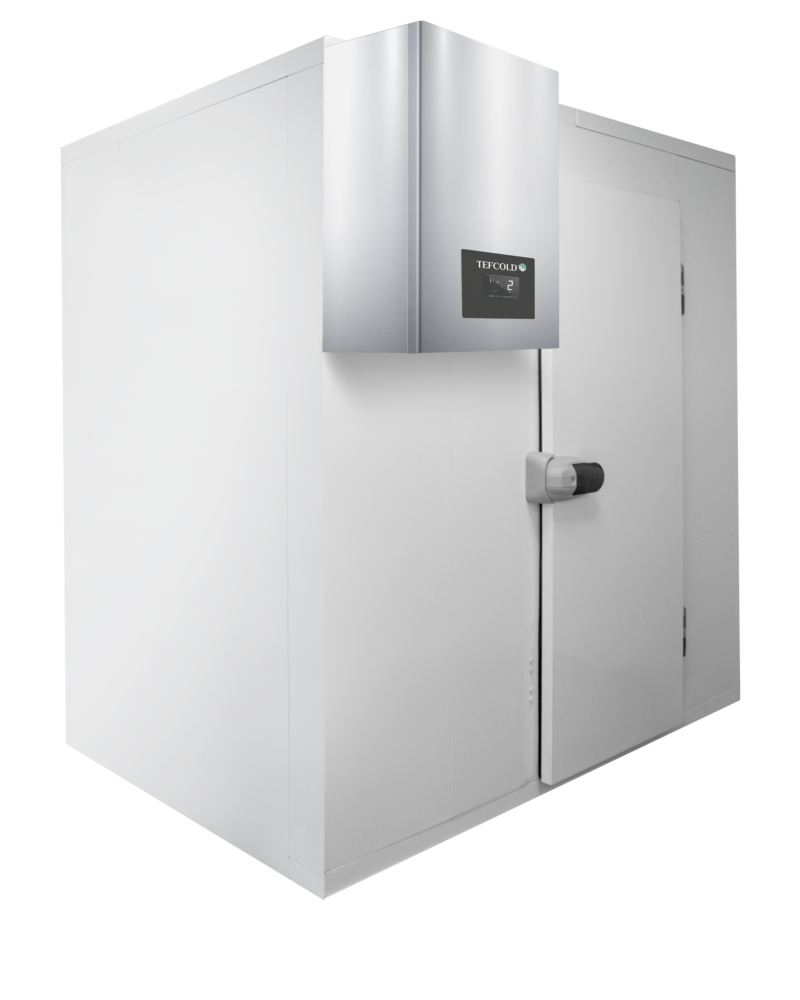

TEFCOLD CRPF1830 Chiller Room

£4,534.00

+vat

Brand:

SKU: 66818

Product summary

  • Plug-In – ready after assembly
  • Many customisation possibilities
  • Easy access to products
  • Easy assembly
  • Anti-slip floor in SS304 stainless steel
  • 80 mm panel insulation
  • Shelves available as accessory
  • Ramp available as accessory for easy access

Product description

Cost-effective, easy and efficient storage through cold rooms

The CRPF range of cold rooms can be used in restaurants, delis, cafes or similar environments. They offer the perfect way to create an optimised and efficient cooling space to make days easier and save on energy costs, all at a great price. Cold rooms create the ideal environment for easy access and food and beverage storage, it’s great for dairy products too.

The TEFCOLD CRPF1830 is a large walk-in chiller room with an internal footprint of 1640 × 2840 × 2040 mm (W×D×H), holding 0 to +8 °C on R290 refrigerant with automatic hot-gas defrost, an electronic controller and a 700 mm-wide hinged door.

SPECIFICATION 37 facts · tap for all External W × D × H1800 x 3000 x 2200 mmWidth1800 mmDepth3000 mmGross / net weight635 / 605 kgGross weight635 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181750480site
Product code 66818site
Sub title Chiller Roomcatalogue
Type Walk-in Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 3000 mmsite
External (W×D×H) 1800 × 3000 × 2200 mmcatalogue
External W × D × H 1800 x 3000 x 2200 mmsite
Gross / net weight 635 / 605 kgsite
Gross weight 635 kgcatalogue
Height 2200 mmsite
Internal (W×D×H) 1640 × 2840 × 2040 mmcatalogue
Internal W × D × H 1640 x 2840 x 2040 mmsite
Packed (W×D×H) 2000 × 1600 × 2400 mmcatalogue
Packed W × D × H 2000 x 1600 x 2400 mmsite
Width 1800 mmsite

Capacity2

Doors 1catalogue
Internal volume 12.34site

Performance6

Controller Electronicsite
Defrost type Automatic, hot gassite
Refrigerant R290site
Refrigerant charge 150 gsite
Temperature range 0 to +8site
Thermometer Yessite

Power & energy5

Annual energy consumption 7709 kWh/yearsite
Energy consumption 21.12 kWh/24hsite
Input power 905 Wsite
Noise level 60 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Exterior finish Whitesite
Interior light LEDsite
Max floor load 1500 kg/m²site
Wall thickness 80site
THE WORKING VIEW

Why this walk-in fridge earns its place

The CRPF1830 is a large walk-in chiller room built for kitchens and food businesses that hold serious volume. With an internal footprint of 1640 × 2840 × 2040 mm (W×D×H), it gives a full standing-height cold room for bulk stock, prep and deliveries at safe chilled temperatures, freeing the counter and upright fridges to stay dedicated to daily service.

It holds a 0 to +8 °C band under an electronic controller, so the holding temperature is set and monitored rather than estimated. Defrost is automatic and uses hot gas, clearing the evaporator without a manual routine, and the refrigeration runs at 60 dB. Rated energy use is 7709 kWh a year, which works out at about £1927 a year at 25p/kWh.

The room is cooled by an R290 hydrocarbon system with a 150 g charge, drawing 905 W from a 220–240 V/50 Hz supply. Access is through a single hinged solid door measuring 700 mm wide by 1845 mm high — check that against your trolleys and delivery route. This is a substantial unit at 605 kg net and 635 kg gross, so plan the floor and install access accordingly.

BEFORE YOU BUY

Questions, answered straight

The chiller room has a single hinged solid door measuring 700 mm wide by 1845 mm high. Check that aperture against your trolleys and the route from your delivery bay before installation.

It runs a 0 to +8 °C band for general chilled storage, set and monitored through an electronic controller.

Rated energy use is 7709 kWh a year, about £1927 a year at 25p/kWh. Actual cost depends on your tariff, ambient temperature and how often the door is opened.

The room weighs 605 kg net and 635 kg gross, so the floor and install access need planning ahead of delivery.

It is cooled by R290, a hydrocarbon refrigerant, with a 150 g charge, drawing 905 W from a 220–240 V/50 Hz supply. Defrost is automatic hot-gas and it runs at 60 dB.

Yes. Craven Cooling can arrange servicing and support — call 01792 732702 to discuss cover for your site.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

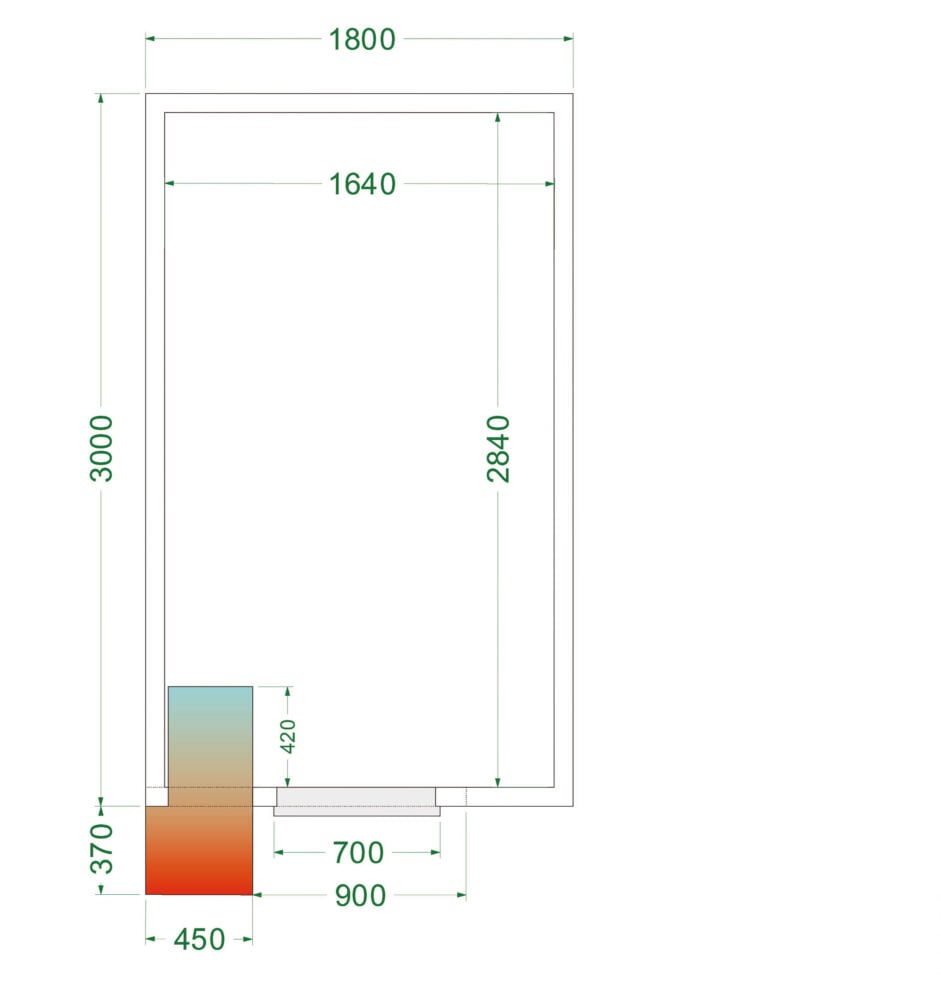

Dimensions

Internal Dimension (WxDxH): 1640 x 2840 x 2040 mm
External Dimension (WxDxH): 1800 x 3000 x 2200 mm
Packed Dimension (WxDxH): 2000 x 1600 x 2400 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 150 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 21.12 kWh/24h
Temperature Range: 0 to +8 °C
Annual Energy Consumption: 7709 kWh/year m³
Input Power: 905 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 60 dB(A)

Measures and Content

Internal Volume: 12.34 m³
Wall Thickness: 80 mm
Temperature Range: 0 to +8 °C
Gross / Net Weight: 635 / 605 kg
Max Load on Floor: 1500 kg/m² kg/m²

Design and Material

Door Reversible: Yes
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD CRPF1830 Chiller Room then please get in touch.
