TEFCOLD SOCB37582A Serve Over Counter

£6,047.00

+vat

Brand:

SKU: 54161

Energy Arrow

Product summary

  • Excellent product visibility
  • 825 mm deep stainless steel deck
  • Anti mist front glass
  • Glass front opens forward for easy cleaning
  • Stainless steel rear shelf
  • Ventilated cooling
  • Temperature Class 3M1
  • LED top light
  • 2 x 220-240V sockets to rear
  • Can be multiplexed with kit (POA)
  • Bumper bars

Product description

Ventilated serve over display counter

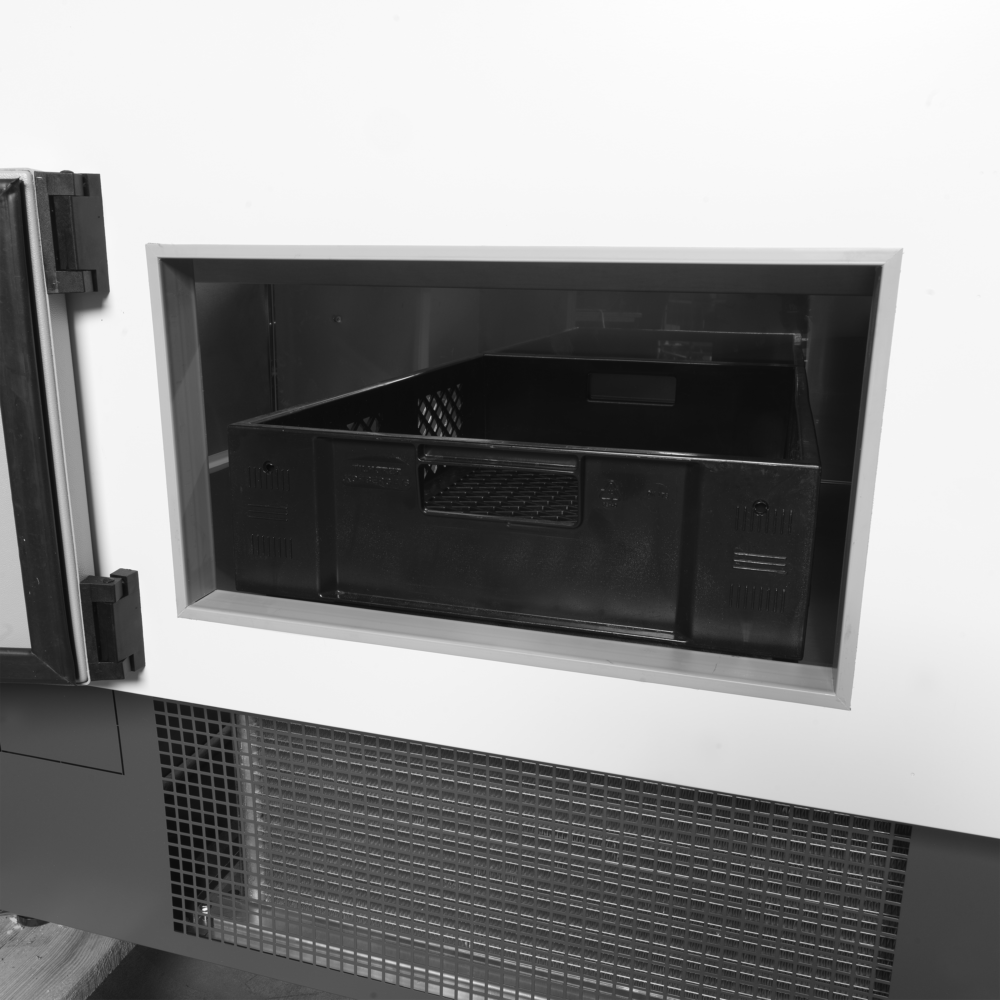

TEFCOLD’s SOCB serve over counters are perfect for delis, elevating food display with an 825mm stainless steel deck, LED lighting, and user-friendly front-opening glass for easy cleaning. Efficiently accommodate E2 boxes in the understorage and customise with a range of accessories. These units also seamlessly support cash register connectivity via 220-240V sockets. Get in touch with us for further information.

This TEFCOLD 3750 mm serve-over counter holds fresh goods at 0 to +4 °C across 3.31 m² of display area, running from a 13-amp supply on R290 refrigerant and drawing about £1,223 a year at 25p/kWh.

SPECIFICATION 39 facts · tap for all External W × D × H3798 x 1120 x 1190 mmWidth3798 mmDepth1120 mmGross / net weight565 / 470 kgGross weight565 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181739140site
Product code 54161site
Sub title Serve Over Countercatalogue
Type Fresh Meat Display Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 1120 mmsite
External (W×D×H) 3798 × 1120 × 1190 mmcatalogue
External W × D × H 3798 x 1120 x 1190 mmsite
Gross / net weight 565 / 470 kgsite
Gross weight 565 kgcatalogue
Height 1190 mmsite
Internal (W×D×H) 3750 × 825 × 545 mmcatalogue
Internal W × D × H 3750 x 825 x 545 mmsite
Packed (W×D×H) 4000 × 1250 × 1400 mmcatalogue
Packed W × D × H 4000 x 1250 x 1400 mmsite
Width 3798 mmsite

Capacity1

Display area 3.31 m²site

Performance8

Climate class 3site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automatic, electricsite
Refrigerant R290site
Refrigerant charge 2 x 150 gsite
Temperature range 0 to +4site
Thermometer Yessite

Power & energy6

Annual energy consumption 4891 kWh/yearsite
Energy consumption 13.4 kWh/24hsite
Energy efficiency index 73.8 %site
Input power 1382 Wsite
Noise level 59 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish Grey RAL7015site
Feet / legs Adjustable Feetsite
Interior light LEDsite

Other stated facts1

Energy class Fcatalogue
THE WORKING VIEW

Why this fresh meat display fridge earns its place

This TEFCOLD unit is a serve-over counter built to present fresh goods across 3.31 m² of display behind the glass. At 3750 mm of internal width it gives a long, continuous chilled run for staff to serve from — deli, patisserie or fresh food behind a single counter line. The exterior is finished in Grey RAL7015 over a stainless steel interior for durable, wipe-down service.

It holds temperature between 0 and +4 °C using ventilated cooling to keep an even chill across the full length of the display. Defrost is automatic and electric, so there is no manual cycle to manage, and an electronic controller runs the cabinet. Rated climate class 3, it is built to hold that band in a warm, busy trading environment, and running noise sits at 59 dB.

Internally the counter measures 3750 × 825 × 545 mm and it ships packed at 4000 × 1250 × 1400 mm — plan your access route and doorways around that 4000 mm packed width before delivery. It weighs 565 kg gross and 470 kg net, so position it on a floor and route that take the load. It runs from a standard 13-amp supply at 220-240 V, drawing 1382 W, and uses R290 refrigerant with a 150 g charge.

BEFORE YOU BUY

Questions, answered straight

It runs between 0 and +4 °C, held by ventilated cooling for an even chill across the full 3.31 m² display. An electronic controller manages the cabinet and defrost is automatic and electric.

The counter ships packed at 4000 × 1250 × 1400 mm (W×D×H), so measure your access route against that 4000 mm packed width before delivery. It weighs 565 kg gross, so plan for the load and enough hands or equipment to move it.

At its rated 4891 kWh a year, it works out at about £1,223 a year at 25p/kWh. It carries an F energy class with an energy efficiency index of 73.8.

It runs from a standard 13-amp supply at 220-240 V and draws 1382 W. No special electrics are required beyond a suitable socket on its own circuit.

It uses R290 with a 150 g charge, a low-GWP hydrocarbon refrigerant. Cooling is ventilated to keep temperature even across the display.

Yes — Craven Cooling can arrange servicing and support on 01792 732702. The cabinet uses an electronic controller and automatic electric defrost, so routine running needs little intervention.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 3750 x 825 x 545 mm
External Dimension (WxDxH): 3798 x 1120 x 1190 mm
Packed Dimension (WxDxH): 4000 x 1250 x 1400 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic, electric
Refrigerant: R290
Refrigerant Charge: 2 x 150 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 13.4 kWh/24h
Temperature Range: 0 to +4 °C
Annual Energy Consumption: 4891 kWh/year m³
EEI: 73.8 %
Input Power: 1382 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 59 dB(A)

Measures and Content

Temperature Range: 0 to +4 °C
Climate Class: 3
Gross / Net Weight: 565 / 470 kg
Gross / Net Volume: / 947 l
Total Display Area: 3.31 m² m²

Design and Material

Feet / Legs: Adjustable Feet
Exterior Finish: Grey RAL7015
Interior Finish: Grey RAL7015
Interior Light: LED
If you have any questions about the TEFCOLD SOCB37582A Serve Over Counter then please get in touch.
