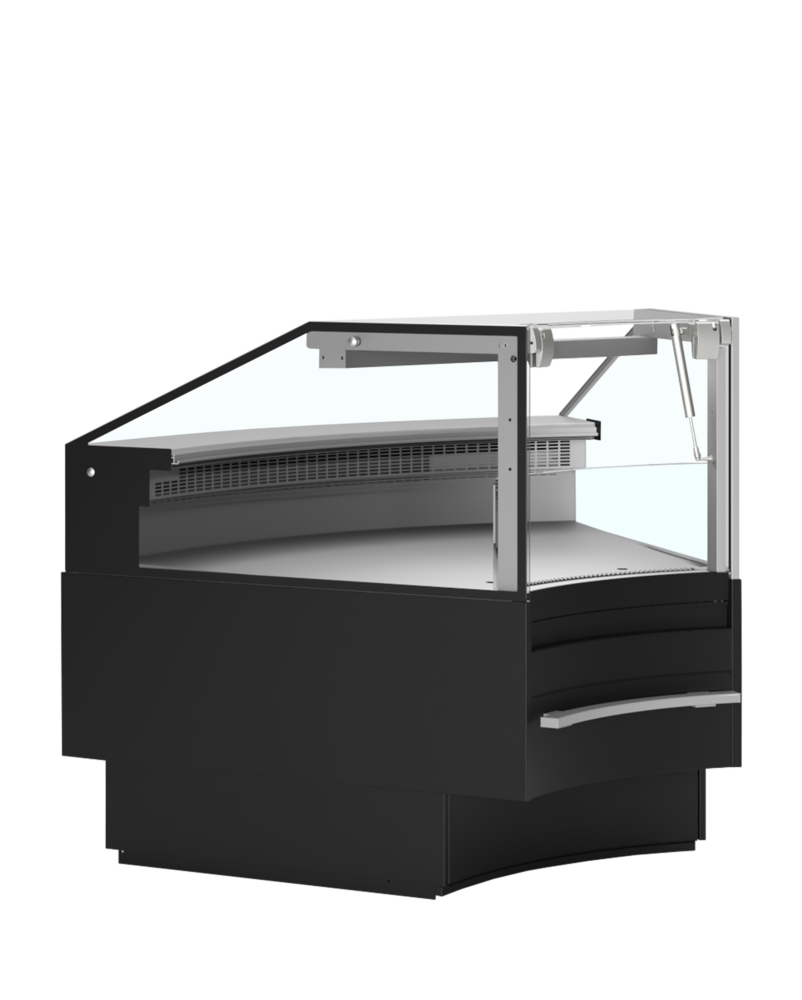

TEFCOLD SOCA45INTB Serve Over Counter

£4,330.00

+vat

- +

Brand:

SKU: 68477

Energy Arrow

Product summary

  • Excellent product visibility
  • Black finish
  • Glass front lifts up for easy cleaning
  • Temperature Class 3M1
  • Ventilated cooling
  • Anti mist front glass
  • LED top light
  • Stainless steel bumper bars
  • Stainless steel rear shelf
  • Can be multiplexed with kit (POA)

Product description

45° corner module for serve over counter

The SOC corner modules help create complete counter solutions in combination with other serve over counters from the same range. Choose between 45° or 90° counter displays for your perfect counter installation. Be aware that if the corner module is installed along with another SOCA counter, you cannot open the front glass on both units at the same time. Only suitable for use alongside SOCA counters (avoid opening both front glasses).

SPECIFICATION 36 facts · tap for all External W × D × Hx 1120 x 1190 mmDepth1120 mmGross / net weight220 / 180 kgGross weight220 kgVoltage / frequency220-240/50 V/HzInput power310 W

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181754112site
Product code 68477site
Sub title Serve Over Countercatalogue
Type Fresh Meat Display Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight8

Depth 1120 mmsite
External W × D × H x 1120 x 1190 mmsite
Gross / net weight 220 / 180 kgsite
Gross weight 220 kgcatalogue
Height 1190 mmsite
Internal W × D × H x 900 x 545 mmsite
Packed (W×D×H) 1500 × 1250 × 1400 mmcatalogue
Packed W × D × H 1500 x 1250 x 1400 mmsite

Capacity1

Display area 0.91 m²site

Performance10

Climate class 3site

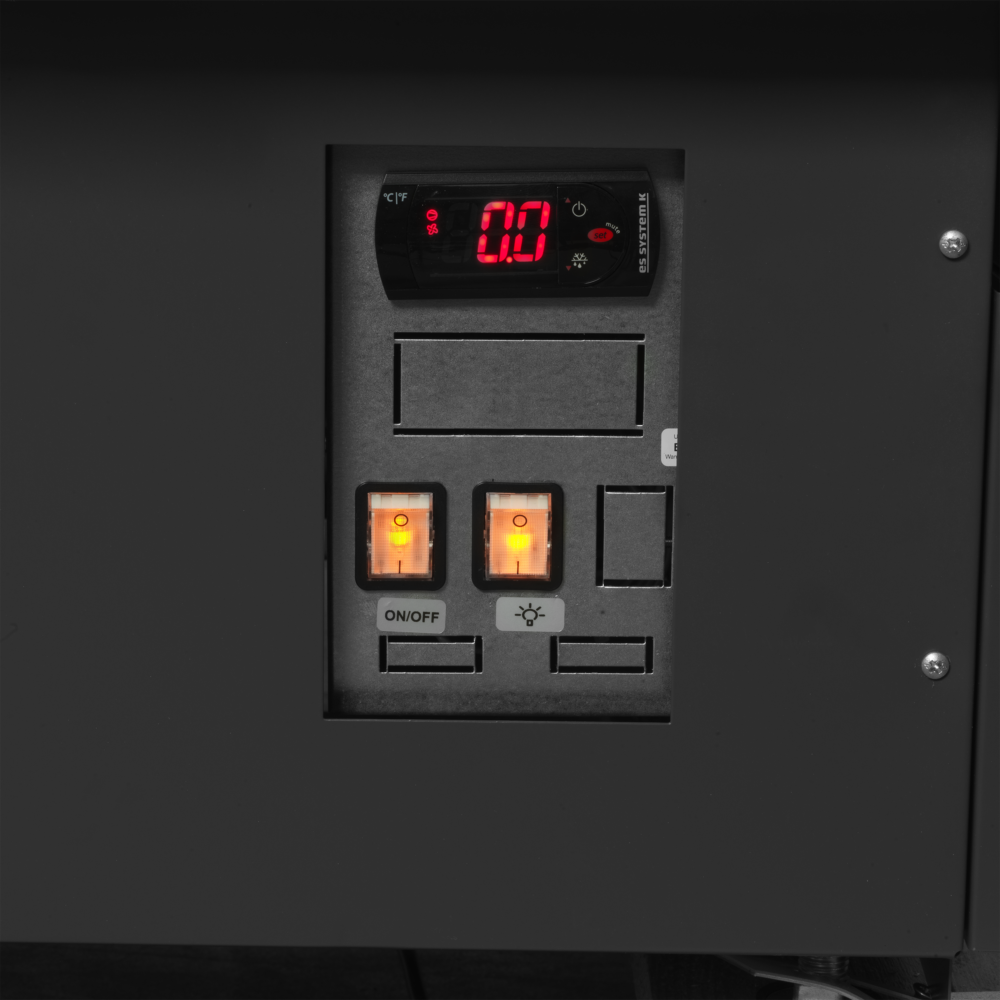

Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automatic, electricsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 130 gsite
Temperature range 0 to +4site
Thermometer Yessite

Power & energy5

Annual energy consumption 1606 kWh/yearsite
Energy consumption 4.4 kWh/24hsite
Input power 310 Wsite
Noise level 60 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish Black RAL9005site
Feet / legs Adjustable Feetsite
Interior light LEDsite
THE WORKING VIEW

Why this fresh meat display fridge earns its place

The TEFCOLD SOCA45INTB is a refrigerated serve-over counter for face-to-face fresh-food service, with a 0.91 m² display area that presents chilled produce to the customer while staff serve from behind. Its 0 to +4 °C temperature band suits fresh meat and other fresh goods that need a tight, cold hold, making it a working counter for a butcher, fishmonger or deli service point rather than a general chiller.

It holds 0 to +4 °C using ventilated cooling for an even temperature across the display, with an automatic electric defrost and electronic control. Natural R290 refrigerant (a 130 g charge) keeps its environmental impact low, and the cabinet draws 310 W. It is rated at climate class 3 and a noise level of 60 dB. On its rated 1606 kWh a year, running cost is about £402 a year at 25p/kWh.

This is a substantial counter at 220 kg gross and 180 kg net, so plan the delivery route and positioning with the weight in mind and use enough hands to move it safely. It runs from a standard 220–240 V / 50 Hz supply. Leave ventilation clearance around the cabinet so the ventilated cooling can hold temperature under a full load.

BEFORE YOU BUY

Questions, answered straight

It holds 0 to +4 °C using ventilated cooling with an electronic controller — a tight, cold band suited to fresh meat and other fresh produce. An automatic electric defrost runs the clearing cycle.

The refrigerated display area is 0.91 m², sized for counter service where staff serve customers from behind.

On its rated 1606 kWh a year, it works out at about £402 a year at 25p/kWh. It draws 310 W and uses natural R290 refrigerant. Check the figure against your own electricity tariff.

It weighs 220 kg gross and 180 kg net, so it is a two-or-more-person move. Plan the delivery route and final position before it arrives.

It uses natural R290 refrigerant with a 130 g charge and ventilated cooling for even temperature across the display, controlled electronically.

Yes. For siting advice, commissioning or ongoing servicing, call the service team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): x 900 x 545 mm
External Dimension (WxDxH): x 1120 x 1190 mm
Packed Dimension (WxDxH): 1500 x 1250 x 1400 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic, electric
Refrigerant: R290
Refrigerant Charge: 130 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 4.4 kWh/24h
Temperature Range: 0 to +4 °C
Annual Energy Consumption: 1606 kWh/year m³
Input Power: 310 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 60 dB(A)

Measures and Content

Temperature Range: 0 to +4 °C
Climate Class: 3
Gross / Net Weight: 220 / 180 kg
Gross / Net Volume: / 230 l
Max Ambient: +25°C, 60% RH
Total Display Area: 0.91 m² m²

Design and Material

Feet / Legs: Adjustable Feet
Exterior Finish: Black RAL9005
Interior Finish: Black RAL9005
Interior Light: LED
If you have any questions about the TEFCOLD SOCA45INTB Serve Over Counter then please get in touch.
