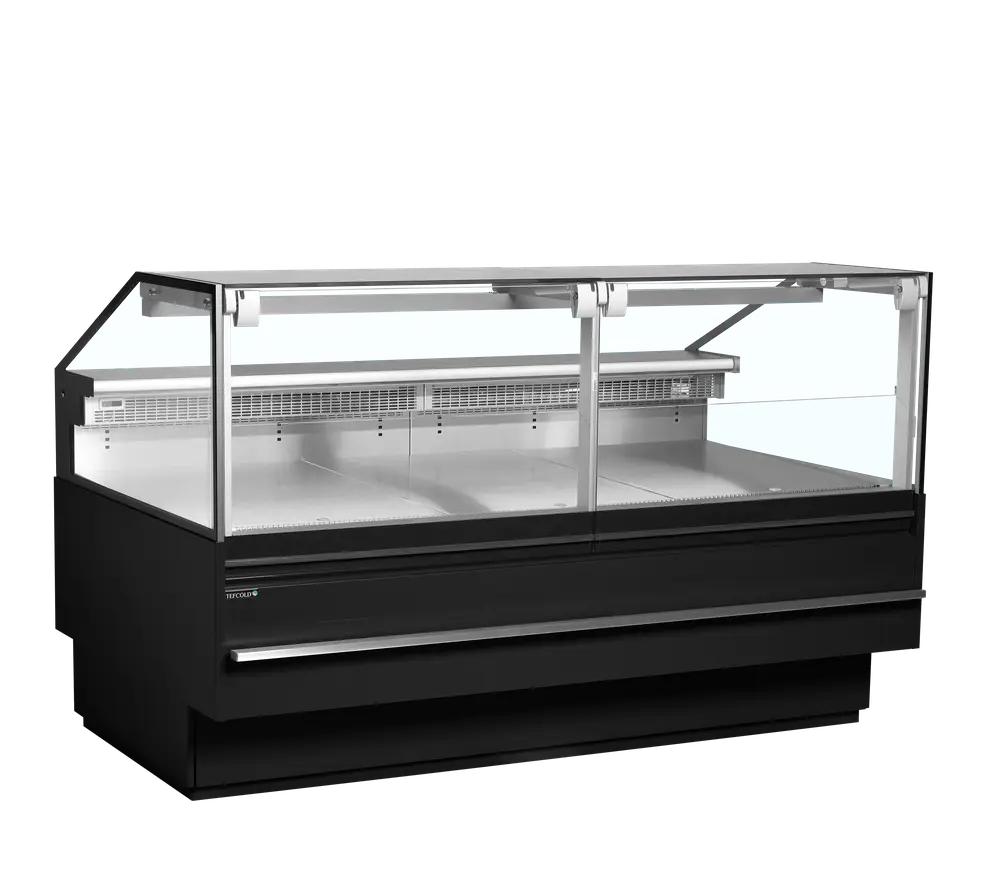

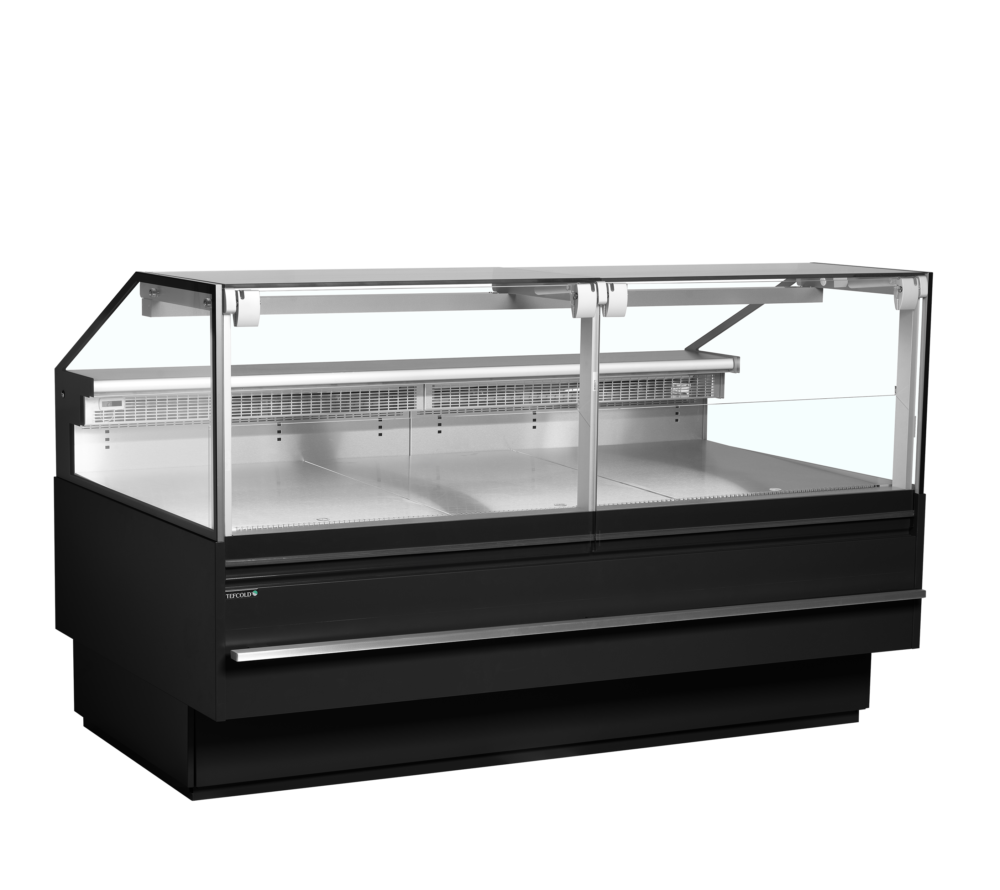

TEFCOLD SOCA18790B Serve Over Counter

£4,749.00

+vat

- +

Brand:

SKU: 69156

Energy Arrow

Product summary

  • Black finish
  • Excellent product visibility
  • 900 mm deep stainless steel deck
  • Anti mist front glass
  • Glass front lifts up for easy cleaning
  • Stainless steel rear shelf
  • Ventilated cooling
  • Temperature Class 3M1
  • LED top light
  • Stainless steel bumper bars
  • 2 x 220-240V sockets to rear
  • Can be multiplexed with kit (POA)

Product description

Premium serve over counter display with 900 mm deck

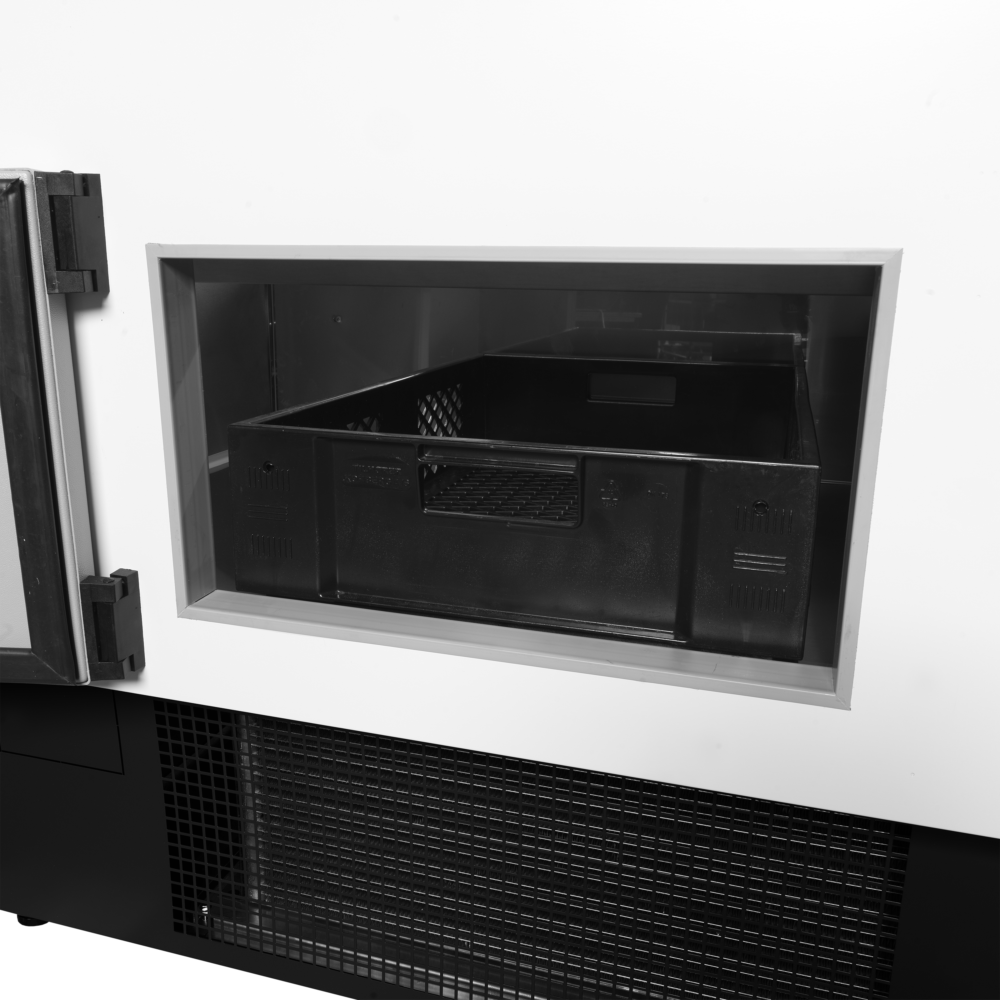

TEFCOLD’s SOCA range provides exceptional serve over counters, perfect for butchers and delis. With its stylish and functional design, the counter boasts anti mist glass, LED lighting, and a 900mm deep deck with ventilated cooling. The lift-up front glass allows for effortless cleaning of the stainless-steel deck, while the understorage caters to E2 boxes. Enjoy the convenience of personalisation with multiplexing and various accessories.

The TEFCOLD SOCA18790B is a black flat-glass serve-over counter with a 1.77 m² display area, holding 0 to +4 °C on ventilated cooling with automatic electric defrost, rated energy class E and running on R290 refrigerant at about £685 a year at 25p/kWh.

SPECIFICATION 40 facts · tap for all External W × D × H1923 x 1120 x 1190 mmWidth1923 mmDepth1120 mmGross / net weight310 / 250 kgGross weight310 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181755713site
Product code 69156site
Sub title Serve Over Countercatalogue
Type Fresh Meat Display Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 1120 mmsite
External (W×D×H) 1923 × 1120 × 1190 mmcatalogue
External W × D × H 1923 x 1120 x 1190 mmsite
Gross / net weight 310 / 250 kgsite
Gross weight 310 kgcatalogue
Height 1190 mmsite
Internal (W×D×H) 1875 × 900 × 545 mmcatalogue
Internal W × D × H 1875 x 900 x 545 mmsite
Packed (W×D×H) 2100 × 1250 × 1400 mmcatalogue
Packed W × D × H 2100 x 1250 x 1400 mmsite
Width 1923 mmsite

Capacity1

Display area 1.77 m²site

Performance8

Climate class 3site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automatic, electricsite
Refrigerant R290site
Refrigerant charge 150 gsite
Temperature range 0 to +4site
Thermometer Yessite

Power & energy6

Annual energy consumption 2738 kWh/yearsite
Energy consumption 7.5 kWh/24hsite
Energy efficiency index 63.8 %site
Input power 480 Wsite
Noise level 59 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish Black RAL9005site
Feet / legs Adjustable Feetsite
Interior light LEDsite

Other stated facts1

Energy class Ecatalogue
THE WORKING VIEW

Why this fresh meat display fridge earns its place

The SOCA18790B is a flat-glass serve-over counter with a 1.77 m² display area finished in black RAL 9005, giving fresh food a high-contrast backdrop that makes colours read clearly across the counter. The low flat-glass front is built for face-to-face service, so an assistant works the stock from behind while customers see the full spread — a working counter for fresh meat, fish and chilled produce rather than a self-select cabinet.

Cooling is ventilated, holding a tight 0 to +4 °C band with automatic electric defrost and an electronic controller to keep the temperature steady through service. It is rated to climate class 3 and runs at a measured 59 dB. On energy it sits in class E, drawing 2738 kWh a year — about £685 a year at 25p/kWh — with a measured energy efficiency index of 63.8%.

Internally the display bed measures 1875 × 900 × 545 mm (W×D×H), and the counter ships on a 2100 × 1250 × 1400 mm pallet, so check the delivery route and doorway against the crate before it arrives. It is heavy at 310 kg gross, 250 kg net, runs from a standard 220-240 V/50 Hz supply, draws 480 W, and uses 150 g of R290 refrigerant.

BEFORE YOU BUY

Questions, answered straight

It holds 0 to +4 °C on ventilated cooling, with automatic electric defrost and an electronic controller. That band suits fresh meat, fish and chilled produce on display.

It sits in energy class E, drawing 2738 kWh a year — about £685 a year at 25p/kWh. Actual cost depends on your own electricity tariff.

The display bed is 1.77 m², measuring 1875 × 900 × 545 mm (W×D×H) internally. It ships on a 2100 × 1250 × 1400 mm pallet, so check your doorway and delivery route against the crate.

It uses R290 refrigerant with a 150 g charge — a natural hydrocarbon refrigerant with a very low global warming potential.

It runs at a measured 59 dB, worth factoring into siting if the counter sits close to seated customers.

Yes — our engineers cover installation and servicing. Call the team on 01792 732702 to arrange delivery, siting or a maintenance plan.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1875 x 900 x 545 mm
External Dimension (WxDxH): 1923 x 1120 x 1190 mm
Packed Dimension (WxDxH): 2100 x 1250 x 1400 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic, electric
Refrigerant: R290
Refrigerant Charge: 150 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 7.5 kWh/24h
Temperature Range: 0 to +4 °C
Annual Energy Consumption: 2738 kWh/year m³
EEI: 63.8 %
Input Power: 480 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 59 dB(A)

Measures and Content

Temperature Range: 0 to +4 °C
Climate Class: 3
Gross / Net Weight: 310 / 250 kg
Gross / Net Volume: / 489 l
Total Display Area: 1.77 m² m²

Design and Material

Feet / Legs: Adjustable Feet
Exterior Finish: Black RAL9005
Interior Finish: Black RAL9005
Interior Light: LED
If you have any questions about the TEFCOLD SOCA18790B Serve Over Counter then please get in touch.
