TEFCOLD SOCA-F25090B Serve Over Counter

£6,565.00

+vat

- +

Brand:

SKU: 68878

Energy Arrow

Product summary

  • Excellent product visibility
  • 50 mm deep tray for ice
  • Glass front lifts up for easy cleaning
  • Anti mist front glass
  • Black finish
  • Ventilated cooling
  • Temperature Class 3M1
  • LED top light
  • Stainless steel bumper bars
  • Stainless steel rear shelf
  • 2 x 220-240V sockets to rear
  • Can be multiplexed with kit (POA)

Product description

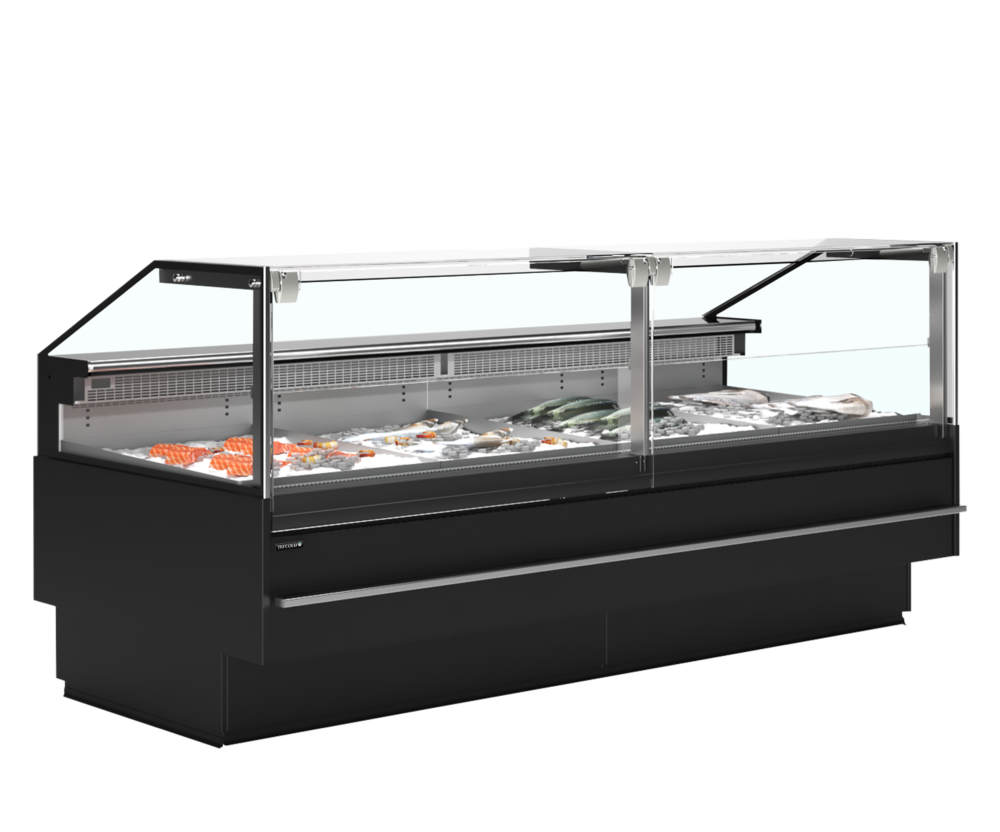

Premium serve over counter ideal for displaying fresh fish

The SOCA-F range of serve over counters is specifically designed to display fresh fish on ice. The stainless steel deck features a 50 mm deep tray, perfect for storing and layering the ice. The front glass lifts up for easy cleaning and the glass is anti-mist. You can also customise these units with accessories, with multiplexing options to create a full counter solution.

The TEFCOLD SOCA-F25090B is a 2.5-metre serve-over counter with 2.03 m² of display area holding -1 to +5 °C, using ventilated cooling, automatic electric defrost and R290 refrigerant, rated at 3,650 kWh a year for deli, meat and fish service.

SPECIFICATION 39 facts · tap for all External W × D × H2548 x 1130 x 1190 mmWidth2548 mmDepth1130 mmGross / net weight410 / 325 kgGross weight410 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181754815site
Product code 68878site
Sub title Serve Over Countercatalogue
Type Flat Glass Serve Over Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 1130 mmsite
External (W×D×H) 2548 × 1130 × 1190 mmcatalogue
External W × D × H 2548 x 1130 x 1190 mmsite
Gross / net weight 410 / 325 kgsite
Gross weight 410 kgcatalogue
Height 1190 mmsite
Internal (W×D×H) 2500 × 900 × 545 mmcatalogue
Internal W × D × H 2500 x 900 x 545 mmsite
Packed (W×D×H) 2750 × 1250 × 1400 mmcatalogue
Packed W × D × H 2750 x 1250 x 1400 mmsite
Width 2548 mmsite

Capacity1

Display area 2.03 m²site

Performance10

Climate class 3site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automatic, electricsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 2 x 150 gsite
Temperature range -1 to +5site
Thermometer Yessite

Power & energy5

Annual energy consumption 3650 kWh/yearsite
Energy consumption 10 kWh/24hsite
Input power 690 Wsite
Noise level 60 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish Black RAL9005site
Feet / legs Adjustable Feetsite
Interior light LEDsite
THE WORKING VIEW

Why this flat glass serve over fridge earns its place

The TEFCOLD SOCA-F25090B is a serve-over counter built for deli, meat and fish service, with 2.03 m² of display area behind the glass. At 2500 mm wide it gives a full counter run for a fresh-food spread, presented to customers across the front while staff serve from the rear.

The counter holds -1 to +5 °C using ventilated cooling for an even chill across the deck, with automatic electric defrost keeping the display clear through the day and an electronic controller managing the running. It uses R290 refrigerant with a 150 g charge, runs at 60 dB and draws 690 W. Rated at 3,650 kWh a year, that is about £913 a year at 25p/kWh.

The counter measures 2500 × 1130 × 1190 mm (W×D×H) and ships packed at 2750 × 1250 × 1400 mm (W×D×H), so plan a wide, clear delivery route. It is heavy at 410 kg gross and 325 kg net — a solid, level floor is needed — and runs on a 220–240 V/50 Hz supply with R290 refrigerant.

BEFORE YOU BUY

Questions, answered straight

-1 to +5 °C, using ventilated cooling for an even chill across the display.

2.03 m² of display area across a 2500 mm-wide counter.

It is rated at 3,650 kWh a year — about £913 a year at 25p/kWh — drawing 690 W.

It ships packed at 2750 × 1250 × 1400 mm (W×D×H) and weighs 410 kg gross, so plan a wide, clear route and a solid, level floor.

R290, with a 150 g charge.

Yes. Craven Cooling can arrange servicing and support — call the team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 2500 x 900 x 545 mm
External Dimension (WxDxH): 2548 x 1130 x 1190 mm
Packed Dimension (WxDxH): 2750 x 1250 x 1400 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic, electric
Refrigerant: R290
Refrigerant Charge: 2 x 150 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 10 kWh/24h
Temperature Range: -1 to +5 °C
Annual Energy Consumption: 3650 kWh/year m³
Input Power: 690 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 60 dB(A)

Measures and Content

Temperature Range: -1 to +5 °C
Climate Class: 3
Gross / Net Weight: 410 / 325 kg
Gross / Net Volume: / 620 l
Max Ambient: +25°C, 60% RH
Total Display Area: 2.03 m² m²

Design and Material

Feet / Legs: Adjustable Feet
Exterior Finish: Black RAL9005
Interior Finish: Black RAL9005
Interior Light: LED
If you have any questions about the TEFCOLD SOCA-F25090B Serve Over Counter then please get in touch.
