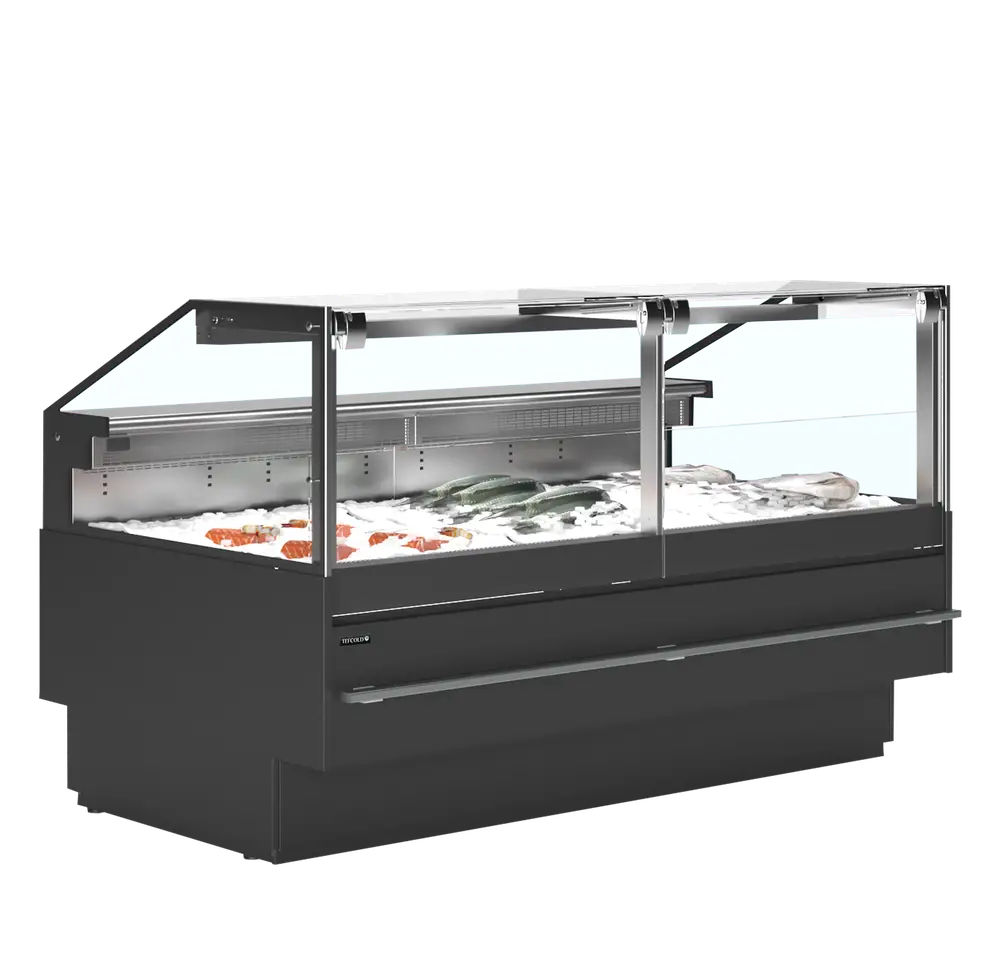

TEFCOLD SOCA-F18790B Serve Over Counter

£5,313.00

+vat

- +

Brand:

SKU: 68875

Energy Arrow

Product summary

  • Excellent product visibility
  • 50 mm deep tray for ice
  • Glass front lifts up for easy cleaning
  • Anti mist front glass
  • Black finish
  • Ventilated cooling
  • Temperature Class 3M1
  • LED top light
  • Stainless steel bumper bars
  • Stainless steel rear shelf
  • 2 x 220-240V sockets to rear
  • Can be multiplexed with kit (POA)

Product description

Premium serve over counter display for fresh fish on ice

The SOCA-F range of serve over counters is specifically designed to display fresh fish on ice. The stainless steel deck features a 50 mm deep tray, perfect for storing and layering the ice. The front glass lifts up for easy cleaning and the glass is anti-mist. You can also customise these units with accessories, with multiplexing options to create a full counter solution.

The TEFCOLD SOCA-F18790B is a 1875 mm flat-glass serve-over counter with a 1.55 m² display area, holding -1 to +5 °C on ventilated cooling with automatic electric defrost, running on natural R290 refrigerant at about £684 a year at 25p/kWh.

SPECIFICATION 39 facts · tap for all External W × D × H1923 x 1130 x 1190 mmWidth1923 mmDepth1130 mmGross / net weight310 / 250 kgGross weight310 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181754792site
Product code 68875site
Sub title Serve Over Countercatalogue
Type Flat Glass Serve Over Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 1130 mmsite
External (W×D×H) 1923 × 1130 × 1190 mmcatalogue
External W × D × H 1923 x 1130 x 1190 mmsite
Gross / net weight 310 / 250 kgsite
Gross weight 310 kgcatalogue
Height 1190 mmsite
Internal (W×D×H) 1875 × 900 × 545 mmcatalogue
Internal W × D × H 1875 x 900 x 545 mmsite
Packed (W×D×H) 2100 × 1250 × 1400 mmcatalogue
Packed W × D × H 2100 x 1250 x 1400 mmsite
Width 1923 mmsite

Capacity1

Display area 1.55 m²site

Performance10

Climate class 3site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automatic, electricsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 150 gsite
Temperature range -1 to +5site
Thermometer Yessite

Power & energy5

Annual energy consumption 2737.5 kWh/yearsite
Energy consumption 7.5 kWh/24hsite
Input power 480 Wsite
Noise level 60 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish Black RAL9005site
Feet / legs Adjustable Feetsite
Interior light LEDsite
THE WORKING VIEW

Why this flat glass serve over fridge earns its place

The SOCA-F18790B is a flat-glass serve-over counter built for face-to-face service across a 1.55 m² display area. The low flat-glass front puts chilled stock at eye level for the customer while the assistant serves from behind, making it a working counter for delis, farm shops and fresh-food sections rather than a self-select cabinet. At 1875 mm wide it gives a generous merchandising run in a single unit.

Cooling is ventilated, holding a -1 to +5 °C band that reaches cold enough for fresh fish and highly perishable chilled produce, with automatic electric defrost and an electronic controller keeping the temperature steady through the trading day. It is rated to climate class 3 and runs at a measured 60 dB. On energy it draws 2737.5 kWh a year, which works out at about £684 a year at 25p/kWh.

The cabinet measures 1875 × 1130 × 1190 mm (W×D×H) and ships on a 2100 × 1250 × 1400 mm pallet, so check both the doorway and the delivery route before it arrives — it is a heavy unit at 310 kg gross, 250 kg net. It runs from a standard 220-240 V/50 Hz supply, draws 480 W, and uses 150 g of R290 refrigerant.

BEFORE YOU BUY

Questions, answered straight

It holds -1 to +5 °C on ventilated cooling, with automatic electric defrost and an electronic controller. The -1 °C low is cold enough for fresh fish and highly perishable chilled produce.

It draws 2737.5 kWh a year, which is about £684 a year at 25p/kWh. Actual cost depends on your own electricity tariff.

The cabinet is 1875 × 1130 × 1190 mm (W×D×H) and ships on a 2100 × 1250 × 1400 mm pallet. Measure your doorway and delivery route against both figures before ordering.

It uses natural R290 refrigerant with a 150 g charge. R290 is a hydrocarbon refrigerant with a very low global warming potential.

It runs at a measured 60 dB. Factor that into siting if the counter sits close to seated customers.

Yes — our engineers cover installation and servicing. Call the team on 01792 732702 to arrange a visit or discuss a maintenance plan.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1875 x 900 x 545 mm
External Dimension (WxDxH): 1923 x 1130 x 1190 mm
Packed Dimension (WxDxH): 2100 x 1250 x 1400 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic, electric
Refrigerant: R290
Refrigerant Charge: 150 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 7.5 kWh/24h
Temperature Range: -1 to +5 °C
Annual Energy Consumption: 2737.5 kWh/year m³
Input Power: 480 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 60 dB(A)

Measures and Content

Temperature Range: -1 to +5 °C
Climate Class: 3
Gross / Net Weight: 310 / 250 kg
Gross / Net Volume: / 465 l
Max Ambient: +25°C, 60% RH
Total Display Area: 1.55 m² m²

Design and Material

Feet / Legs: Adjustable Feet
Exterior Finish: Black RAL9005
Interior Finish: Black RAL9005
Interior Light: LED
If you have any questions about the TEFCOLD SOCA-F18790B Serve Over Counter then please get in touch.
