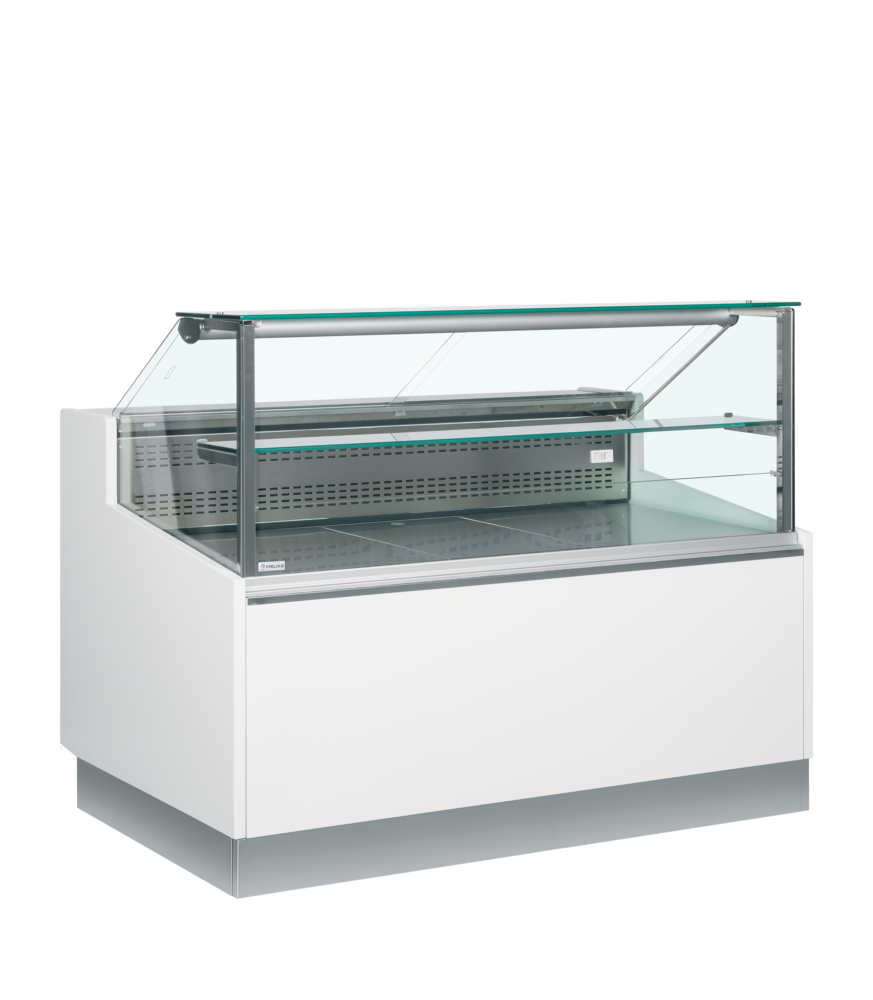

TEFCOLD BRABANT 100 Serve Over Counter

£1,828.00

+vat

- +

Brand:

SKU: 18809

Energy Arrow

Product summary

  • Fully automatic
  • Static cooling
  • Adjustable feet
  • LED interior light with switch
  • Digital controller and temperature display
  • Ambient shelf
  • Easy access understorage
  • Front glass hinges forward if required
  • 13 Amp socket to rear for scales/till etc.
  • Stainless rear shelf
  • Stainless deck
  • Number of storage doors: 100 = 1, 150 =1, 200 = 2,

Product description

The Brabant range of serveovers offers a contemporary minimalist design with stylish vertical flat front glass. The airflow of the unit is designed to enable even cooling over the whole deck without the need for a fan, ensuring delicate food does not dry out. The unit also benefits from the convenience of refrigerated understorage as standard. The unit is finished in white with stainless rear serving shelf, deck and kick plates.

The Tefcold Brabant 100 is a serve over display counter measuring 953 × 973 × 1195 mm (W×D×H) that holds +2 to +8 °C across a 0.77 m² display area with static cooling, an electronic controller and R290 refrigerant, drawing about £271 a year in electricity at 25p/kWh.

SPECIFICATION 40 facts · tap for all External W × D × H953 x 973 x 1195 mmWidth953 mmDepth973 mmGross / net weight230 / 190 kgGross weight230 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5600380522854site
Product code 18809site
Sub title Serve Over Countercatalogue
Type Flat Glass Serve Over Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight10

Depth 973 mmsite
External (W×D×H) 953 × 973 × 1195 mmcatalogue
External W × D × H 953 x 973 x 1195 mmsite
Gross / net weight 230 / 190 kgsite
Gross weight 230 kgcatalogue
Height 1195 mmsite
Internal W × D × H 900 x 670 mmsite
Packed (W×D×H) 1100 × 1100 × 1380 mmcatalogue
Packed W × D × H 1100 x 1100 x 1380 mmsite
Width 953 mmsite

Capacity1

Display area 0.77 m²site

Performance10

Climate class 3site
Controller Electronicsite
Cooling type Staticsite
Defrost type Automatic / Off Cyclesite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 150 gsite
Temperature range +2 to +8site
Thermometer Yessite

Power & energy6

Annual energy consumption 1084 kWh/yearsite
Energy consumption 2.97 kWh/24hsite
Energy efficiency index 42 %site
Input power 223 Wsite
Noise level 69 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish Whitesite
Feet / legs Adjustable Feetsite
Interior light LEDsite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this flat glass serve over fridge earns its place

The Tefcold Brabant 100 is a serve over display counter, finished in white with a stainless steel interior and a 0.77 m² display area for presenting chilled product across the counter to customers. It is a counter centrepiece for over-the-counter service of deli lines, patisserie, meats and other chilled items where the display area is doing the selling.

It holds a temperature band of +2 to +8 °C using static cooling, managed by an electronic controller, with automatic/off-cycle defrost handling routine defrosting on its own. The cabinet carries energy class D and draws 1084.1 kWh a year, about £271 a year in electricity at 25p/kWh, and is built to climate class 3 for normal indoor conditions. It is rated at 69 dB, so site it with that noise level in mind on a customer-facing counter.

The cabinet measures 953 × 973 × 1195 mm (W×D×H). At 953 mm wide it will not pass through a standard single internal doorway of around 762 mm, so check for wide or double-door access on the route to its final position. Power is a standard 220-240V, 13A supply on a dedicated socket. Cooling uses R290, a natural hydrocarbon refrigerant, with a charge of 150 grams. At 230 kg gross and 190 kg net it is a heavy unit, so plan mechanical or multi-person handling for delivery.

BEFORE YOU BUY

Questions, answered straight

At 953 × 973 × 1195 mm (W×D×H), it will not pass a standard single internal doorway of about 762 mm, so plan wide or double-door access on the route to its final position.

Yes — it holds a chilled band of +2 to +8 °C using static cooling with an electronic controller and automatic/off-cycle defrost, which suits chilled deli, meat and patisserie counter display.

It draws 1084.1 kWh a year at energy class D, which is about £271 a year in electricity at 25p/kWh. Your figure depends on your tariff and how the counter is worked.

A standard 220-240V, 13A supply on a dedicated socket. No three-phase or special electrical provision is required.

Yes — it uses R290, a natural hydrocarbon refrigerant with a low global-warming impact, with a charge of 150 grams.

It weighs 230 kg gross and 190 kg net, so plan mechanical or multi-person handling. Craven Cooling services the cabinets we supply — call 01792 732702 to arrange installation or servicing.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 900 x 670 mm
External Dimension (WxDxH): 953 x 973 x 1195 mm
Packed Dimension (WxDxH): 1100 x 1100 x 1380 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Automatic / Off Cycle
Refrigerant: R290
Refrigerant Charge: 150 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.97 kWh/24h
Temperature Range: +2 to +8 °C
Annual Energy Consumption: 1084 kWh/year m³
EEI: 42 %
Input Power: 223 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 69 dB(A)

Measures and Content

Temperature Range: +2 to +8 °C
Climate Class: 3
Gross / Net Weight: 230 / 190 kg
Gross / Net Volume: / l
Max Ambient: +25°C, 60% RH
Total Display Area: 0.77 m² m²

Design and Material

Feet / Legs: Adjustable Feet
Exterior Finish: White
Interior Finish: White
Interior Light: LED
If you have any questions about the TEFCOLD BRABANT 100 Serve Over Counter then please get in touch.
