TEFCOLD BC85 Glass Door Merchandiser

£510.00 £324.00

+vat

- +

Brand:

SKU: 34024

Energy Arrow

Product summary

  • Curved reversible glass door

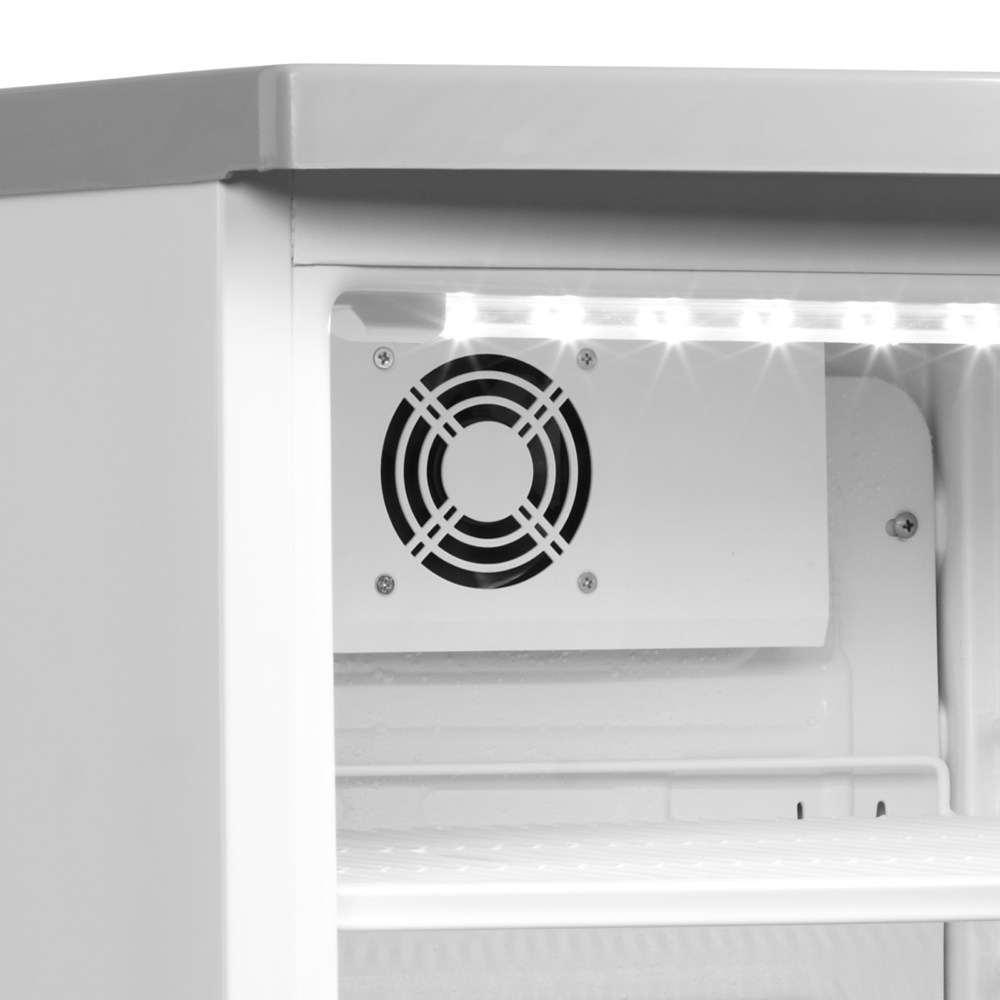

  • Fan assisted cooling

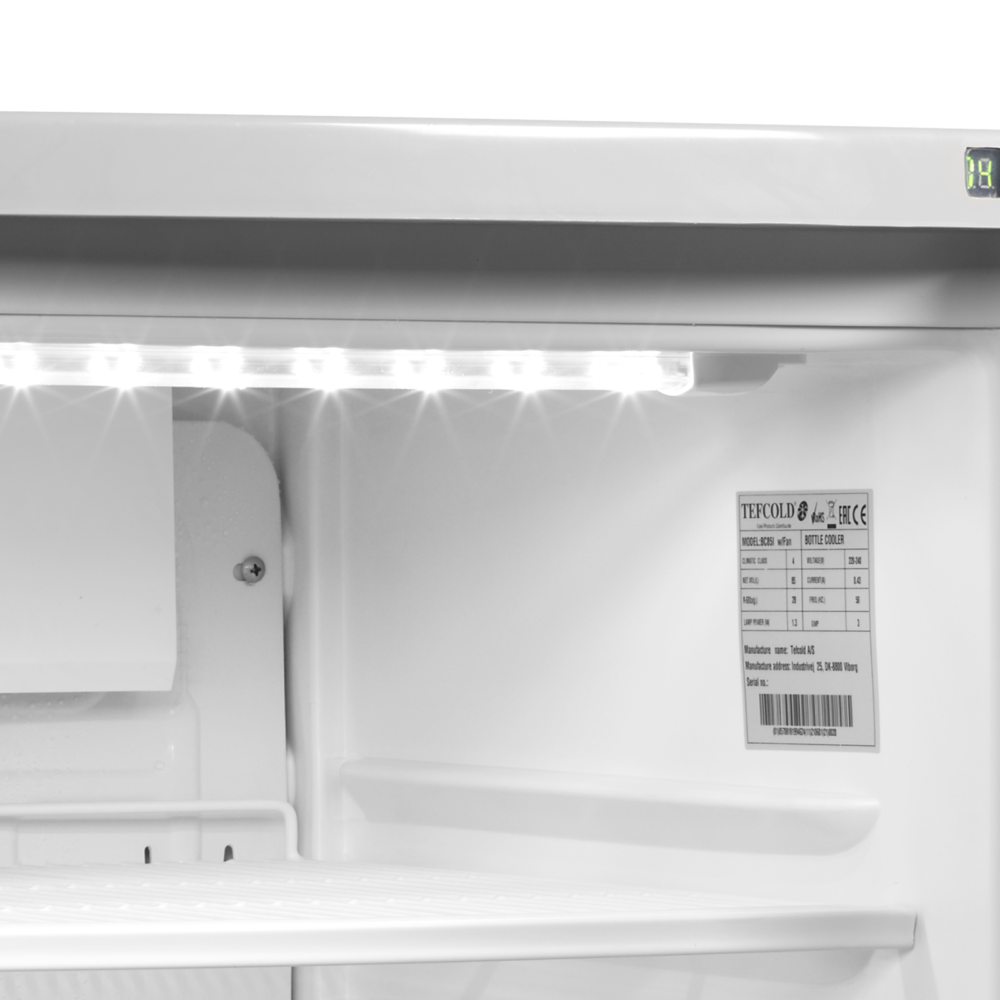

  • LED interior light
  • Hinged glass door
  • Adjustable shelves
  • Adjustable feet
  • Digital temperature display

Product description

A well designed undercounter fridge with great looking curved glass door. With an internal light and integral lock it is an ideal drinks chiller for a wide variety of situations, the unit is fan assisted to ensure you get even cooling over the whole cabinet.

The Tefcold BC85 is a compact under-counter glass-door merchandiser holding 92 litres gross (85 net) on three white wire shelves, running +2 to +10 °C behind a curved glass door, energy class C at 306 kWh a year.

Sale!
SPECIFICATION 50 facts · tap for all External W × D × H503 x 567 x 775 mmWidth503 mmDepth567 mmGross / net weight38 / 33 kgGross weight38 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181994624site
Product code 34024site
Sub title Glass Door Merchandisercatalogue
Type Under Counter Glass Door Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 567 mmsite
External (W×D×H) 503 × 567 × 775 mmcatalogue
External W × D × H 503 x 567 x 775 mmsite
Gross / net weight 38 / 33 kgsite
Gross weight 38 kgcatalogue
Height 775 mmsite
Internal (W×D×H) 410 × 415 × 630 mmcatalogue
Internal W × D × H 410 x 415 x 630 mmsite
Packed (W×D×H) 570 × 610 × 810 mmcatalogue
Packed W × D × H 570 x 610 x 810 mmsite
Width 503 mmsite

Capacity7

330ml bottles 43 pcssite
330ml cans 93 pcssite
500ml cans 68 pcssite
Display area 0.263 m²site
Doors 1catalogue
Gross volume 92 litrescatalogue
Shelves 3catalogue

Performance10

Climate class 4site
Controller Mechanicalsite
Cooling type Fan assistedsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 28 gsite
Temperature range +2 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 387 kWh/yearsite
Energy consumption 1.06 kWh/24hsite
Energy efficiency index 31 %site
Input power 165 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings5

Exterior finish Whitesite
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Max load per shelf 196site
Shelf dimensions 406 x 355 mmsite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this under counter glass door fridge earns its place

The Tefcold BC85 is a compact under-counter glass-door merchandiser for chilled impulse lines. A single curved glass door and three white wire shelves display 92 litres of gross volume (85 litres net), putting cold drinks and snacks in view at the point of sale. The white exterior and white ABS interior keep it neat on a counter or under a bar.

It holds a +2 to +10 °C band with automatic defrost, set on a mechanical controller. It uses R600a refrigerant with a 28 g charge and runs at 45 dB, and carries climate class 4, rated for standard ambient trading conditions. At energy class C it draws just 306 kWh a year — about £77 a year at 25p/kWh.

The interior load space measures 410 mm wide, 415 mm deep and 630 mm tall, and the unit ships boxed at 570 × 610 × 810 mm, so check your counter space and access route against that figure. It runs from a standard 13-amp socket, draws 165 W, and weighs 38 kg gross, 33 kg net — light enough to lift into place.

BEFORE YOU BUY

Questions, answered straight

92 litres gross and 85 litres net across three white wire shelves, behind a single curved glass door.

A +2 to +10 °C band with automatic defrost, set on a mechanical controller.

It is energy class C and uses 306 kWh a year, roughly £77 a year at 25p/kWh. Your actual cost depends on your tariff.

A standard 13-amp socket. It draws 165 W in use and uses R600a refrigerant with a 28 g charge.

The interior load space is 410 × 415 × 630 mm and it ships boxed at 570 × 610 × 810 mm. Measure your counter space and access route against the packed dimensions.

Yes. Craven Cooling runs its own service operation and can support Tefcold cabinets in the field. Call 01792 732702 to arrange a visit or talk a fault through.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 410 x 415 x 630 mm
External Dimension (WxDxH): 503 x 567 x 775 mm
Packed Dimension (WxDxH): 570 x 610 x 810 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Fan assisted
Type of Defrost: Automatic
Refrigerant: R600a
Refrigerant Charge: 28 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 1.06 kWh/24h
Temperature Range: +2 to +10 °C
Annual Energy Consumption: 387 kWh/year m³
EEI: 31 %
Input Power: 165 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Cans 330 ml: 93 pcs pcs
Cans 500 ml: 68 pcs pcs
Bottles 330 ml: 43 pcs pcs
Temperature Range: +2 to +10 °C
Climate Class: 4
Gross / Net Weight: 38 / 33 kg
Gross / Net Volume: 92 / 85 l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.263 m² m²

Design and Material

Door Reversible: Yes
Shelf Color: White
Shelf Dimensions: 406 x 355 mm
Max load on Shelves: 196 kg/m²
Feet / Legs: 4 adjustable feet
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD BC85 Glass Door Merchandiser then please get in touch.
