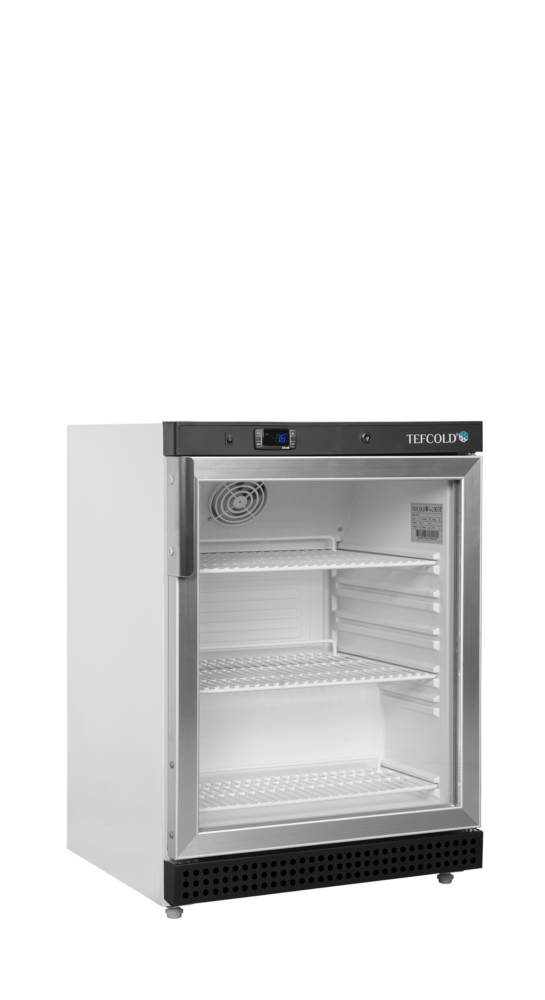

TEFCOLD UR200G Glass Door Merchandiser

£358.00

+vat

- +

Brand:

SKU: 33849

Energy Arrow

Product summary

  • Hinged glass door
  • Electronic thermostat
  • LED interior light with switch
  • Adjustable shelves

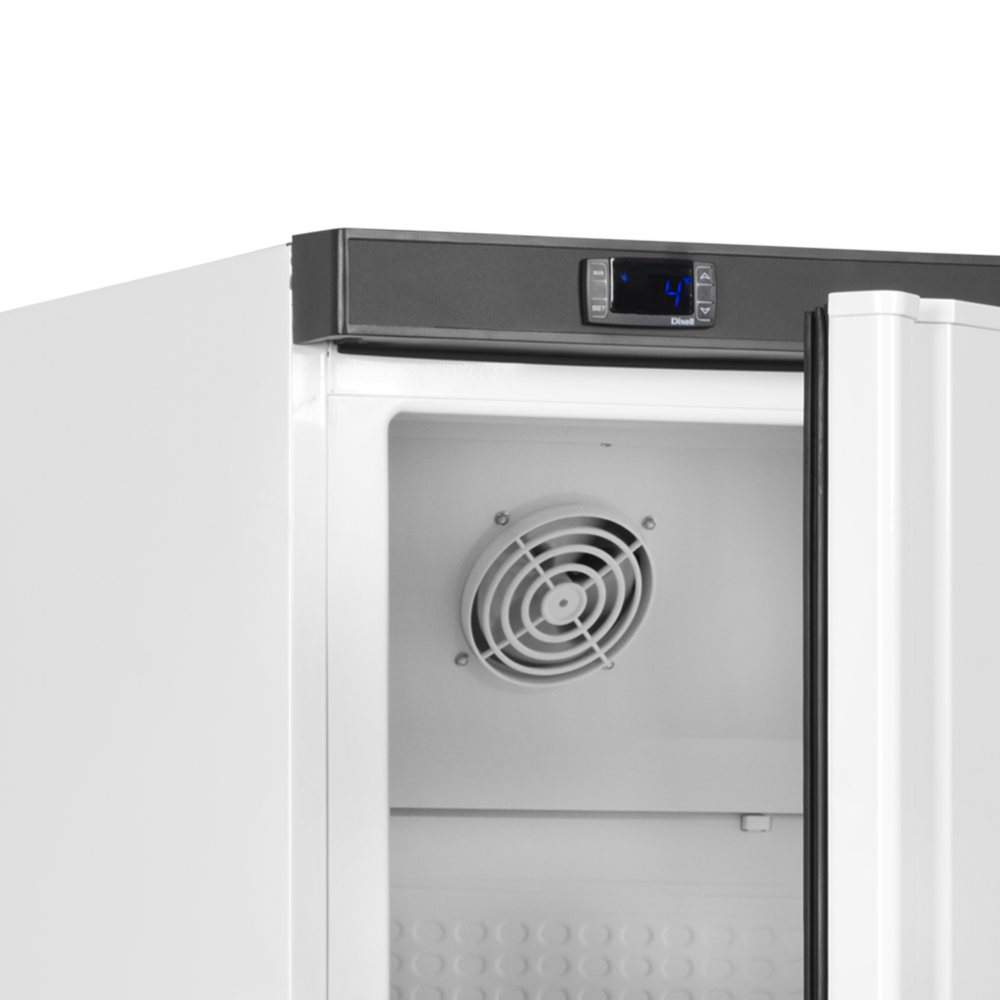

  • Fan assisted cooling
  • Adjustable feet with rollers to rear
  • Digital controller and temperature display

Product description

An undercounter fridge that is heavier duty than most. It has great looks with the aluminium door frame and plenty of display space inside. With fan assisted cooling and automatic defrost this is an ideal undercounter display fridge. You can also choose the option of white or stainless steel finish.

SPECIFICATION 52 facts · tap for all External W × D × H600 x 585 x 855 mmWidth600 mmDepth585 mmGross / net weight49 / 44 kgGross weight49 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181994235site
Product code 33849site
Sub title Glass Door Merchandisercatalogue
Type Under Counter Glass Door Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 585 mmsite
External (W×D×H) 600 × 585 × 855 mmcatalogue
External W × D × H 600 x 585 x 855 mmsite
Gross / net weight 49 / 44 kgsite
Gross weight 49 kgcatalogue
Height 855 mmsite
Internal (W×D×H) 510 × 485 × 620 mmcatalogue
Internal W × D × H 510 x 485 x 620 mmsite
Packed (W×D×H) 690 × 650 × 910 mmcatalogue
Packed W × D × H 690 x 650 x 910 mmsite
Width 600 mmsite

Capacity7

330ml bottles 64 pcssite
330ml cans 112 pcssite
500ml cans 56 pcssite
Display area 0.23 m²site
Doors 1catalogue
Gross volume 136 litrescatalogue
Shelves 3catalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Fan assistedsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 35 gsite
Temperature range +2 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 584 kWh/yearsite
Energy consumption 1.6 kWh/24hsite
Energy efficiency index 13 %site
Input power 105 Wsite
Noise level 40 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings7

Bottom shelf 505 x 220site
Castors 2 rollerssite
Exterior finish Whitesite
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Max load per shelf 110site
Shelf dimensions 505 x 415 mmsite

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this under counter glass door fridge earns its place

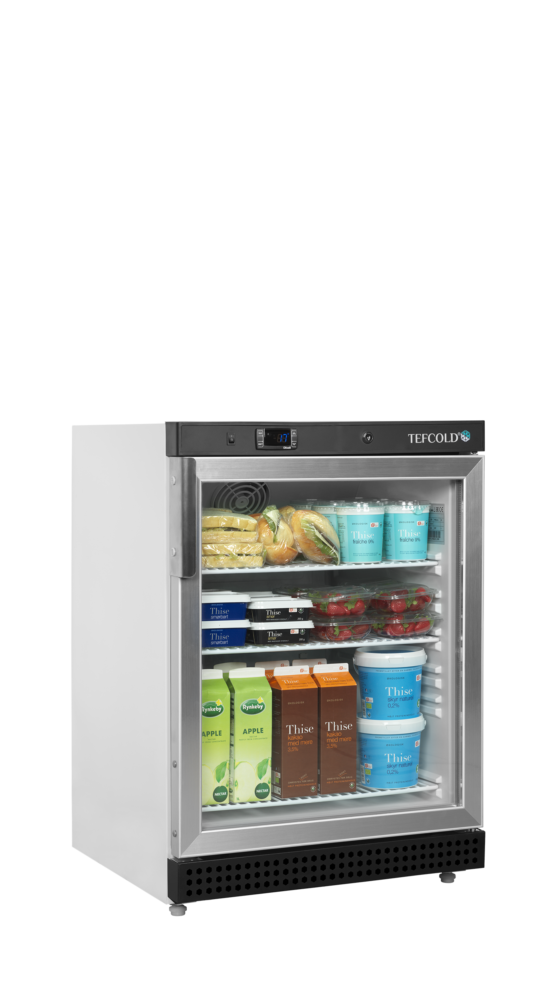

The UR200G is a compact under-counter glass door merchandiser that puts chilled stock on show where customers reach for it. A single hinged glass door fronts three white wire shelves and 0.23 m² of display area, with 119 litres of net capacity (136 litres gross) inside a white cabinet. It is sized to sit under a serving counter or back-of-till run and keep grab-and-go lines visible.

It holds a +2 to +10 °C band suited to soft drinks, water and packaged chilled goods, cooled with an R600a system and cleared by automatic defrost so there is no manual routine to manage. An electronic controller sets the temperature, the cabinet carries a climate class 4 rating, and it runs at 40 dB. At energy class B and 584 kWh a year, running cost works out at about £146 a year at 25p/kWh.

The cabinet measures 600 × 585 × 855 mm (W×D×H) and ships packed at 690 × 650 × 910 mm, so check that crate width against your delivery access. It runs from a standard 220-240 V, 50 Hz supply on a 13 amp connection and weighs 44 kg net. The refrigerant charge is 35 g of R600a.

BEFORE YOU BUY

Questions, answered straight

External dimensions are 600 × 585 × 855 mm (W×D×H), so it suits a standard under-counter opening. It ships packed at 690 × 650 × 910 mm, so measure your delivery doorways against the crate.

The cabinet runs at +2 to +10 °C, which suits soft drinks, water and packaged chilled products. An electronic controller sets the point and automatic defrost keeps the evaporator clear.

It is energy class B and rated at 584 kWh a year, which is about £146 a year at 25p/kWh. Actual cost depends on your tariff, ambient and how often the door is opened.

It runs from a standard 220-240 V, 50 Hz supply on a 13 amp connection, so it plugs into a normal socket. No special wiring is required.

Net capacity is 119 litres (136 litres gross) across three white wire shelves, with 0.23 m² of glass-fronted display area.

Yes, Craven Cooling can arrange servicing and support. Call the team on 01792 732702 to discuss.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 510 x 485 x 620 mm
External Dimension (WxDxH): 600 x 585 x 855 mm
Packed Dimension (WxDxH): 690 x 650 x 910 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Fan assisted
Type of Defrost: Automatic
Refrigerant: R600a
Refrigerant Charge: 35 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 1.6 kWh/24h
Temperature Range: +2 to +10 °C
Annual Energy Consumption: 584 kWh/year m³
EEI: 13 %
Input Power: 105 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 40 dB(A)

Measures and Content

Cans 330 ml: 112 pcs pcs
Cans 500 ml: 56 pcs pcs
Bottles 330 ml: 64 pcs pcs
Temperature Range: +2 to +10 °C
Climate Class: 4
Gross / Net Weight: 49 / 44 kg
Gross / Net Volume: 136 / 119 l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.23 m² m²

Design and Material

Door Reversible: Yes
Shelf Color: White
Shelf Dimensions: 505 x 415 mm
Max load on Shelves: 110 kg/m²
Bottom Shelf Dimensions: 505 x 220
Feet / Legs: 4 adjustable feet
Castors: 2 rollers
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD UR200G Glass Door Merchandiser then please get in touch.
