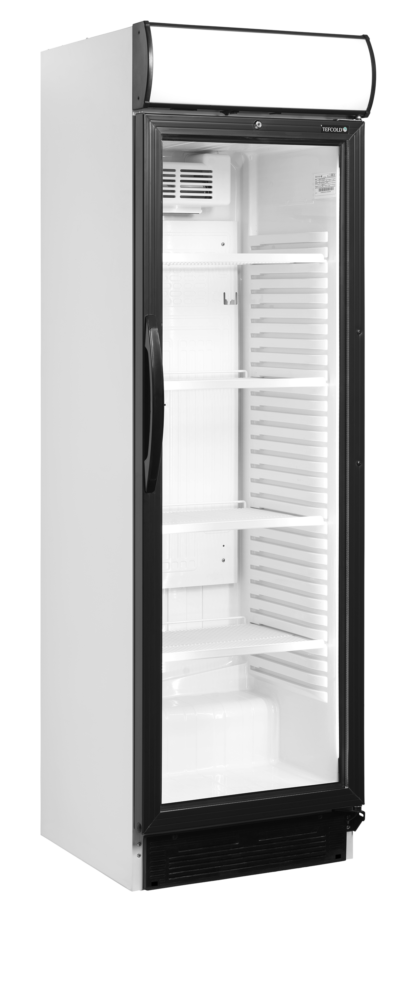

TEFCOLD CEV425CP Glass Door Merchandiser

£528.00

+vat

Brand:

SKU: 15821

Energy Arrow

Product summary

  • Great product presentation
  • Illuminated canopy
  • Ideal for branding
  • LED light in door frame
  • Adjustable shelves
  • Fan assisted cooling
  • Reversible door (spare part 12850 needed)
  • Digital temperature display
  • Lock

Product description

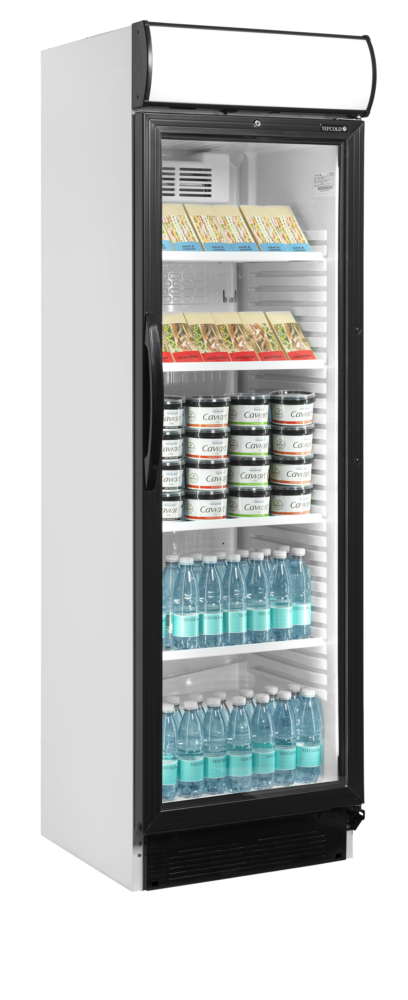

Glass Door Merchandiser with Canopy

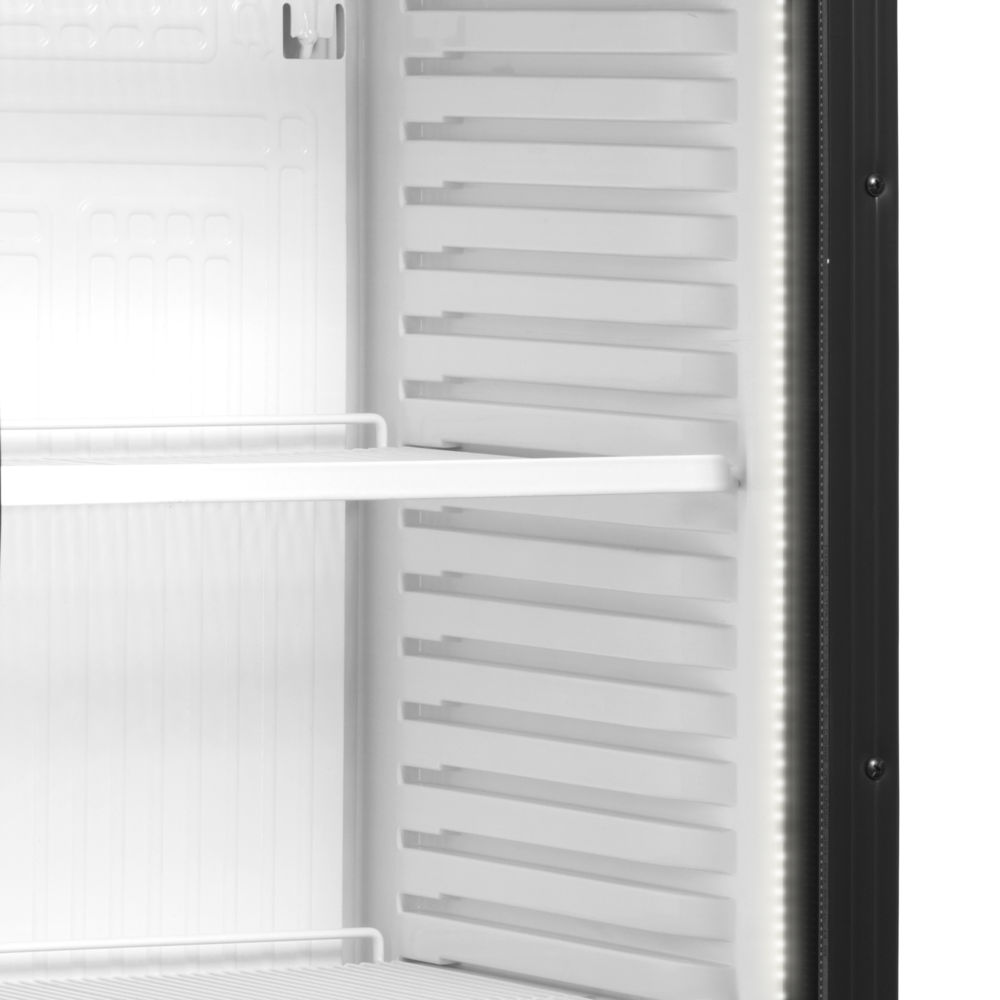

The CEV425CP provides a chilled display solution that helps to focus on the produce you are trying to sell. Twin vertical LED lights (set into the left and right hand side of the door frame) ensure clear and even illumination of the product inside the unit. A fan assisted cooling system ensures even cooling of the product and the LED light canopy is ideal for branding. Ideal for cafes, convenience stores, takeaways and coffee shops. The unit is also popular with drinks companies as it provides an excellent route to market with full branding.

The TEFCOLD CEV425CP is a single hinged-glass-door merchandiser holding 345 litres net across four white wire shelves, running at +2 to +10 °C on R600a refrigerant, drawing 295 W from a standard 13 A supply and costing about £205 a year at 25p/kWh.

SPECIFICATION 50 facts · tap for all External W × D × H595 x 640 x 1980 mmWidth595 mmDepth640 mmGross / net weight83 / 78 kgGross weight83 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181003722site
Product code 15821site
Sub title Glass Door Merchandisercatalogue
Type Single Door Glass Door Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 640 mmsite
External (W×D×H) 595 × 640 × 1980 mmcatalogue
External W × D × H 595 x 640 x 1980 mmsite
Gross / net weight 83 / 78 kgsite
Gross weight 83 kgcatalogue
Height 1980 mmsite
Internal (W×D×H) 505 × 462 × 1555 mmcatalogue
Internal W × D × H 505 x 462 x 1555 mmsite
Packed (W×D×H) 665 × 715 × 2150 mmcatalogue
Packed W × D × H 665 x 715 x 2150 mmsite
Width 595 mmsite

Capacity5

330ml bottles 213 pcssite
330ml cans 357 pcssite
500ml cans 231 pcssite
Doors 1catalogue
Gross volume 358 litrescatalogue

Performance10

Climate class 4site
Controller Mechanicalsite
Cooling type Fan assistedsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 70 gsite
Temperature range +2 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 821 kWh/yearsite
Energy consumption 2.25 kWh/24hsite
Energy efficiency index 49.7 %site
Input power 295 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings7

Canopy D-Shapesite
Castors 2 rollerssite
Exterior finish Whitesite
Feet / legs 2 adjustable feetsite
Interior light LED inside door framesite
Max load per shelf 196site
Shelf dimensions 490 x 360 mmsite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this single door glass door fridge earns its place

The CEV425CP is an upright single-door glass merchandiser built to put chilled stock in front of customers rather than hide it away. Behind one hinged glass door sit four white wire shelves and 345 litres of usable space (358 litres gross), finished in white inside and out. It suits grab-and-go lines — drinks, sandwiches, dairy and packaged chilled goods — where visibility drives the sale.

Day to day it holds a chilled band of +2 to +10 °C under a mechanical controller, with R600a refrigerant and a measured sound level of 45 dB that keeps it acceptable in customer-facing areas. It carries a D energy rating and a 49.7% energy efficiency index; at 821.2 kWh a year that works out at about £205 a year at 25p/kWh. A climate class 4 rating means it is built to hold temperature in warm ambient conditions.

The cabinet measures 595 × 640 × 1980 mm externally, with a 505 × 462 × 1555 mm interior, and needs a standard 13 A socket drawing 295 W at 220–240 V. It weighs 78 kg net (83 kg gross) and ships packed at 665 × 715 × 2150 mm, so check doorway height and access on the delivery route. Cooling uses a 70 g charge of R600a.

BEFORE YOU BUY

Questions, answered straight

The cabinet is 595 mm wide and 640 mm deep, so it clears most standard door openings. It stands 1980 mm tall and ships packed at 2150 mm high, so check ceiling and doorway height on the delivery route.

Net capacity is 345 litres (358 litres gross) across four white wire shelves. That is aimed at packaged chilled lines such as drinks, sandwiches and dairy.

It is rated energy class D and uses 821.2 kWh a year, which is about £205 a year at 25p/kWh. Actual cost depends on your tariff, door use and ambient temperature.

It operates across a +2 to +10 °C chilled band under a mechanical controller, suited to packaged chilled stock rather than products needing a tighter fixed temperature.

A standard 13 A socket at 220–240 V, 50 Hz. Input power is 295 W and the refrigerant is R600a.

Yes. Craven Cooling can arrange servicing and support — call the team on 01792 732702 to discuss.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 505 x 462 x 1555 mm
External Dimension (WxDxH): 595 x 640 x 1980 mm
Packed Dimension (WxDxH): 665 x 715 x 2150 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Fan assisted
Type of Defrost: Automatic
Refrigerant: R600a
Refrigerant Charge: 70 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.25 kWh/24h
Temperature Range: +2 to +12 °C
Annual Energy Consumption: 821 kWh/year m³
EEI: 49.7 %
Input Power: 295 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 58 dB(A)

Measures and Content

Cans 330 ml: 357 pcs pcs
Cans 500 ml: 231 pcs pcs
Bottles 330 ml: 213 pcs pcs
Temperature Range: +2 to +12 °C
Climate Class: 4
Gross / Net Weight: 83 / 78 kg
Gross / Net Volume: 358 / 345 l
Max Ambient: +30°C, 55% RH

Design and Material

Door Reversible: Yes
Shelf Color: White
Shelf Dimensions: 490 x 360 mm
Max load on Shelves: 196 kg/m²
Canopy Type: D-Shape
Feet / Legs: 2 adjustable feet
Castors: 2 rollers
Exterior Finish: White
Interior Finish: White
Interior Light: LED inside door frame
Lock: Yes
If you have any questions about the TEFCOLD CEV425CP Glass Door Merchandiser then please get in touch.
