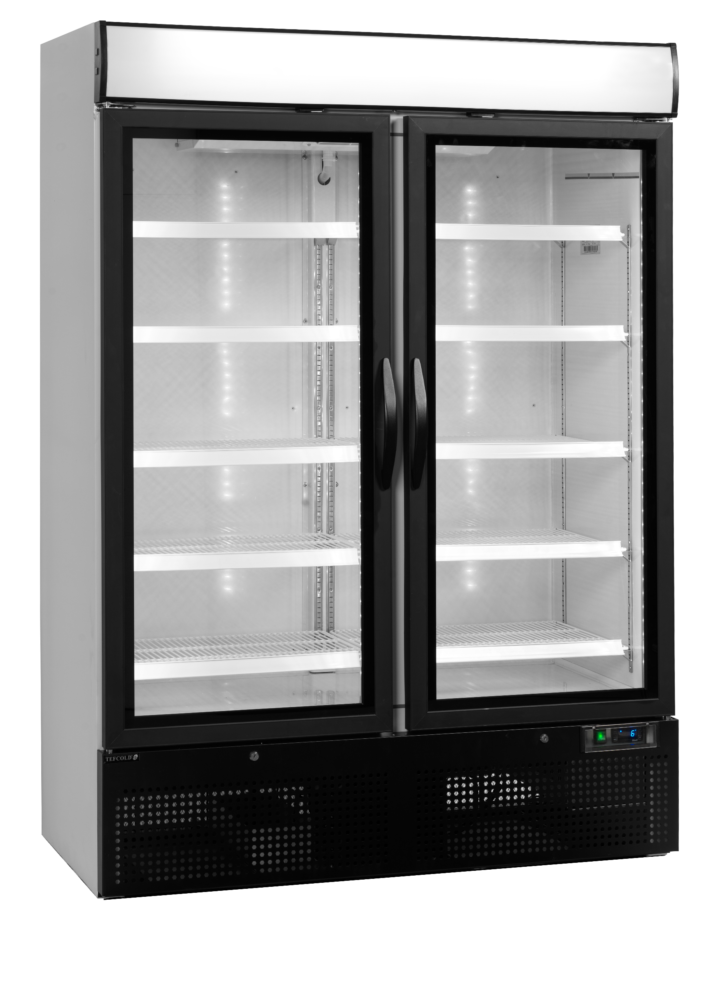

TEFCOLD NC5000G Glass Door Merchandiser

£2,034.00 £1,229.00

+vat

Brand:

SKU: 32948

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Automatic defrost
  • Lock
  • Adjustable shelves
  • Castors and locking feet
  • LED interior light with switch (2 LED strips per door)
  • LED Light canopy with switch

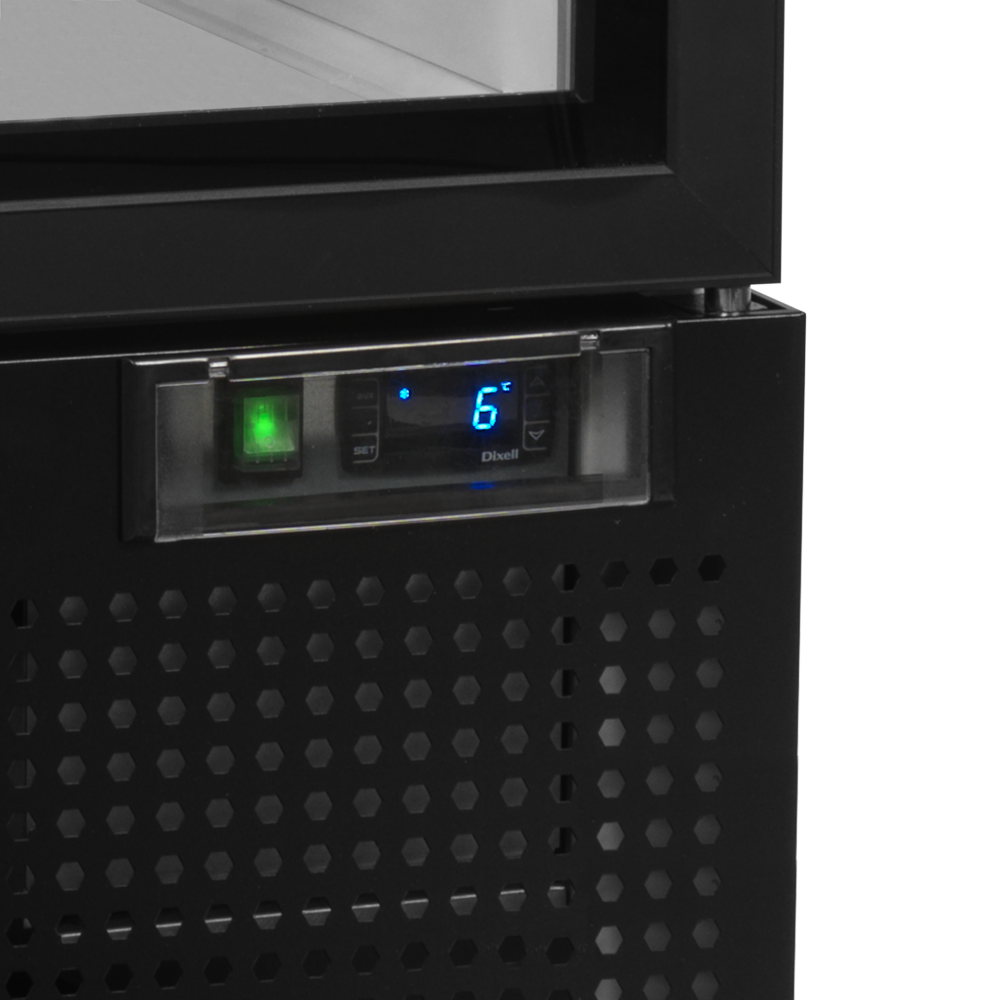

  • Digital controller and temperature display
  • Self-closing hinged glass doors
  • Replaceable door gasket

Product description

The Tefcold NC5000G is a double-door glass merchandiser that holds +2 to +8 °C with ventilated cooling and automatic defrost, offering 1149 litres gross across eight shelves and 1.3 m² of display area, rated energy class B on R290 refrigerant.

Sale!
SPECIFICATION 52 facts · tap for all External W × D × H1370 x 700 x 2022 mmWidth1370 mmDepth700 mmGross / net weight252 / 212 kgGross weight252 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181993115site
Product code 32948site
Sub title Glass Door Merchandisercatalogue
Type Double Door Glass Door Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 700 mmsite
External (W×D×H) 1370 × 700 × 2022 mmcatalogue
External W × D × H 1370 x 700 x 2022 mmsite
Gross / net weight 252 / 212 kgsite
Gross weight 252 kgcatalogue
Height 2022 mmsite
Internal (W×D×H) 1250 × 580 × 1327 mmcatalogue
Internal W × D × H 1250 x 580 x 1327 mmsite
Packed (W×D×H) 1405 × 765 × 2180 mmcatalogue
Packed W × D × H 1405 x 765 x 2180 mmsite
Width 1370 mmsite

Capacity7

330ml bottles 560 pcssite
330ml cans 960 pcssite
500ml cans 576 pcssite
Display area 1.3 m²site
Doors 2catalogue
Gross volume 1149 litrescatalogue
Shelves 8catalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 150 gsite
Temperature range +2 to +8site
Thermometer Yessite

Power & energy6

Annual energy consumption 1024 kWh/yearsite
Energy consumption 2.81 kWh/24hsite
Energy efficiency index 15 %site
Input power 500 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings8

Canopy D-Shapesite
Castors 4 rollerssite
Exterior finish Whitesite
Feet / legs 2 adjustable feetsite
Interior light 2 x Vertically LED in door framesite
Max load per shelf 196site
Reversible doors Nosite
Shelf dimensions 615 x 445 mmsite

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this double door glass door fridge earns its place

The Tefcold NC5000G is a double-door glass merchandiser for high-traffic chilled retail, presenting drinks and grab-and-go lines behind two hinged glass doors. It offers 1149 litres gross and 1079 litres net over eight white wire shelves, with 1.3 m² of display area, finished in white inside and out.

Day to day it holds +2 to +8 °C with ventilated, fan-assisted cooling, automatic defrost and an electronic controller, and is rated to climate class 4 for warmer trading areas. It uses R290 refrigerant with a 150 g charge and runs at 45 dB. At 1025.7 kWh a year it works out to about £256 a year at 25p/kWh, sitting in energy class B with an energy efficiency index of 15% and drawing 500 W; actual running cost varies with your tariff, ambient temperature and door use.

The interior measures 1250 × 580 × 1327 mm across the eight-shelf layout. The cabinet weighs 212 kg net and 252 kg gross, so plan the delivery route and lifting accordingly, and it connects to a standard 13-amp supply at 220-240V/50Hz single phase.

BEFORE YOU BUY

Questions, answered straight

1149 litres gross and 1079 litres net across eight white wire shelves, with 1.3 m² of display area behind two glass doors.

+2 to +8 °C with ventilated, fan-assisted cooling and automatic defrost under electronic control. It is rated to climate class 4 for warmer trading areas.

It is energy class B at 1025.7 kWh a year, about £256 a year at 25p/kWh, drawing 500 W. Actual cost varies with your tariff, ambient temperature and door use.

R290 with a 150 g charge, a low-GWP hydrocarbon refrigerant, paired with fan-assisted ventilated cooling.

A standard 13-amp socket at 220-240V/50Hz single phase.

Yes, our engineers cover installation and servicing across the region. Call 01792 732702 to arrange.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1250 x 580 x 1327 mm
External Dimension (WxDxH): 1370 x 700 x 2022 mm
Packed Dimension (WxDxH): 1405 x 765 x 2180 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 150 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.81 kWh/24h
Temperature Range: +2 to +8 °C
Annual Energy Consumption: 1024 kWh/year m³
EEI: 15 %
Input Power: 500 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Cans 330 ml: 960 pcs pcs
Cans 500 ml: 576 pcs pcs
Bottles 330 ml: 560 pcs pcs
Temperature Range: +2 to +8 °C
Climate Class: 4
Gross / Net Weight: 252 / 212 kg
Gross / Net Volume: 1149 / 1079 l
Max Ambient: +30°C, 55% RH
Total Display Area: 1.3 m² m²

Design and Material

Door Reversible: No
Shelf Color: White
Shelf Dimensions: 615 x 445 mm
Max load on Shelves: 196 kg/m²
Canopy Type: D-Shape
Feet / Legs: 2 adjustable feet
Castors: 4 rollers
Exterior Finish: White
Interior Finish: White
Interior Light: 2 x Vertically LED in door frame
Lock: Yes
If you have any questions about the TEFCOLD NC5000G Glass Door Merchandiser then please get in touch.
