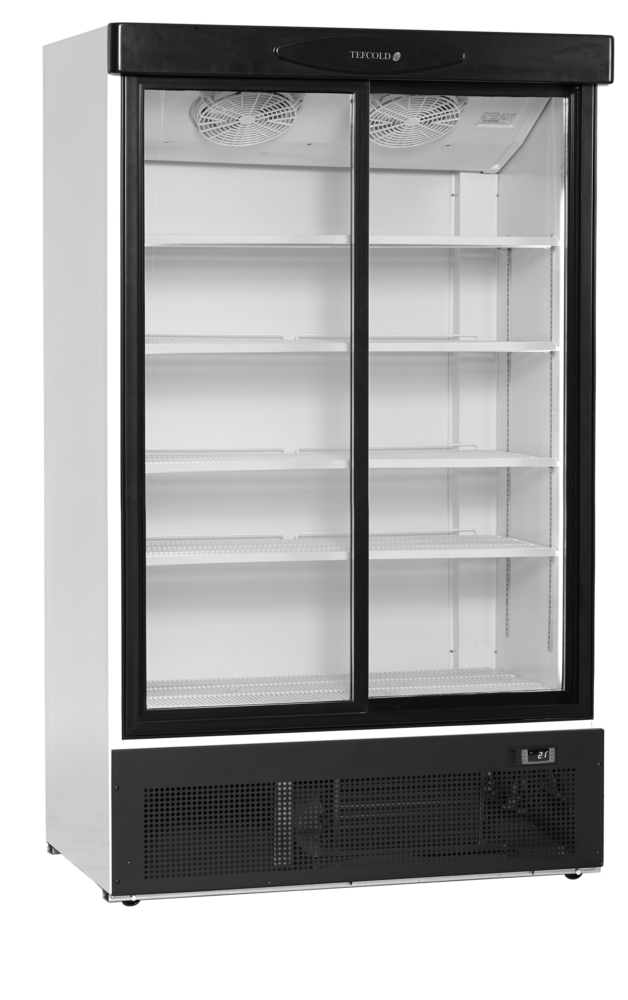

TEFCOLD FS1202S Glass Door Merchandiser

£1,375.00

+vat

Brand:

SKU: 20104

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Adjustable full width shelves
  • Lock
  • Interior light with switch
  • Digital temperature display
  • Self closing doors with stay open feature for ease of loading
  • Adjustable feet with rollers to rear

Product description

The TECOLD FS1002S & FS1202S are a range of sliding glass door merchandisers. They maximise the display space allowing higher glass doors, without a light canopy. They are versatile units suitable for drinks, dairy (milk, cheese etc) and sandwiches. Fan assisted cooling, vertical interior lights and self closing doors make it ideal for supermarkets, convenience stores, shops and cafés.

The Tefcold FS1202S is a double-door upright glass merchandiser holding 660 litres net across five white wire shelves behind two self-closing sliding glass doors, running +2 to +10 °C, measuring 1200 × 735 × 1990 mm and rated energy class F at 2482 kWh a year.

SPECIFICATION 52 facts · tap for all External W × D × H1200 x 735 x 1990 mmWidth1200 mmDepth735 mmGross / net weight189 / 174 kgGross weight189 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181019662site
Product code 20104site
Sub title Glass Door Merchandisercatalogue
Type Double Door Glass Door Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 735 mmsite
External (W×D×H) 1200 × 735 × 1990 mmcatalogue
External W × D × H 1200 x 735 x 1990 mmsite
Gross / net weight 189 / 174 kgsite
Gross weight 189 kgcatalogue
Height 1990 mmsite
Internal (W×D×H) 1090 × 573 × 1533 mmcatalogue
Internal W × D × H 1090 x 573 x 1533 mmsite
Packed (W×D×H) 1250 × 800 × 2160 mmcatalogue
Packed W × D × H 1250 x 800 x 2160 mmsite
Width 1200 mmsite

Capacity6

330ml bottles 560 pcssite
330ml cans 1152 pcssite
500ml cans 816 pcssite
Doors 2catalogue
Gross volume 895 litrescatalogue
Shelves 5catalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 120 gsite
Temperature range +2 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 2482 kWh/yearsite
Energy consumption 6.8 kWh/24hsite
Energy efficiency index 70 %site
Input power 450 Wsite
Noise level 48 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings8

Bottom shelf 1070 x 475site
Castors 4 rollerssite
Exterior finish Whitesite
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Max load per shelf 196site
Reversible doors Nosite
Shelf dimensions 1072 x 470 mmsite

Other stated facts1

Energy class Fcatalogue
THE WORKING VIEW

Why this double door glass door fridge earns its place

The FS1202S is a large double-door glass merchandiser for high-volume chilled display. Two self-closing sliding glass doors — which save aisle space over hinged doors — front 660 litres net (895 litres gross) across five white wire shelves, in a white finish inside and out. It is built to hold a lot of drinks or packaged chilled stock on show at once.

Day to day it holds +2 to +10 °C with ventilated cooling, automatic defrost and an electronic controller for even temperature across a tall cabinet. Noise sits at 48 dB. Rated energy class F at 2482 kWh a year, it costs about £621 a year to run at 25p/kWh, drawing 450 W, and uses R290 refrigerant with a 120 g charge.

The cabinet measures 1200 × 735 × 1990 mm (W×D×H) — nearly 2 m tall and 1200 mm wide — so measure doorways and ceiling height; packed, it stands 2160 mm high and 1250 mm wide and weighs 189 kg. The sliding doors need no swing clearance in front. It runs on a 13 A supply, and the internal space measures 1090 × 573 × 1533 mm.

BEFORE YOU BUY

Questions, answered straight

It stands 1990 mm tall, 1200 mm wide and 735 mm deep, and packed it is 2160 mm high by 1250 mm wide. Measure the delivery route and ceiling height before ordering.

The two self-closing sliding glass doors need no swing clearance in front, which suits narrow aisles and busy walkways.

660 litres net (895 litres gross) across five white wire shelves.

It runs +2 to +10 °C with ventilated cooling, automatic defrost and an electronic controller.

It is rated energy class F at 2482 kWh a year, about £621 a year at 25p/kWh. It draws 450 W, uses R290 refrigerant and runs on a 13 A supply.

Yes, Craven Cooling can arrange servicing and support. Call the team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1090 x 573 x 1533 mm
External Dimension (WxDxH): 1200 x 735 x 1990 mm
Packed Dimension (WxDxH): 1250 x 800 x 2160 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 120 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 6.8 kWh/24h
Temperature Range: +2 to +10 °C
Annual Energy Consumption: 2482 kWh/year m³
EEI: 70 %
Input Power: 450 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 48 dB(A)

Measures and Content

Cans 330 ml: 1152 pcs pcs
Cans 500 ml: 816 pcs pcs
Bottles 330 ml: 560 pcs pcs
Temperature Range: +2 to +10 °C
Climate Class: 4
Gross / Net Weight: 189 / 174 kg
Gross / Net Volume: 895 / 660 l
Max Ambient: +30°C, 55% RH

Design and Material

Door Reversible: No
Shelf Color: White
Shelf Dimensions: 1072 x 470 mm
Max load on Shelves: 196 kg/m²
Bottom Shelf Dimensions: 1070 x 475
Feet / Legs: 4 adjustable feet
Castors: 4 rollers
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD FS1202S Glass Door Merchandiser then please get in touch.
