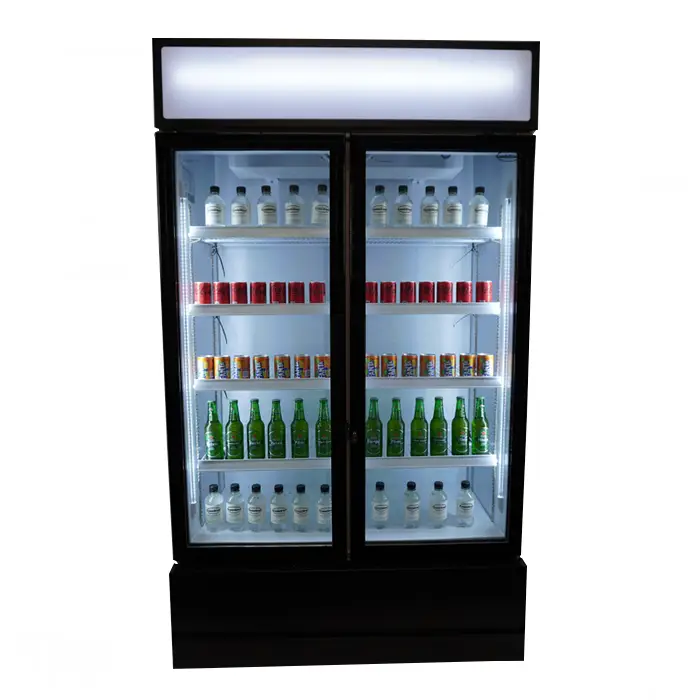

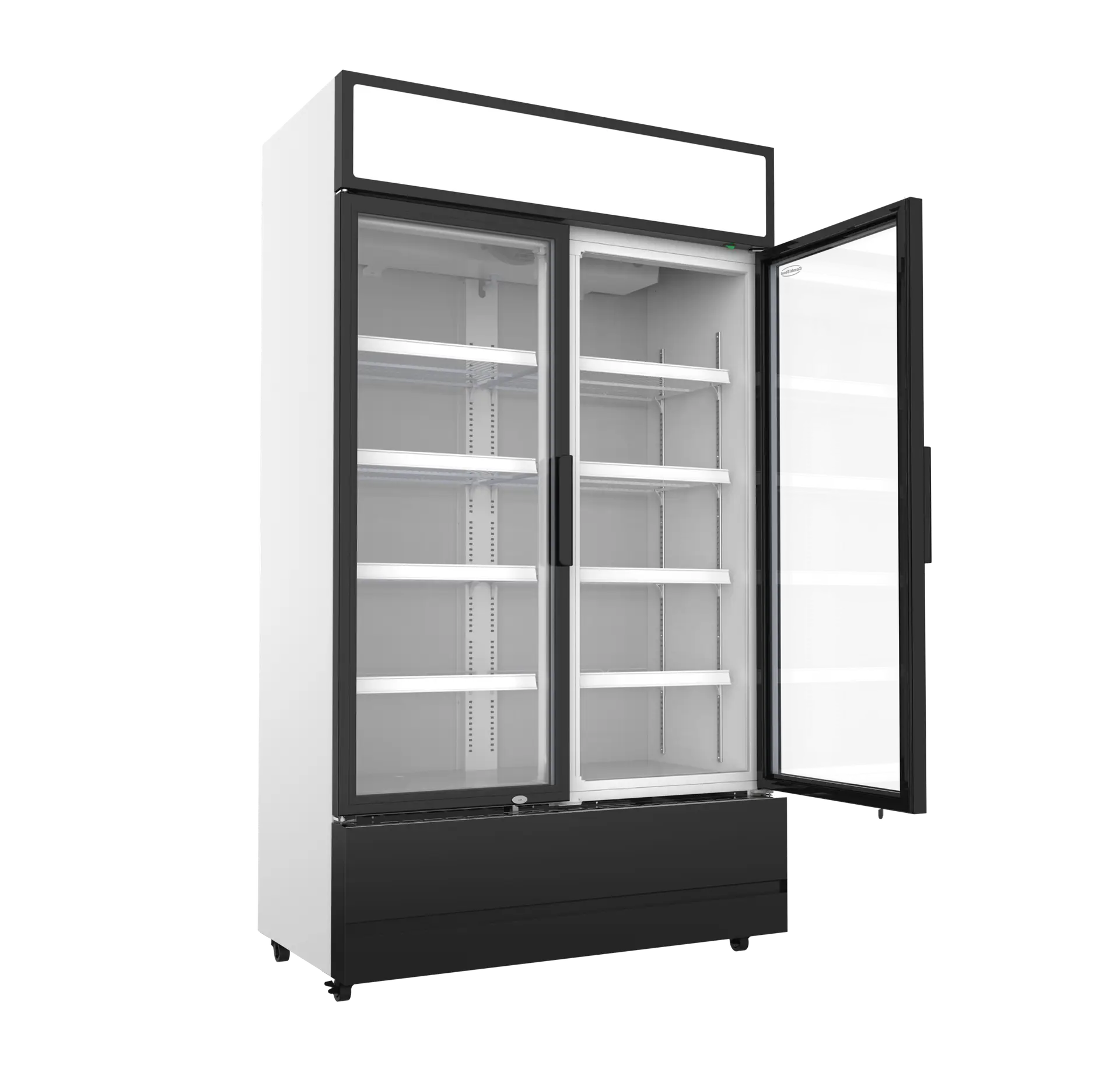

CombiSteel Double Glass Door Display Fridge FCU-750 7455.2105

£805.85

+vat

- +

SKU: 7455.2105

Product summary

Size W/D/H (mm) x x

Product description

Downloads

SPECIFICATION 37 facts · tap for all Width1120 mmDepth610 mmHeight1973 mmGross / net weight121 kgGross weight113 kgVoltage / frequency23050

Identity3

Brand CombiSteelcatalogue
GTIN / EAN 7435137867869catalogue
Type Double Door Glass Door Fridgescatalogue

Size & weight8

Depth 610 mmsite
External (W×D×H) 1120 × 610 × 1973 mmcatalogue
Gross / net weight 121 kgsite
Gross weight 113 kgcatalogue
Height 1973 mmsite
Internal (W×D×H) 1030 × 480 × 14975 mmcatalogue
Internal W × D × H 1030x480x1497,5site
Width 1120 mmsite

Capacity4

Capacity 750 Ltrcatalogue
Gross volume 750 litrescatalogue
Net volume 670 litrescatalogue
Shelves 8catalogue

Performance6

Controller Knobcatalogue
Cooling type R 290site
Defrost type Automaticsite
Max ambient 3232 °Ccatalogue
Maximum ambient 3232site
Temperature range +1/+10site

Power & energy7

Energy consumption 0,40site
Frequency 50 Hzcatalogue
Noise level 5858site
Rated input 400 Wcatalogue
Rated power 40 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 23050site

Build & fittings6

Accessories 8 shelves with clips and price card holderscatalogue
Doors Left and right hingedsite
Exterior finish Powder coated steelsite
Insulation 45 mmcatalogue
Interior finish Aluminiumsite
Interior light Yes, LEDsite

Other stated facts3

Energy (24h) 55 kWh/24hcatalogue
Lockable Nocatalogue
Mobility Yescatalogue
THE WORKING VIEW

Why this double door glass door fridge earns its place

It is a two-door upright glass-door refrigerator, built to merchandise chilled stock as a self-service display. The pair of full-height glass doors turns the cabinet face into a browsable window, so customers can see drinks, soft drinks and chilled retail lines and pick for themselves. At 750 litres capacity and 1.12 metres wide, it earns its place front-of-store as a workhorse display that drives impulse and grab-and-go sales without taking up a full wall run.

Day to day it runs as a self-service chiller: doors stay shut between selections to keep the display cold and tidy while every line stays on show. The LED-lit interior keeps stock visible even in dim areas, and automatic defrost means no manual de-icing. The cabinet runs quietly at 58 dB, so it won't dominate the sales floor. Restocking and facing-up stay quick front-of-store jobs, and the cabinet is easy to rotate and keep looking full.

At 121 kg gross, plan siting and floor loading before delivery: check your access route and doorway clearances against the dimensions on the spec table — the cabinet is 1.97 metres tall and sits 610 mm deep. Leave the manufacturer's clearance around it for airflow and confirm the 40 W electrical supply with your electrician before install. Craven Cooling can advise on siting and delivery, then handle commissioning and ongoing servicing once it's in place.

BEFORE YOU BUY

Questions, answered straight

It is a substantial cabinet at 121 kg gross, so check the floor and the delivery route. Compare the external dimensions in the spec table against your narrowest access point and any turns, measure before you order, and our team can confirm the fit from your figures.

Yes. The two full-height glass doors are made for self-service, so customers can see the chilled stock and open a door to select without staff help. Keeping the doors shut between selections keeps the display cold and tidy.

It is a refrigerator built for chilled retail display; the exact operating band is listed in the spec table on this page. Match it to the chilled product you intend to merchandise.

The voltage and power rating are given in the spec table above. Confirm the circuit and load with your electrician before installation, and let the cabinet stand after delivery before switching it on.

Leave the manufacturer's recommended clearance around the cabinet so the refrigeration can shed heat. Check the external dimensions in the spec table and allow extra for the doors to open and for restocking access.

Yes. We can advise on siting and delivery, and handle commissioning and ongoing servicing. Call the team on 01792 732702 to arrange a visit or talk through your requirements.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel Double Glass Door Display Fridge FCU-750 7455.2105 Product Data

Brand CombiSteel
Dimensions (W×D×H) 1120 × 610 × 1973 mm
Interior Dimensions 1030x480x1497,5
Capacity 750 Ltr
Material Powder coated steel
Interior Material Aluminium
Temperature Range +1/+10
Max. Ambient Temp. 32
Refrigerant R 290
Cooling Ventilated
Defrost Automatic
Number of Doors 2
Number of Grids/Shelves 8
Electrical Power 0.40 kW
Energy Use 5.5 kWh/24h
Voltage 230V / 50Hz
Installation Freestanding
Mobile Yes
Lockable No
Noise Level 58 dB
Insulation 45 mm
Weight 113 kg
If you have any questions about the CombiSteel Double Glass Door Display Fridge FCU-750 7455.2105 then please get in touch.
