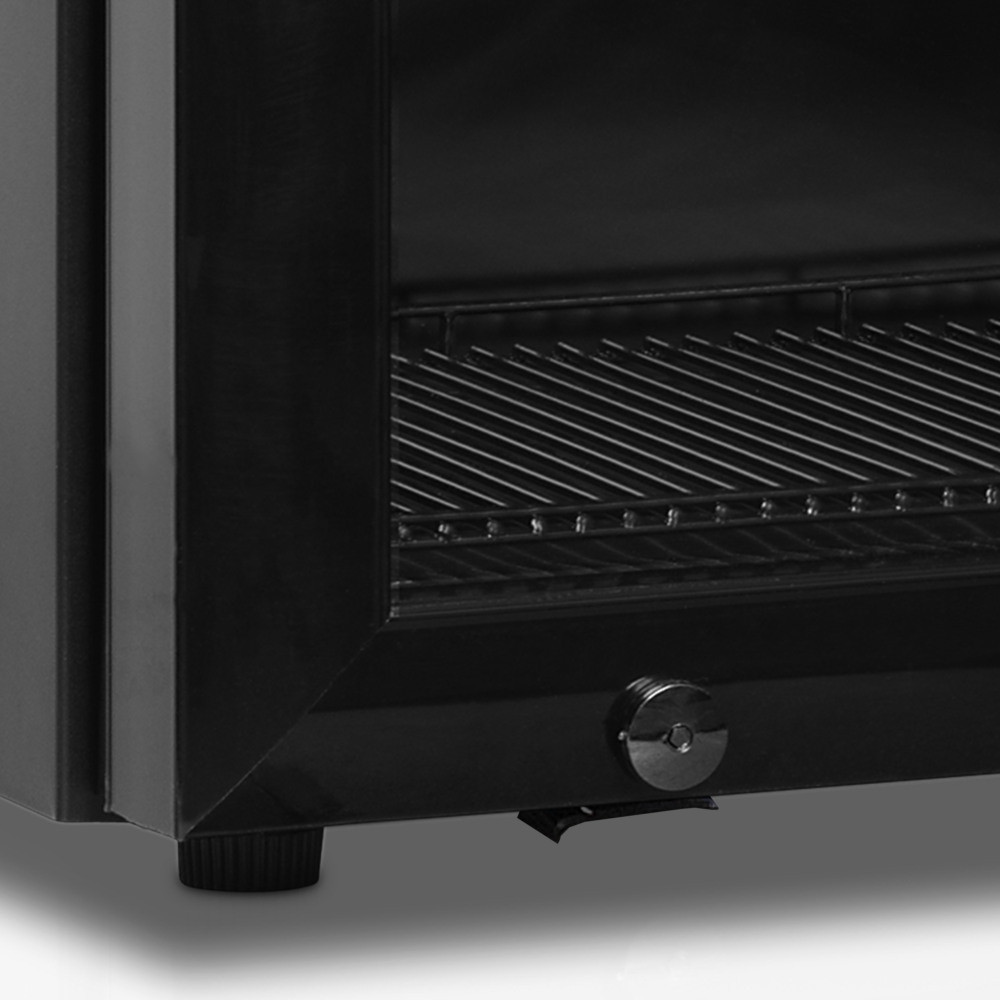

TEFCOLD BC30 Counter Top Chiller

£283.00

+vat

Brand:

SKU: 19998

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Lock
  • Adjustable feet
  • LED interior light
  • Self-closing door

Product description

A superb small counter top glass door fridge suitable for shops, pubs and clubs. With fan assisted cooling and an internal light for great illumination, it is the ideal cabinet to maximise impulse sales. The BC range is perfect for soft drinks, beer and energy drinks.

The TEFCOLD BC30 is a compact countertop glass door chiller that displays chilled drinks and snacks at +2 to +10 °C behind a self-closing glass door, holds 20 litres net across two shelves and uses about £50 of electricity a year at 25p/kWh.

SPECIFICATION 49 facts · tap for all External W × D × H356 x 430 x 491 mmWidth356 mmDepth430 mmGross / net weight25 / 23 kgGross weight25 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181501594site
Product code 19998site
Sub title Counter Top Chillercatalogue
Type Countertop Glass Door Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 430 mmsite
External (W×D×H) 356 × 430 × 491 mmcatalogue
External W × D × H 356 x 430 x 491 mmsite
Gross / net weight 25 / 23 kgsite
Gross weight 25 kgcatalogue
Height 491 mmsite
Internal (W×D×H) 280 × 271 × 380 mmcatalogue
Internal W × D × H 280 x 271 x 380 mmsite
Packed (W×D×H) 400 × 450 × 520 mmcatalogue
Packed W × D × H 400 x 450 x 520 mmsite
Width 356 mmsite

Capacity5

330ml cans 20 pcssite
Display area 0.098 m²site
Doors 1catalogue
Gross volume 22 litrescatalogue
Shelves 2catalogue

Performance10

Climate class 3site
Controller Mechanicalsite
Cooling type Fan assistedsite
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R600asite
Refrigerant charge 20 gsite
Temperature range +2 to +10site
Thermometer Nosite

Power & energy6

Annual energy consumption 200 kWh/yearsite
Energy consumption 0.55 kWh/24hsite
Energy efficiency index 24 %site
Input power 60 Wsite
Noise level 44 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings6

Exterior finish Blacksite
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Lock Yessite
Max load per shelf 196site
Shelf dimensions 275 x 205 / 135 mmsite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this countertop glass door fridge earns its place

The TEFCOLD BC30 is a countertop glass door chiller sized for a till point or back counter. A single hinged self-closing glass door and two black wire shelves put drinks and grab-and-go snacks on clear view in 20 litres of net space, turning a small patch of counter into an impulse display without giving up much room.

In use it holds +2 to +10 °C with automatic defrost and a mechanical controller, and it carries a C energy rating. Drawing 60 W and rated at 200.8 kWh a year, it costs about £50 a year at 25p/kWh, and its 44 dB sound level keeps it unobtrusive on a serving counter. Its climate class 3 rating means it is built to hold temperature in ambient conditions up to that class.

The cabinet is 356 × 430 × 491 mm (W×D×H) and weighs 23 kg net, 25 kg packed at 400 × 450 × 520 mm, so it lifts onto a counter easily. It runs on 220-240 V and a standard 13-amp socket, and uses R600a refrigerant with a 20 g charge. The finish is black outside with a coated black aluminium interior.

BEFORE YOU BUY

Questions, answered straight

It measures 356 × 430 × 491 mm (W×D×H) and weighs 23 kg, so it sits on most back counters or till points. Leave clearance around it for airflow and door swing.

It carries a C energy rating, draws 60 W and is rated at 200.8 kWh a year. At 25p/kWh that is about £50 a year, subject to your tariff and how it is stocked and sited.

It runs +2 to +10 °C with automatic defrost and a mechanical controller, which suits chilled soft drinks, water and packaged snacks on display.

Net capacity is 20 litres across two black wire shelves behind a single self-closing glass door, which is aimed at impulse and grab-and-go stock rather than bulk storage.

No. It runs on 220-240 V and a standard 13-amp socket, so a single nearby socket is enough.

It is rated at 44 dB in operation, quiet enough for a customer-facing till point or reception counter.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 280 x 271 x 380 mm
External Dimension (WxDxH): 356 x 430 x 491 mm
Packed Dimension (WxDxH): 400 x 450 x 520 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Fan assisted
Type of Defrost: Automatic
Refrigerant: R600a
Refrigerant Charge: 20 g
Thermometer: No

Power and Consumption

Energy Consumption: 0.55 kWh/24h
Temperature Range: +2 to +10 °C
Annual Energy Consumption: 200 kWh/year m³
EEI: 24 %
Input Power: 60 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 44 dB(A)

Measures and Content

Cans 330 ml: 20 pcs pcs
Cans 500 ml: 20 pcs pcs
Temperature Range: +2 to +10 °C
Climate Class: 3
Gross / Net Weight: 25 / 23 kg
Gross / Net Volume: 22 / 20 l
Max Ambient: +25°C, 60% RH
Total Display Area: 0.098 m² m²

Design and Material

Door Reversible: No
Shelf Color: Black
Shelf Dimensions: 275 x 205 / 135 mm
Max load on Shelves: 196 kg/m²
Feet / Legs: 4 adjustable feet
Exterior Finish: Black
Interior Finish: Black
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD BC30 Counter Top Chiller then please get in touch.
