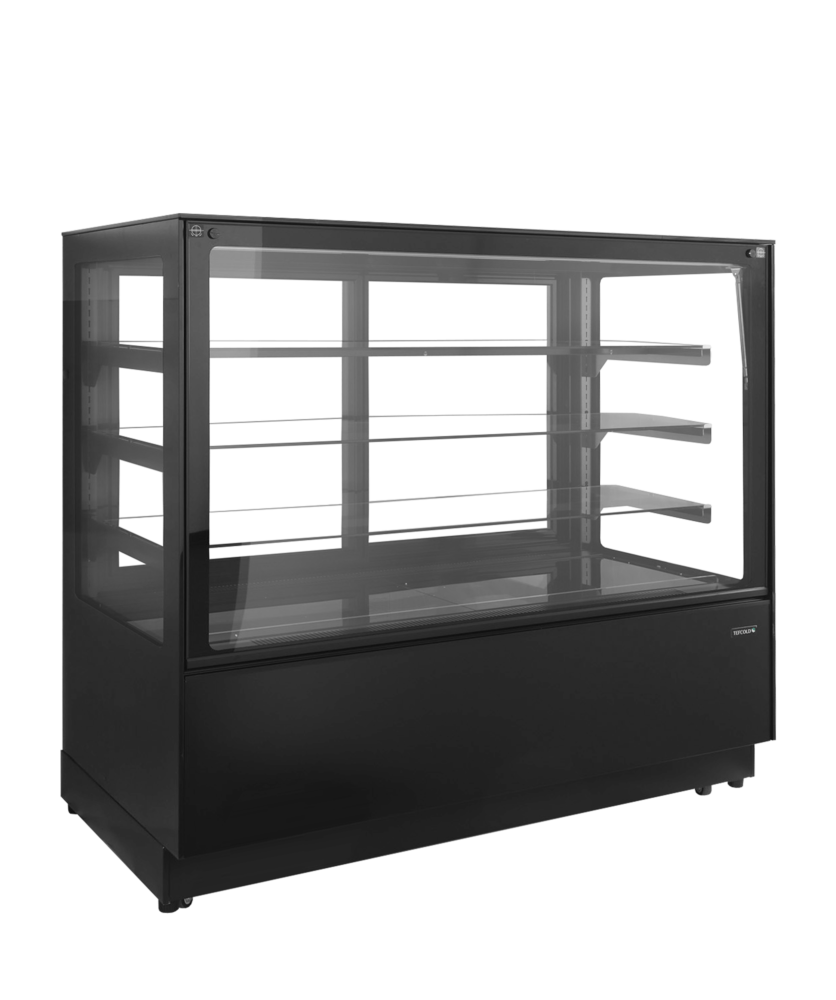

TEFCOLD PDA3-CTF150B-1 Chilled Display Cabinet

£1,893.00

+vat

Brand:

SKU: 69379

Energy Arrow

Product summary

  • Flat glass top

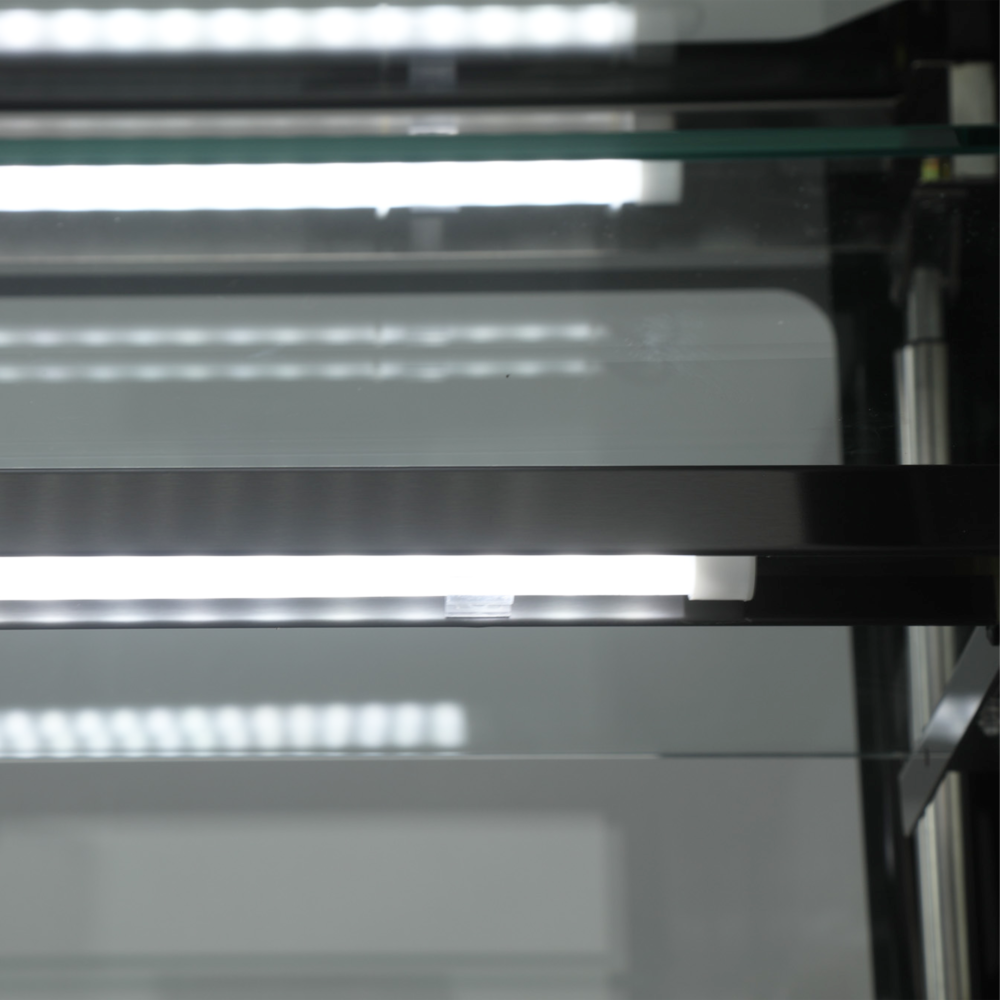

  • LED light under each shelf
  • Front glass hinges forward if required
  • Temperature Class 3M1
  • Excellent product visibility
  • Glass rear sliding doors

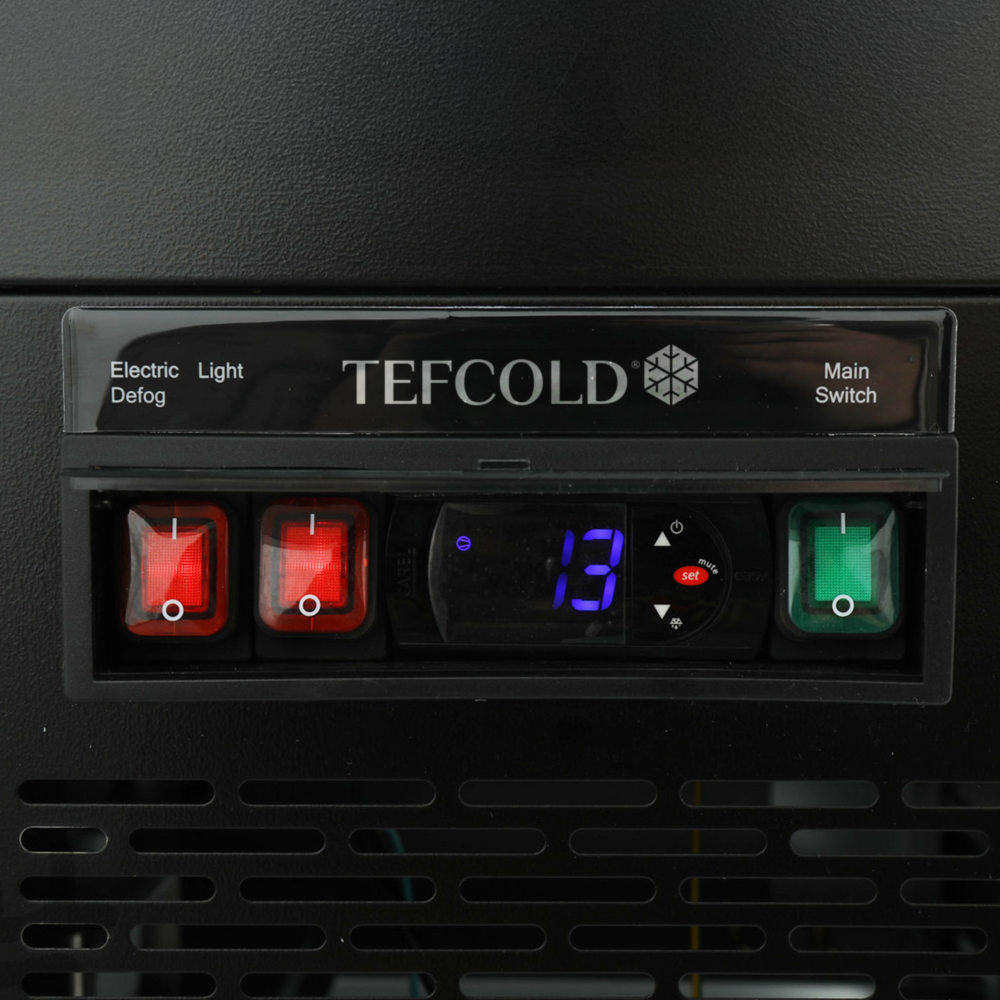

  • Digital controller and temperature display
  • Castors
  • Easy to clean condenser filter

Product description

Refrigerated display counter with flat glass structure

The PDA3-CTF range of chilled display counters has a flat glass structure, where the front hinges forward for easy cleaning. This premium design is made with high quality materials and comes in several sizes. It offers features such as glass shelves with LED lighting underneath, anti-mist front glass, and an efficient ventilated cooling system.

The TEFCOLD PDA3-CTF150B-1 is a glass chilled display cabinet holding -1 to +5 °C across 2.98 m² of display on three glass shelves plus base, energy class B, for patisserie and grab-and-go chilled merchandising.

SPECIFICATION 42 facts · tap for all External W × D × H1500 x 750 x 1360 mmWidth1500 mmDepth750 mmGross / net weight320 / 253 kgGross weight320 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181756307site
Product code 69379site
Sub title Chilled Display Cabinetcatalogue
Type Flat Glass Cake Display Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 750 mmsite
External (W×D×H) 1500 × 750 × 1360 mmcatalogue
External W × D × H 1500 x 750 x 1360 mmsite
Gross / net weight 320 / 253 kgsite
Gross weight 320 kgcatalogue
Height 1360 mmsite
Internal (W×D×H) 1446 × 600 × 808 mmcatalogue
Internal W × D × H 1446 x 600 x 808 mmsite
Packed (W×D×H) 1580 × 820 × 1475 mmcatalogue
Packed W × D × H 1580 x 820 x 1475 mmsite
Width 1500 mmsite

Capacity3

Display area 2.98 m²site
Doors 2catalogue
Gross volume 680 litrescatalogue

Performance7

Climate class 3site
Controller Electronicsite
Defrost type Automaticsite
Refrigerant R290site
Refrigerant charge 145 gsite
Temperature range -1 to +5site
Thermometer Yessite

Power & energy6

Annual energy consumption 2825 kWh/yearsite
Energy consumption 7.74 kWh/24hsite
Energy efficiency index 16.9 %site
Input power 790 Wsite
Noise level 65 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Castors 4 wheelssite
Exterior finish Black/Glasssite
Interior light LEDsite
Shelf dimensions 1416 x 400 mmsite

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this flat glass cake display fridge earns its place

The TEFCOLD PDA3-CTF150B-1 is a glass chilled display cabinet built to put chilled product on show. A black-and-glass exterior with a stainless-steel-and-glass interior gives an uninterrupted view of the stock, and three glass shelves plus the base lay out 2.98 m² of display area — enough to tier cakes, gateaux, desserts, sandwiches and chilled grab-and-go across a serving counter. Gross volume is 680 litres, of which 432 litres is usable net.

Day to day it holds a chilled band of -1 to +5 °C with automatic defrost, so it needs no manual defrost routine. Cooling draws 790 W and runs on R290 hydrocarbon refrigerant with a 145 g charge. It sits at climate class 3, rated for standard indoor retail ambient conditions, and carries energy class B (energy efficiency index 16.9). On its rated consumption that works out at about £706 a year to run at 25p/kWh. Note the sound level of 65 dB when siting it near seating or a quiet service area.

For fit, the internal dimensions are 1446 × 600 × 808 mm (W×D×H). The full external footprint is listed in the specification table on this page — check it against your counter run and delivery access before ordering. The cabinet runs on R290 refrigerant; confirm the electrical supply from the specification table on site.

BEFORE YOU BUY

Questions, answered straight

It holds a chilled band of -1 to +5 °C, which suits cakes, patisserie, chilled desserts and grab-and-go. Defrost is automatic, so there is no manual defrost cycle to run.

On its rated consumption of 2825 kWh a year it works out at about £706 a year at 25p/kWh, and it carries energy class B with an energy efficiency index of 16.9. Your actual cost depends on your tariff.

There is 2.98 m² of display area on three glass shelves plus the base. Gross volume is 680 litres, with 432 litres usable net.

The internal dimensions are 1446 × 600 × 808 mm (W×D×H). The full external footprint is listed in the specification table on this page — measure it against your counter run and delivery route before ordering.

It runs at 65 dB, so allow for that if you are placing it near seating or a quiet serving area. It is rated to climate class 3 for standard indoor ambient conditions.

It uses R290 hydrocarbon refrigerant with a 145 g charge. Craven Cooling can arrange servicing and support — call the team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1446 x 600 x 808 mm
External Dimension (WxDxH): 1500 x 750 x 1360 mm
Packed Dimension (WxDxH): 1580 x 820 x 1475 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 145 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 7.74 kWh/24h
Temperature Range: -1 to +5 °C
Annual Energy Consumption: 2825 kWh/year m³
EEI: 16.9 %
Input Power: 790 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 65 dB(A)

Measures and Content

Temperature Range: -1 to +5 °C
Climate Class: 3
Gross / Net Weight: 320 / 253 kg
Gross / Net Volume: 680 / 432 l
Total Display Area: 2.98 m² m²

Design and Material

Door Reversible: Yes
Shelf Dimensions: 1416 x 400 mm
Castors: 4 wheels
Exterior Finish: Black/Glass
Interior Finish: Black/Glass
Interior Light: LED
If you have any questions about the TEFCOLD PDA3-CTF150B-1 Chilled Display Cabinet then please get in touch.
