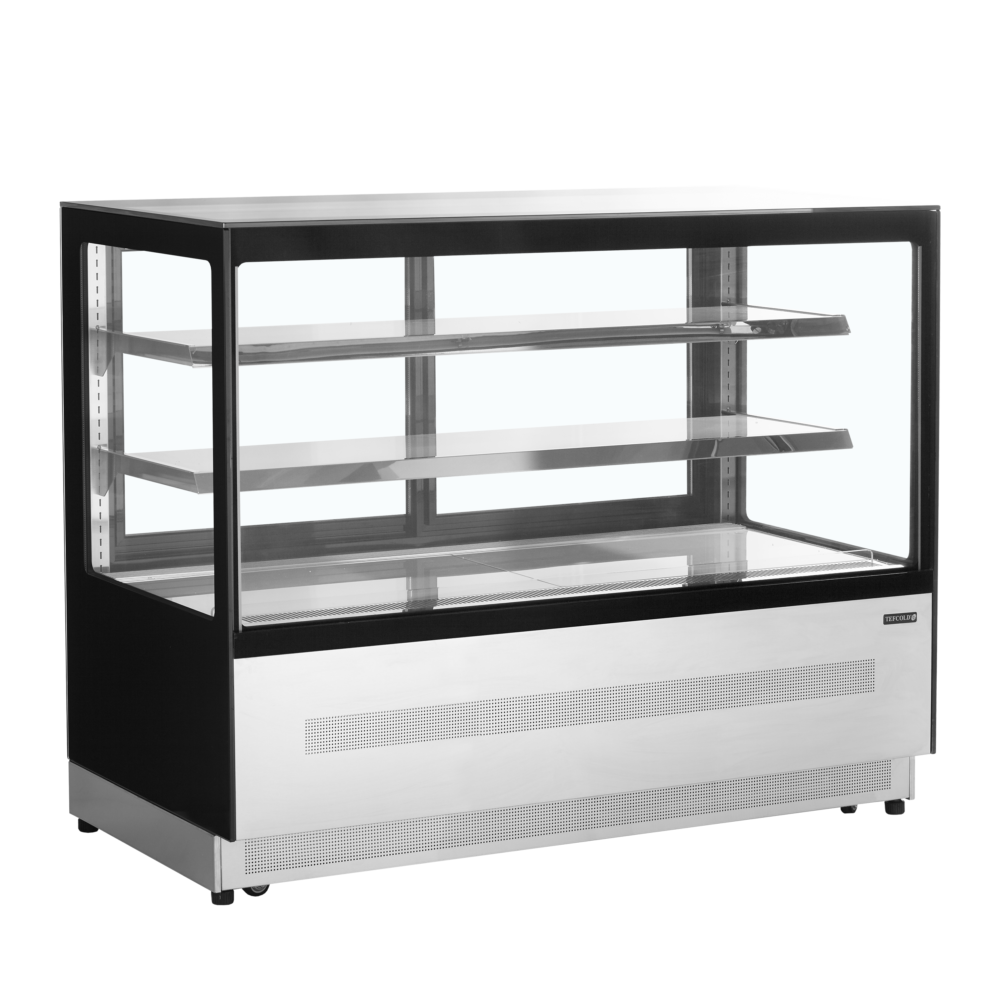

TEFCOLD LPD1700F Chilled Display Cabinet

£2,885.00 £1,651.00

+vat

Brand:

SKU: 20396

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Adjustable feet and castors
  • Adjustable shelves
  • LED interior light with switch
  • Digital controller and temperature display
  • Individually illuminated glass shelves
  • Double glazed glass
  • Anti mist front glass
  • Glass rear sliding doors

Product description

The TEFCOLD LPD1700F is a 1705 mm-wide chilled display cabinet with a 2.52 m² display area over two glass shelves plus base, holding +2 to +8 °C on R290 refrigerant from a standard 13-amp supply.

Sale!

Downloads

SPECIFICATION 42 facts · tap for all External W × D × H1705 x 745 x 1209 mmWidth1705 mmDepth745 mmGross / net weight388 / 318 kgGross weight388 kgVoltage / frequency220-240/50 V/Hz

Manufacturer documents2

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181991357site
Product code 20396site
Sub title Chilled Display Cabinetcatalogue
Type Flat Glass Cake Display Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 745 mmsite
External (W×D×H) 1705 × 745 × 1209 mmcatalogue
External W × D × H 1705 x 745 x 1209 mmsite
Gross / net weight 388 / 318 kgsite
Gross weight 388 kgcatalogue
Height 1209 mmsite
Internal (W×D×H) 1640 × 510 × 670 mmcatalogue
Internal W × D × H 1640 x 510 x 670 mmsite
Packed (W×D×H) 1760 × 800 × 1320 mmcatalogue
Packed W × D × H 1760 x 800 x 1320 mmsite
Width 1705 mmsite

Capacity2

Display area 2.52 m²site
Shelves 2catalogue

Performance8

Climate class 3site
Defrost type Automatic / Off Cyclesite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 680 gsite
Temperature range +2 to +8site
Thermometer Yessite

Power & energy6

Annual energy consumption 5581 kWh/yearsite
Energy consumption 15.29 kWh/24hsite
Energy efficiency index 39 %site
Input power 950 Wsite
Noise level 58 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings6

Castors 4 castorssite
Exterior finish Stainless steel / Glasssite
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Max load per shelf 33.7site
Shelf dimensions 155×33 / 155×33 / 155×44site

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this flat glass cake display fridge earns its place

The LPD1700F is a large chilled display cabinet built around 2.52 m² of display area, laid out over two glass shelves plus a base tier and framed in stainless steel and glass. The panoramic glass front makes it a merchandising cabinet for cakes, patisserie and chilled desserts where the whole spread needs to be visible to customers along its length.

It holds a tight +2 to +8 °C band suited to delicate chilled products, with automatic off-cycle defrost so there is no manual defrost routine. It is rated climate class 3. On the energy label it carries class D at 5580.8 kWh a year, which works out at about £1395 a year at 25p/kWh — a figure that moves with your tariff, ambient conditions and door use.

The cabinet measures 1705 × 745 × 1209 mm externally with a 1640 × 510 × 670 mm internal display, and ships packed at 1760 × 800 × 1320 mm — check that packed width against any tight access before delivery. It weighs 318 kg net (388 kg packed), draws from a standard 13-amp 220-240 V supply, and uses R290 refrigerant with a 680 g charge.

BEFORE YOU BUY

Questions, answered straight

It offers 2.52 m² of display area across two glass shelves plus the base, with a 1640 × 510 × 670 mm internal display behind the glass front.

The cabinet is 1705 mm wide externally and ships packed at 1760 × 800 × 1320 mm. Measure any tight doorways or corridors against that packed size before delivery.

It runs a +2 to +8 °C band for delicate chilled products such as cakes and patisserie, and is rated climate class 3.

It is energy class D rated at 5580.8 kWh a year, about £1395 a year at 25p/kWh. Actual cost depends on your tariff, room temperature and how often the cabinet is opened.

A standard 13-amp 220-240 V supply, with R290 refrigerant and a 680 g charge.

Yes. We service the display cabinets we supply — call 01792 732702 to arrange a visit or talk a fault through.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1640 x 510 x 670 mm
External Dimension (WxDxH): 1705 x 745 x 1209 mm
Packed Dimension (WxDxH): 1760 x 800 x 1320 mm

Cooling and Functions

Type of Defrost: Automatic / Off Cycle
Refrigerant: R290
Refrigerant Charge: 680 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 15.29 kWh/24h
Temperature Range: +2 to +8 °C
Annual Energy Consumption: 5581 kWh/year m³
EEI: 39 %
Input Power: 950 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 58 dB(A)

Measures and Content

Temperature Range: +2 to +8 °C
Climate Class: 3
Gross / Net Weight: 388 / 318 kg
Gross / Net Volume: / l
Max Ambient: +25°C, 60% RH
Total Display Area: 2.52 m² m²

Design and Material

Shelf Dimensions: 155×33 / 155×33 / 155×44
Max load on Shelves: 33.7 kg/m²
Feet / Legs: 4 adjustable feet
Castors: 4 castors
Exterior Finish: Stainless steel / Glass
Interior Finish: Stainless steel / Glass
Interior Light: LED
If you have any questions about the TEFCOLD LPD1700F Chilled Display Cabinet then please get in touch.
