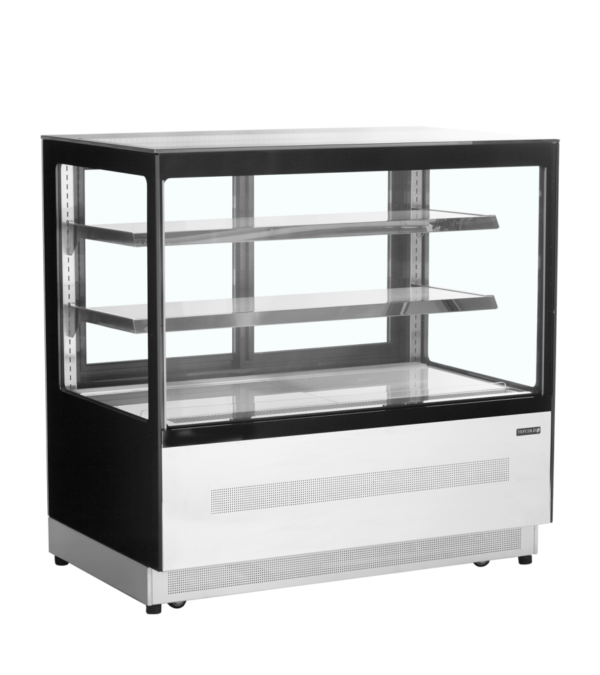

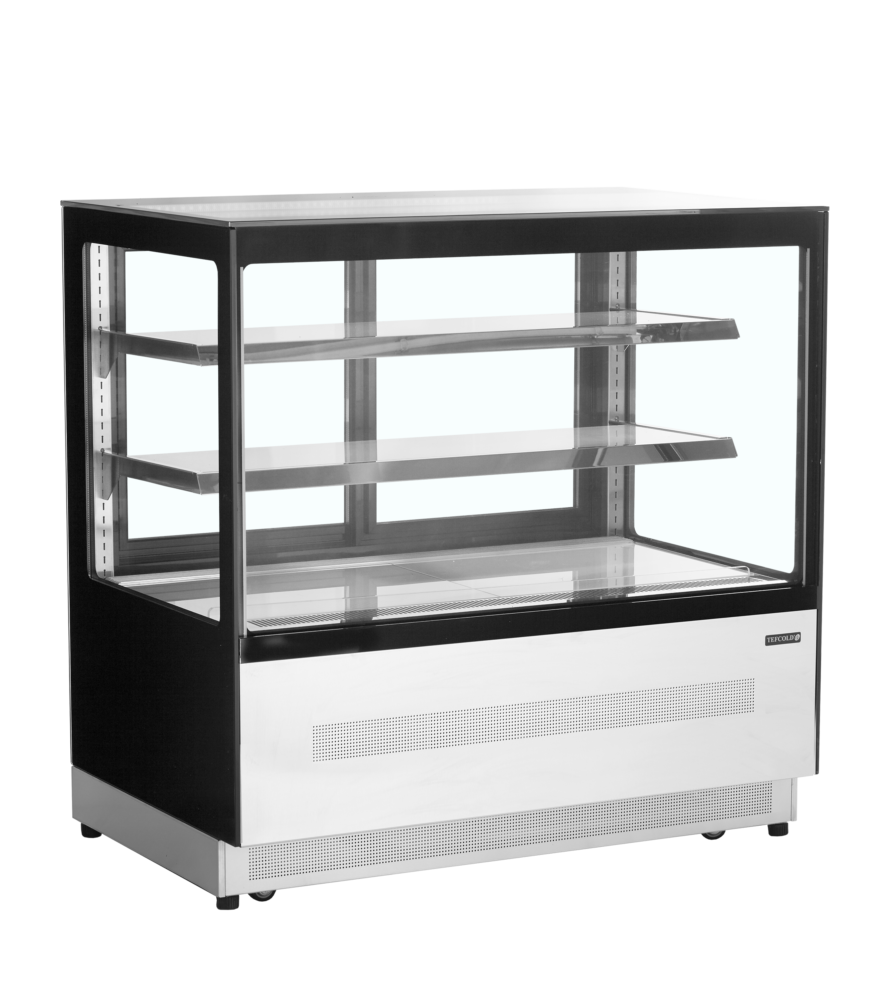

TEFCOLD LPD1200F Chilled Display Cabinet

£1,941.00 £1,111.00

+vat

Brand:

SKU: 19312

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Adjustable feet and castors
  • Adjustable shelves
  • LED interior light with switch
  • Digital controller and temperature display
  • Individually illuminated glass shelves
  • Double glazed glass
  • Anti mist front glass
  • Glass rear sliding doors

Product description

The TEFCOLD LPD1200F is a flat-glass chilled cake display cabinet with two sliding glass doors and two glass shelves, holding patisserie at +2 to +8 °C across a 1.85 m² display area, and uses about £1,016 of electricity a year at 25p/kWh.

Sale!
SPECIFICATION 47 facts · tap for all External W × D × H1205 x 745 x 1209 mmWidth1205 mmDepth745 mmGross / net weight255 / 206 kgGross weight255 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181991319site
Product code 19312site
Sub title Chilled Display Cabinetcatalogue
Type Flat Glass Cake Display Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 745 mmsite
External (W×D×H) 1205 × 745 × 1209 mmcatalogue
External W × D × H 1205 x 745 x 1209 mmsite
Gross / net weight 255 / 206 kgsite
Gross weight 255 kgcatalogue
Height 1209 mmsite
Internal (W×D×H) 1140 × 510 × 670 mmcatalogue
Internal W × D × H 1140 x 510 x 670 mmsite
Packed (W×D×H) 1260 × 800 × 1320 mmcatalogue
Packed W × D × H 1260 x 800 x 1320 mmsite
Width 1205 mmsite

Capacity3

Display area 1.85 m²site
Gross volume 377 litrescatalogue
Shelves 2catalogue

Performance9

Climate class 3site
Controller Electronicsite
Defrost type Automatic / Off Cyclesite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 130 gsite
Temperature range +2 to +8site
Thermometer Yessite

Power & energy6

Annual energy consumption 4062 kWh/yearsite
Energy consumption 11.13 kWh/24hsite
Energy efficiency index 36 %site
Input power 580 Wsite
Noise level 58 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings7

Castors 4 castorssite
Exterior finish Stainless steel / Glasssite
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Max load per shelf 33.7site
Reversible doors Nosite
Shelf dimensions 105×33 / 105×33 / 105×44site

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this flat glass cake display fridge earns its place

The TEFCOLD LPD1200F is a flat-glass chilled display cabinet built to merchandise cakes and patisserie. Two glass shelves plus the base give a 1.85 m² display area behind flat glass, and two sliding glass doors mean staff can serve from behind without disturbing a customer-facing front. The stainless steel and glass build keeps the focus on the product on show.

It holds a +2 to +8 °C band with automatic off-cycle defrost and an electronic controller, using R290 refrigerant to keep gateaux, tarts and desserts at a safe serving temperature all day. It carries a D energy rating and draws 580 W; rated at 4,062.5 kWh a year, it costs about £1,016 a year at 25p/kWh. Its climate class 3 rating covers ambient conditions up to that class.

The cabinet measures 1,205 × 745 × 1,209 mm (W×D×H) and gives 191 litres net from a 377-litre gross volume, with internal space of 1,140 × 510 × 670 mm. It is a heavy unit at 206 kg net, 255 kg as delivered in 1,260 × 800 × 1,320 mm packing, so measure doorways and plan the route in. It runs on 220-240 V and a standard 13-amp supply with a 130 g R290 charge.

BEFORE YOU BUY

Questions, answered straight

It offers a 1.85 m² display area across two glass shelves plus the base, with 191 litres net from a 377-litre gross volume, aimed at merchandising cakes and patisserie behind flat glass.

It runs +2 to +8 °C with automatic off-cycle defrost and an electronic controller, using R290 refrigerant, which suits chilled cakes, tarts and desserts on display.

It carries a D energy rating and draws 580 W. Rated at 4,062.5 kWh a year, that is about £1,016 a year at 25p/kWh, depending on your tariff, ambient temperature and how it is loaded.

The cabinet is 1,205 × 745 × 1,209 mm (W×D×H) and ships in 1,260 × 800 × 1,320 mm packing. Measure doorways and the route in before delivery, and note it weighs 206 kg net.

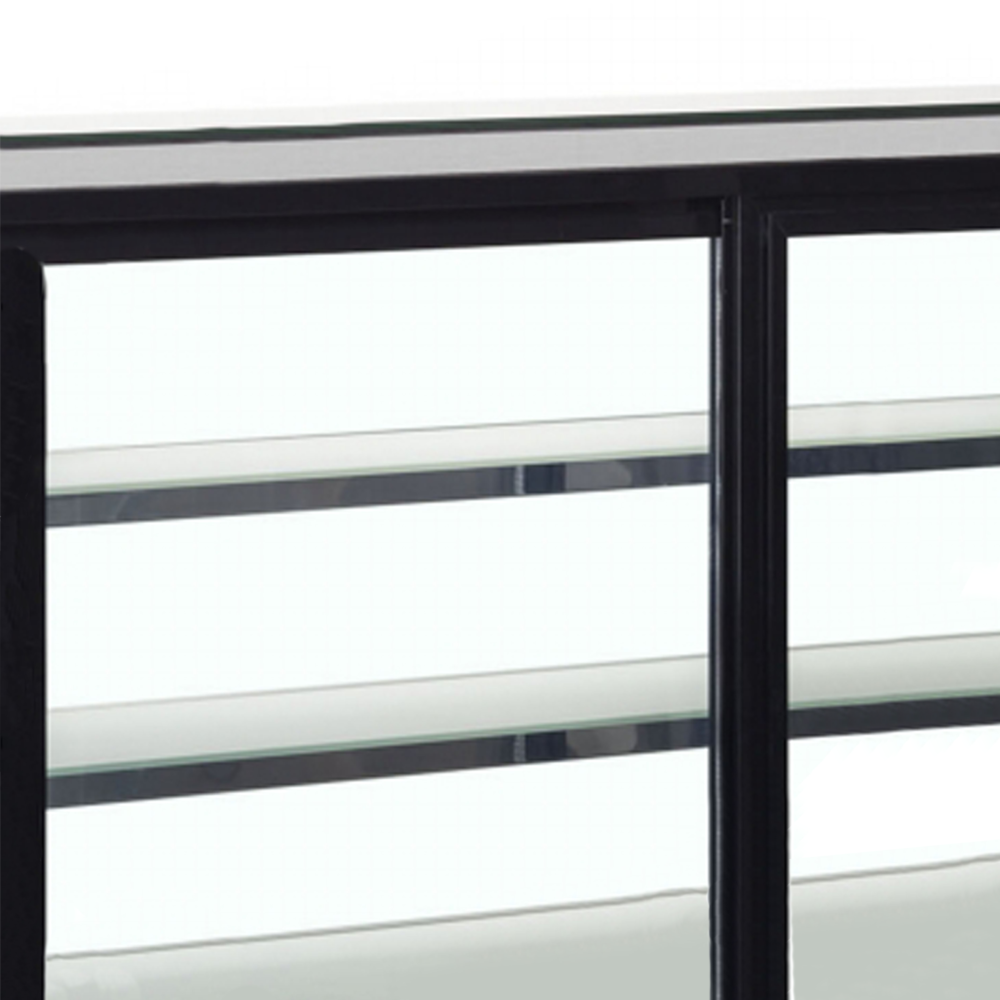

It has two sliding glass doors, so staff can access stock from behind while the flat glass front keeps the display facing customers.

Yes. Craven Cooling can arrange servicing and support for TEFCOLD cabinets. Call the team on 01792 732702 to book a visit or discuss a fault.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1140 x 510 x 670 mm
External Dimension (WxDxH): 1205 x 745 x 1209 mm
Packed Dimension (WxDxH): 1260 x 800 x 1320 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic / Off Cycle
Refrigerant: R290
Refrigerant Charge: 130 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 11.13 kWh/24h
Temperature Range: +2 to +8 °C
Annual Energy Consumption: 4062 kWh/year m³
EEI: 36 %
Input Power: 580 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 58 dB(A)

Measures and Content

Temperature Range: +2 to +8 °C
Climate Class: 3
Gross / Net Weight: 255 / 206 kg
Gross / Net Volume: 377 / 191 l
Max Ambient: +25°C, 60% RH
Total Display Area: 1.85 m² m²

Design and Material

Door Reversible: No
Shelf Dimensions: 105×33 / 105×33 / 105×44
Max load on Shelves: 33.7 kg/m²
Feet / Legs: 4 adjustable feet
Castors: 4 castors
Exterior Finish: Stainless steel / Glass
Interior Finish: Stainless steel / Glass
Interior Light: LED
If you have any questions about the TEFCOLD LPD1200F Chilled Display Cabinet then please get in touch.
