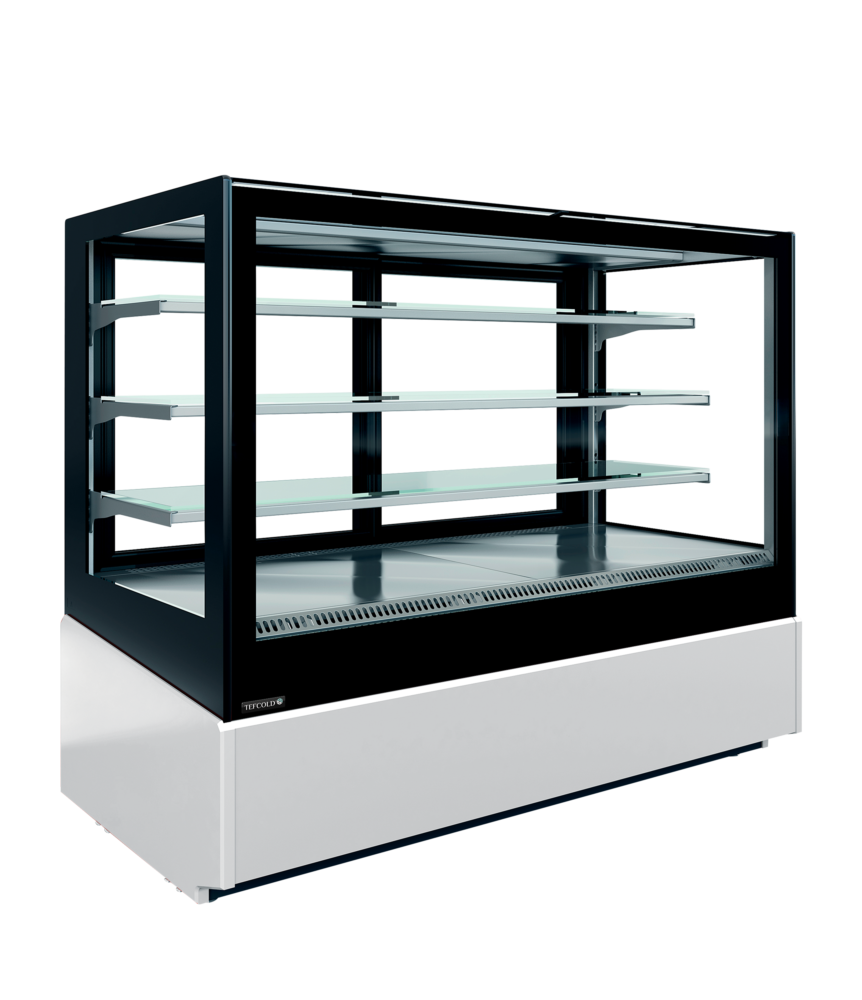

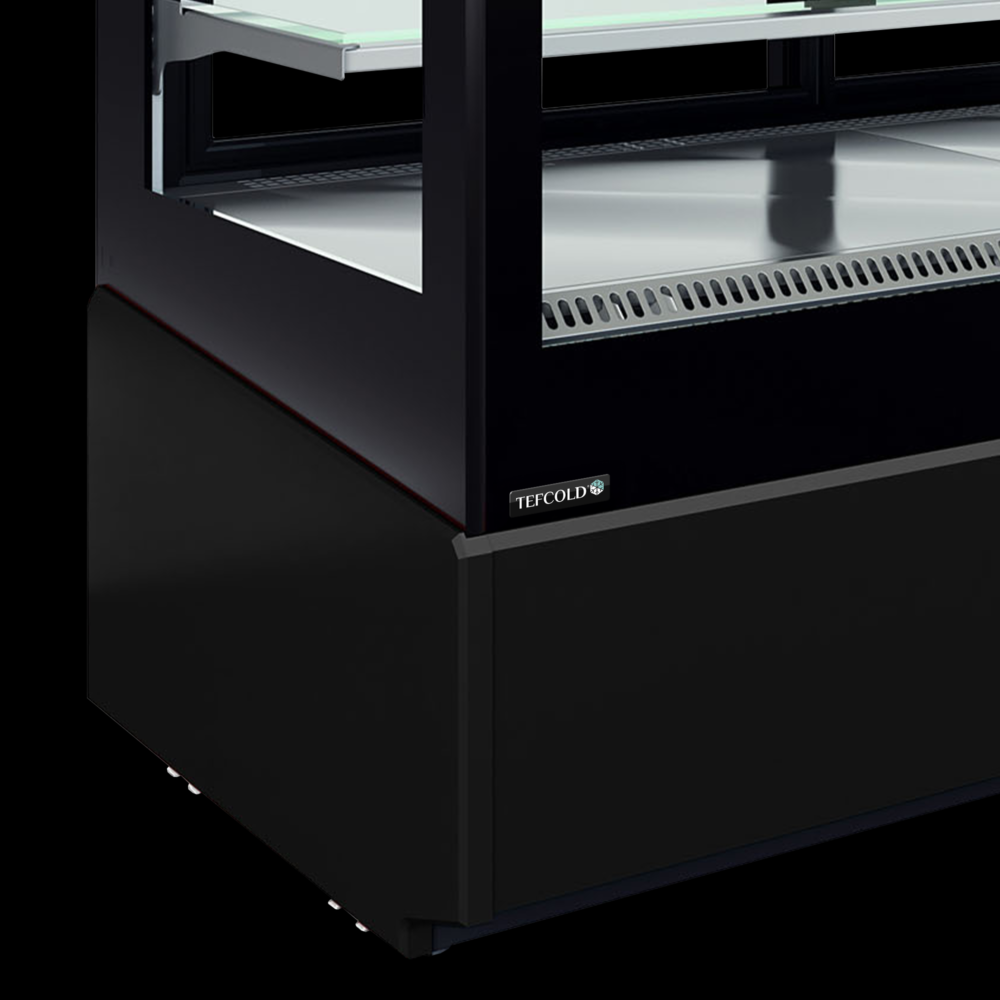

TEFCOLD CHOPIN 700 FV-VP Chilled Display Cabinet

£2,923.00

+vat

Brand:

SKU: 18938

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Adjustable feet
  • LED interior lighting to each shelf and top with switch
  • Digital controller and temperature display
  • Double glazed glass to improve insulation
  • Stainless deck
  • Colour options available
  • Front glass hinges forward if required

Product description

The stylish Chopin range allows you to mix and match refrigerated rear serve counters with Mesa counters (till/table counters) to make a complete counter run to suit your requirement. The modern and stylish flat glass design helps create a contemporary feel in shops, delis and café environments. Premium design and build quality make it the go to choice available in number of different sizes, finishes and colours. Ambient and hot versions also available.

The TEFCOLD CHOPIN 700 FV-VP is a white chilled display cabinet holding +2 to +6 °C behind two sliding glass doors, offering 1.84 m² of display area at energy class B, measuring 750 × 800 × 1300 mm (W×D×H) and using about £301 a year in energy at 25p/kWh.

Downloads

SPECIFICATION 33 facts · tap for all External W × D × H750 x 800 x 1300 mmWidth750 mmDepth800 mmGross / net weight155 / 130 kgGross weight155 kgVoltage / frequency220-240/50 V/Hz

Manufacturer documents2

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181605148site
Product code 18938site
Sub title Chilled Display Cabinetcatalogue
Type Flat Glass Cake Display Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight8

Depth 800 mmsite
External (W×D×H) 750 × 800 × 1300 mmcatalogue
External W × D × H 750 x 800 x 1300 mmsite
Gross / net weight 155 / 130 kgsite
Gross weight 155 kgcatalogue
Height 1300 mmsite
Internal W × D × H mmsite
Width 750 mmsite

Capacity2

Display area 1.84 m²site
Doors 2catalogue

Performance7

Climate class 3site
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Temperature range +2 to +6site
Thermometer Yessite

Power & energy5

Annual energy consumption 1205 kWh/yearsite
Energy consumption 3.3 kWh/24hsite
Energy efficiency index 11.6 %site
Input power 410 Wsite
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings2

Exterior finish Whitesite
Interior light LEDsite

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this flat glass cake display fridge earns its place

The CHOPIN 700 FV-VP is an upright chilled display cabinet built to show cakes, patisserie and prepared chilled items to the customer. It puts 1.84 m² of display area behind two sliding glass doors, with a stainless-steel-and-glass interior that keeps the product the focus, all inside a white cabinet that stays neutral against most interiors.

Day to day it holds +2 to +6 °C, with automatic defrost keeping the coils clear without manual intervention. It carries an energy class B rating from an input power of 410 W, which works out at about £301 a year in energy at 25p/kWh, and it uses R290 refrigerant. Its climate class 3 rating suits a normal indoor service environment.

For installation the cabinet measures 750 × 800 × 1300 mm (W×D×H) and weighs 155 kg gross, 130 kg net, so plan on lifting help and check that access doorways clear the 750 mm width. The sliding glass doors need no swing clearance, and the cabinet runs on a 220-240 V / 50 Hz single-phase supply drawing 13 A.

BEFORE YOU BUY

Questions, answered straight

It runs at +2 to +6 °C, suited to chilled cakes, patisserie and prepared items. Automatic defrost keeps the coils clear without manual defrosting.

It offers 1.84 m² of display area behind two sliding glass doors, with a stainless-steel-and-glass interior.

On an energy class B rating and 410 W input power, it uses about £301 a year in energy at 25p/kWh. Your actual cost depends on your tariff and usage.

The cabinet is 750 mm wide, 800 mm deep and 1300 mm high. That width is close to a standard single doorway, so measure your access route before delivery.

It runs on a 220-240 V / 50 Hz single-phase supply and draws 13 A, so it connects to a standard commercial socket.

Yes. It uses R290 refrigerant, and Craven Cooling handles servicing and support — call the team on 01792 732702 to arrange a visit.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): mm
External Dimension (WxDxH): 750 x 800 x 1300 mm
Packed Dimension (WxDxH): mm

Cooling and Functions

Type of Defrost: Automatic
Refrigerant: R290
Thermometer: Yes

Power and Consumption

Energy Consumption: 3.3 kWh/24h
Temperature Range: +2 to +6 °C
Annual Energy Consumption: 1205 kWh/year m³
EEI: 11.6 %
Input Power: 410 W
Voltage / Frequency: 220-240/50 V/Hz

Measures and Content

Temperature Range: +2 to +6 °C
Climate Class: 3
Gross / Net Weight: 155 / 130 kg
Gross / Net Volume: / l
Max Ambient: +25°C, 60% RH
Total Display Area: 1.84 m² m²

Design and Material

Exterior Finish: White
Interior Finish: White
Interior Light: LED
If you have any questions about the TEFCOLD CHOPIN 700 FV-VP Chilled Display Cabinet then please get in touch.
