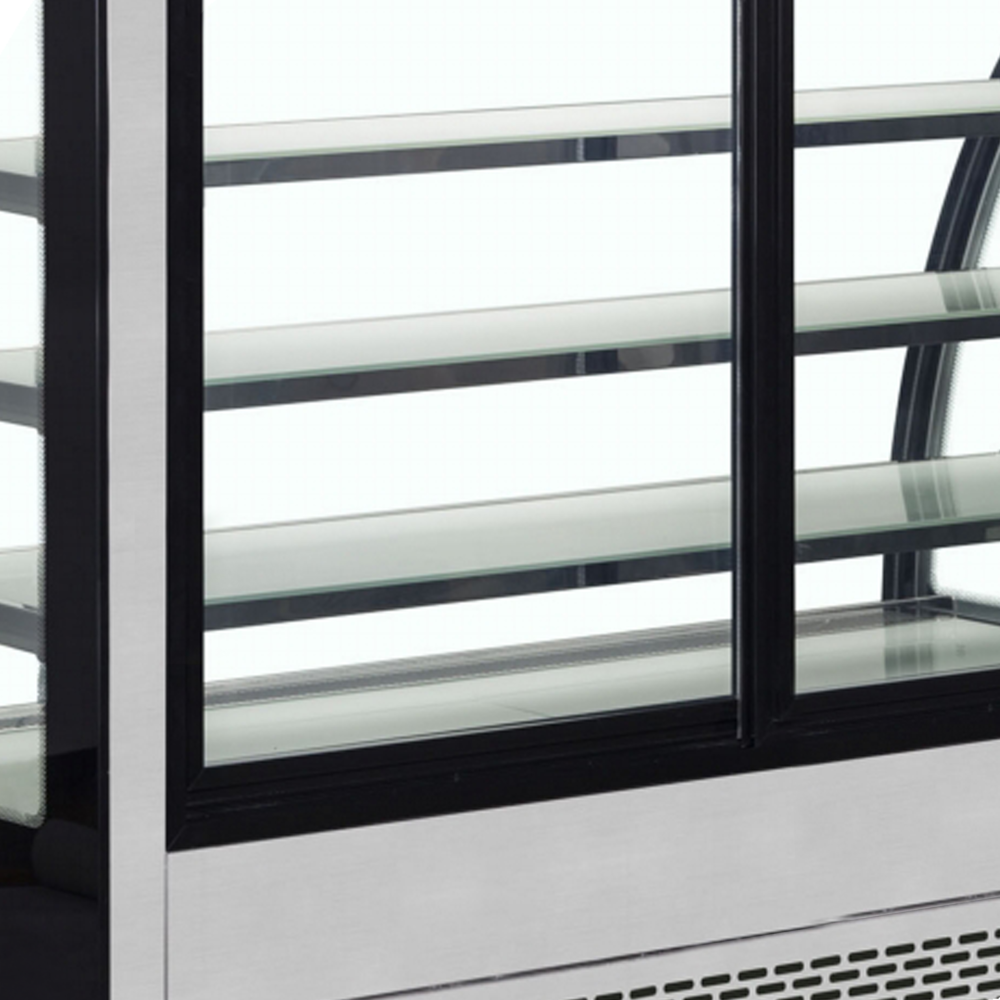

TEFCOLD LPD1200C Chilled Display Cabinet

£1,941.00 £1,029.00

+vat

Brand:

SKU: 19311

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Adjustable shelves
  • Adjustable feet and castors
  • LED interior light with switch
  • Digital controller and temperature display
  • Individually illuminated opaque white glass shelves
  • Anti mist front glass
  • Glass rear sliding doors

Product description

The TEFCOLD LPD1200C is a curved-glass chilled display cabinet holding +2 to +8 °C across 2.01 m² of glass-shelved display behind two sliding glass doors, measuring 1205 mm wide and running on a standard 13 A supply.

Sale!
SPECIFICATION 47 facts · tap for all External W × D × H1205 x 745 x 1360 mmWidth1205 mmDepth745 mmGross / net weight309 / 269 kgGross weight309 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181991302site
Product code 19311site
Sub title Chilled Display Cabinetcatalogue
Type Curved Glass Cake Display Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 745 mmsite
External (W×D×H) 1205 × 745 × 1360 mmcatalogue
External W × D × H 1205 x 745 x 1360 mmsite
Gross / net weight 309 / 269 kgsite
Gross weight 309 kgcatalogue
Height 1360 mmsite
Internal (W×D×H) 1050 × 580 × 780 mmcatalogue
Internal W × D × H 1050 x 580 x 780 mmsite
Packed (W×D×H) 1260 × 800 × 1480 mmcatalogue
Packed W × D × H 1260 x 800 x 1480 mmsite
Width 1205 mmsite

Capacity3

Display area 2.01 m²site
Doors 2catalogue
Gross volume 328 litrescatalogue

Performance9

Climate class 3site
Controller Electronicsite
Defrost type Automatic / Off Cyclesite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 130 gsite
Temperature range +2 to +8site
Thermometer Yessite

Power & energy6

Annual energy consumption 4592 kWh/yearsite
Energy consumption 12.58 kWh/24hsite
Energy efficiency index 38 %site
Input power 580 Wsite
Noise level 58 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings7

Castors 4 castorssite
Exterior finish Stainless steel / Glasssite
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Max load per shelf 33.7site
Reversible doors Nosite
Shelf dimensions 105×23 / 105×28 / 105×33 / 105×44site

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this curved glass cake display fridge earns its place

The LPD1200C is a curved-glass chilled display cabinet built to put cakes, desserts and chilled patisserie at eye level. It carries 2.01 m² of display area over three glass shelves plus the base deck, so a counter can merchandise several tiers of product at once. The stainless steel and glass construction reads clean front-of-house, and the two sliding glass doors give staff quick access from behind without breaking the display line.

Day to day it holds a +2 to +8 °C band suitable for chilled cakes and desserts, controlled electronically and defrosted automatically on an off-cycle so there is no manual routine to manage. It is rated energy class D at 4591.7 kWh a year, which works out at about £1148 a year in electricity at 25p/kWh. The cabinet is built to climate class 3 and runs on R290 refrigerant with a 130 g charge.

The cabinet measures 1205 × 745 × 1360 mm (W×D×H) and ships packed at 1260 × 800 × 1480 mm, so measure access routes before delivery — the 800 mm packed depth is the number that catches standard single doorways. It draws from a standard 13 A supply at 220–240 V / 50 Hz, rated 580 W. Net weight is 269 kg (309 kg gross), so plan for two or more people and a clear, level siting position.

BEFORE YOU BUY

Questions, answered straight

The cabinet is 1205 × 745 × 1360 mm and ships packed at 1260 × 800 × 1480 mm. The 800 mm packed depth is tighter than many single doorways, so measure the route and be ready to unpack at the threshold if needed.

It runs a +2 to +8 °C chilled band, suitable for cakes, desserts and chilled patisserie. The temperature is set electronically.

It is energy class D and rated at 4591.7 kWh a year, which is about £1148 a year in electricity at 25p/kWh. Actual figures depend on ambient conditions and how often the doors are opened.

A standard 13 A supply at 220–240 V / 50 Hz. Rated input power is 580 W.

No. Defrost is automatic on an off-cycle, so there is no manual routine to run.

Yes, Craven Cooling can arrange servicing and support after installation. Call the team on 01792 732702 to discuss cover.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1050 x 580 x 780 mm
External Dimension (WxDxH): 1205 x 745 x 1360 mm
Packed Dimension (WxDxH): 1260 x 800 x 1480 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic / Off Cycle
Refrigerant: R290
Refrigerant Charge: 130 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 12.58 kWh/24h
Temperature Range: +2 to +8 °C
Annual Energy Consumption: 4592 kWh/year m³
EEI: 38 %
Input Power: 580 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 58 dB(A)

Measures and Content

Temperature Range: +2 to +8 °C
Climate Class: 3
Gross / Net Weight: 309 / 269 kg
Gross / Net Volume: 328 / 218 l
Max Ambient: +25°C, 60% RH
Total Display Area: 2.01 m² m²

Design and Material

Door Reversible: No
Shelf Dimensions: 105×23 / 105×28 / 105×33 / 105×44
Max load on Shelves: 33.7 kg/m²
Feet / Legs: 4 adjustable feet
Castors: 4 castors
Exterior Finish: Stainless steel / Glass
Interior Finish: Stainless steel / Glass
Interior Light: LED
If you have any questions about the TEFCOLD LPD1200C Chilled Display Cabinet then please get in touch.
