ISA MILLENNIUM LX170 PAS Serve Over Counter for Patisserie

£5,673.00

+vat

Brand:

SKU: 20382

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • LED interior lighting (under canopy and each shelf)
  • Heated glass to help prevent condensation
  • Heated doubled glazed side glass to prevent misting
  • Night blind / Curtain
  • Stainless rear shelf and deck
  • Castors, 2 lockable
  • Digital controller and temperature display

Product description

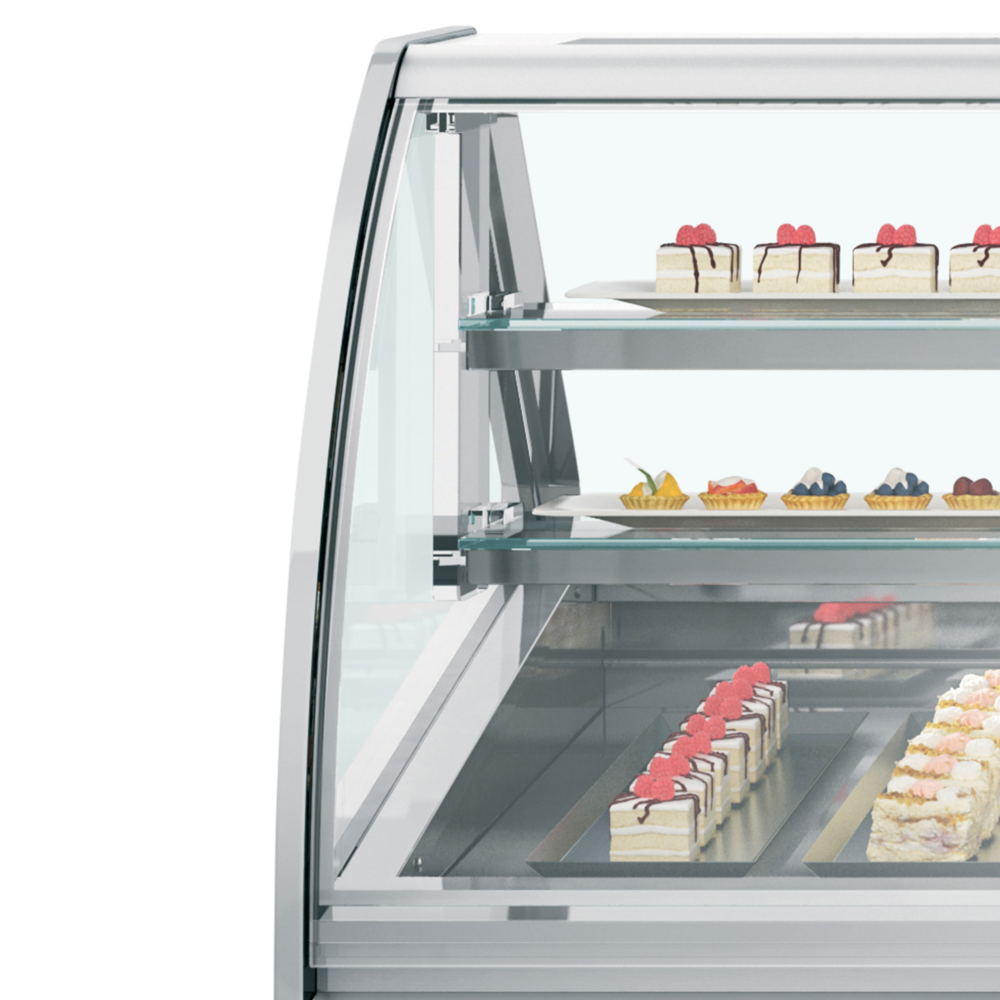

The Millennium Pastry from ISA brings a contemporary design for modern environments. The clean lines of this popular display are ideal for presenting your very best products. A generous refrigerated display deck is complemented by 2 ambient shelves (each with under-shelf lighting) enabling you to maximise display space and sales. The unit comes fitted with large durable, lockable castors for moving the cabinet, together with hinged glass to give easier access for cleaning and keeping your display looking perfect.

The ISA Millennium LX170 PAS is a patisserie serve-over counter holding +1 to +10 °C across a 0.51 m² display area, finished in white and grey with a stainless-steel interior, using R290 refrigerant and automatic off-cycle defrost on a standard 13-amp supply.

SPECIFICATION 33 facts · tap for all External W × D × H1661 x 1080 x 1356 mmWidth1661 mmDepth1080 mmGross / net weight348 / 300 kgGross weight348 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand ISAsite
GTIN / EAN 5708181618117site
Product code 20382site
Sub title Serve Over Counter for Patisseriecatalogue
Type Curved Glass Cake Display Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight8

Depth 1080 mmsite
External (W×D×H) 1661 × 1080 × 1356 mmcatalogue
External W × D × H 1661 x 1080 x 1356 mmsite
Gross / net weight 348 / 300 kgsite
Gross weight 348 kgcatalogue
Height 1356 mmsite
Internal W × D × H mmsite
Width 1661 mmsite

Capacity1

Display area 0.51 m²site

Performance7

Climate class 3site
Defrost type Automatic / Off Cyclesite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Temperature range +1 to +10site
Thermometer Yessite

Power & energy5

Annual energy consumption 2238 kWh/yearsite
Energy consumption 6.13 kWh/24hsite
Energy efficiency index 94 %site
Input power 1150 Wsite
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings2

Exterior finish White/Greysite
Interior light LEDsite

Other stated facts1

Energy class Gcatalogue
THE WORKING VIEW

Why this curved glass cake display fridge earns its place

The ISA Millennium LX170 PAS is a serve-over counter built for patisserie, presenting cakes and desserts to customers across the front of the counter. It has a white and grey exterior with a stainless-steel interior and a 0.51 m² display area, giving a clear, close-up view of delicate stock while staff serve from behind.

It holds a chilled band of +1 to +10 °C suited to finished patisserie, with automatic off-cycle defrost keeping the interior clear during normal running. It is rated climate class 3 and, on energy class G, draws 1150 W and uses about 2237.4 kWh a year — roughly £559 a year at 25p/kWh — so factor the running cost into a premium display counter.

Externally it measures 1661 mm wide, 1080 mm deep and 1356 mm high, so plan clear doorway and gangway access for a counter this wide before it arrives. It weighs 300 kg net (348 kg gross) and needs proper handling into position. It runs on a 13-amp 220–240 V supply and uses R290 refrigerant.

BEFORE YOU BUY

Questions, answered straight

It runs a chilled band of +1 to +10 °C, suited to displaying finished patisserie and desserts. Automatic off-cycle defrost keeps the interior clear during normal running.

The counter is 1661 mm wide, 1080 mm deep and 1356 mm high, so allow for its footprint plus staff space behind. Check doorway and gangway clearance before delivery, as it is a wide, heavy cabinet.

It is rated energy class G and uses about 2237.4 kWh a year, which is roughly £559 a year at 25p/kWh. Your actual cost depends on tariff, ambient conditions and trading hours.

No. It runs on a standard 13-amp 220–240 V supply and draws 1150 W, so it connects to an ordinary commercial socket.

It weighs 300 kg net and 348 kg gross, so it needs proper handling and a checked access route. Confirm the floor and final position can take the weight before it arrives.

It uses R290 and is rated climate class 3. Craven Cooling can advise on installation and servicing — call the team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): mm
External Dimension (WxDxH): 1661 x 1080 x 1356 mm
Packed Dimension (WxDxH): mm

Cooling and Functions

Type of Defrost: Automatic / Off Cycle
Refrigerant: R290
Thermometer: Yes

Power and Consumption

Energy Consumption: 6.13 kWh/24h
Temperature Range: +1 to +10 °C
Annual Energy Consumption: 2238 kWh/year m³
EEI: 94 %
Input Power: 1150 W
Voltage / Frequency: 220-240/50 V/Hz

Measures and Content

Temperature Range: +1 to +10 °C
Climate Class: 3
Gross / Net Weight: 348 / 300 kg
Gross / Net Volume: / l
Max Ambient: +25°C, 60% RH
Total Display Area: 0.51 m² m²

Design and Material

Exterior Finish: White/Grey
Interior Finish: White/Grey
Interior Light: LED
If you have any questions about the ISA MILLENNIUM LX170 PAS Serve Over Counter for Patisserie then please get in touch.
