TEFCOLD UPD60 Refrigerated Glass Display

£362.00

+vat

Brand:

SKU: 20060

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Adjustable shelves
  • Adjustable feet
  • LED interior light with switch

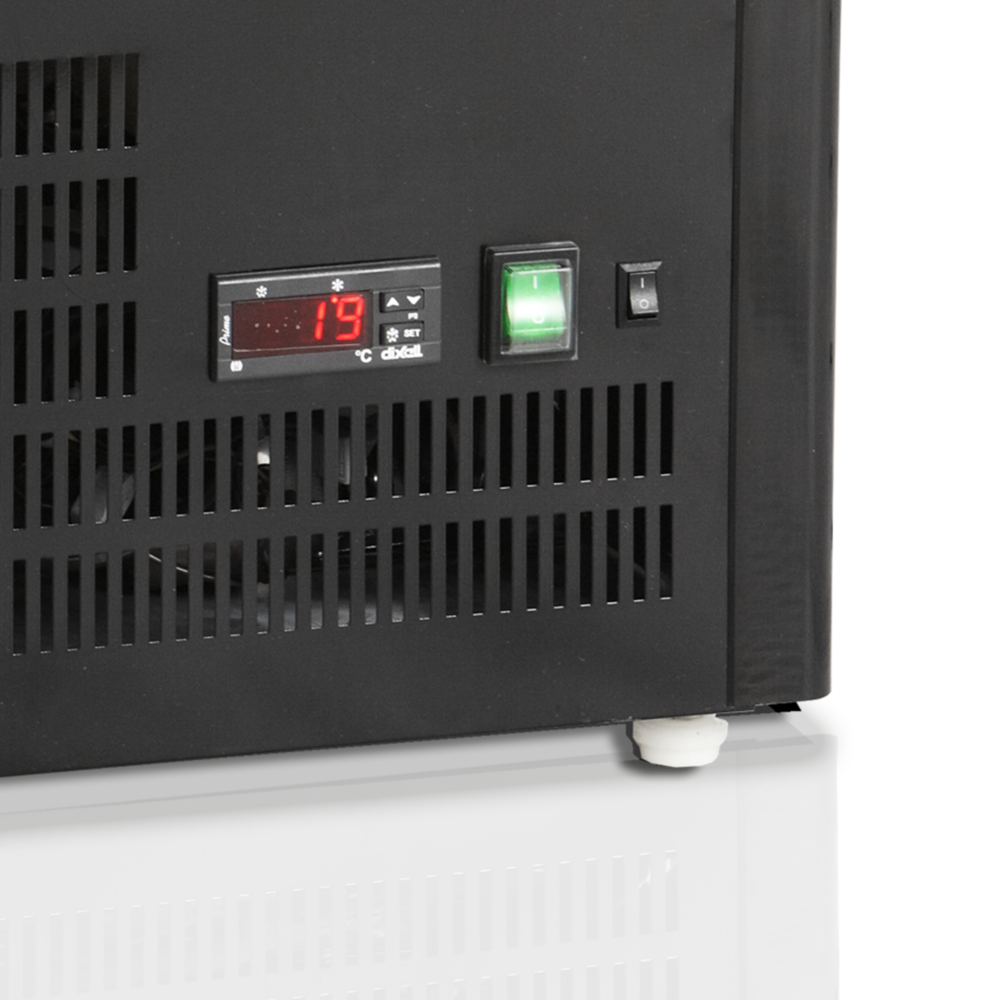

  • Digital controller and temperature display
  • Replaceable door gasket
  • Double glazed glass
  • Black interior for enhanced product display

Product description

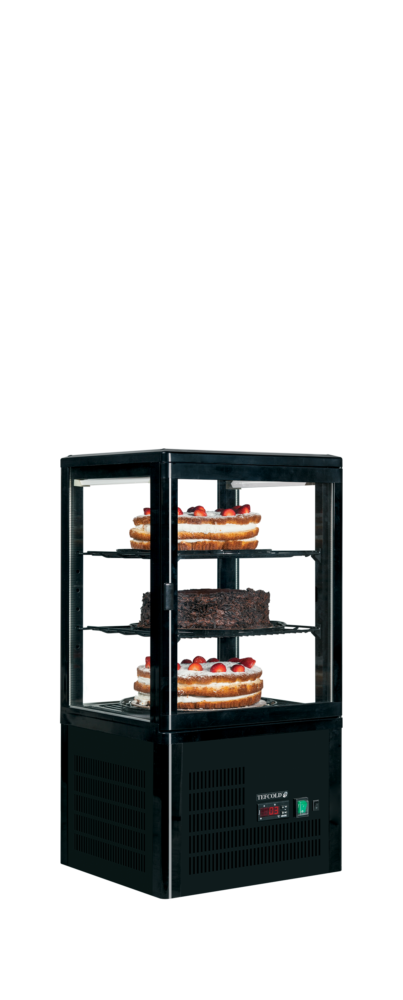

A great little counter top cooler available in 2 heights. Its sleek black finish looks great in cafés and restaurants, where this unit is excellent for display of cakes and desserts. LED lights help to display the produce while fan assisted cooling ensures even temperature over the whole cabinet.

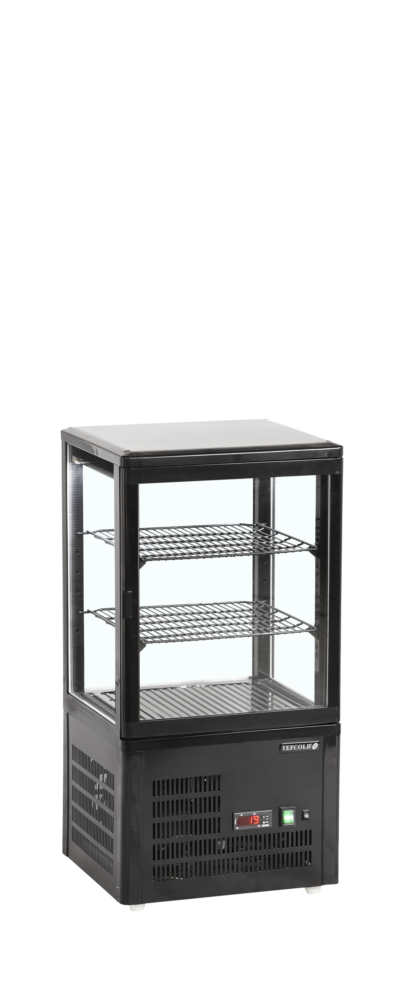

The Tefcold UPD60 is a countertop refrigerated glass display holding 58 litres net across two wire shelves with 0.57 m² of display area, running +2 to +12 °C behind a hinged glass door, measuring 428 × 386 × 855 mm and rated energy class C.

SPECIFICATION 45 facts · tap for all External W × D × H428 x 386 x 855 mmWidth428 mmDepth386 mmGross / net weight42 / 38 kgGross weight42 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181355838site
Product code 20060site
Sub title Refrigerated Glass Displaycatalogue
Type Countertop Cake Display Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 386 mmsite
External (W×D×H) 428 × 386 × 855 mmcatalogue
External W × D × H 428 x 386 x 855 mmsite
Gross / net weight 42 / 38 kgsite
Gross weight 42 kgcatalogue
Height 855 mmsite
Internal (W×D×H) 400 × 358 × 460 mmcatalogue
Internal W × D × H 400 x 358 x 460 mmsite
Packed (W×D×H) 500 × 450 × 895 mmcatalogue
Packed W × D × H 500 x 450 x 895 mmsite
Width 428 mmsite

Capacity4

Display area 0.57 m²site
Doors 1catalogue
Gross volume 60 litrescatalogue
Shelves 2catalogue

Performance9

Climate class 4site
Controller Electronicsite
Defrost type Automatic / Off Cyclesite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 38 gsite
Temperature range +2 to +12site
Thermometer Yessite

Power & energy6

Annual energy consumption 1311 kWh/yearsite
Energy consumption 3.59 kWh/24hsite
Energy efficiency index 27.8 %site
Input power 164 Wsite
Noise level 42 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Exterior finish Black finish, ABSsite
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Reversible doors Nosite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this countertop cake display fridge earns its place

The UPD60 is a countertop refrigerated glass display for putting chilled cakes, desserts and patisserie in front of customers at the point of sale. A hinged glass door and two black wire shelves present 58 litres net (60 litres gross) across 0.57 m² of display area, and the black ABS finish frames the product cleanly. It is compact enough to sit on a counter rather than the floor.

Day to day it holds +2 to +12 °C with automatic off-cycle defrost and an electronic controller. At 42 dB it is quiet for counter-front service, and its climate class 4 rating suits warmer, busier rooms. Rated energy class C at 1310.3 kWh a year, it costs about £328 a year to run at 25p/kWh, drawing 164 W, and uses R600a refrigerant with a 38 g charge.

The cabinet measures 428 × 386 × 855 mm (W×D×H), a small counter footprint of 428 mm wide by 386 mm deep, standing 855 mm tall. It runs on a 13 A supply, weighs 38 kg net (42 kg packed), and the internal space measures 400 × 358 × 460 mm.

BEFORE YOU BUY

Questions, answered straight

It offers 0.57 m² of display area across two black wire shelves, holding 58 litres net (60 litres gross).

It runs +2 to +12 °C with automatic off-cycle defrost and an electronic controller, suitable for cakes, desserts and chilled patisserie.

It is rated energy class C at 1310.3 kWh a year, about £328 a year at 25p/kWh. It draws 164 W and uses R600a refrigerant.

It measures 428 × 386 × 855 mm, so a 428 mm wide by 386 mm deep footprint standing 855 mm tall. Allow clearance above for the door to open.

At 42 dB it is quiet enough for counter-front service, and its climate class 4 rating means it handles warmer rooms.

Yes, Craven Cooling can arrange servicing and support. Call the team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 400 x 358 x 460 mm
External Dimension (WxDxH): 428 x 386 x 855 mm
Packed Dimension (WxDxH): 500 x 450 x 895 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic / Off Cycle
Refrigerant: R600a
Refrigerant Charge: 38 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 3.59 kWh/24h
Temperature Range: +2 to +12 °C
Annual Energy Consumption: 1311 kWh/year m³
EEI: 27.8 %
Input Power: 164 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 42 dB(A)

Measures and Content

Temperature Range: +2 to +12 °C
Climate Class: 4
Gross / Net Weight: 42 / 38 kg
Gross / Net Volume: 60 / 58 l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.57 m² m²

Design and Material

Door Reversible: No
Shelf Color: Black
Feet / Legs: 4 adjustable feet
Exterior Finish: Black finish, ABS
Interior Finish: Black finish, ABS
Interior Light: LED
If you have any questions about the TEFCOLD UPD60 Refrigerated Glass Display then please get in touch.
