TEFCOLD CW2 Buffet Display

£582.00

+vat

- +

Brand:

SKU: 20017

Product summary

  • Static cooling
  • Digital controller and temperature display
  • Stainless steel construction
  • Suitable for building into counters
  • Accepts Gastronorm pans (not supplied)
  • Accepts GN1/1 pan(s) (not supplied)

Product description

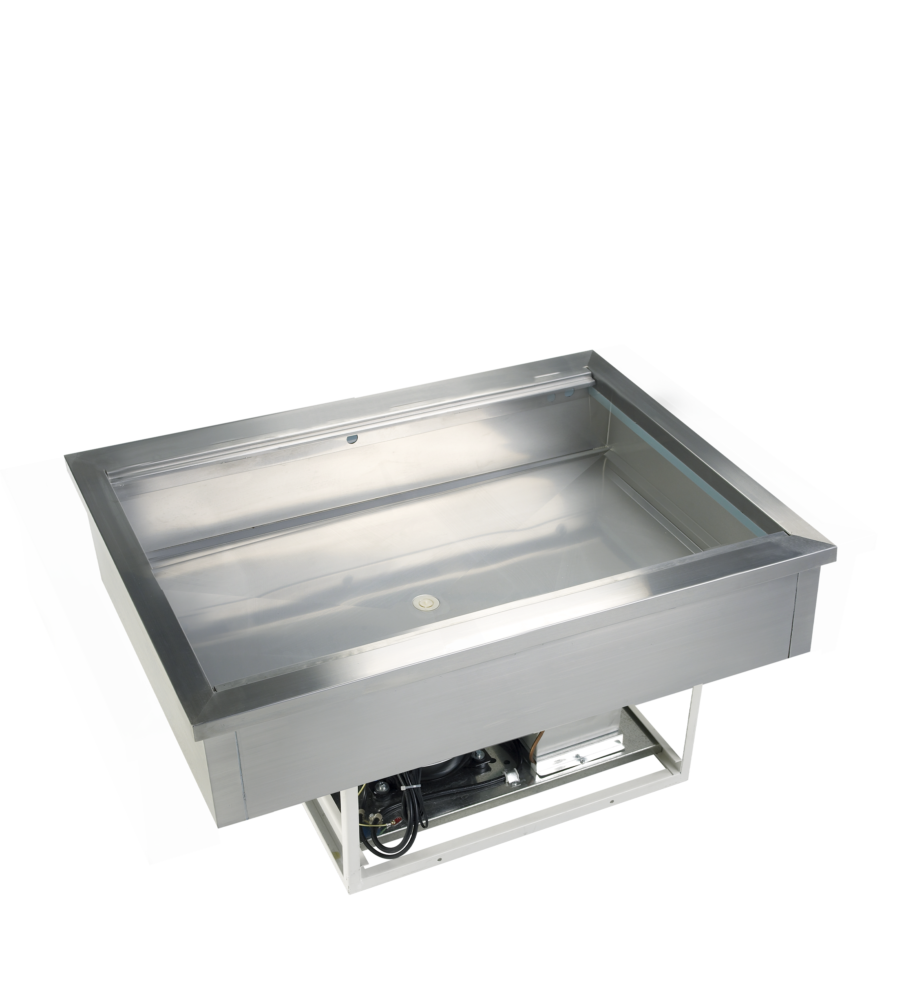

A drop-in refrigerated well with static cooling designed to be used with gastronorm pans (available in sizes to take 2, 3, 4 or 5 x 1/1 gastronorm pans). The well features a robust stainless steel construction and is ideal for use with salads or other chilled produce. Please note these units have to be built into a counter (not supplied). It is the purchaser’s responsibility to ensure there is a suitable sneeze screen or covers for the purpose it is being used for, and that airflow within the unit is not interrupted and suitable cooling is allowed around the condenser. Incorrect installation will invalidate any warranty. Installation must comply with relevant environmental health and food safety standards.

SPECIFICATION 38 facts · tap for all External W × D × H768 x 678 x 536 mmWidth768 mmDepth678 mmGross / net weight49 / 44 kgGross weight49 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181354015site
Product code 20017site
Sub title Buffet Displaycatalogue
Type Drop-In Display Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 678 mmsite
External (W×D×H) 768 × 678 × 536 mmcatalogue
External W × D × H 768 x 678 x 536 mmsite
Gross / net weight 49 / 44 kgsite
Gross weight 49 kgcatalogue
Height 536 mmsite
Internal (W×D×H) 660 × 570 × 175 mmcatalogue
Internal W × D × H 660 x 570 x 175 mmsite
Packed (W×D×H) 820 × 730 × 680 mmcatalogue
Packed W × D × H 820 x 730 x 680 mmsite
Width 768 mmsite

Capacity3

Capacity item specification 2 x GN1/1 pcscatalogue
GN pan capacity 2 x GN1/1site
Gross volume 69 litrescatalogue

Performance9

Controller Electronicsite
Cooling type Staticsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 70 gsite
Temperature range +2 to +8site
Thermometer Yessite

Power & energy5

Annual energy consumption 1051 kWh/yearsite
Energy consumption 2.88 kWh/24hsite
Input power 122 Wsite
Noise level 42 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings1

Exterior finish Stainless steelsite
THE WORKING VIEW

Why this drop-in display fridge earns its place

The TEFCOLD CW2 is a compact drop-in buffet display built for self-service presentation. Stainless steel inside and out, it sits on a counter or buffet run and keeps chilled food on show while holding it at a safe serving temperature, so guests can help themselves without the food warming through service.

Day to day, the CW2 runs a +2 to +8 °C band on static cooling with automatic defrost, managed by an electronic controller that takes the guesswork out of holding temperature. It measures 42 dB in use, so it stays quiet enough for a front-of-house buffet, and draws 122 W. On its rated consumption of 1,051.2 kWh a year, that works out at about £263 a year at 25p/kWh.

The cabinet measures 768 × 678 × 536 mm (W×D×H) externally and weighs 44 kg net, 49 kg as delivered in packing of 820 × 730 × 680 mm. It plugs into a standard 220-240 V 13-amp socket and uses R600a refrigerant with a 70 g charge, so no special electrical supply is needed beyond a dedicated socket within reach of where it stands.

BEFORE YOU BUY

Questions, answered straight

It runs a +2 to +8 °C band on static cooling with automatic defrost, controlled electronically. That suits chilled buffet and self-service food held on show through a service period.

It is rated at 1,051.2 kWh a year and draws 122 W. At 25p/kWh that is about £263 a year, though your actual cost depends on your tariff and how the cabinet is loaded and sited.

No. It runs on 220-240 V and a standard 13-amp supply, so a dedicated 13-amp socket within reach of the unit is all it needs.

The cabinet is 768 × 678 × 536 mm (W×D×H) and weighs 44 kg. Allow clearance around it for airflow and access, and check your counter or buffet run can take the footprint and weight.

It is rated at 42 dB in operation, which is quiet enough to sit on a customer-facing buffet or counter without dominating the room.

Craven Cooling can arrange servicing and support for TEFCOLD cabinets. Call the team on 01792 732702 to talk through a fault or book a visit.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 660 x 570 x 175 mm
External Dimension (WxDxH): 768 x 678 x 536 mm
Packed Dimension (WxDxH): 820 x 730 x 680 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Automatic
Refrigerant: R600a
Refrigerant Charge: 70 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.88 kWh/24h
Temperature Range: +2 to +8 °C
Annual Energy Consumption: 1051 kWh/year m³
Input Power: 122 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 42 dB(A)

Measures and Content

Capacity GN Pans: 2 x GN1/1 pcs
Temperature Range: +2 to +8 °C
Gross / Net Weight: 49 / 44 kg
Gross / Net Volume: 69 / 68 l
Max Ambient: +30°C, 55% RH

Design and Material

Exterior Finish: Stainless steel
Interior Finish: Stainless steel
If you have any questions about the TEFCOLD CW2 Buffet Display then please get in touch.
