CombiSteel Drop-in Refrigerated Unit Ventilated 5/1 – 160mm 7495.0085

£3,209.59

+vat

- +

SKU: 7495.0085

Product summary

Size W/D/H (mm) x x

Product description

Downloads

SPECIFICATION 18 facts · tap for all Width1765 mmDepth720 mmHeight677 mmGross / net weight89 kgVoltage / frequency23050/60Voltage230 V

Identity4

Brand CombiSteelcatalogue
GTIN / EAN 7422242923924catalogue
Model ref 7495.0085catalogue
Type Drop-In Display Fridgescatalogue

Size & weight5

Depth 720 mmsite
External (W×D×H) 1765 × 720 × 677 mmcatalogue
Gross / net weight 89 kgsite
Height 677 mmsite
Width 1765 mmsite

Capacity1

Gastronorm size 5/1catalogue

Performance2

Cooling type R 290site
Temperature range 0/+4site

Power & energy5

Energy consumption 0,485site
Frequency 50 Hzcatalogue
Rated power 485 kWcatalogue
Voltage 230 Vcatalogue
Voltage / frequency 23050/60site

Build & fittings1

Interior light Nosite
THE WORKING VIEW

Why this drop-in display fridge earns its place

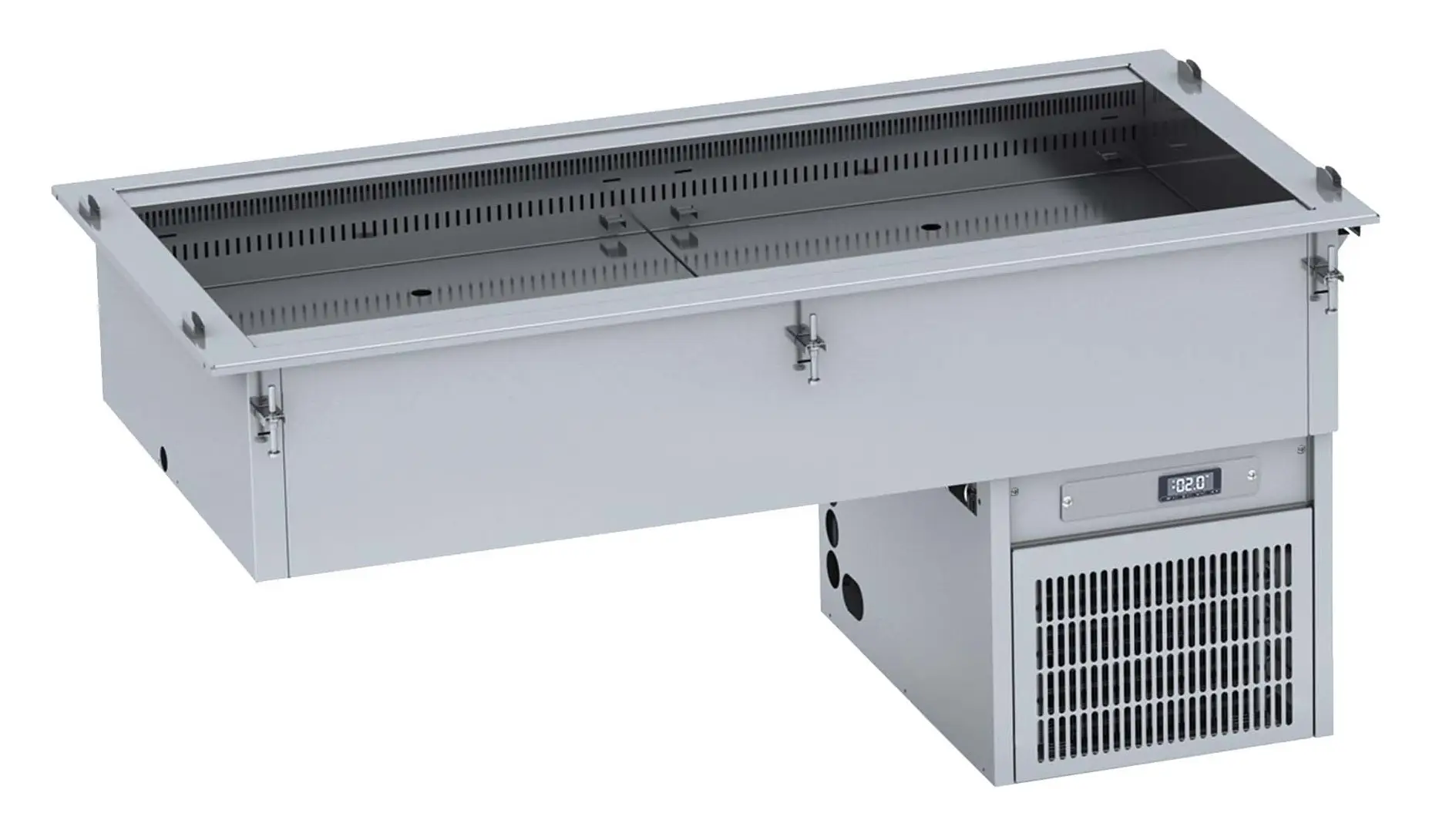

The Combisteel 7495.0085 is a drop-in refrigerated unit — a chilled well measuring 1765 mm wide, 720 mm deep and 677 mm high, built to recess into the top of a counter, buffet or display run rather than stand on the floor. It turns a fixed worktop into a cold display for gastronorm pans of prepared food, running at +0 to +4°C, so a café, deli or farm shop can present chilled items where customers see them. Because it drops in, the cabinetry around it stays yours to design.

It runs ventilated cooling with fan-assisted air circulation to hold a spread of gastronorm pans evenly across the well, which suits grab-and-go salads, desserts, cold starters and deli fillings on show through the day. The 160 mm depth (when recessed) keeps the display shallow and accessible from the service side. Staff load and swap pans from the top as stock turns over, keeping the display full without opening a door. It is built to sit in one place and run as part of the counter, weighing just 89 kg for straightforward installation.

As a drop-in, it needs a prepared aperture and ventilation in the counter — the full external dimensions are on the specification for this page, so hand them to your counter builder before the cut-out is made. It runs on 230V, 50Hz mains. Get the recess right at fit-out and the unit runs discreetly inside the counter line. Our team can help you check the fit.

BEFORE YOU BUY

Questions, answered straight

It is a refrigerated well designed to recess into the top of a counter or buffet rather than stand on the floor. You build the cabinetry around it and the unit provides the cold display.

Gastronorm pans of chilled food at +0 to +4°C — salads, desserts, cold starters and deli items — loaded and swapped from the top through the day.

Yes. The 7495.0085 is 1765 mm wide, 720 mm deep and 677 mm high. It needs a cut-out and ventilation in the counter. Take the external dimensions from the specification on this page to your counter builder before the aperture is made, and plan a 230V, 50Hz supply.

It uses ventilated cooling with fan-assisted air circulation to hold the pans evenly across the well, keeping the temperature consistent across the full width of the display.

That depends on your electricity tariff. Use our energy label decoder to turn a cabinet's energy figures into pounds per year on your rate.

Yes — Craven Cooling handles servicing and breakdown support. Call the team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel Drop-in Refrigerated Unit Ventilated 5/1 – 160mm 7495.0085 Product Data

Model 7495.0085
Dimensions (W×D×H) 1765 × 720 × 677 mm
Temperature range 0/+4 °C
Cooling agent R 290
Voltage 230 V
Frequency 50/60 Hz
Electrical power 0,485 kW
Gross weight 89 kg
If you have any questions about the CombiSteel Drop-in Refrigerated Unit Ventilated 5/1 – 160mm 7495.0085 then please get in touch.
