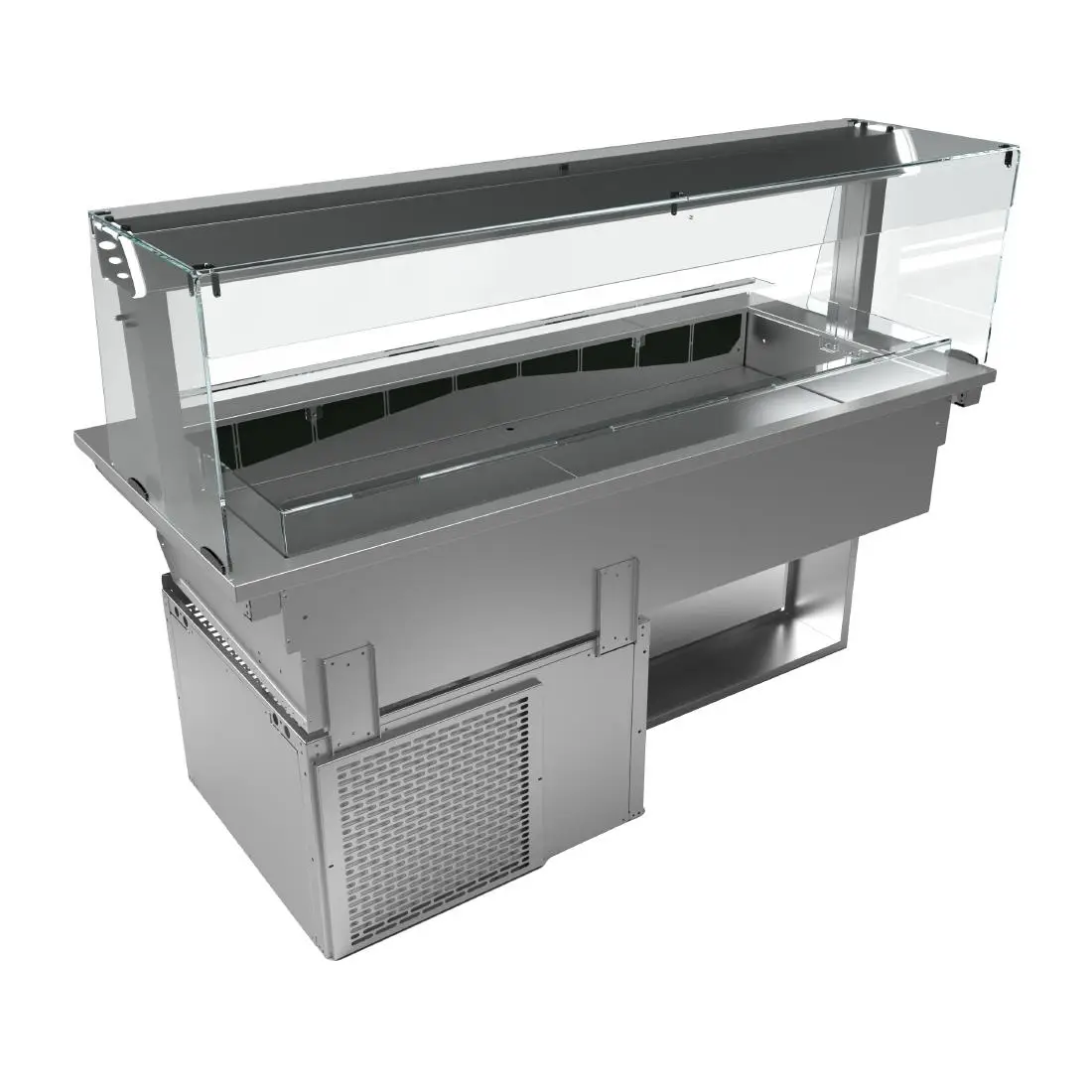

Moffat Drop-In Refrigerated Well D4RWSL CU531

£4,035.59

+vat

Availability: 999 in stock

Brand:

SKU: CU531

Product summary

Capacity: 4×1/1 GN. Width: 1486mm

Product description

The Moffat D4RWSL is a reliable chilled food display unit with the unique Moffat “Polar Air Stream” system. This innovative technology delivers a constant wall of cold air which moves across the well – blanketing the displayed food and then recirculating it back through the system. This not only ensures food is kept at the desired temperature, it also helps to bring down running costs.

Perfect for the display of fruit, vegetables, salads, and cold drinks, the Moffat self-contained D4RWSL display with squared glass features accurate digital control, automatic defrost, high pressure warning and automatic condensate evaporation. The refrigeration system is housed underneath in a tidy compact cradle. The display also features energy-saving LED lighting, helping to maximise the appeal of the displayed food. And thanks to the highly efficient, naturally occurring R290 hydrocarbon refrigerant, the overall carbon footprint and energy consumption of the display is reduced.

Fits up to four full size (1/1GN) gastronorm pans.

Condensing unit set at 90° angle – no unsightly vents in the front panels
Automatic defrost and condensate water evaporation – no need to empty drip trays
Supplied with 2m long power cord and 13amp plug [13A 230v 50Hz]
Accommodates up to four 60mm deep 1/1 GN pans (sold separately)
User-friendly digital thermostat and temperature control
Efficient refrigerant

The Moffat D4RWSL (CU531) is a drop-in refrigerated well built to recess into a serving counter, presenting chilled product flush in the counter top for buffet, deli and café self-service display.

Downloads

SPECIFICATION 16 facts · tap for all Width1486 mmDepth660 mmHeight396 mmGross weight106 kgMaterialStainless SteelProduct codeCU531

Identity5

Brand Moffatsite
Extended warranty 2 Years Parts Onlycatalogue
Product code CU531site
Type Salad Barscatalogue
Warranty 2 Years On-Site Parts & Labourcatalogue

Size & weight5

Depth 660 mmcatalogue
External (W×D×H) 396(H) x 1486(W)mmcatalogue
Gross weight 106 kgcatalogue
Height 396 mmcatalogue
Width 1486 mmsite

Capacity1

Gastronorm size 1/1 GN fullcatalogue

Power & energy2

Fuel type Single Phasecatalogue
Rated input 1500 Wcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue

Other stated facts1

Plug notice Yescatalogue
THE WORKING VIEW

Why this salad bar earns its place

The CU531 is a drop-in refrigerated well. At 1486 mm wide, 660 mm deep and only 396 mm tall, it's designed to recess into an aperture cut in a serving counter so the refrigerated well sits flush with the top surface. That build-in format is what makes it a self-service and buffet fixture: chilled product—salads, prepared items, drinks—is presented in the counter line where customers or staff serve from it directly. It holds up to four full-size gastronorm pans, making it ideal for buffet and deli service.

The CU531 uses Moffat's Polar Air Stream technology to deliver a constant cold-air curtain across the well, maintaining food safety temperatures without requiring lids or covers. Because it is a built-in unit, it suits a fixed serving counter where a freestanding cabinet would not fit or would break the run. It integrates chilled display into the counter itself instead of adding a separate piece of equipment. At 106 kg and drawing just 1500 W, it's relatively lightweight and energy-efficient for a refrigerated fixture.

Installation is a counter build. The well recesses into an aperture, so the counter needs to be cut and prepared to the unit's dimensions, with the electrical supply run to that position. Stainless-steel construction is robust and food-safe. Size the counter build and aperture against the figures in the specification table before fabrication. Craven Cooling can advise on siting and handles installation and servicing.

BEFORE YOU BUY

Questions, answered straight

It recesses into an aperture cut in your counter top so the refrigerated well sits flush. Check the required aperture and clearances against the specification table before building or cutting the counter.

The full external dimensions and the counter aperture are listed in the specification table on this page. Size your counter build to those figures.

The warranty terms for this model are shown in the specification table. For installation and servicing, call Craven Cooling on 01792 732702.

The electrical input and supply requirement are listed in the specification table. Confirm the counter position has a suitable supply run before install.

It is designed as a drop-in unit for recessing into a counter top, so an existing counter needs a suitable aperture. Our team can advise on aperture and siting — call 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Moffat Drop-In Refrigerated Well D4RWSL CU531 Product Data

Brand Moffat
Type Salad Bars
Dimensions 396(H) x 1486(W)mm
Material Stainless Steel
Colour / Finish Silver
Power 1500W
Fuel / Supply Single Phase
Warranty 2 Years On-Site Parts & Labour
Weight 106kg
Manufacturer Ref D4RWSL
If you have any questions about the Moffat Drop-In Refrigerated Well D4RWSL CU531 then please get in touch.
