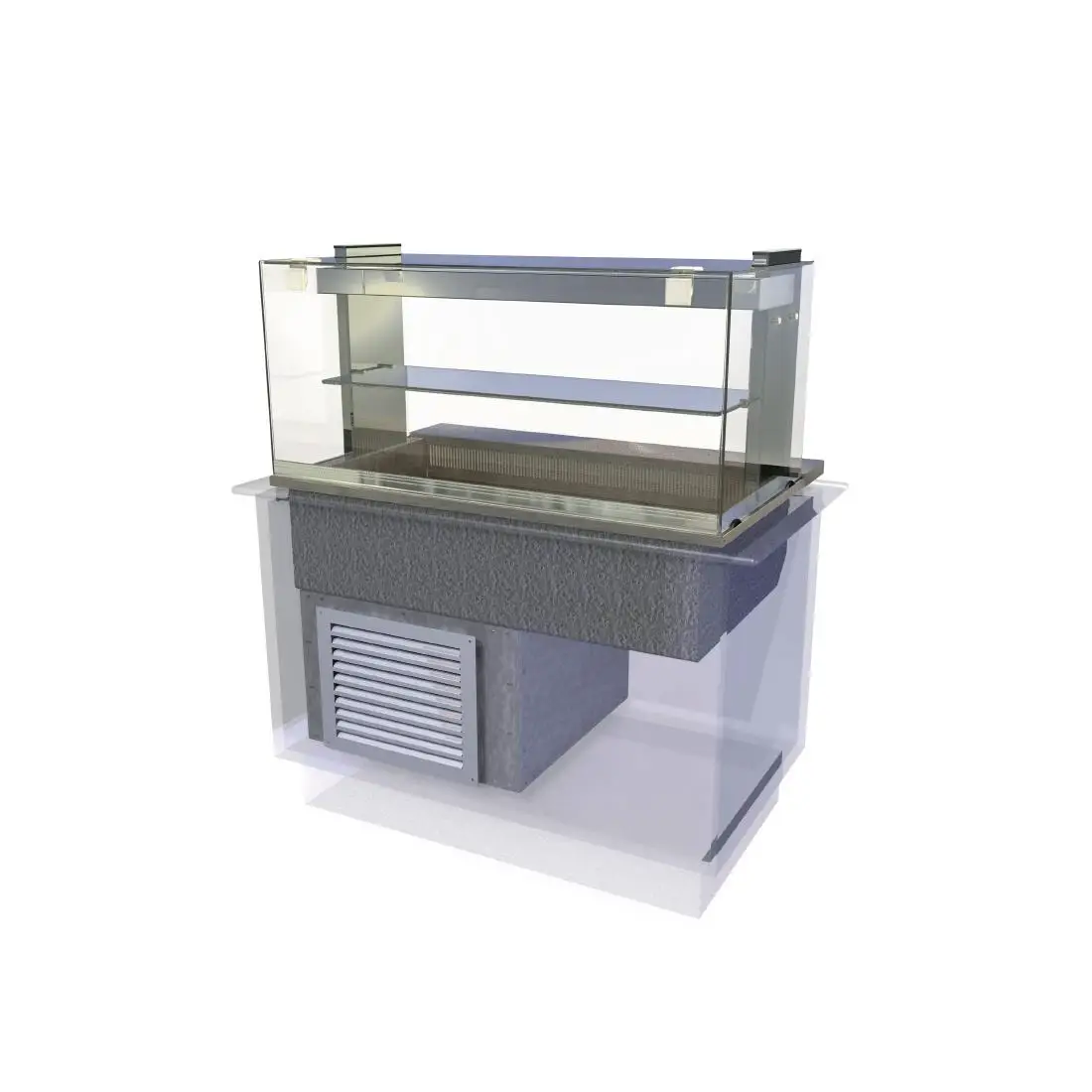

CED Kubus Drop In Chilled Deli Serve Over Display 1175mm KCDL3HT CW626

£5,404.35

+vat

Availability: 999 in stock

Brand:

SKU: CW626

Product summary

3x 1/1 GN Capacity. 1175mm Wide

Product description

Illuminate, chill and protect refrigerated food or drink with CED’s rectangular shaped Kubus assisted service cold deli drop in display. This energy efficient 3/1 GN size refrigerated display chills by hydrocarbon refrigerant (r290) – a solution that’s kinder to the environment and your budget. The display fits into a countertop and fitting the air grills supplied provides the ventilation needed for the underslung refrigeration condensing unit. The superstructure is made from bright polished steel and aluminium rectangular profiles, with flat and toughened full height front and side glass. The front glass tilts forward on a locking hinge, for effortless cleaning access. Product illumination is from diffused lighting in the rectangular profile gantry, which also houses an eye level digital temperature display and ‘temperature lockable’ control panel, to the operator side of the display. The display has 24 hour operation as standard and holds food core between 2°C to 5°C. Modular removable deck plates in the chilled well make for easier cleaning and an integral condensate water evaporator eliminates the need for site drainage. Optional chopping boards fit over the rear display shelf providing a local sandwich preparation area. Additional ambient display space is also provided by a toughened glass mid shelf within the display area. The display comes complete with air inlet grills, lifting kit and a 2m lead and plug top for installation. GN’s Sold Separately.

Rectangular gantry in bright polished steel, powder coated black gantry side panels and aluminium profile
Features eye level gantry mounted digital temperature display & control panel (to operator side of display)
24 hour operation as standard
Product illumination is provided from diffused lighting within the gantry
A single ambient glass mid shelf provides additional merchandising space
Flat glass profile is designed to complement other units within the Kubus range
Ventilation grills and installation lifting kit are supplied with the display, together with a 2m lead for connection to a single 13 amp socket
(Cold well area) Drinks display examples: carton drinks, water, lemonade, wine, beer. Food display examples: Pies, pasties, rolls, pasta, cream cakes & fruit
(Ambient shelving area) : Food display examples : Danish pastries, muffins, donuts, fruit cake, biscuits, crackers, rice cakes, tacos. Sandwiches, baguettes & cheese
The 3/1 GN well display area is chilled by energy efficient hydrocarbon refrigerant (r290)
Gantry fitted with flat full height toughened glass sneeze screen and side glass for food protection. Glass tilts forward in a locking hinge for ease of cleaning
Assisted service application

The CED Kubus KCDL3HT is a drop-in chilled deli serve-over display that recesses into a bespoke counter run, presenting cold deli products at the customer front while staff serve from behind — built for delis, cafés and farm-shop counters.

Downloads

SPECIFICATION 26 facts · tap for all Width1175 mmDepth784 mmHeight540 mmGross weight133 kgVoltage230VTemperature range-1 to +5 °C

Identity5

Brand Kubussite
Product code CW626site
Seo name Kubus Drop In Chilled Deli Serve Over Countercatalogue
Type Salad Barscatalogue
Warranty 1 Yearcatalogue

Size & weight6

Depth 784 mmcatalogue
External (W×D×H) 540 × 1175 × 784 mmcatalogue
Gross weight 133 kgcatalogue
Height 540 mmcatalogue
Internal (W×D×H) 115 × 1050 × 550 mmcatalogue
Width 1175 mmsite

Capacity3

Capacity 3 x 1/1 GNcatalogue
Gastronorm size 1/1 GN fullcatalogue
Product capacity 93.06catalogue

Performance3

Cooling Fan Assistcatalogue
Refrigerant R290 / GWP 3 / 365gcatalogue
Temperature range -1 to +5 °Ccatalogue

Power & energy3

Fuel type Plugcatalogue
Rated input 1220 Wcatalogue
Voltage 230Vcatalogue

Build & fittings3

Colour Silvercatalogue
Colour code Chrome & Blackcatalogue
Finish (exterior) Stainless Steelcatalogue

Other stated facts3

Noise level 63.8 dB(A)catalogue
Plug notice Yescatalogue
Suitable for Canteencatalogue
THE WORKING VIEW

Why this salad bar earns its place

The KCDL3HT sits in CED's Kubus range of drop-in serve-over displays. It is designed to fit flush within a bespoke counter or island at 1175 mm wide, turning a stretch of worktop into a refrigerated deli counter. Product is presented at the customer-facing front and served over the top by staff, which suits cheeses, cooked meats, prepared salads and other chilled deli lines that sell on how they look. At just 540 mm tall, it sits at comfortable counter height without blocking sightlines.

As a chilled serve-over held at −1 to +5°C, it holds product on display through the trading day while keeping the well accessible for restocking and portioning. Staff work from the operator side, so stock rotation, refills and cleaning happen without disturbing the display face. It uses fan-assisted R290 refrigerant cooling at 63.8 dB(A), quiet enough for front-of-house service. Because it is a served format rather than open self-service, product stays behind the counter and under staff control. It holds 3 gastronorm (1/1) containers.

Being a drop-in unit, it is built to be recessed into counter joinery rather than stood on the floor as a standalone cabinet, so the surrounding counter is cut and prepared to take it. The external dimensions are 1175 mm wide × 540 mm tall × 784 mm deep, and it weighs 133 kg gross. The exact cut-out, services and clearances for this model are set out in the specification, and our team can confirm what your counter build needs before you order.

BEFORE YOU BUY

Questions, answered straight

It is designed to be recessed into a bespoke counter or island so it sits flush within your joinery, rather than standing on the floor as a self-contained cabinet. The external dimensions are 1175 mm wide × 540 mm tall × 784 mm deep, and it weighs 133 kg. The counter is built around it. Our team can talk through the opening before you commit.

It is a serve-over display, meaning staff serve customers from behind the counter while product is shown at the front. That keeps stock under staff control and suits deli lines that are portioned or weighed to order. It holds 3 gastronorm (1/1) containers.

It is a chilled deli display held at −1 to +5°C, so it is built for cold products such as cheeses, cooked meats and prepared salads. It uses fan-assisted R290 refrigerant cooling. It is a refrigerated display, not a freezer, so it is not intended for frozen stock.

The dimensions are 1175 mm wide × 540 mm tall × 784 mm deep. Send us your counter plans with these dimensions and we can confirm the opening and electrical supply you need.

Yes. Craven Cooling supports the refrigeration we supply, and our service team can advise on maintenance, spares and breakdowns. Call 01792 732702 to arrange servicing or ask a technical question.

As a drop-in unit it is intended to be installed into counter joinery rather than simply placed on the floor. Plan the counter build and services around it — it weighs 133 kg gross, so confirm your structure can support it. Our team can advise on what the installation involves.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CED Kubus Drop In Chilled Deli Serve Over Display 1175mm KCDL3HT CW626 Product Data

Brand Kubus
Type Salad Bars
Dimensions 540(H) x 1175(W) x 784(D)mm
Capacity 3 x 1/1 GN
Colour / Finish Silver
Temperature Range -1°C to 5°C
Refrigerant R290 / GWP 3 / 365g
Cooling Fan Assist
Noise Level 63.8
Power 1.22kW, 230V, 13A
Voltage 230V
Fuel / Supply Plug
Suitable For Canteen
Warranty 1 Year
Weight 133kg
Manufacturer Ref KCDL3HT
If you have any questions about the CED Kubus Drop In Chilled Deli Serve Over Display 1175mm KCDL3HT CW626 then please get in touch.
