CED Designline Drop In Chilled Deli Serve Over Display 1175mm CW605

£5,117.83

+vat

Availability: 999 in stock

Brand:

SKU: CW605

Product summary

3x 1/1 GN Capacity. 1175mm Wide

Product description

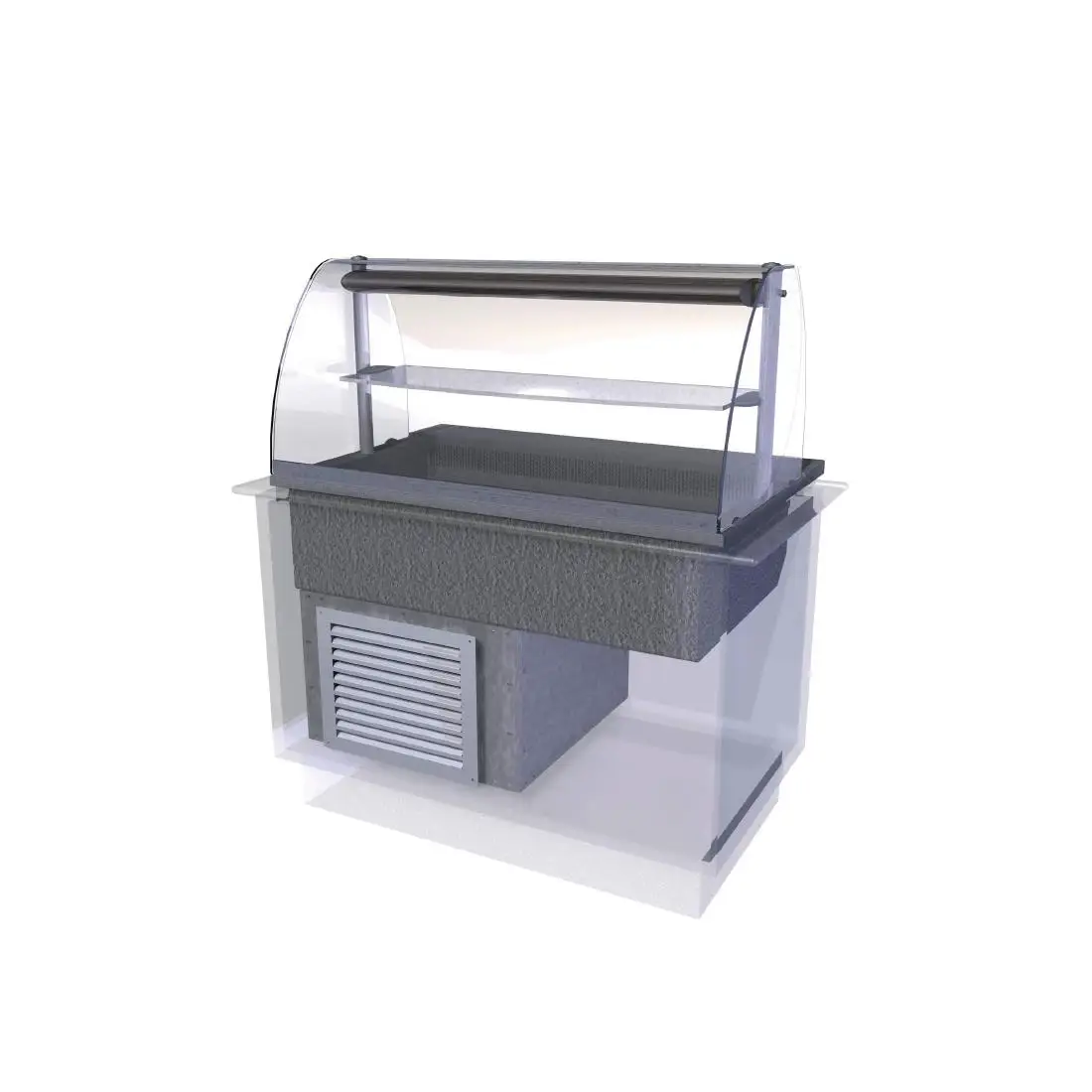

Illuminate, chill and protect refrigerated food or drink with CED’s elliptically shaped Designline assisted service cold deli drop in display. This energy efficient 3/1 Gn size refrigerated display chills by hydrocarbon refrigerant (r290) – a solution that’s kinder to the environment and your budget. The display fits into a countertop and fitting the air grills supplied provides the ventilation needed for the underslung refrigeration condensing unit. The superstructure is made from bright polished steel and alluminum curved profiles, with curved & toughened full height front and side glass. The front glass tilts forward on a locking hinge, for effortless cleaning access. Product illumination is from diffused lighting in the elliptical profile gantry, which also houses an eye level digital temperature display and ‘temperature lockable’ control panel, to the operator side of the display. The display has 24 hour operation as standard & holds food core between 2 – 5 deg. C. Modular removable deck plates in the chilled well make for easier cleaning & an integral condensate water evaporator eliminates the need for site drainage. Additional ambient display space is also provided by a toughened glass mid shelf within the display area. The display comes complete with air inlet grills, lifting kit and a 2m lead and plug top for installation. GN’s Sold Separatley.

Curved display in bright polished steel and aluminium profile
Features eye level gantry mounted digital temperature display & control panel ( to operator side of display)
24 hour operation as standard
Product illumination is provided from diffused lighting within the gantry
A single ambient glass mid shelf provides additional merchandising space
Curved glass profile is designed to complement other units within the Designline range
Ventilation grills and installation lifting kit are supplied with the display, together with a 2m lead for connection to a single 13 amp socket
(Cold well area) Drinks display examples: bottled drinks, water, lemonade, wine, beer, lager, fruit juice. Food display examples: Pies, sandwich fillings, rolls, pasta
(Ambient shelving area) : Food display examples : Pastries, muffins, donuts, fruit cake, biscuits, fruit, chocolate, rice cakes, crisps, nuts. * Sandwiches, baguettes, rolls
The well display area is chilled by energy efficient hydrocarbon refrigerant (r290)
Gantry fitted with curved full height toughened glass sneeze screen and side glass for food protection. Glass tilts forward in a locking hinge for ease of cleaning
Assisted service application

The CED Designline CW605 is a drop-in chilled deli serve-over display, part of CED’s Designline range, built to be recessed into a bespoke counter so chilled deli, cheese and prepared foods face the customer while staff serve from behind.

Downloads

SPECIFICATION 26 facts · tap for all Width1175 mmDepth784 mmHeight535 mmGross weight128 kgVoltage230VTemperature range-1 to +5 °C

Identity5

Brand Designlinesite
Product code CW605site
Seo name Designline Drop In Chilled Deli Serve Over Countercatalogue
Type Salad Barscatalogue
Warranty 1 Yearcatalogue

Size & weight6

Depth 784 mmcatalogue
External (W×D×H) 535 × 1175 × 784 mmcatalogue
Gross weight 128 kgcatalogue
Height 535 mmcatalogue
Internal (W×D×H) 115 × 1050 × 550 mmcatalogue
Width 1175 mmsite

Capacity4

Capacity 3x 1/1 GNcatalogue
Gastronorm size 1/1 GN fullcatalogue
Product capacity 93.06catalogue
Shelves 1catalogue

Performance3

Cooling Fan Assistcatalogue
Refrigerant R290 / GWP 3 / 365gcatalogue
Temperature range -1 to +5 °Ccatalogue

Power & energy3

Fuel type Plugcatalogue
Rated input 1220 Wcatalogue
Voltage 230Vcatalogue

Build & fittings3

Colour Silvercatalogue
Colour code Chromecatalogue
Finish (exterior) Stainless Steelcatalogue

Other stated facts2

Noise level 63.8 dB(A)catalogue
Plug notice Yescatalogue
THE WORKING VIEW

Why this salad bar earns its place

The CW605 is a 1175mm wide drop-in chilled serve-over from CED's Designline range, designed to be recessed into a bespoke deli or servery counter so the product does the selling. It presents chilled deli lines — cooked meats, cheeses, charcuterie, pies and prepared foods — at the customer side of the counter, served by staff from the rear. Because it drops into a counter build rather than standing alone, it suits operators specifying a fitted deli or food-to-go counter rather than buying a freestanding cabinet. It holds three 1/1 gastronorm containers and runs at −1 to +5 °C to keep fresh deli stock properly chilled.

In service it works as a traditional serve-over: stock stays on chilled display facing the customer while staff assemble and hand over orders from behind. The cooling is fan-assisted and runs at 63.8 dB(A), a level suited to open counter service. The full operating temperature band, cooling method and noise level are listed in the specification table below, so you can check them against the deli lines you plan to hold and the front-of-house setting it will sit in.

As a drop-in unit it is built to sit into a counter aperture rather than roll into place, so the counter joinery and services need planning around it before install. The CW605 weighs 128 kg, so the counter structure and any lifting arrangement need to support that. Its gastronorm display capacity, external finish, weight, electrical supply and warranty are listed in the specification table — worth confirming the counter opening, size and support against your design before you commit.

BEFORE YOU BUY

Questions, answered straight

It's built to be recessed into a counter aperture rather than stand on the floor, so only the display sits proud of your counter joinery. The CW605 needs a 1175mm width × 535mm height opening. The counter build and services need planning around it before installation.

It's a chilled deli serve-over, designed to hold deli and prepared lines — cheeses, cooked meats, charcuterie and similar — on customer-facing display while staff serve from behind. It holds three 1/1 gastronorm containers and runs at −1 to +5 °C, so check that band against the products you plan to hold.

The CW605 is designed to hold three 1/1 gastronorm containers, so you can size your deli range and stock rotation to fit that capacity across the service day.

The CW605 runs at 63.8 dB(A), a level suited to front-of-house counter service — it won't overwhelm conversation or distract customers at the counter line.

As a drop-in unit it sits into a counter aperture 1175mm wide × 535mm high, so the opening must be built into the joinery. The unit weighs 128 kg, so the counter structure must be rated to support it. Confirm the dimensions and support against your counter design before ordering.

Yes — the team can help confirm the counter opening, electrical supply and servicing arrangements. Call 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CED Designline Drop In Chilled Deli Serve Over Display 1175mm CW605 Product Data

Brand Designline
Type Salad Bars
Dimensions 535(H) x 1175(W) x 784(D)mm
Capacity 3x 1/1 GN
Colour / Finish Silver
Temperature Range -1°C to 5°C
Refrigerant R290 / GWP 3 / 365g
Cooling Fan Assist
Number of Shelves 1
Noise Level 63.8
Power 1.22kW, 230V, 13A
Voltage 230V
Fuel / Supply Plug
Warranty 1 Year
Weight 128kg
Manufacturer Ref CDL3HT
If you have any questions about the CED Designline Drop In Chilled Deli Serve Over Display 1175mm CW605 then please get in touch.
