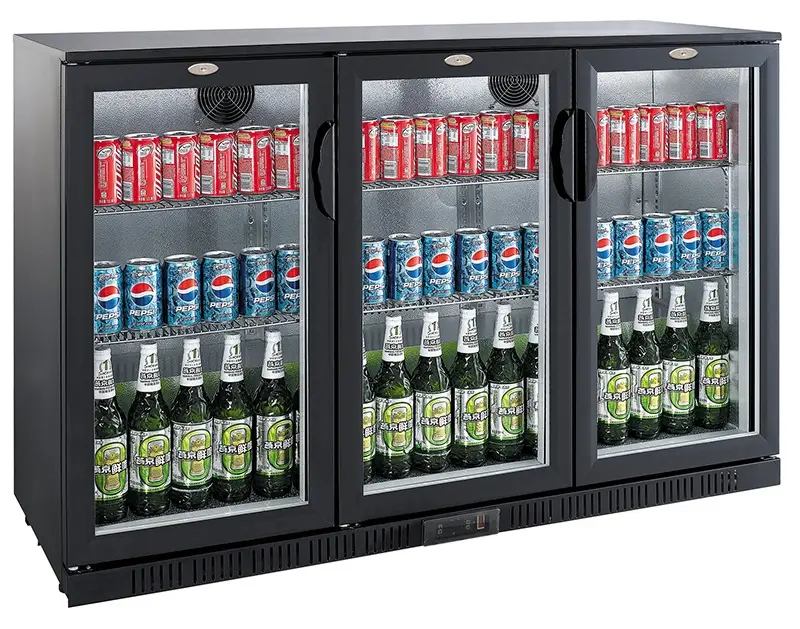

CombiSteel Back Bar Cooler Black Triple Door 7527.0040

£600.22

+vat

- +

SKU: 7527.004

Product summary

Size W/D/H (mm) 1350 x 520 x 850

Product description

A three-door black back bar cooler built for front-of-house drinks service, keeping bottled beer, wine, mixers and soft drinks cold and within reach behind the bar through a busy session.

Downloads

SPECIFICATION 34 facts · tap for all Width1350 mmDepth520 mmHeight850 mmGross / net weight96 kgGross weight86 kgVoltage / frequency23050

Identity3

Brand CombiSteelcatalogue
GTIN / EAN 7422242947913catalogue
Type Triple Door Bar Fridgescatalogue

Size & weight8

Depth 520 mmsite
External (W×D×H) 1350 × 520 × 850 mmcatalogue
Gross / net weight 96 kgsite
Gross weight 86 kgcatalogue
Height 850 mmsite
Internal (W×D×H) 1260 × 385 × 700 mmcatalogue
Internal W × D × H 1260x385x700site
Width 1350 mmsite

Capacity3

Capacity 320 Ltrcatalogue
Net volume 320 litrescatalogue
Shelves 6catalogue

Performance5

Cooling type R 600 Asite
Defrost type Automaticsite
Max ambient 3838 °Ccatalogue
Maximum ambient 3838site
Temperature range +2/+10site

Power & energy7

Energy consumption 0.265site
Frequency 50 Hzcatalogue
Noise level 6767site
Rated input 265 Wcatalogue
Rated power 0.265 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 23050site

Build & fittings7

Colour Blackcatalogue
Doors Rightsite
Exterior finish Powder coated steelsite
Insulation 40 mmcatalogue
Interior finish Aluminiumsite
Interior light Yes, LEDsite
Lock Yessite

Other stated facts1

Energy (24h) 186 kWh/24hcatalogue
THE WORKING VIEW

Why this triple door bar fridge earns its place

This is a three-door back bar cooler in black powder-coated steel, 1350 mm wide by 520 mm deep and 850 mm high — a full-width format that sits along the back bar and holds the working stock of bottles and cans your service runs through. The three-section layout (each 420 mm wide internally) lets bar staff zone drinks by type — lagers in one bay, mixers and soft drinks in another — and restock from behind without breaking the flow of service.

Three separate doors mean only the section in use is opened at any one time, so the rest of the cabinet holds its temperature while the bar is busy. Each section keeps drinks at 2–10 °C with automatic defrost and static cooling. The black cabinet keeps the unit visually recessed behind the bar rather than competing with your back-fitting and branding. All three doors are lockable, so stock can be secured when the bar is closed. The interior is lit with LED, making it easy for staff to spot bottles during a busy service.

Back bar coolers work hardest in a warm, enclosed bar environment, so allow the ventilation clearance the manufacturer specifies and keep the intake and exhaust grilles clear. The cabinet is 520 mm deep — check that against your back-bar recess and any doorway or lift on the delivery route before you commit. It weighs 96 kg gross, so confirm your counter can take the load and plan the delivery access accordingly. Full dimensions, weight and power draw are listed in the spec table below.

BEFORE YOU BUY

Questions, answered straight

It's designed to stand along the back bar rather than under the counter. It's 1350 mm wide, 520 mm deep and 850 mm high — check those dimensions against your recess and any doorways on the delivery route before ordering. It weighs 96 kg, so confirm your counter can support it.

The three-section design means you only open the bay you're restocking or serving from, so the rest of the cabinet stays cold at 2–10 °C. Keeping doors shut between grabs holds temperature and reduces the load on the compressor, so staff should make a habit of it.

The cabinet runs on 230 V and draws 0.265 kW. Running cost depends on your electricity tariff and how often doors are opened during service. Feed those figures into our energy label decoder for a cost on your own tariff.

We don't publish a verified noise figure for this cabinet. If a quiet front-of-house position matters, ask us for the manufacturer's sound data and we'll confirm it before you order.

Yes. Craven Cooling supplies and services commercial refrigeration across the UK; call our service team on 01792 732702 to arrange a visit or talk through a fault.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel Back Bar Cooler Black Triple Door 7527.0040 Product Data

Brand CombiSteel
Dimensions (W×D×H) 1350 × 520 × 850 mm
Interior Dimensions 1260x385x700
Capacity 320 Ltr
Material Powder coated steel
Interior Material Aluminium
Colour / Finish Black
Temperature Range +2/+10
Max. Ambient Temp. 38
Refrigerant R 600 A
Cooling Static with fan
Defrost Automatic
Number of Doors 3
Number of Grids/Shelves 6
Electrical Power 0.265 kW
Energy Use 1.86 kWh/24h
Voltage 230V / 50Hz
Lockable Yes
Noise Level 67 dB
Insulation 40 mm
Weight 86 kg
If you have any questions about the CombiSteel Back Bar Cooler Black Triple Door 7527.0040 then please get in touch.
