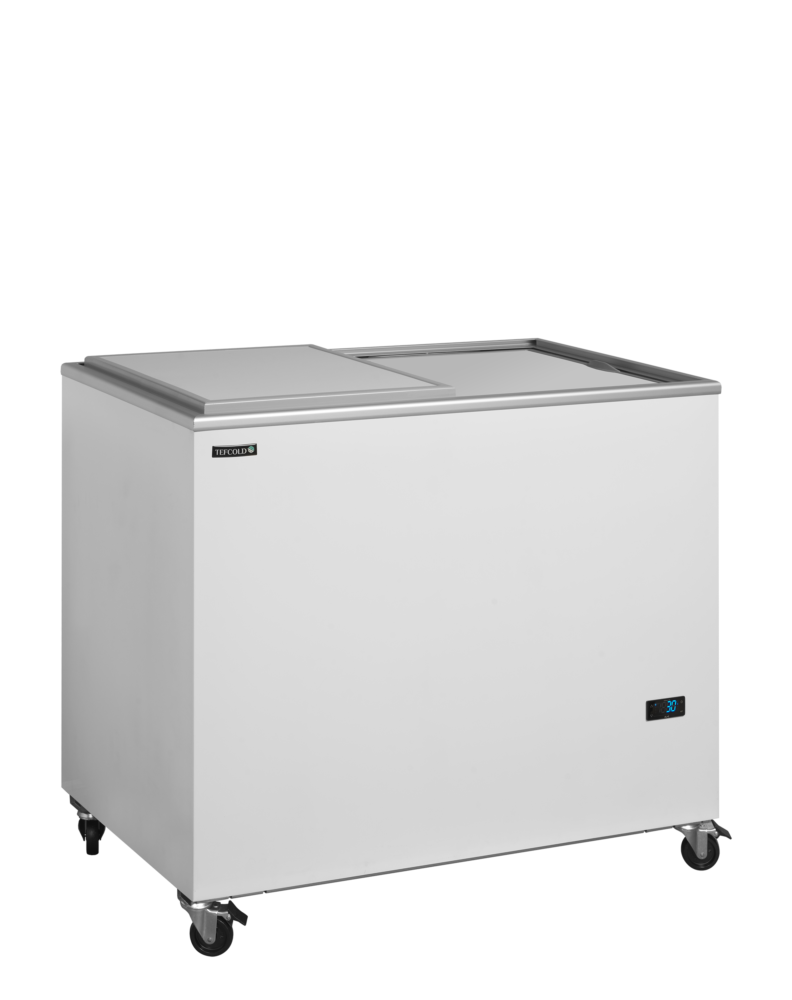

TEFCOLD ISC302SD Sliding Top Bottle Cooler

£573.00

+vat

Brand:

SKU: 71548

Energy Arrow

Product summary

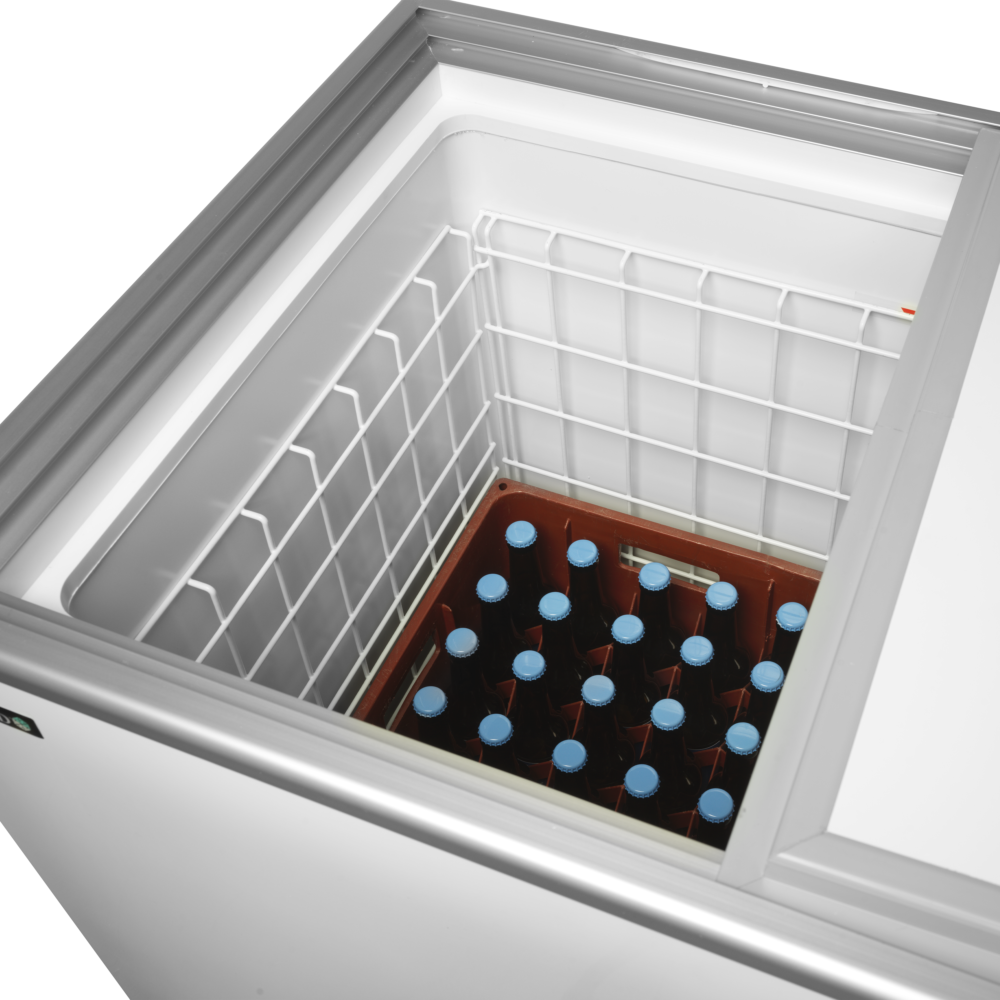

  • Ideal for storing beer and soft drink crates
  • Flat solid sliding lids
  • Removable top for easy loading
  • Castors with brake
  • Static cooling

Product description

Sliding lid chest cooler

The ISC-SD range of chest bottle coolers offers spacious storage, ideal for busy bars and clubs. For expedited loading, lids can be removed. The addition of four castors enhances placement flexibility. Enjoy the blend of design, function, and adaptability with our ISC-SD range.

The Tefcold ISC302SD is a white sliding-top bottle cooler holding 232 litres net (286 litres gross), running +1 to +9 °C on R600a with automatic defrost, rated energy class B at 204.8 kWh a year — about £51 a year at 25p/kWh.

SPECIFICATION 42 facts · tap for all External W × D × H1014 x 635 x 892 mmWidth1014 mmDepth635 mmGross / net weight69 / 55 kgGross weight69 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181760984site
Product code 71548site
Sub title Sliding Top Bottle Coolercatalogue
Type Beer Dumpscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 635 mmsite
External (W×D×H) 1014 × 635 × 892 mmcatalogue
External W × D × H 1014 x 635 x 892 mmsite
Gross / net weight 69 / 55 kgsite
Gross weight 69 kgcatalogue
Height 892 mmsite
Internal (W×D×H) 890 × 510 × 715 mmcatalogue
Internal W × D × H 890 x 510 x 715 mmsite
Packed (W×D×H) 1100 × 750 × 960 mmcatalogue
Packed W × D × H 1100 x 750 x 960 mmsite
Width 1014 mmsite

Capacity1

Gross volume 286 litrescatalogue

Performance10

Climate class 7site
Controller Electronicsite
Cooling type Staticsite
Defrost type Automaticsite
Max ambient 35 °Ccatalogue
Maximum ambient +35°C, 75% RHsite
Refrigerant R600asite
Refrigerant charge 70 gsite
Temperature range +1 to +9site
Thermometer Yessite

Power & energy6

Annual energy consumption 204.765 kWh/yearsite
Energy consumption 0.561 kWh/24hsite
Energy efficiency index 14.4 %site
Input power 70 Wsite
Noise level 47 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Castors Castorssite
Exterior finish Whitesite
Interior light Nosite

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this beer dump earns its place

The ISC302SD is a sliding-top bottle cooler in a white cabinet, built to hold chilled bottles and cans within easy reach of a bar or serving point. Gross volume is 286 litres, with 232 litres of usable net capacity, so it works as a dedicated chilled drinks point rather than an aisle display. The sliding top keeps the cold in between serves.

Day to day the cabinet holds +1 to +9 °C, cold enough for served drinks, and clears frost on its own with automatic defrost. It runs on R600a hydrocarbon refrigerant with a 70 g charge and draws 70 W. At 47 dB it stays quiet enough for a front-of-house position, and it carries climate class 7. Energy class B and a measured 204.8 kWh a year work out to about £51 a year at 25p/kWh, with an energy efficiency index of 14.4%.

On the build side, the exterior is white and the interior is white RAL9010, and the cabinet weighs 69 kg. R600a keeps the refrigerant charge low and the running gear self-contained, so it plugs in and runs without external plant.

BEFORE YOU BUY

Questions, answered straight

It runs +1 to +9 °C, which suits chilled bottles and cans for service. Defrost is automatic, so frost clears without you switching it off.

It is rated energy class B with a measured consumption of 204.8 kWh a year. At 25p/kWh that is about £51 a year, and its energy efficiency index is 14.4%.

The cabinet has 286 litres gross and 232 litres of net usable volume. Actual bottle count depends on the mix of sizes you load.

It uses R600a hydrocarbon refrigerant with a 70 g charge. That keeps the charge low and the system self-contained.

It is rated at 47 dB, which is quiet enough to sit near a bar or serving area. Climate class 7 covers typical indoor conditions.

Yes. Our service team handles installs and breakdowns — call 01792 732702 to arrange a visit or talk through a fault.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 890 x 510 x 715 mm
External Dimension (WxDxH): 1014 x 635 x 892 mm
Packed Dimension (WxDxH): 1100 x 750 x 960 mm

Cooling and Functions

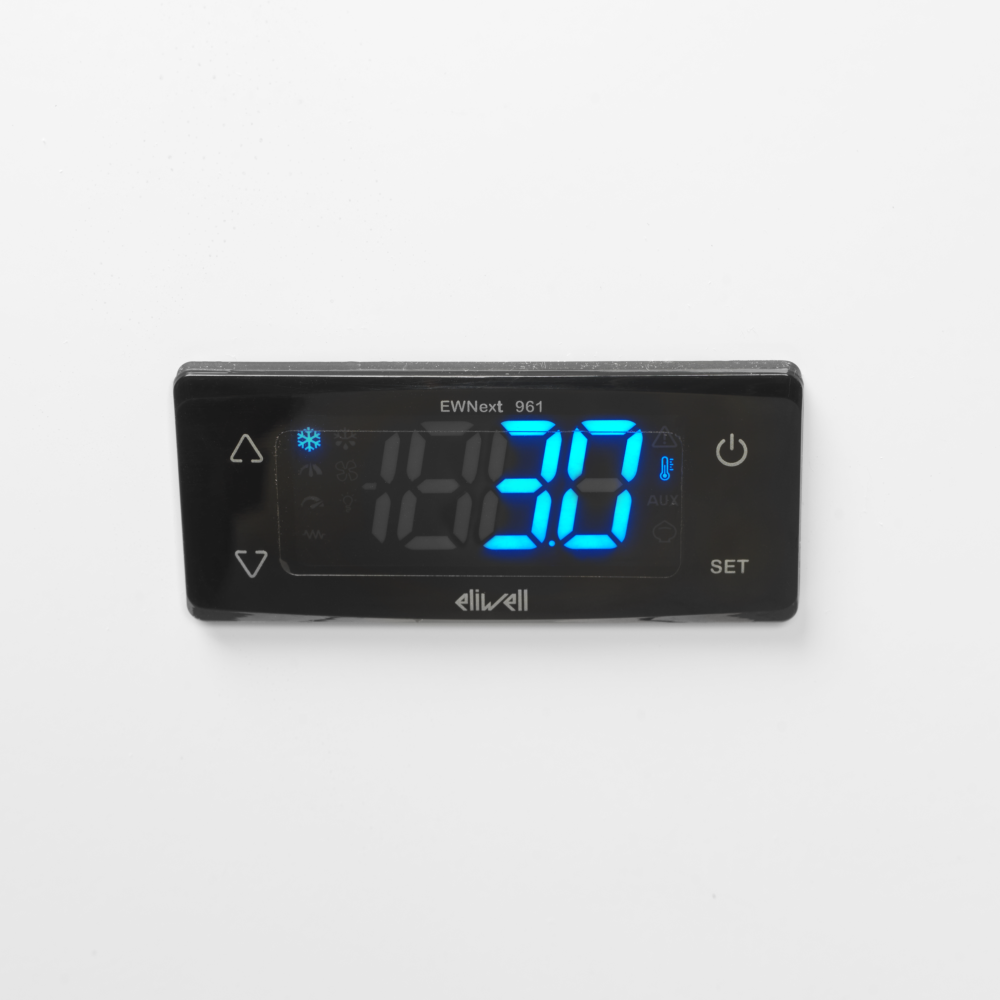

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Automatic
Refrigerant: R600a
Refrigerant Charge: 70 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 0.561 kWh/24h
Temperature Range: +1 to +9 °C
Annual Energy Consumption: 204.765 kWh/year m³
EEI: 14.4 %
Input Power: 70 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 47 dB(A)

Measures and Content

Temperature Range: +1 to +9 °C
Climate Class: 7
Gross / Net Weight: 69 / 55 kg
Gross / Net Volume: 286 / 232 l
Max Ambient: +35°C, 75% RH

Design and Material

Castors: Castors
Exterior Finish: White
Interior Finish: White
Interior Light: No
Lock: No
If you have any questions about the TEFCOLD ISC302SD Sliding Top Bottle Cooler then please get in touch.
