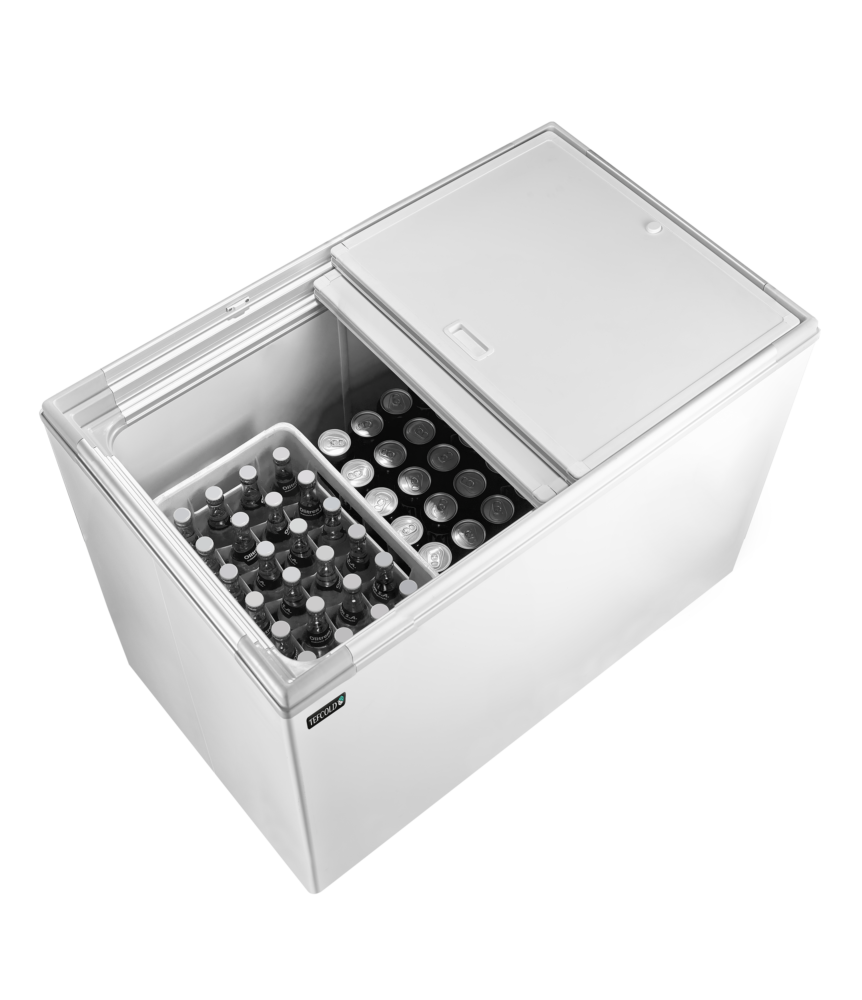

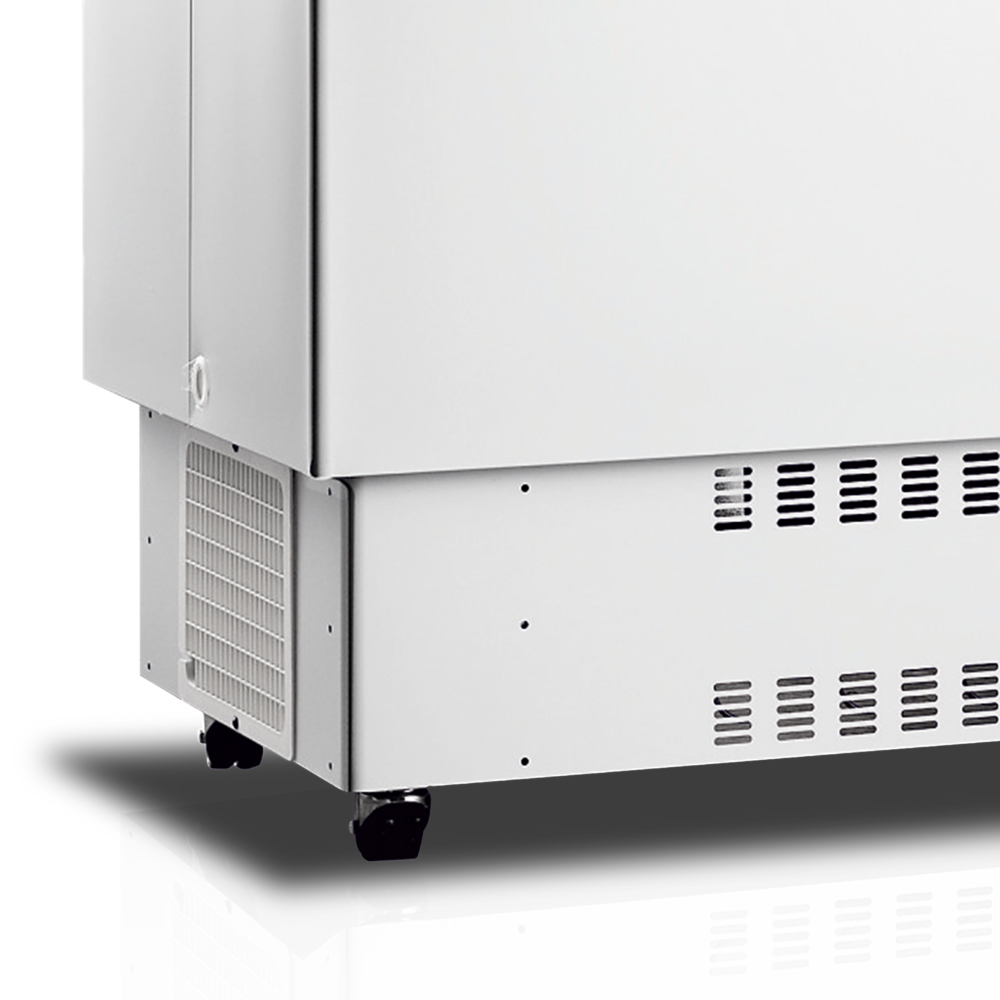

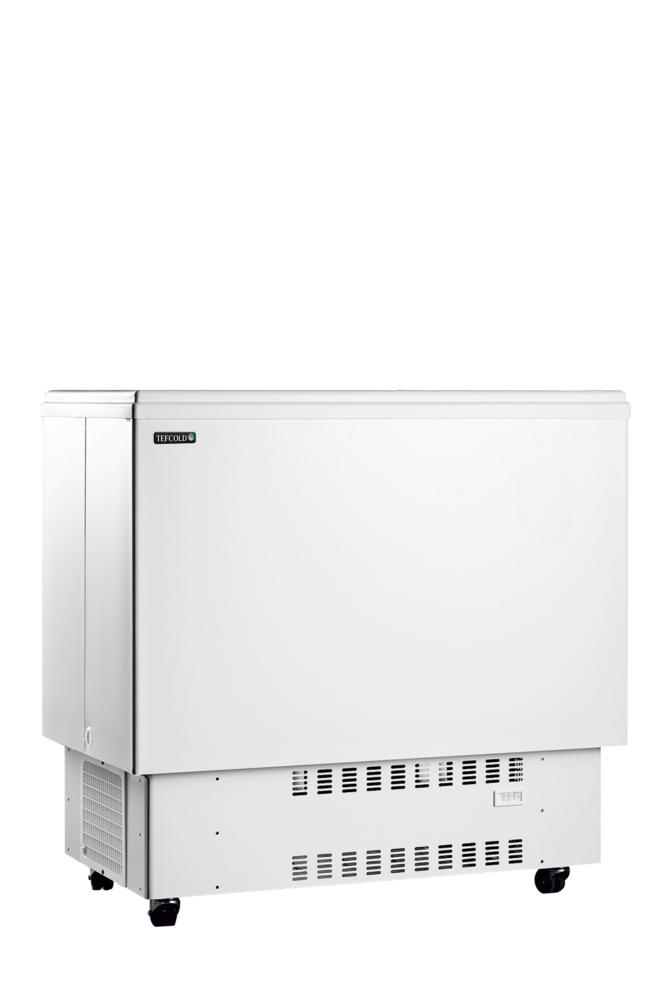

TEFCOLD KBAK104 Bottle Dump Cooler

£843.00

+vat

Brand:

SKU: 48218

Energy Arrow

Product summary

  • Low energy consumption
  • Impressive storage space
  • Removable top for easy loading
  • Ideal for storing beer and soft drink crates
  • Flat solid sliding lids
  • Solid castors
  • Static cooling

Product description

Chest boottle cooler

The KBAK chest bottle cooler has been designed to cater to your bulk storage needs and facilitate rapid drinks service. It optimizes storage space by positioning the refrigeration compartment at the unit’s base, to give the storage area a completely flat base with no internal step. With insulated sliding lids, you can effortlessly access stock ensuring swift and efficient service. Ideal for bustling bars, nightclubs, event venues, and festivals. The PLUS variation is equipped with heavy duty and protective bumper bars. Both units have the ability to remove the sliding lids and stack the coolers for storage and transportation, making them a versatile choice for rental and event companies, as well as mobile bars.


The TEFCOLD KBAK104 is a top-loading bottle dump cooler with 250 litres gross capacity that chills bottled drinks and ice at +1 to +8 °C on R600a refrigerant, rated energy class B and drawing 190 W from a standard 13 A supply.

SPECIFICATION 44 facts · tap for all External W × D × H1025 x 625 x 1000 mmWidth1025 mmDepth625 mmGross / net weight70 / 60 kgGross weight70 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181729264site
Product code 48218site
Sub title Bottle Dump Coolercatalogue
Type Beer Dumpscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 625 mmsite
External (W×D×H) 1025 × 625 × 1000 mmcatalogue
External W × D × H 1025 x 625 x 1000 mmsite
Gross / net weight 70 / 60 kgsite
Gross weight 70 kgcatalogue
Height 1000 mmsite
Internal (W×D×H) 900 × 500 × 555 mmcatalogue
Internal W × D × H 900 x 500 x 555 mmsite
Packed (W×D×H) 660 × 1100 × 1060 mmcatalogue
Packed W × D × H 660 x 1100 x 1060 mmsite
Width 1025 mmsite

Capacity3

330ml bottles 364 pcssite
330ml cans 216 pcssite
Gross volume 250 litrescatalogue

Performance10

Climate class 4site
Controller Mechanicalsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 34 gsite
Temperature range +1 to +8site
Thermometer Yessite

Power & energy6

Annual energy consumption 198 kWh/yearsite
Energy consumption 0.54 kWh/24hsite
Energy efficiency index 14 %site
Input power 190 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Castors Wheelssite
Exterior finish Whitesite
Interior light Nosite
Lock Factory Optionsite

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this beer dump earns its place

The KBAK104 is a top-loading bottle dump cooler built for fast, high-volume drinks service. You fill the open well with bottled beer, mixers or ice and staff reach straight down to serve, so there is no door to open on every round — the format that keeps a busy bar moving at peak. The 250-litre gross / 226-litre net well gives real holding capacity in a compact footprint, in a wipe-clean white finish.

It runs static cooling across a +1 to +8 °C band on a mechanical controller, the right range for keeping bottled drinks properly cold and holding ice. Defrost is manual, so you clear it during a quiet period. It is rated energy class B at 197.1 kWh a year — about £49 a year at 25p/kWh — and runs at 45 dB, drawing just 190 W, so it is economical to leave on through service.

The well measures 900 × 500 × 555 mm internally, giving a wide dump area for bottles laid down or stood up. At 70 kg gross it is a two-person lift into position. It plugs into a standard 220-240 V supply on a 13 A socket and uses R600a refrigerant with a 34 g charge, with a white interior that wipes down between changeovers.

BEFORE YOU BUY

Questions, answered straight

It is top-loading with an open well, so staff reach straight down to grab bottles or ice rather than opening a door each time. That keeps service fast during busy periods.

It runs a +1 to +8 °C band on static cooling with a mechanical controller, the right range for keeping bottled drinks cold and holding ice through service.

It is rated energy class B at 197.1 kWh a year, which is about £49 a year at 25p/kWh. Drawing only 190 W, it is economical to leave running through trading.

The well is 250 litres gross and 226 litres net, measuring 900 × 500 × 555 mm internally — a wide dump area for bottles laid down or stood up.

It runs on a standard 220-240 V supply through a 13 A socket, so no special electrical work is needed for a normal bar or service position.

Defrost is manual, cleared during a quiet period. For servicing or spec questions our team is on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 900 x 500 x 555 mm
External Dimension (WxDxH): 1025 x 625 x 1000 mm
Packed Dimension (WxDxH): 660 x 1100 x 1060 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R600a
Refrigerant Charge: 34 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 0.54 kWh/24h
Temperature Range: +1 to +8 °C
Annual Energy Consumption: 198 kWh/year m³
EEI: 14 %
Input Power: 190 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Cans 330 ml: 216 pcs pcs
Bottles 330 ml: 364 pcs pcs
Temperature Range: +1 to +8 °C
Climate Class: 4
Gross / Net Weight: 70 / 60 kg
Gross / Net Volume: 250 / 226 l
Max Ambient: +30°C, 55% RH

Design and Material

Castors: Wheels
Exterior Finish: White
Interior Finish: White
Interior Light: No
Lock: Factory Option
If you have any questions about the TEFCOLD KBAK104 Bottle Dump Cooler then please get in touch.
