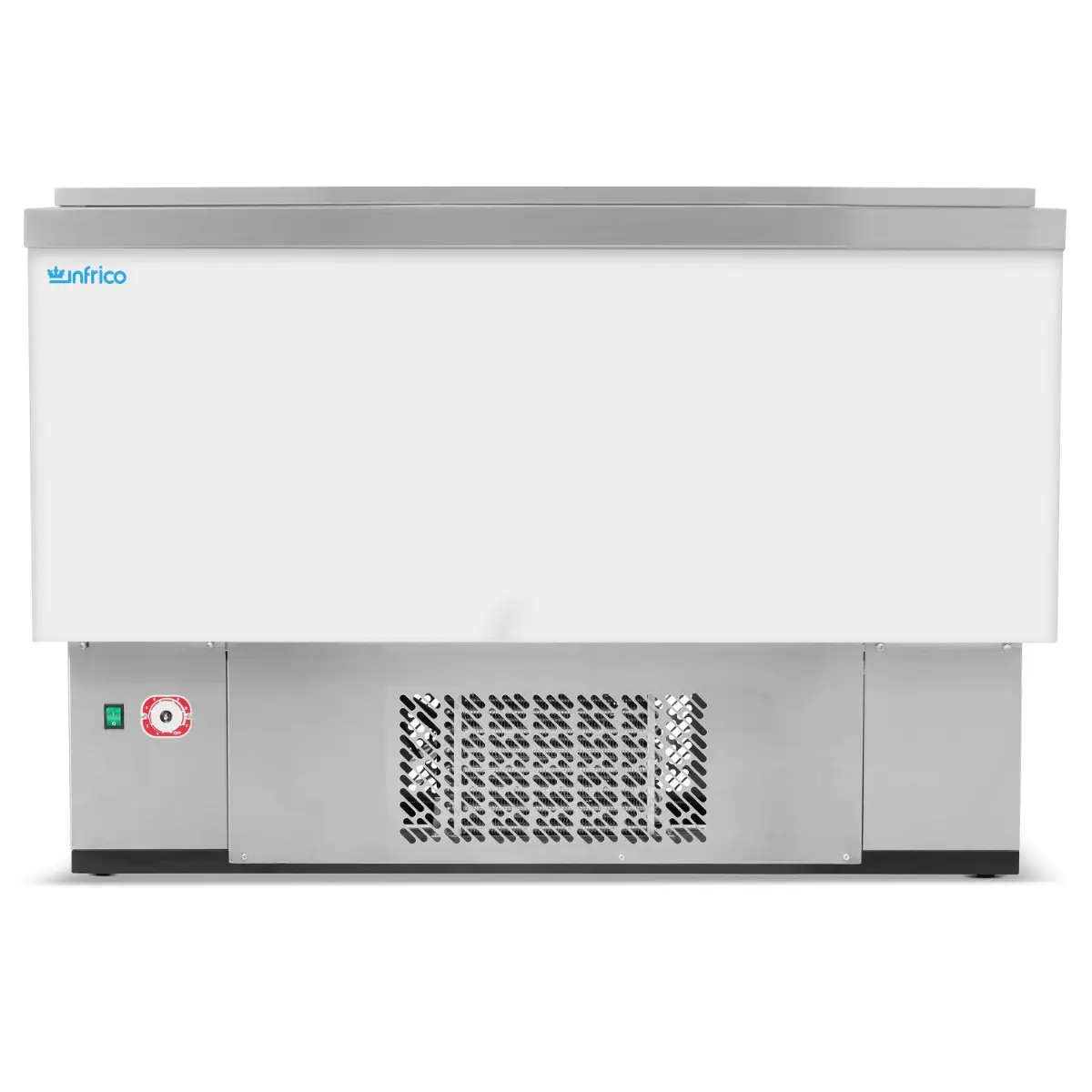

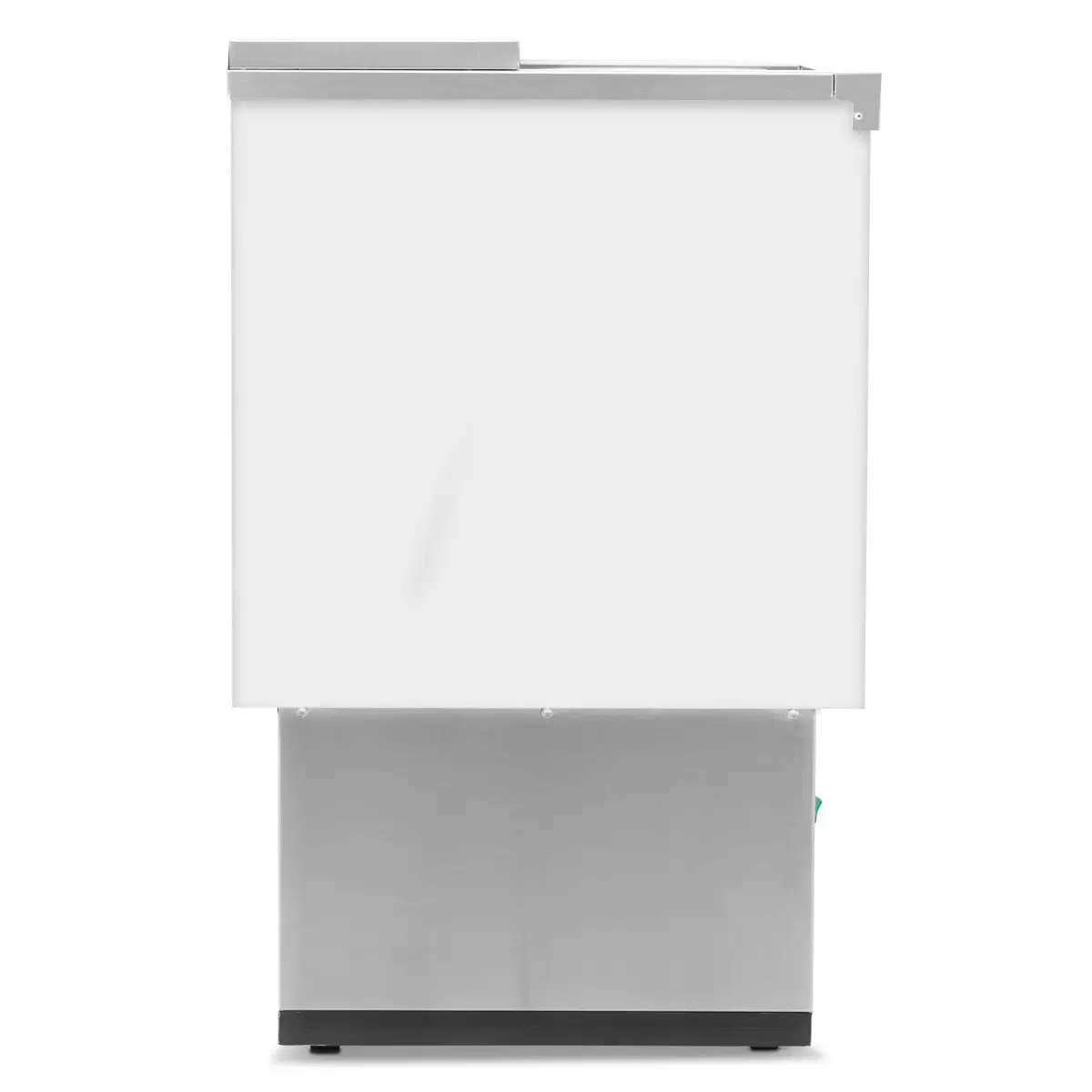

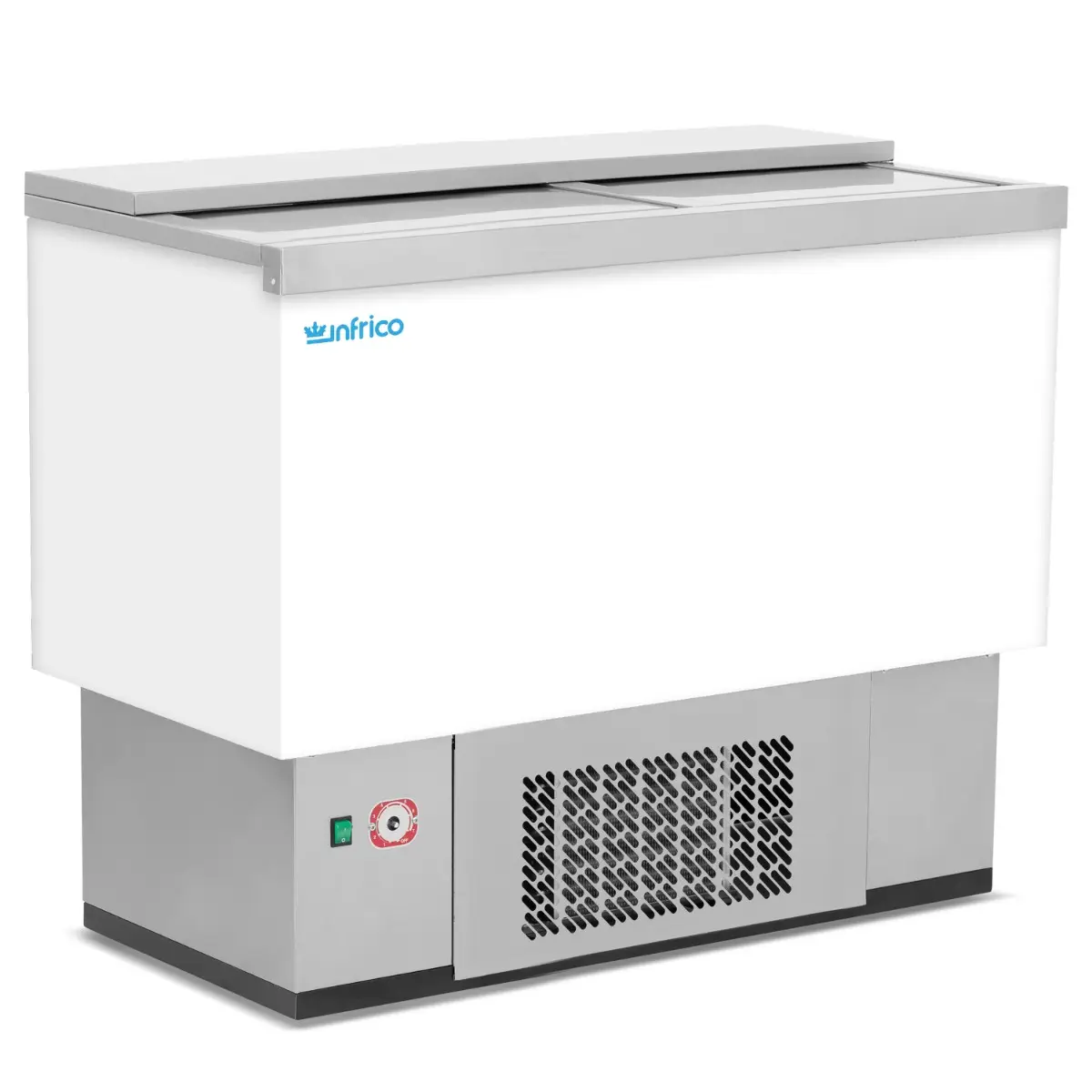

INFRICO Double Bay White Laminated Beer Dump EFP1000WH

£717.75

+vat

Brand:

SKU: EFP1000WH

Product summary

Size: 1004 x 550 x 880

Product description

  • White laminated exterior
  • Galvanized steel interior
  • Bottle capacities based on 20cl bottles
  • Manual defrosting
  • Ventilated condensation system
  • Gravity evaporation system
  • Temperature regulated by a thermostatic controller
    <div id=”col-730344531″ class=”col medium-1/2 large-6″></div>
    <div id=”col-1413392316″ class=”col medium-1/2 large-6″></div>
  • Fixed drain option (please note a drain tube exit is in the base of themachine, the installer should make provision for connection to a drain outlet or adequate container)

The Infrico EFP1000WH is a double-bay white laminated beer dump measuring 1004 × 550 × 880 mm (W×D×H) and running on R600a refrigerant, built to chill and present bottled drinks at the point of service in bars and venues.

Downloads

SPECIFICATION 21 facts · tap for all External W × D × H1004 x 550 x 880Width1004 mmDepth550 mmHeight880 mmGross weight61 kgVoltage / frequency90W

Manufacturer documents1

Identity3

Brand INFRICOsite
Product code EFP1000WHsite
Type Beer Dumpscatalogue

Size & weight6

Depth 550 mmsite
External (W×D×H) 1004 × 550 × 880 mmcatalogue
External W × D × H 1004 x 550 x 880site
Gross weight 61 kgcatalogue
Height 880 mmsite
Width 1004 mmsite

Capacity1

Gross volume 180 litrescatalogue

Performance6

Climate class 4site
Controller Manual thermostatsite
Cooling type Staticsite
Defrost type Manualsite
Refrigerant R600asite
Temperature range +3C / +6Csite

Power & energy3

Input power 13amp supplysite
Rated input 90 Wcatalogue
Voltage / frequency 90Wsite

Build & fittings1

Exterior finish Whitesite
THE WORKING VIEW

Why this beer dump earns its place

The Infrico EFP1000WH is a double-bay beer dump in a white laminated finish. It is a point-of-service chiller: bottled drinks sit in the open bays where customers and staff can see and reach them, which turns cold stock into a merchandising display rather than tucked-away storage. The two bays let you split ranges — lager one side, mixers or soft drinks the other — without them running together. At 180 litres capacity, it holds enough for a full session service without constant restocking.

The dump runs on R600a, a natural hydrocarbon refrigerant with low global warming potential, keeping it in step with current environmental requirements. It holds a steady +3 to +6 °C and draws just 90 W — efficient enough that adding it to an existing back-bar run won't spike your electricity bill. The white laminated exterior with galvanized steel interior gives a clean front for a back-bar or serving position and wipes down between services.

At 1004 × 550 × 880 mm (W×D×H) it is a compact unit that weighs 61 kg and clears a standard doorway comfortably on delivery, slotting into a back-bar run without a wide footprint. It runs on a standard 13amp supply, so confirm the socket position with your electrician before installation. Check clearance around it for airflow and access, and our team can advise on siting and servicing before you install it.

BEFORE YOU BUY

Questions, answered straight

Yes — it measures 1004 × 550 × 880 mm (W×D×H), which clears a standard doorway on delivery and fits a typical back-bar run, but leave clearance around it for airflow and access.

Yes — it runs on R600a, a natural hydrocarbon refrigerant with low global warming potential, so it meets current environmental expectations.

It chills and displays bottled drinks at the point of service. The two bays let you separate ranges and keep cold stock in front of the customer rather than in back-of-house storage.

Put its energy class and annual kWh into our energy label decoder to convert them into pounds per year on your own tariff, so the figure matches your electricity price.

Yes. The white laminated exterior gives a clean front for a back-bar or serving station and wipes down between services.

Yes, we can arrange servicing and support. Call our team on 01792 732702 to talk through cover for this unit.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

External Dimension (WxDxH): 1004 x 550 x 880

Cooling and Functions

Type of Controller: Manual thermostat
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R600a

Power and Consumption

Temperature Range: +3C / +6C °C
Input Power: 13amp supply
Voltage / Frequency: 90W

Measures and Content

Temperature Range: +3C / +6C °C
Climate Class: 4
Gross / Net Volume: 180 Bottles / 200 ltr l

Design and Material

Exterior Finish: White

INFRICO Double Bay White Laminated Beer Dump EFP1000WH Product Data
