TEFCOLD KBAK104PLUS Bottle Dump Cooler

£936.00

+vat

- +

Brand:

SKU: 48219

Energy Arrow

Product summary

  • Low energy consumption
  • Impressive storage space
  • Removable top for easy loading
  • Ideal for storing beer and soft drink crates

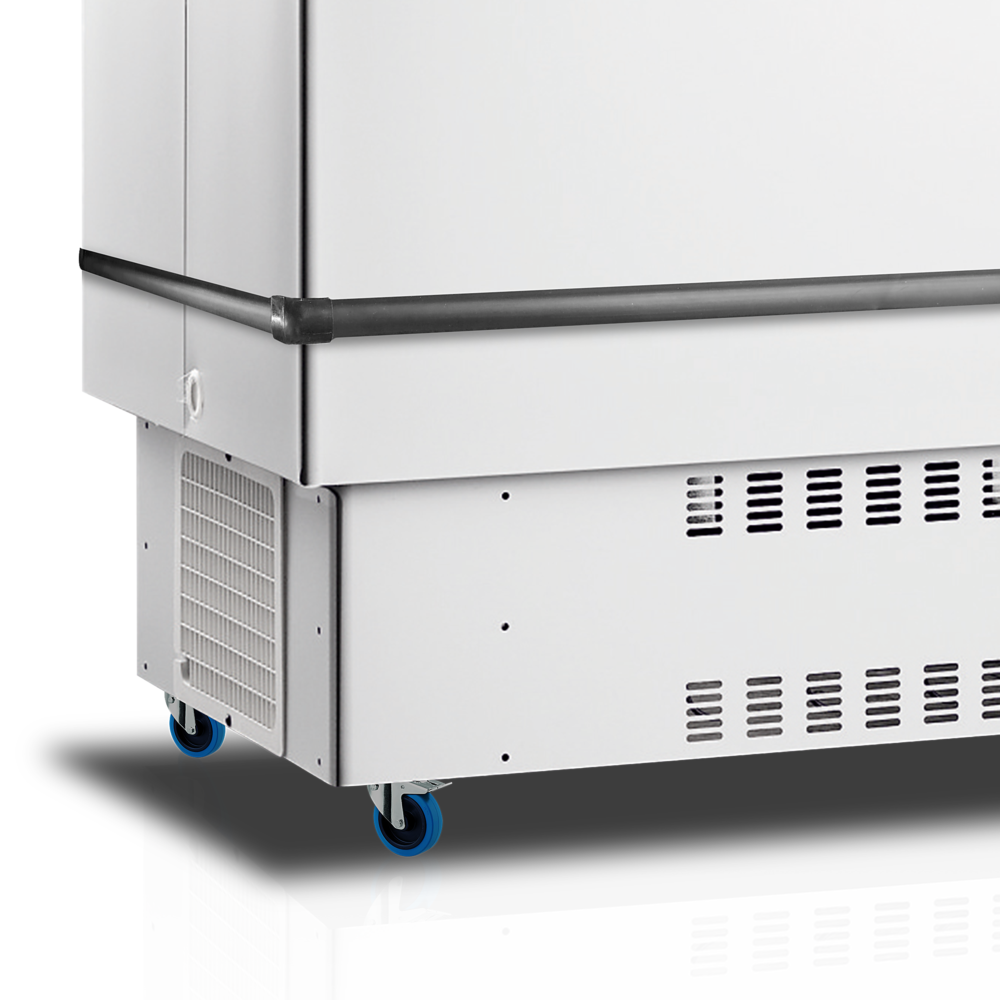

  • Strong wheels
  • Bumper bars
  • Flat solid sliding lids
  • Static cooling

Product description

Chest boottle cooler

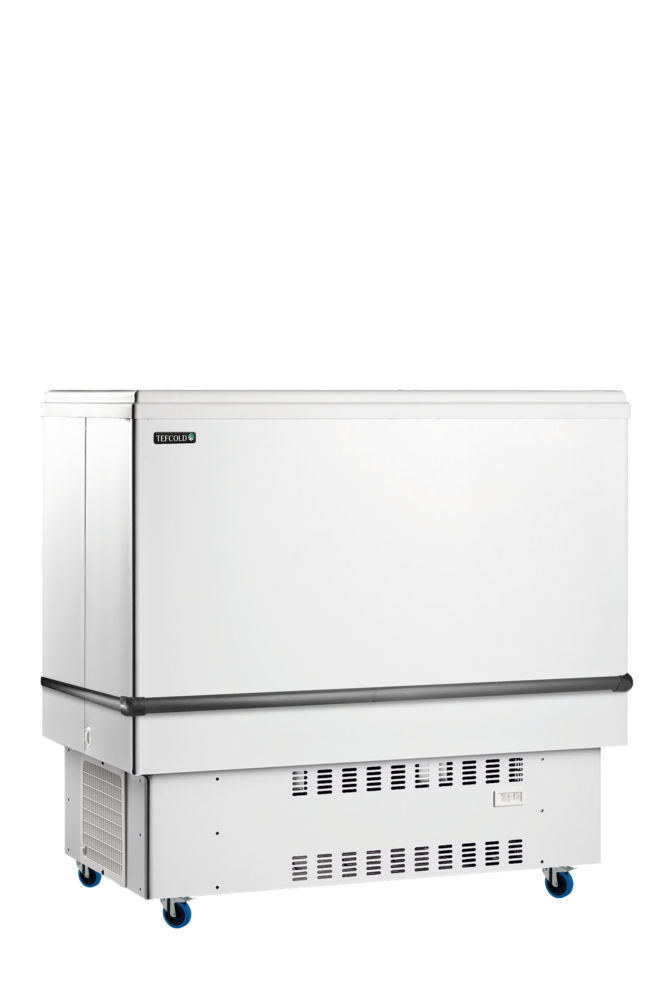

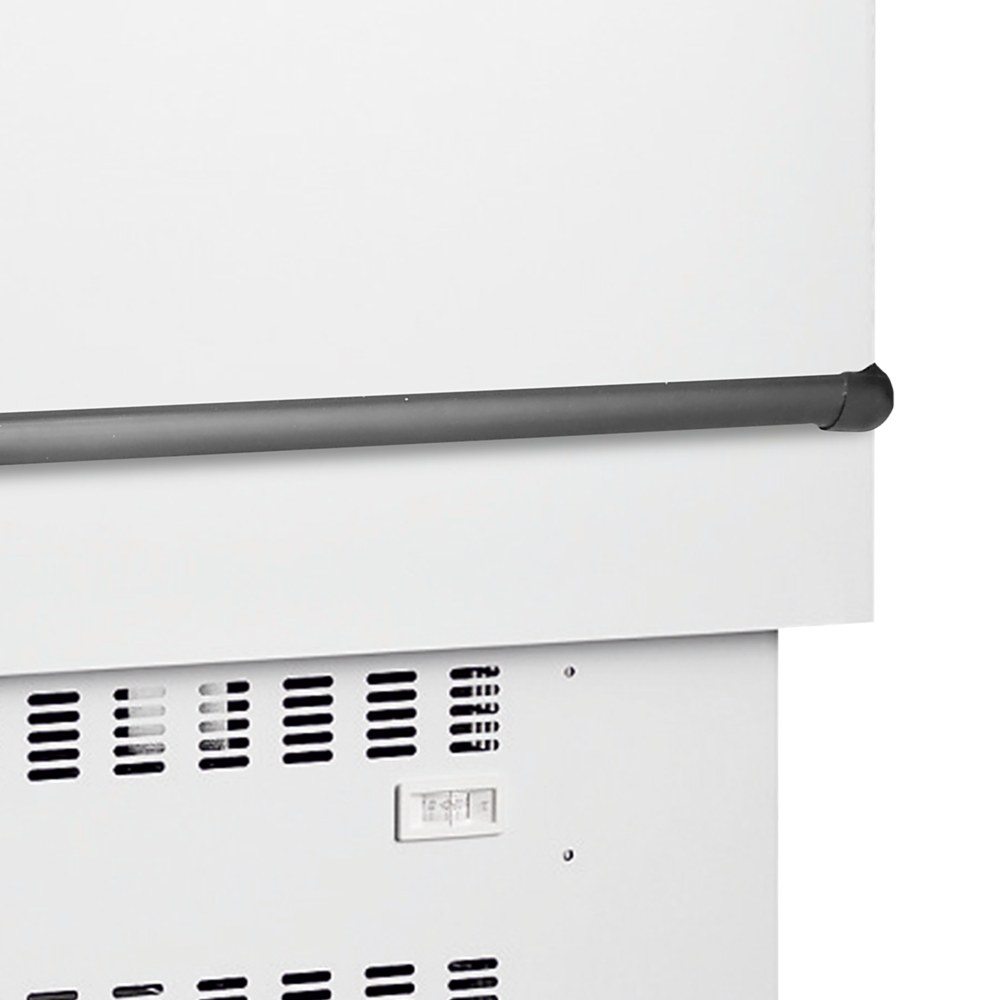

The KBAK chest bottle cooler has been designed to cater to your bulk storage needs and facilitate rapid drinks service. It optimizes storage space by positioning the refrigeration compartment at the unit’s base, to give the storage area a completely flat base with no internal step. With insulated sliding lids, you can effortlessly access stock ensuring swift and efficient service. Ideal for bustling bars, nightclubs, event venues, and festivals. The PLUS variation is equipped with heavy duty and protective bumper bars. Both units have the ability to remove the sliding lids and stack the coolers for storage and transportation, making them a versatile choice for rental and event companies, as well as mobile bars.


The TEFCOLD KBAK104PLUS Bottle Dump Cooler is a top-loading white dump cooler holding +1 to +8 °C for bottled and canned drinks, running on R600a refrigerant at energy class B and costing about £49 a year at 25p/kWh.

SPECIFICATION 44 facts · tap for all External W × D × H1065 x 665 x 1060 mmWidth1065 mmDepth665 mmGross / net weight60 / 52 kgGross weight60 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181729271site
Product code 48219site
Sub title Bottle Dump Coolercatalogue
Type Beer Dumpscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 665 mmsite
External (W×D×H) 1065 × 665 × 1060 mmcatalogue
External W × D × H 1065 x 665 x 1060 mmsite
Gross / net weight 60 / 52 kgsite
Gross weight 60 kgcatalogue
Height 1060 mmsite
Internal (W×D×H) 900 × 500 × 555 mmcatalogue
Internal W × D × H 900 x 500 x 555 mmsite
Packed (W×D×H) 1100 × 660 × 1060 mmcatalogue
Packed W × D × H 1100 x 660 x 1060 mmsite
Width 1065 mmsite

Capacity3

330ml bottles 216 pcssite
330ml cans 364 pcssite
Gross volume 264 litrescatalogue

Performance10

Climate class 4site
Controller Mechanicalsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 36 gsite
Temperature range +1 to +8site
Thermometer Yessite

Power & energy6

Annual energy consumption 198 kWh/yearsite
Energy consumption 0.54 kWh/24hsite
Energy efficiency index 14 %site
Input power 190 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Castors Wheelssite
Exterior finish Whitesite
Interior light Nosite
Lock Factory Optionsite

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this beer dump earns its place

The TEFCOLD KBAK104PLUS Bottle Dump Cooler is a top-loading cooler built to hold bottled and canned drinks cold and within easy reach at the point of service. It loads from the top, so staff dip straight in during a busy service rather than opening a door, and the white finish inside and out keeps it looking clean behind a bar or counter. The internal well measures 900 × 500 × 555 mm (W×D×H).

The cooler holds a temperature band of +1 to +8 °C, right for chilling drinks ready to serve. Defrost is manual and the cabinet runs on a mechanical controller, a straightforward setup with fewer electronics to fault. It carries an energy class of B — drawing 197.1 kWh a year, about £49 a year at 25p/kWh — runs at a quiet 45 dB, and is rated climate class 4 for warm, busy service environments.

It draws 190 W and runs from a 13 A plug, so it goes straight onto a standard socket with no special electrics. It weighs 60 kg gross. Refrigerant is R600a hydrocarbon, a low-GWP gas standard on efficient modern coolers.

BEFORE YOU BUY

Questions, answered straight

It is top-loading, so drinks are dropped in and lifted straight out during service rather than reached through a door. The internal well is 900 × 500 × 555 mm.

It runs at +1 to +8 °C, right for keeping bottled and canned drinks cold and ready to serve.

It draws 197.1 kWh a year at energy class B, which is about £49 a year at 25p/kWh. Your actual figure depends on your tariff and how it is sited.

It draws 190 W and runs from a standard 13 A plug, so no special supply is required. For installation or servicing advice, call our team on 01792 732702.

Defrost is manual, and the cooler runs on a simple mechanical controller with fewer electronics to fault.

It uses R600a hydrocarbon refrigerant, a low-GWP gas standard on efficient modern coolers.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 900 x 500 x 555 mm
External Dimension (WxDxH): 1065 x 665 x 1060 mm
Packed Dimension (WxDxH): 1100 x 660 x 1060 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R600a
Refrigerant Charge: 36 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 0.54 kWh/24h
Temperature Range: +1 to +8 °C
Annual Energy Consumption: 198 kWh/year m³
EEI: 14 %
Input Power: 190 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Cans 330 ml: 364 pcs pcs
Bottles 330 ml: 216 pcs pcs
Temperature Range: +1 to +8 °C
Climate Class: 4
Gross / Net Weight: 60 / 52 kg
Gross / Net Volume: 264 / 250 l
Max Ambient: +30°C, 55% RH

Design and Material

Castors: Wheels
Exterior Finish: White
Interior Finish: White
Interior Light: No
Lock: Factory Option
If you have any questions about the TEFCOLD KBAK104PLUS Bottle Dump Cooler then please get in touch.
