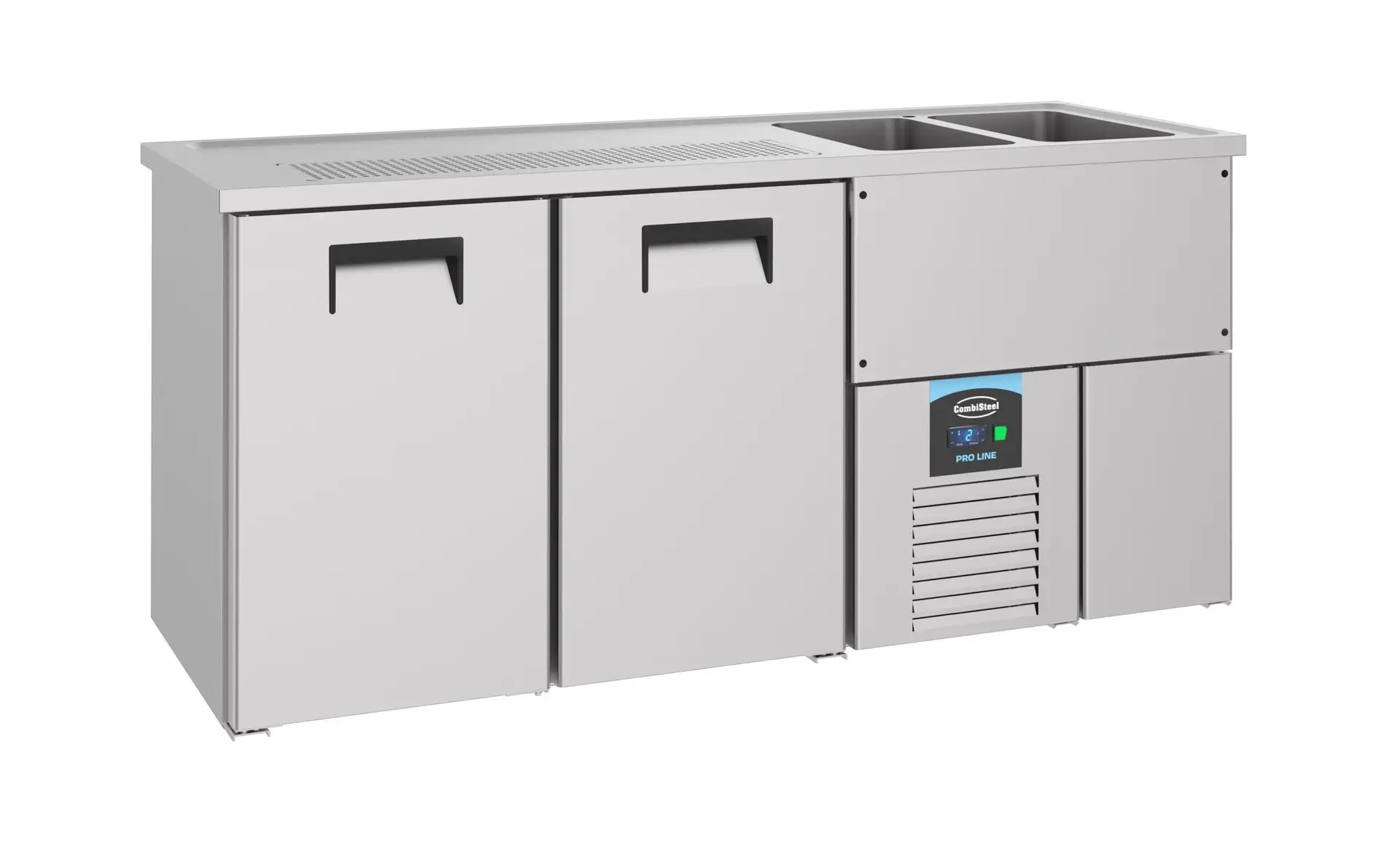

CombiSteel Beer Counter Double Door 2R 7489.5320

£2,364.00

+vat

SKU: 7489.532

Product summary

Size W/D/H (mm) 1950 x 700 x 950

Product description

Ruimte voor 1 biervat per deur als je de roosters eruit haalt

The 7489.5320 is a two-door refrigerated beer counter built for back-of-bar use, giving a bar, venue or restaurant chilled bottle and can storage at the point of service in a worktop-height counter.

Downloads

SPECIFICATION 27 facts · tap for all Width1950 mmDepth700 mmGross / net weight225 kgVoltage / frequency23050Voltage230V / 50HzTemperature range-2/+8

Identity3

Brand CombiSteelcatalogue
GTIN / EAN 7435137841890catalogue
Type Bar Counters & Stationscatalogue

Size & weight7

Depth 700 mmsite
External (W×D×H) 1950 × 700 × 950 mmcatalogue
Gross / net weight 225 kgsite
Height 950 mmsite
Internal (W×D×H) 990 × 565 × 795 mmcatalogue
Internal W × D × H 990x565x795site
Width 1950 mmsite

Capacity3

Gross volume 520 litrescatalogue
Shelves 2catalogue
Sink dim 300×500catalogue

Performance5

Cooling type R 290site
Defrost type Automaticsite
Max ambient 4343 °Ccatalogue
Maximum ambient 4343site
Temperature range -2/+8site

Power & energy6

Energy consumption 0.36site
Frequency 50 Hzcatalogue
Rated input 360 Wcatalogue
Rated power 0.36 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 23050site

Build & fittings3

Accessories Space for 1 beer keg per door when the shelves are removedcatalogue
Exterior finish Stainless steel 430site
Insulation 60 mmcatalogue
THE WORKING VIEW

Why this bar counters & station earns its place

The 7489.5320 is a two-door refrigerated beer counter designed to work as part of the bar itself. It keeps bottled and canned drinks chilled at serving temperature behind the bar at the point of service, so staff pour straight from the cold counter rather than crossing to a separate cabinet. It holds 520 litres split across two doors, substantial stock for a busy shift.

The refrigerated storage sits under a worktop-height counter, with two doors giving access to chilled stock ready to serve. It runs at -2 to +8°C through a busy session, holding drinks steadily chilled. Built to stainless steel 430 with 60 mm insulation and R290 refrigerant, it draws just 0.36 kW in normal operation, keeping running costs low across long trading hours.

It is a freestanding counter unit, so plan the install around delivery access and a solid, level floor. At 1950 mm wide, 700 mm deep and 950 mm high, weighing 225 kg, it is large and heavy — check the delivery route before it arrives. Confirm there is room for the two doors to open into the service area, and allow clearance around the back and sides for the refrigeration to draw and exhaust air freely during service.

BEFORE YOU BUY

Questions, answered straight

It is a refrigerated beer counter built to hold 520 litres of bottled and canned drinks split across two doors. It keeps stock chilled behind the bar at the point of service so staff pour straight from cold without crossing to a separate cabinet.

It is a freestanding refrigerated counter. Check the external width (1950 mm), depth (700 mm) and height (950 mm) against the gap in your counter line. Allow clearance for the two doors to open into the service area and for airflow around the refrigeration system so it can cool reliably during service.

The counter weighs 225 kg, so confirm it will stand on a solid, level floor and that the delivery route is clear. It is large and heavy — check room in the bar area before the delivery vehicle arrives.

It is a chilled counter holding drinks at 0–8°C, the standard serving band for bottled beer and mixers. This is suitable for bottled drinks; it is not a freezer.

It draws 0.36 kW at 230V single-phase, so the electrical load is modest. Site it near an accessible socket so it can be isolated for cleaning and service.

Yes. We support servicing and breakdowns for the cabinets we supply. Call 01792 732702 to book installation, a service visit or talk through a fault.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel Beer Counter Double Door 2R 7489.5320 Product Data

Brand CombiSteel
Dimensions (W×D×H) 1950 × 700 × 950 mm
Interior Dimensions 990x565x795
Material Stainless steel 430
Temperature Range -2/+8
Max. Ambient Temp. 43
Refrigerant R 290
Defrost Automatic
Number of Doors 2
Number of Grids/Shelves 2
Electrical Power 0.36 kW
Voltage 230V / 50Hz
Insulation 60 mm
Weight 225 kg
If you have any questions about the CombiSteel Beer Counter Double Door 2R 7489.5320 then please get in touch.
