CombiSteel Beer Counter Triple Door 2R 7489.5340

+vat

Brand:

SKU: 7489.534

Product summary

Size W/D/H (mm) 2500 x 700 x 950

Product description

Ruimte voor 1 biervat per deur als je de roosters eruit haalt

Downloads

SPECIFICATION 27 facts · tap for all Width2500 mmDepth700 mmHeight950 mmGross / net weight287 kgVoltage / frequency23050Voltage230V / 50Hz

Identity3

Brand CombiSteelcatalogue
GTIN / EAN 7435137842835catalogue
Type Bar Counters & Stationscatalogue

Size & weight7

Depth 700 mmsite
External (W×D×H) 2500 × 700 × 950 mmcatalogue
Gross / net weight 287 kgsite
Height 950 mmsite
Internal (W×D×H) 1545 × 565 × 795 mmcatalogue
Internal W × D × H 1545x565x795site
Width 2500 mmsite

Capacity3

Gross volume 690 litrescatalogue
Shelves 3catalogue
Sink dim 300×500catalogue

Performance5

Cooling type R 290site
Defrost type Automaticsite
Max ambient 4343 °Ccatalogue
Maximum ambient 4343site
Temperature range -2/+8site

Power & energy6

Energy consumption 0.46site
Frequency 50 Hzcatalogue
Rated input 460 Wcatalogue
Rated power 0.46 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 23050site

Build & fittings3

Accessories Space for 1 beer keg per door when the shelves are removedcatalogue
Exterior finish Stainless steel 430site
Insulation 60 mmcatalogue
THE WORKING VIEW

Why this bar counters & station earns its place

Take the two-door beer counter and stretch it to three, and you get a proper back-bar cold wall — 2500mm of counter with three individual doors, each cold enough (-2°C to +8°C) to hold a keg at cellar temperature once the internal shelves and grilles are removed. Three doors means three kegs live behind the bar rather than in a separate cellar, or a mix of kegs and standard cold storage depending on what the shift needs.

Each door works independently, so a busy bar can run keg cooling in one or two doors and keep the third for bottles, mixers and garnish — the flexibility to change the balance as the range changes without buying a second unit.

At 690 litres gross and 287kg, this is a serious piece of bar infrastructure rather than a portable fridge, and it draws 460W from a standard 230V supply, so it wires in on a normal single-phase circuit despite the size.

BEFORE YOU BUY

Questions, answered straight

One per door once you take the internal shelves and grilles out — so up to three kegs across the full unit, or fewer if you're using some doors for standard storage instead.

-2°C to +8°C — cold enough to hold a keg at proper cellar temperature.

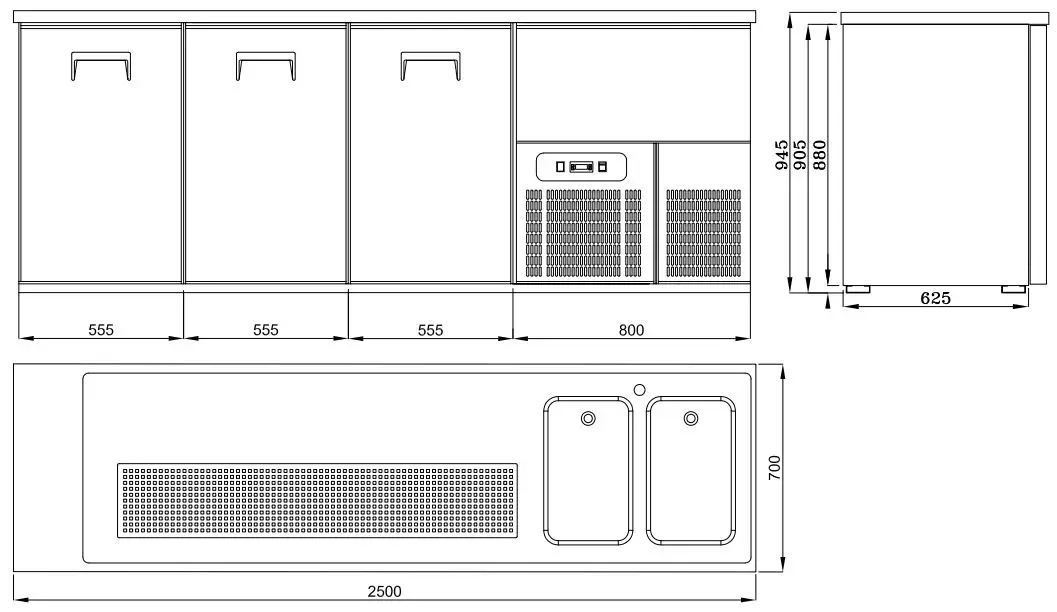

2500mm wide, 700mm deep, 950mm tall — measure your bar run before ordering.

It's 287kg gross, so plan your access and floor loading in advance — this isn't a two-person carry-in job.

460W on a standard 230V supply — no three-phase needed.

Craven Cooling can help with installation and ongoing servicing — call 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel Beer Counter Triple Door 2R 7489.5340 Product Data

Brand CombiSteel
Dimensions (W×D×H) 2500 × 700 × 950 mm
Interior Dimensions 1545x565x795
Material Stainless steel 430
Temperature Range -2/+8
Max. Ambient Temp. 43
Refrigerant R 290
Defrost Automatic
Number of Doors 3
Number of Grids/Shelves 3
Electrical Power 0.46 kW
Voltage 230V / 50Hz
Insulation 60 mm
Weight 287 kg
If you have any questions about the CombiSteel Beer Counter Triple Door 2R 7489.5340 then please get in touch.
