CombiSteel 600 Refrigerated Counter Double Door with Disposal Drawer for Coffee 7489.5260

£1,756.23

+vat

- +

Brand:

SKU: 7489.526

Product summary

Size W/D/H (mm) 1580 x 600 x 1050

Product description

Downloads

SPECIFICATION 26 facts · tap for all Width1580 mmDepth600 mmHeight1050 mmGross / net weight170 kgVoltage / frequency23050Voltage230V / 50Hz

Identity3

Brand CombiSteelcatalogue
GTIN / EAN 7435137840879catalogue
Type Double Door Counter Fridgescatalogue

Size & weight5

Depth 600 mmsite
External (W×D×H) 1580 × 600 × 1050 mmcatalogue
Gross / net weight 170 kgsite
Height 1050 mmsite
Width 1580 mmsite

Capacity4

Capacity 550 Ltrcatalogue
Gastronorm size 2x 1/1GNcatalogue
Gross volume 550 litrescatalogue
Shelves 2catalogue

Performance6

Controller Digitalcatalogue
Cooling type R 290site
Defrost type Automaticsite
Max ambient 4343 °Ccatalogue
Maximum ambient 4343site
Temperature range -2/+8site

Power & energy6

Energy consumption 0.3site
Frequency 50 Hzcatalogue
Rated input 300 Wcatalogue
Rated power 0.3 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 23050site

Build & fittings2

Exterior finish Stainless steel 430site
Insulation 60 mmcatalogue
THE WORKING VIEW

Why this double door counter fridge earns its place

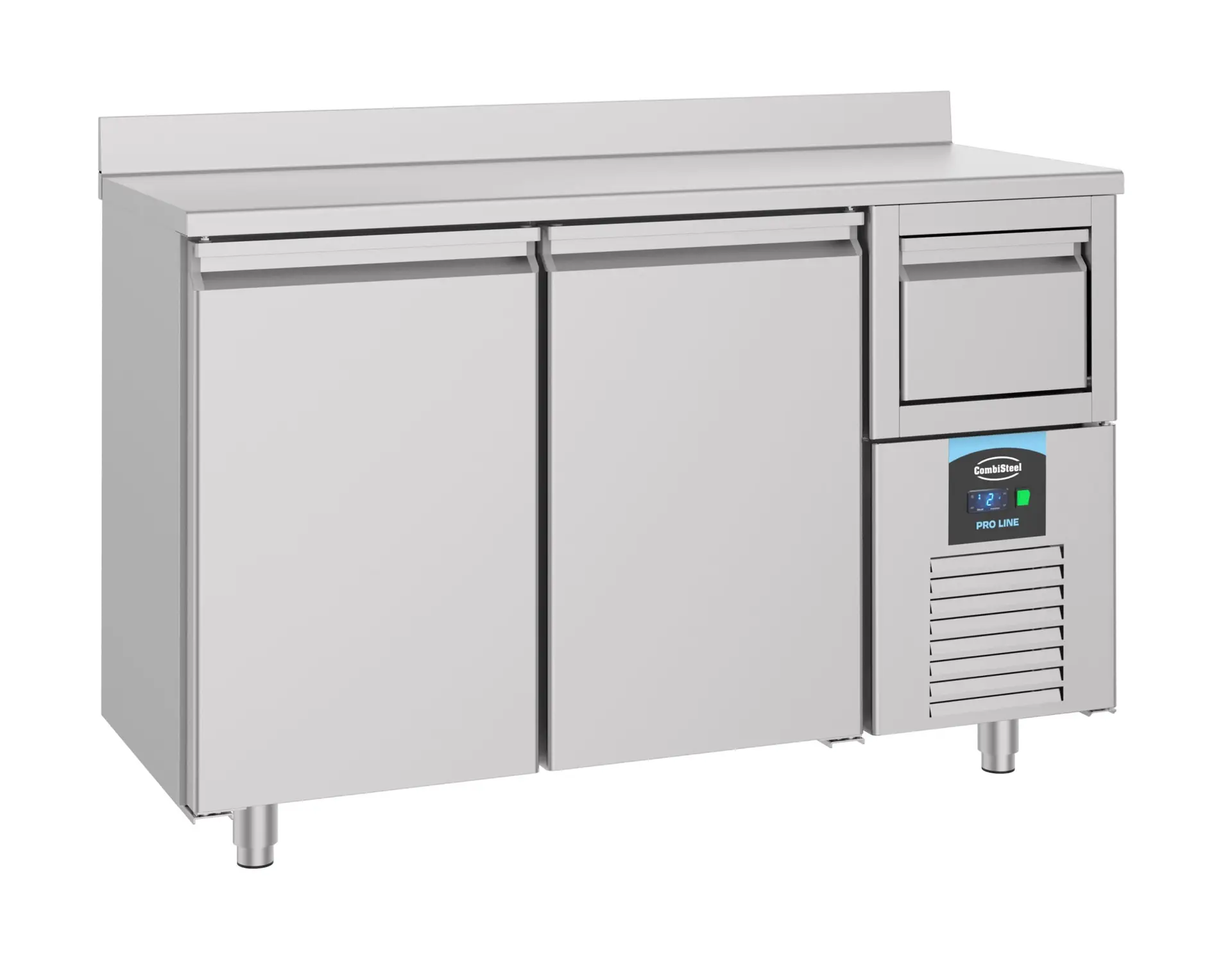

The 7489.5260 is a two-door refrigerated counter from Combisteel with a disposal drawer for coffee, built to sit under an espresso machine and run a coffee station from a single bench. The worktop gives you a surface to work on, the two refrigerated doors give chilled storage underneath for milk and prep, and the disposal drawer takes the spent coffee pucks knocked out of the group head, so the waste stays at the point of use rather than at a separate bin.

In daily use it holds up to 550 litres of chilled product under the counter while the disposal drawer handles used grounds through service. It runs at -2 to +8°C, worth checking against the milk and prep volumes a busy coffee run gets through. The stainless-steel finish wipes clean, and the cabinet is well-insulated with 60 mm to hold temperature without overworking. Keep it clear of heat sources so the refrigeration is not fighting the room, and empty and clean the disposal drawer as part of the daily close-down.

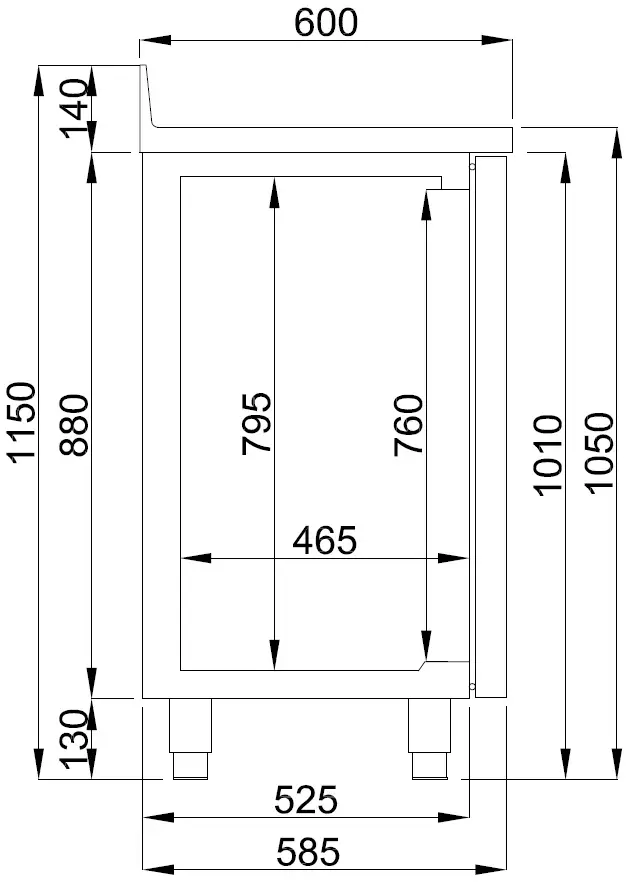

As a floor-standing refrigerated counter it is 1580 mm wide, 600 mm deep and 1050 mm tall, and it needs clear floor space and a socket rather than plumbing or three-phase power—a standard 230 V connection with only 0.3 kW draw. Check these dimensions against your bar or counter run and your access route before you order, since a counter this size has to line up with the rest of the bench and get in through the door. At 170 kg it is a two-person move. Craven Cooling can help you plan it in and arrange servicing after install.

BEFORE YOU BUY

Questions, answered straight

It is a knock-out drawer for the spent coffee pucks tapped out of the espresso group head, so the used grounds are dealt with at the machine. The two refrigerated doors below give chilled storage for milk and prep.

It is a floor-standing counter, so check the external width, depth and height on the spec panel against your bar layout and access route before ordering, so it lines up with the rest of the bench.

The refrigerated section is for chilled product such as milk and prep kept under the counter. The spec panel lists the temperature band so you can confirm it suits what you need to store.

It runs from a standard mains supply and needs a socket rather than three-phase power. The full electrical detail is on the spec panel; confirm your site has a suitable supply nearby.

Running cost depends on the counter's energy use and your electricity tariff. The energy figures are on the spec panel, and our energy label decoder turns them into pounds per year on your rate.

Yes. We can arrange servicing and support after installation — call the team on 01792 732702 to set it up.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel 600 Refrigerated Counter Double Door with Disposal Drawer for Coffee 7489.5260 Product Data

Brand CombiSteel
Dimensions (W×D×H) 1580 × 600 × 1050 mm
Capacity 550 Ltr
GN Capacity 2x 1/1GN
Material Stainless steel 430
Temperature Range -2/+8
Max. Ambient Temp. 43
Refrigerant R 290
Cooling Ventilated
Defrost Automatic
Number of Doors 2
Number of Grids/Shelves 2
Electrical Power 0.3 kW
Voltage 230V / 50Hz
Insulation 60 mm
Weight 170 kg
If you have any questions about the CombiSteel 600 Refrigerated Counter Double Door with Disposal Drawer for Coffee 7489.5260 then please get in touch.
