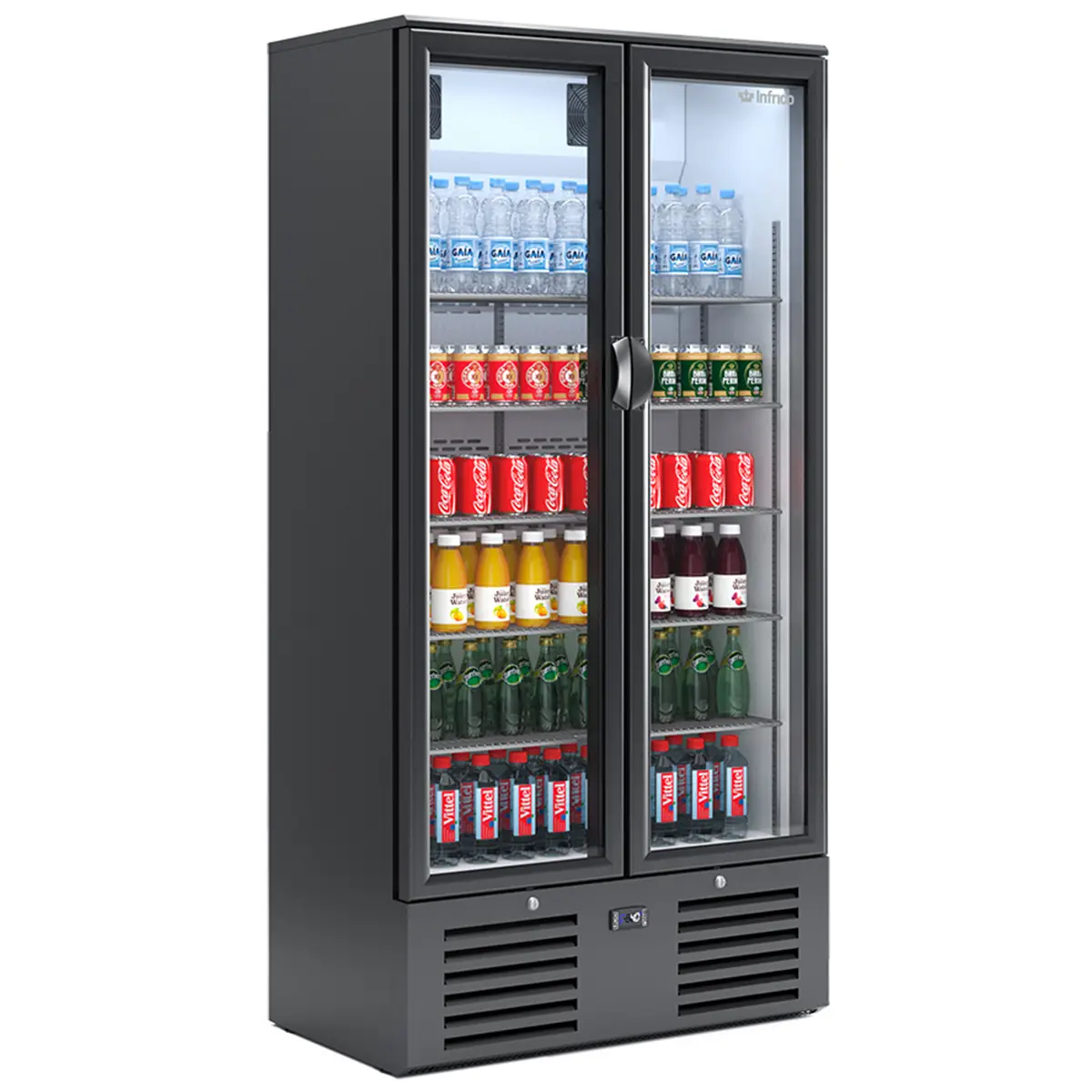

INFRICO Upright Double Hinged Glass Door Bottle Cooler ZX20

£1,709.84

+vat

Brand:

SKU: ZX20

Product summary

Size: 900 x 520 x 1800

Product description

  • Black laminated exterior and interior
  • Internal illumination
  • Wider spaced finner condenser for minimum maintenance
  • 5 shelves
  • Lock as standard
  • Can be built in
  • Double glazed glass doors and adjustable feet
  • Replaceable door gaskets

The Infrico ZX20 is an upright double hinged glass-door back bar bottle cooler measuring 900 × 520 × 1800 mm (W×D×H), running on natural R290 refrigerant with automatic defrost and a climate class 4 rating for warm bar environments.

SPECIFICATION 24 facts · tap for all External W × D × H900 x 520 x 1800Width900 mmDepth520 mmHeight1800 mmGross weight157 kgVoltage / frequency600W

Manufacturer documents2

Identity3

Brand INFRICOsite
Product code ZX20site
Type Back Bar Fridgescatalogue

Size & weight6

Depth 520 mmsite
External (W×D×H) 900 × 520 × 1800 mmcatalogue
External W × D × H 900 x 520 x 1800site
Gross weight 157 kgcatalogue
Height 1800 mmsite
Width 900 mmsite

Capacity2

Doors 2catalogue
Gross volume 492 litrescatalogue

Performance6

Climate class 4site
Controller Digital controller with temperature displaysite
Cooling type Fan Assistedsite
Defrost type Automaticsite
Refrigerant R290site
Temperature range +4C/+12Csite

Power & energy3

Input power 13amp supplysite
Rated input 600 Wcatalogue
Voltage / frequency 600Wsite

Build & fittings2

Exterior finish Charcoal with black doorsite
Shelves 10site
THE WORKING VIEW

Why this back bar fridge earns its place

The Infrico ZX20 is an upright double-door bottle cooler built for the back bar. Two hinged glass doors put a wider spread of chilled bottles and cans on show behind glass, so a busy service can pull from a bigger visible stock without restocking mid-shift. At 900 mm wide it gives more display face than a single-door unit while still sitting in a back bar line.

Day to day it runs on automatic defrost, so there is no manual defrost routine for staff to run — the cabinet clears itself and holds its cycle without intervention. It carries a climate class 4 rating, built to keep temperature in warm rooms of the kind a working bar reaches at peak. The refrigerant is R290, a natural hydrocarbon with a low global warming potential.

On installation, the cabinet is 900 mm wide, 520 mm deep and 1800 mm tall, and weighs 157 kg. The 900 mm width covers a two-door span behind the bar, while the 1800 mm height brings the display to eye level on the customer side. Check the 520 mm depth and both door swings against your bar layout, and plan a delivery route that accounts for the full height and the 157 kg weight.

BEFORE YOU BUY

Questions, answered straight

It is an upright, floor-standing cooler at 1800 mm tall, not an under-counter unit. It stands behind the bar and displays stock at eye level rather than tucking beneath the counter.

The ZX20 is 900 mm wide across its two doors and 520 mm deep. Check the width, depth and both door swings against your back bar run before committing the space.

The ZX20 runs on R290, a natural hydrocarbon refrigerant with a low global warming potential.

No. The ZX20 uses automatic defrost, so staff have no manual routine to run — the cabinet manages its own defrost cycle.

Yes. It carries a climate class 4 rating, meaning it is built to hold temperature in warm ambient conditions such as a busy bar.

Yes. We handle servicing and breakdown support for the coolers we supply — call the team on 01792 732702 to book a visit or talk an issue through.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

External Dimension (WxDxH): 900 x 520 x 1800

Cooling and Functions

Type of Controller: Digital controller with temperature display
Type of Cooling: Fan Assisted
Type of Defrost: Automatic
Refrigerant: R290

Power and Consumption

Temperature Range: +4C/+12C °C
Input Power: 13amp supply
Voltage / Frequency: 600W

Measures and Content

Temperature Range: +4C/+12C °C
Climate Class: 4
Gross / Net Volume: 492 Bottles l

Design and Material

Shelves Number & Type: 10
Exterior Finish: Charcoal with black door

INFRICO Upright Double Hinged Glass Door Bottle Cooler ZX20 Product Data

If you have any questions about the INFRICO Upright Double Hinged Glass Door Bottle Cooler ZX20 then please get in touch.
