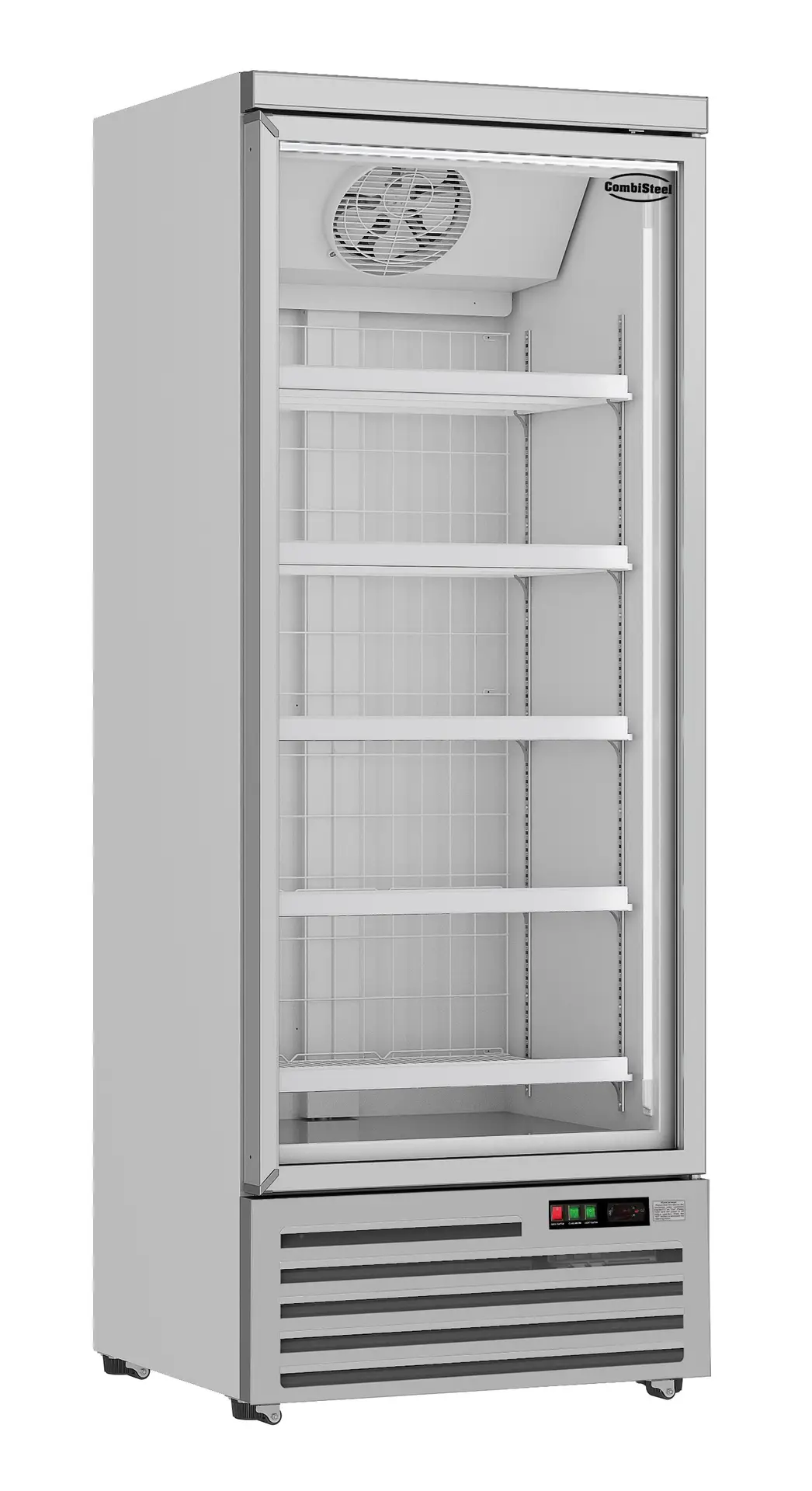

CombiSteel Single Glass Door Display Freezer JDE-600F 7455.2214

£1,505.67

+vat

SKU: 7455.2214

Product summary

Size W/D/H (mm) x x

Product description

With door heating which can be operated via a switch

The JDE-600F is a single glass-door upright display freezer for commercial merchandising, holding frozen stock visible and self-select behind a full-height glazed door; capacity, operating temperature band and external dimensions are listed on the spec panel.\n\nThe JDE-600F is a single glass-door upright freezer designed to display frozen stock rather than store it out of view, with a capacity of 600 litres. The full-height glazed door turns the cabinet into a merchandising surface for ice cream, frozen food-to-go and packaged frozen lines, keeping them visible and face-on so customers can choose and serve themselves at a temperature of -18 to -22°C. It suits shop-floor and counter-side positions where frozen impulse sales matter, and at 61dB the noise level is low for a commercial freezer.\n\nDay to day it works as a static frozen display cabinet: the glazed door shows the contents while the interior holds its set frozen temperature, and the shelving lets staff face up and rotate stock without unloading the cabinet. LED interior lights keep the stock lit, and the cabinet draws 437kW on a standard 230V supply. With 60mm insulation and automatic defrost, it manages frost buildup routinely. The white powder-coated steel finish suits most retail and catering settings.\n\nAs a floor-standing upright freezer measuring 750mm wide, 710mm deep and 2003mm tall, weighing 159kg, it needs a clear footprint plus room for the door to open fully and air to circulate around the back and sides. Check these dimensions against your floor space and confirm your delivery route, doorways and final position before ordering. Ensure the electrical supply (230V, 437kW) is ready on delivery and suitable for the cabinet’s power draw.

Downloads

SPECIFICATION 37 facts · tap for all Width750 mmDepth710 mmHeight2003 mmGross / net weight159 kgGross weight150 kgVoltage / frequency23050

Identity3

Brand CombiSteelcatalogue
GTIN / EAN 7422242910900catalogue
Type Single Door Upright Glass Door Freezerscatalogue

Size & weight8

Depth 710 mmsite
External (W×D×H) 750 × 710 × 2003 mmcatalogue
Gross / net weight 159 kgsite
Gross weight 150 kgcatalogue
Height 2003 mmsite
Internal (W×D×H) 630 × 580 × 1538 mmcatalogue
Internal W × D × H 630x580x1538site
Width 750 mmsite

Capacity3

Capacity 600 Ltrcatalogue
Gross volume 600 litrescatalogue
Shelves 5catalogue

Performance6

Controller Digitalcatalogue
Cooling type R 290site
Defrost type Automaticsite
Max ambient 3232 °Ccatalogue
Maximum ambient 3232site
Temperature range -18/-22site

Power & energy7

Energy consumption 0,437site
Frequency 50 Hzcatalogue
Noise level 6161site
Rated input 437 Wcatalogue
Rated power 437 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 23050site

Build & fittings8

Accessories 4 castors and 5 grids with clips and price card holderscatalogue
Colour Whitecatalogue
Doors Rightsite
Exterior finish Powder coated steelsite
Insulation 60 mmcatalogue
Interior finish Aluminiumsite
Interior light Yes, LEDsite
Reversible doors Nosite

Other stated facts2

Energy (24h) 907 kWh/24hcatalogue
Mobility Yescatalogue
THE WORKING VIEW

Why this single door upright glass door freezer earns its place

With door heating which can be operated via a switch

BEFORE YOU BUY

Questions, answered straight

The cabinet is 750mm wide, 710mm deep and 2003mm tall, weighing 159kg. It is compact for a freezer but still check your delivery route and final position with clearance for the door to open fully.

It is a display freezer holding 600 litres for frozen lines you want customers to see — ice cream, frozen food-to-go and packaged frozen products. It holds between -18 and -22°C.

It draws 437kW and running cost depends on its energy consumption and your electricity tariff. Use the energy label decoder in the tools rail with the model's energy data to convert its rating into pounds per year on your unit rate.

As with any display freezer, allow for routine frost management and defrosting as part of normal upkeep. Keep the door seal clean and the airflow clear so it holds temperature efficiently.

A full-height glazed door keeps frozen stock visible so customers can self-select without opening the cabinet — the advantage of a display freezer over a solid-door or chest model. Site it where footfall passes.

Yes. We can arrange servicing and support for this freezer — call the team on 01792 732702 with the model and any fault details and we will advise on the next step.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel Single Glass Door Display Freezer JDE-600F 7455.2214 Product Data

Brand CombiSteel
Dimensions (W×D×H) 750 × 710 × 2003 mm
Interior Dimensions 630x580x1538
Capacity 600 Ltr
Material Powder coated steel
Interior Material Aluminium
Colour / Finish White
Temperature Range -18/-22
Max. Ambient Temp. 32
Refrigerant R 290
Cooling Ventilated
Defrost Automatic
Number of Doors 1
Number of Grids/Shelves 5
Electrical Power 0.437 kW
Energy Use 9.07 kWh/24h
Voltage 230V / 50Hz
Installation Freestanding
Mobile Yes
Lockable No
Noise Level 61 dB
Insulation 60 mm
Weight 150 kg
If you have any questions about the CombiSteel Single Glass Door Display Freezer JDE-600F 7455.2214 then please get in touch.
