TEFCOLD Galaxy+ GPF2D EHA Glass Door Freezer

£5,861.00

+vat

- +

Brand:

SKU: 68278

Energy Arrow

Product summary

  • Colour is anthracite RAL7016
  • Fully automatic
  • Heated glass to help prevent condensation
  • Triple glazed insulated glass
  • Extra shelf space

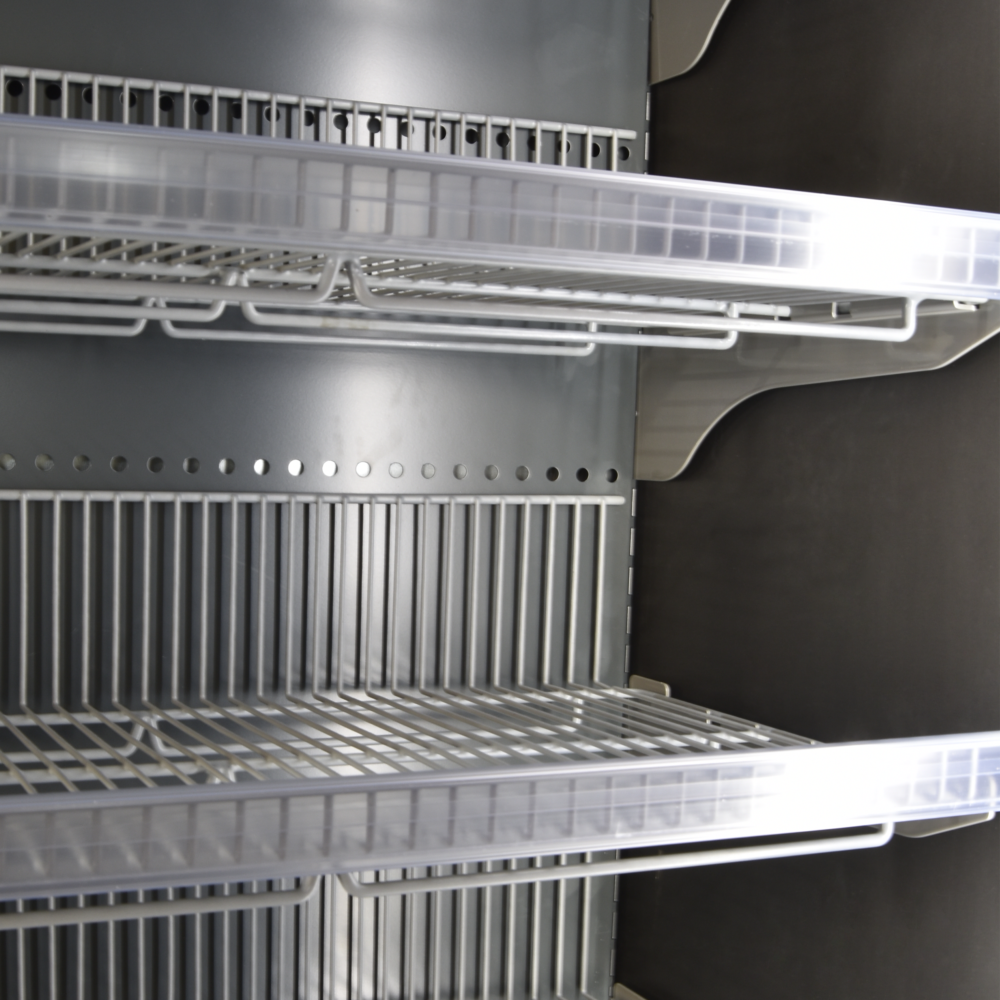

  • Adjustable shelves
  • Vertical LED interior light with switch
  • Epos Ticket Strips
  • Digital controller and temperature display
  • Ventilated cooling
  • Adjustable feet
  • Replaceable door gasket

Product description

Glass door freezer – extended height

The Galaxy+ range of freezers offers exceptional product presentation with its beautiful design, adjustable shelves and heated glass doors with prevent condensation. This allows for multiplexing and increases your options for maximising the space you have available (multiplexing kit required). These specific models have a height of 2165 mm, allowing for an extra shelf compared to other models from the same range.

SPECIFICATION 47 facts · tap for all External W × D × H1563 x 751 x 2165 mmWidth1563 mmDepth751 mmGross / net weight515 / 490 kgGross weight515 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181753559site
Product code 68278site
Sub title Glass Door Freezercatalogue
Type Double Door Upright Glass Door Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 751 mmsite
External (W×D×H) 1563 × 751 × 2165 mmcatalogue
External W × D × H 1563 x 751 x 2165 mmsite
Gross / net weight 515 / 490 kgsite
Gross weight 515 kgcatalogue
Height 2165 mmsite
Internal (W×D×H) 1562 × 520 × 1546 mmcatalogue
Internal W × D × H 1562 x 520 x 1546 mmsite
Packed (W×D×H) 1800 × 850 × 2390 mmcatalogue
Packed W × D × H 1800 x 850 x 2390 mmsite
Width 1563 mmsite

Capacity4

Display area 2.25 m²site
Doors 2catalogue
Gross volume 1806 litrescatalogue
Shelves 8catalogue

Performance9

Climate class 3site
Controller Electronicsite
Defrost type Automatic, hot gassite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 2×125 gsite
Temperature range -21 to -18site
Thermometer Yessite

Power & energy6

Annual energy consumption 8150.45 kWh/yearsite
Energy consumption 22.33 kWh/24hsite
Energy efficiency index 41.33 %site
Input power 970 Wsite
Noise level 65 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings7

Castors Optionsite
Exterior finish Anthracite RAL7016site
Feet / legs Adjustable Feetsite
Interior light LEDsite
Max load per shelf 160site
Reversible doors Nosite
Shelf dimensions 784×400site

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this double door upright glass door freezer earns its place

The Galaxy+ GPF2D EHA is a double-door upright glass door freezer, built to show frozen stock through full-height glass whilst holding it at -21 to -18 °C. The glass front suits self-service frozen retail, where customers pick straight from the cabinet without staff intervention. The extended-height variant adds a fifth shelf compared to the standard model, stacking more product in the same footprint.

On energy, the cabinet is rated class D with an energy efficiency index of 42.7%, consuming 8,150 kWh a year. That works out to about £2,038 a year at 25p/kWh — a figure worth modelling against your own tariff, as a frozen display cabinet runs hard year-round. The triple-glazed doors and heated glass prevent condensation and keep the display bright and clear throughout the trading day.

With 1,806 litres capacity, it suits smaller to mid-size frozen aisles. At 1563 × 751 × 2165 mm external and 515 kg, confirm doorway access and floor loading before installation. Craven Cooling can discuss the fit and size the incoming 220–240 V/50 Hz supply with you.

BEFORE YOU BUY

Questions, answered straight

It consumes 8,150 kWh a year, which is about £2,038 a year at 25p/kWh. Your actual cost depends on your tariff and how hard the cabinet is worked.

It is rated energy class D, with an energy efficiency index of 42.7%.

Yes — it is a double-door upright glass door freezer, designed to show frozen stock through the glass for self-service or front-of-house retail.

Confirm door access and floor loading against the specification table for this product, which lists full external and internal dimensions, weights and supply requirements.

Yes. Craven Cooling supplies and can service this equipment; call 01792 732702 to discuss installation, the electrical supply or a servicing plan.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1562 x 520 x 1546 mm
External Dimension (WxDxH): 1563 x 751 x 2165 mm
Packed Dimension (WxDxH): 1800 x 850 x 2390 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 2×125 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 22.33 kWh/24h
Temperature Range: -21 to -18 °C
Annual Energy Consumption: 8150.45 kWh/year m³
EEI: 41.33 %
Input Power: 970 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 65 dB(A)

Measures and Content

Temperature Range: -21 to -18 °C
Climate Class: 3
Gross / Net Weight: 515 / 490 kg
Gross / Net Volume: 1806 / 966 l
Max Ambient: +25°C, 60% RH
Total Display Area: 2.25 m² m²

Design and Material

Door Reversible: No
Shelf Dimensions: 784×400
Max load on Shelves: 160 kg/m²
Feet / Legs: Adjustable Feet
Castors: Option
Exterior Finish: Anthracite RAL7016
Interior Finish: Anthracite RAL7016
Interior Light: LED
If you have any questions about the TEFCOLD Galaxy+ GPF2D EHA Glass Door Freezer then please get in touch.
