CombiSteel Double Glass Door Display Freezer INS-1000F 7455.2420

£2,173.06

+vat

- +

SKU: 7455.242

Product summary

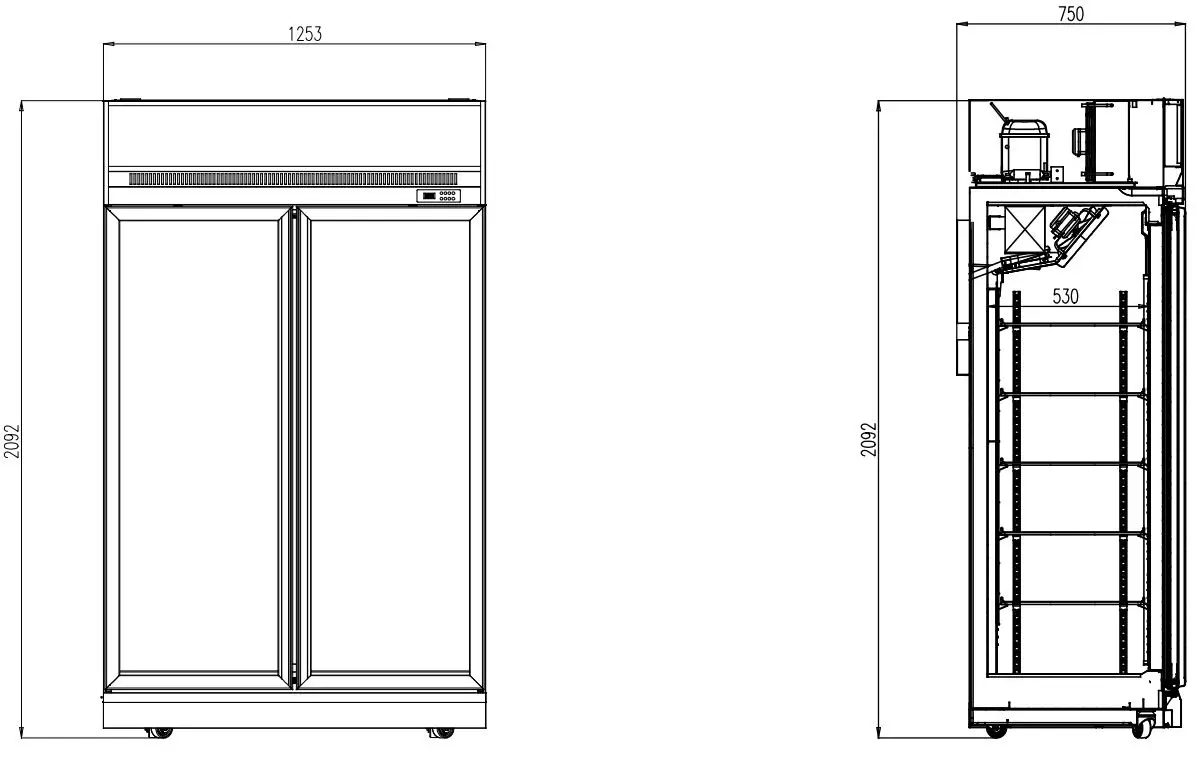

Size W/D/H (mm) 1253 x 710 x 2092

Product description

Downloads

SPECIFICATION 37 facts · tap for all Width1253 mmDepth710 mmHeight2092 mmGross / net weight264 kgVoltage / frequency23050Voltage230V / 50Hz

Identity4

Brand CombiSteelcatalogue
GTIN / EAN 7435137868835catalogue
Range / series INS-1000Fcatalogue
Type Double Door Upright Glass Door Freezerscatalogue

Size & weight7

Depth 710 mmsite
External (W×D×H) 1253 × 710 × 2092 mmcatalogue
Gross / net weight 264 kgsite
Height 2092 mmsite
Internal (W×D×H) 1133 × 530 × 1554 mmcatalogue
Internal W × D × H 1133x530x1554site
Width 1253 mmsite

Capacity4

Capacity 960 Ltrcatalogue
Doors 2catalogue
Gross volume 960 litrescatalogue
Shelves 10catalogue

Performance6

Controller Digitalcatalogue
Cooling type R 290site
Defrost type Automaticsite
Max ambient 3232 °Ccatalogue
Maximum ambient 3232site
Temperature range -18/-22site

Power & energy7

Energy consumption 1,23site
Frequency 50 Hzcatalogue
Noise level 6565site
Rated input 1230 Wcatalogue
Rated power 123 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 23050site

Build & fittings7

Accessories 4 castors and 10 grids with clips and price card holderscatalogue
Colour Whitecatalogue
Exterior finish Powder coated steelsite
Insulation 60 mmcatalogue
Interior finish Aluminiumsite
Interior light Yes, LEDsite
Lock Nosite

Other stated facts2

Energy (24h) 23 kWh/24hcatalogue
Mobility Yescatalogue
THE WORKING VIEW

Why this double door upright glass door freezer earns its place

The INS-1000F is an upright display freezer with two full-height glass doors at 1253 mm wide and 2092 mm tall. It keeps frozen stock — ice cream, frozen ready meals and food-to-go lines — on show behind glazing, so customers can browse the range without a door being opened. It is a merchandising freezer for the shop floor rather than a plain back-of-house storage unit, holding 960 litres at -18 to -22 °C.

Day to day it runs as a glass-door frozen display: the doors hold the freeze while stock stays visible through the glass, so customers can shop the cabinet without letting warm air in for long. The LED interior light helps staff spot stock and keep the display tidy, and at 65 dB(A) the cabinet runs quietly enough for retail floor use. Automatic defrost keeps frost from building up during busy trading.

This is a substantial cabinet at 264 kg, so plan the delivery route and a solid, level floor position before it arrives. The 1253 mm width needs to clear your doorways and access points, so measure carefully before ordering. Leave the manufacturer's recommended clearance around the cabinet for airflow and cooling efficiency. Use a qualified electrician for the electrical connection, and Craven Cooling can advise on siting and installation.

BEFORE YOU BUY

Questions, answered straight

It holds -18 to -22 °C, the standard freezer band. It is built to keep frozen stock — ice cream, ready meals, bakery lines, frozen food packs — on display and ready to sell.

It weighs 264 kg, so it needs a solid, level floor and a planned delivery route. Check access and floor loading before it arrives.

The cabinet is 1253 mm wide, 710 mm deep and 2092 mm tall. Measure your doorways, lifts and access route against those dimensions — the width is the most critical check for tight spaces.

This cabinet has specific electrical requirements; the voltage and power details are on the specification panel. Have a qualified electrician confirm your supply and circuit protection before connection.

The energy rating and consumption are on the specification panel and energy label. Put them into our energy label decoder for the yearly cost on your tariff.

Yes — Craven Cooling supports the cabinets we supply. Call 01792 732702 to book servicing or discuss a fault.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel Double Glass Door Display Freezer INS-1000F 7455.2420 Product Data

Brand CombiSteel
Type INS-1000F
Dimensions (W×D×H) 1253 × 710 × 2092 mm
Interior Dimensions 1133x530x1554
Capacity 960 Ltr
Material Powder coated steel
Interior Material Aluminium
Colour / Finish White
Temperature Range -18/-22
Max. Ambient Temp. 32
Refrigerant R 290
Cooling Ventilated
Defrost Automatic
Number of Doors 2
Number of Grids/Shelves 10
Electrical Power 1.23 kW
Energy Use 23 kWh/24h
Voltage 230V / 50Hz
Installation Freestanding
Mobile Yes
Lockable No
Noise Level 65 dB
Insulation 60 mm
Weight 264 kg
If you have any questions about the CombiSteel Double Glass Door Display Freezer INS-1000F 7455.2420 then please get in touch.
