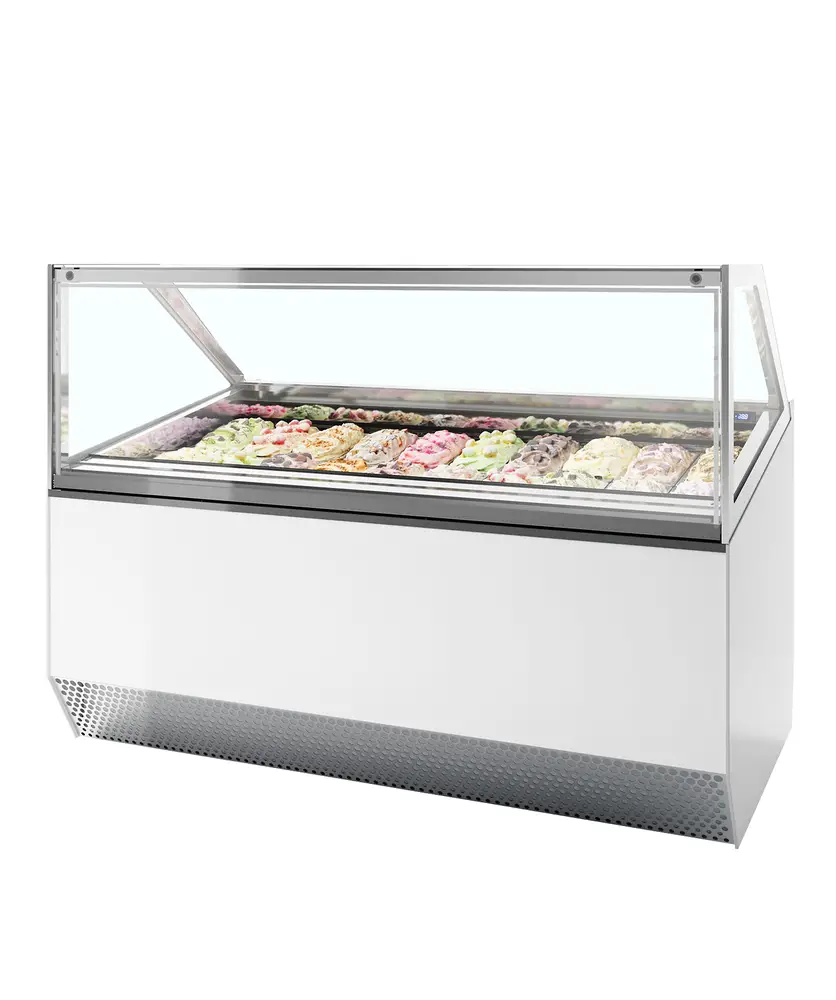

ISA MILLENNIUM ST20 Ventilated Scoop Ice Cream Display

£10,515.00

+vat

- +

Brand:

SKU: 20337

Energy Arrow

Product summary

  • Great product visibility
  • Flat glass top
  • Accepts Napoli pans (not supplied)
  • LED interior light with switch
  • Digital controller and temperature display
  • Front glass hinges forward if required
  • Double glazed glass on sides
  • Heated glass to help prevent condensation

Product description

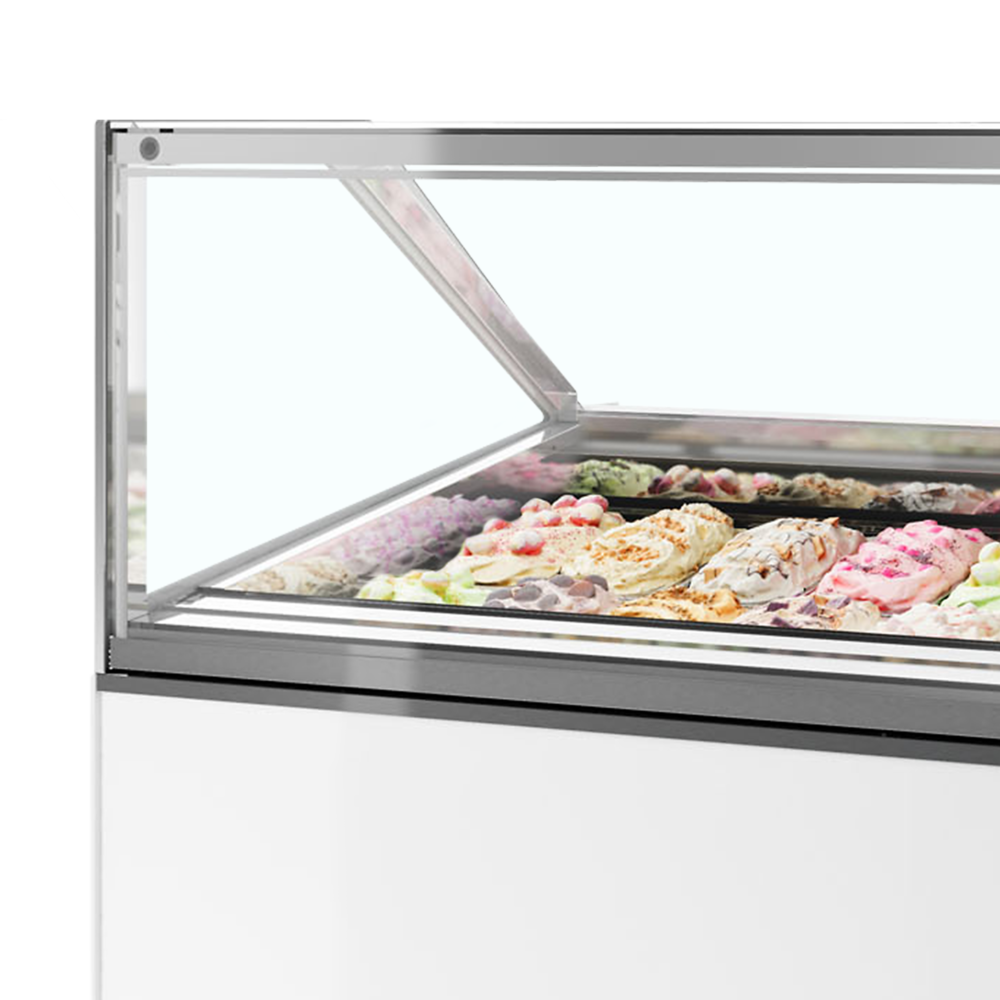

Professional 20 scoop ventilated ice cream display with flat glass

Impress your customers with the ultimate ice cream display – the Millennium ST range of scooping cabinets. With 12 to 24 napoli pans, this premium cabinet with contemporary flat glass showcases a wide variety of delicious flavours. The efficient, ventilated cooling system ensures even cooling of your ice cream or gelato, ensuring that it is the perfect temperature for easy scooping. The glass is heated to help prevent condensation and thereare rear sliding doors to help maintain temperature when you are less busy. Plus the front glass hinges forwards for cleaning. Upgrade your display with unbeatable quality and style that demands attention.

The ISA MILLENNIUM ST20 is a ventilated scoop ice cream display freezer that holds -20 to -14 °C across a 1.19 m² display area, finished in white with a stainless steel interior, running on R290 refrigerant with automatic hot-gas defrost.

SPECIFICATION 41 facts · tap for all External W × D × H1826 x 1054 x 1356 mmWidth1826 mmDepth1054 mmGross / net weight421 / 363 kgGross weight421 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand ISAsite
GTIN / EAN 5708181617660site
Product code 20337site
Sub title Ventilated Scoop Ice Cream Displaycatalogue
Type Ventilated Cooled Ice Cream Display Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight10

Depth 1054 mmsite
External (W×D×H) 1826 × 1054 × 1356 mmcatalogue
External W × D × H 1826 x 1054 x 1356 mmsite
Gross / net weight 421 / 363 kgsite
Gross weight 421 kgcatalogue
Height 1356 mmsite
Internal W × D × H mmsite
Packed (W×D×H) 2000 × 1150 × 1620 mmcatalogue
Packed W × D × H 2000 x 1150 x 1620 mmsite
Width 1826 mmsite

Capacity4

Display area 1.19 m²site
Gross volume 1080 litrescatalogue
Serving capacity / 20 Napoli Pans (5L)site
Under-counter storage / No Under Storagesite

Performance9

Climate class 7site
Cooling type Ventilatedsite
Defrost type Automatic, hot gassite
Max ambient 35 °Ccatalogue
Maximum ambient +35°C, 75% RHsite
Refrigerant R290site
Refrigerant charge 2 x 148 gsite
Temperature range -20 to -14site
Thermometer Yessite

Power & energy6

Annual energy consumption 10859 kWh/yearsite
Energy consumption 29.75 kWh/24hsite
Energy efficiency index 48.7 %site
Input power 2560 Wsite
Noise level 58 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings2

Exterior finish Whitesite
Interior light LEDsite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this ventilated cooled ice cream display freezer earns its place

The MILLENNIUM ST20 is a scoop ice cream display freezer built to put a full flavour range in front of customers at the counter. It carries a 1.19 m² display area and a 1080-litre gross capacity, so a wide spread of scooping tubs sits on show at once. The white exterior and stainless steel interior keep the cabinet clean-looking and easy to wipe down in a busy service area.

Cooling is ventilated, circulating air to hold the display evenly between -20 and -14 °C — the band that keeps scooping ice cream firm and at serving texture through the day. Defrost is automatic using hot gas, so there is no manual routine to run. The cabinet is rated to climate class 7 and runs at 58 dB, with an EEI of 48.7% and energy class D; at its rated 10,858.8 kWh a year that works out to about £2,715 a year at 25p/kWh.

The cabinet measures 1826 × 1054 × 1356 mm (W×D×H) and ships packed at 2000 × 1150 × 1620 mm, weighing 363 kg net and 421 kg packed, so plan the delivery route and a firm floor before it arrives. It draws 2560 W through a dedicated 16 amp supply at 220-240 V, and uses R290 refrigerant with a 148 g charge.

BEFORE YOU BUY

Questions, answered straight

It operates between -20 and -14 °C, the band that keeps scooping ice cream firm and at serving texture. Ventilated cooling circulates air to hold that temperature evenly across the 1.19 m² display.

It is rated at 10,858.8 kWh a year, which is about £2,715 a year at 25p/kWh. It carries energy class D and an energy efficiency index of 48.7%.

The cabinet measures 1826 mm wide, 1054 mm deep and 1356 mm high, and ships packed at 2000 × 1150 × 1620 mm. Measure your access route against the packed size, and note the 421 kg packed weight when planning delivery.

It runs on R290, a natural hydrocarbon refrigerant, with a 148 g charge. It draws 2560 W through a 16 amp supply at 220-240 V.

Defrost is automatic using hot gas, so there is no manual defrost routine to run. Cooling is ventilated to keep the display temperature even between cycles.

Yes, our engineers can install and service the cabinet. Call 01792 732702 to arrange servicing or discuss a maintenance plan.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): mm
External Dimension (WxDxH): 1826 x 1054 x 1356 mm
Packed Dimension (WxDxH): 2000 x 1150 x 1620 mm

Cooling and Functions

Type of Cooling: Ventilated
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 2 x 148 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 29.75 kWh/24h
Temperature Range: -20 to -14 °C
Annual Energy Consumption: 10859 kWh/year m³
EEI: 48.7 %
Input Power: 2560 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 58 dB(A)

Measures and Content

Temperature Range: -20 to -14 °C
Climate Class: 7
Gross / Net Weight: 421 / 363 kg
Gross / Net Volume: 1080 / 201 l
Max Ambient: +35°C, 75% RH
Total Display Area: 1.19 m² m²

Design and Material

Serving Capacity: / 20 Napoli Pans (5L)
Storage capacity (under): / No Under Storage
Exterior Finish: White
Interior Finish: White
Interior Light: LED
If you have any questions about the ISA MILLENNIUM ST20 Ventilated Scoop Ice Cream Display then please get in touch.
