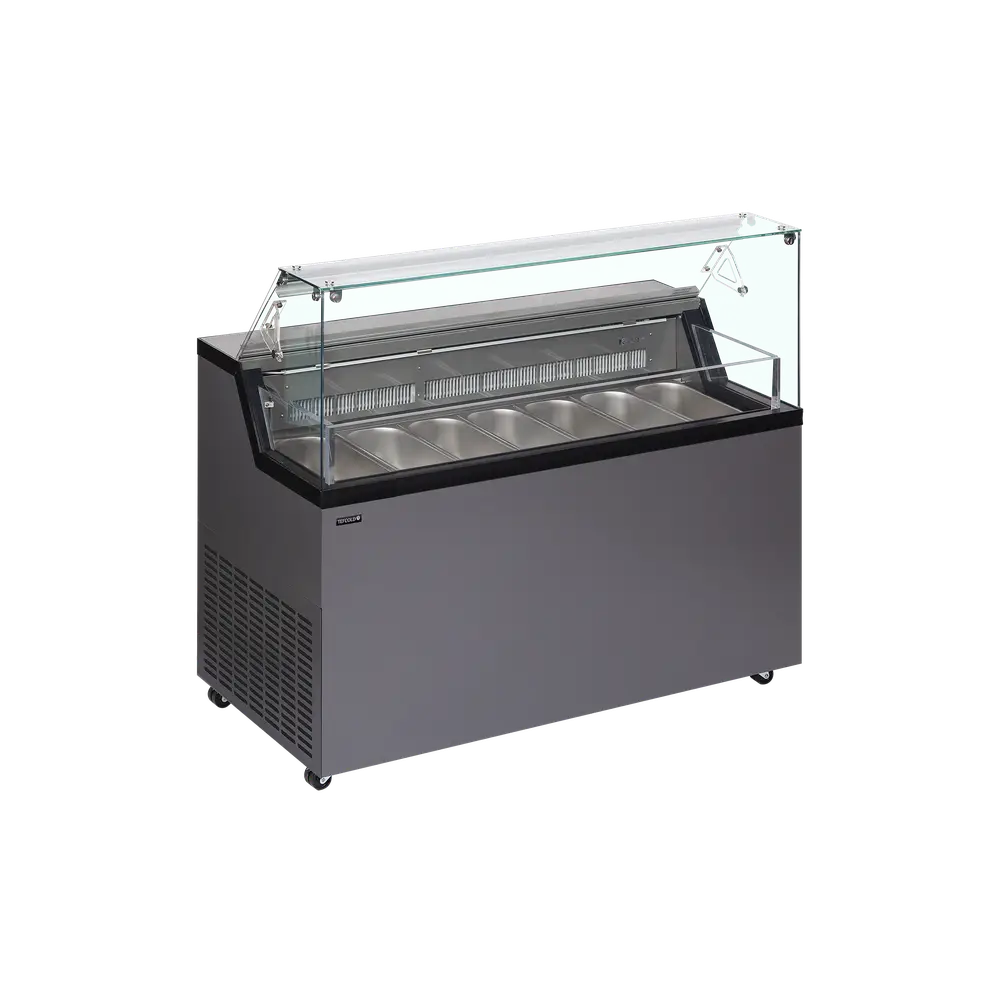

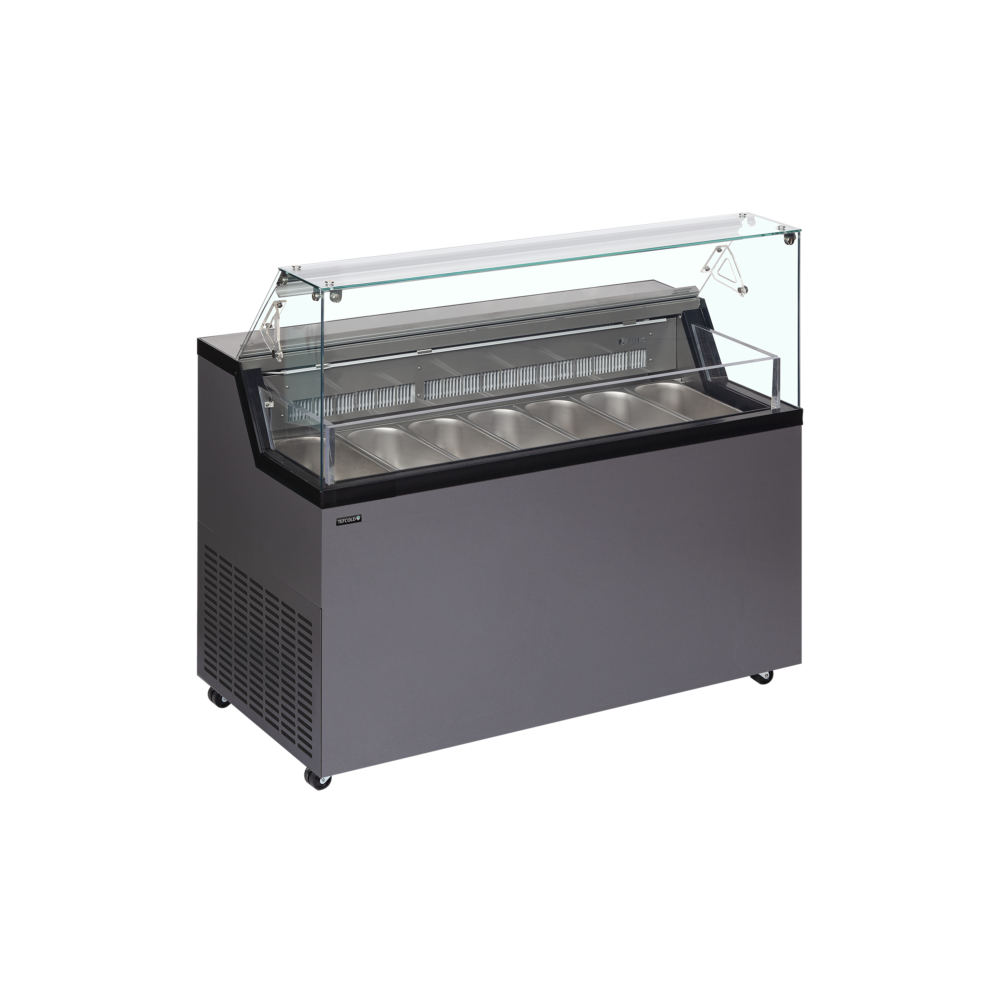

TEFCOLD MIRABELLA 7 Scoop Ice Cream Display

£2,059.00

+vat

- +

Brand:

SKU: 20327

Energy Arrow

Product summary

  • Static cooling
  • Fully automatic
  • Flat glass top
  • Accepts Napoli pans (not supplied)
  • Lift up rear lid (2 can serve)
  • LED interior light with switch
  • Easy access understorage
  • Digital controller and temperature display
  • Castors

Product description

Scoop ice cream freezer with serveover

The Framec Mirabella ice cream scooping display is a leap forward in design and presentation. The Mirabella is designed to hold the ice cream as high as possible in the display giving the easiest view of the product to the customer. Traditional scooping units hold the ice cream further down within the cabinet making it harder (especially for children) to see the ice cream. It also ensures the ice cream is visible from further away, helping to draw customers in. Maximise sales and profits by maximising your display. Available in 6, 7 and 9 pan versions, the Mirabella represents value, proven reliability and a class leading display.

The TEFCOLD MIRABELLA 7 is a static-cooled scoop ice cream display that holds -20 to -5 °C across a 0.42 m² display area, finished in anthracite with an electronic controller, running on R290 refrigerant with automatic defrost at energy class C.

SPECIFICATION 42 facts · tap for all External W × D × H1337 x 677 x 1190 mmWidth1337 mmDepth677 mmGross / net weight145 / 124 kgGross weight145 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181617561site
Product code 20327site
Sub title Scoop Ice Cream Displaycatalogue
Type Static Cooled Ice Cream Display Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight10

Depth 677 mmsite
External (W×D×H) 1337 × 677 × 1190 mmcatalogue
External W × D × H 1337 x 677 x 1190 mmsite
Gross / net weight 145 / 124 kgsite
Gross weight 145 kgcatalogue
Height 1190 mmsite
Internal W × D × H mmsite
Packed (W×D×H) 1420 × 740 × 1290 mmcatalogue
Packed W × D × H 1420 x 740 x 1290 mmsite
Width 1337 mmsite

Capacity4

Display area 0.42 m²site
Gross volume 329 litrescatalogue
Serving capacity / 7 Napoli Pans (5L)site
Under-counter storage / 16 Napoli Pans (5L)site

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Staticsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 85 gsite
Temperature range -20 to -5site
Thermometer Yessite

Power & energy5

Annual energy consumption 4212 kWh/yearsite
Energy consumption 11.54 kWh/24hsite
Input power 580 Wsite
Noise level 42 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Castors 4 castorssite
Exterior finish Anthracite RAL7016site
Interior light LEDsite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this static cooled ice cream display freezer earns its place

The MIRABELLA 7 is a scoop ice cream display built to put a flavour range on show at the counter without taking up much floor. Its 0.42 m² display area carries 329 litres gross and 223 litres net of scooping stock, and the anthracite (RAL7016) exterior with a grey and stainless steel interior gives it a clean, modern look front of house.

Cooling is static and managed by an electronic controller, holding the display between -20 and -5 °C for firm, ready-to-serve scooping ice cream. Defrost is automatic, so there is no manual routine to run, and at 42 dB it runs quietly enough for a customer-facing spot. It carries energy class C with an EEI of 30.6% and is rated to climate class 4; at its rated 4,212.1 kWh a year that works out to about £1,053 a year at 25p/kWh.

The cabinet measures 1337 × 677 × 1190 mm (W×D×H) and ships packed at 1420 × 740 × 1290 mm, weighing 124 kg net and 145 kg packed, so measure the delivery route against the packed size before it arrives. It draws 580 W through a standard 13 amp supply at 220-240 V, and uses R290 refrigerant with an 85 g charge.

BEFORE YOU BUY

Questions, answered straight

It operates between -20 and -5 °C, holding scooping ice cream firm and ready to serve. Cooling is static and managed by an electronic controller.

It is rated at 4,212.1 kWh a year, which is about £1,053 a year at 25p/kWh. It carries energy class C and an energy efficiency index of 30.6%.

The cabinet measures 1337 mm wide, 677 mm deep and 1190 mm high, and ships packed at 1420 × 740 × 1290 mm. Measure your access route against the packed size, noting the 145 kg packed weight.

It draws 580 W through a standard 13 amp supply at 220-240 V. It uses R290 refrigerant with an 85 g charge.

It runs at 42 dB, quiet enough for a customer-facing counter. Defrost is automatic, so there is no manual routine to run.

Yes, our engineers can install and service the cabinet. Call 01792 732702 to arrange servicing or discuss a maintenance plan.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): mm
External Dimension (WxDxH): 1337 x 677 x 1190 mm
Packed Dimension (WxDxH): 1420 x 740 x 1290 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 85 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 11.54 kWh/24h
Temperature Range: -20 to -5 °C
Annual Energy Consumption: 4212 kWh/year m³
Input Power: 580 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 42 dB(A)

Measures and Content

Temperature Range: -20 to -5 °C
Climate Class: 4
Gross / Net Weight: 145 / 124 kg
Gross / Net Volume: 329 / 223 l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.42 m² m²

Design and Material

Serving Capacity: / 7 Napoli Pans (5L)
Storage capacity (under): / 16 Napoli Pans (5L)
Castors: 4 castors
Exterior Finish: Anthracite RAL7016
Interior Finish: Anthracite RAL7016
Interior Light: LED
If you have any questions about the TEFCOLD MIRABELLA 7 Scoop Ice Cream Display then please get in touch.
