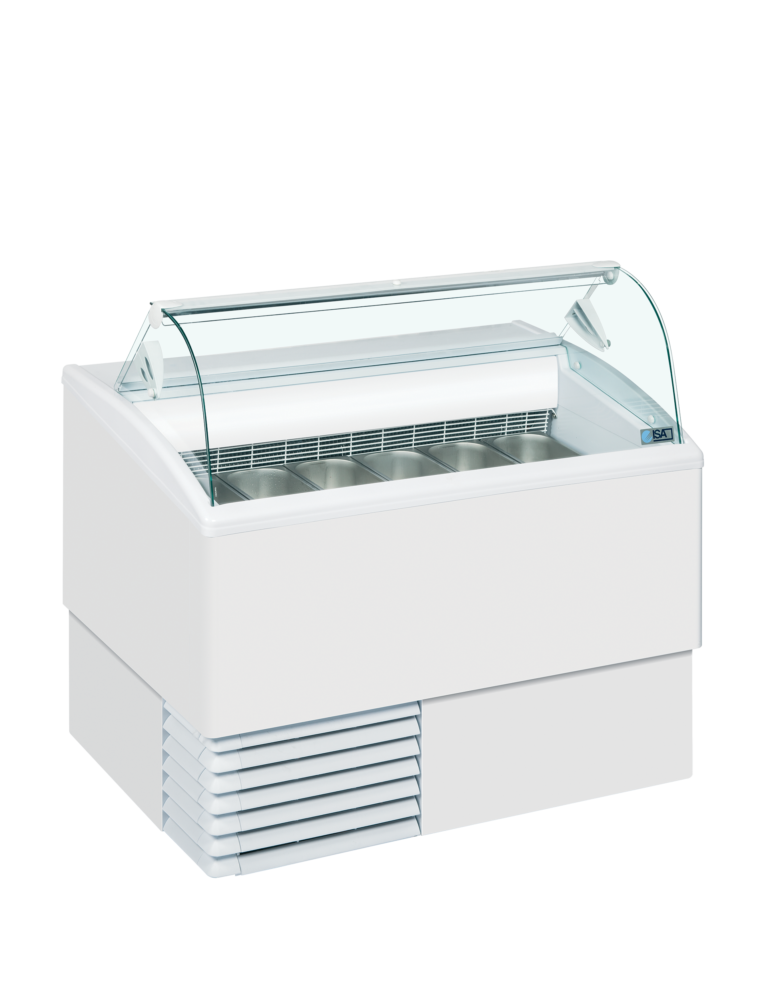

ISA ISETTA 6LX Scoop Ice Cream Display

£1,897.00

+vat

Brand:

SKU: 20311

Energy Arrow

Product summary

  • Curved glass canopy
  • Lift up rear lid (2 can serve)
  • Accepts Napoli pans (not supplied)
  • LED interior light with switch
  • Storage under baskets
  • Easy access understorage
  • Static cooling
  • Automatic defrost
  • Digital controller and temperature display
  • Castors

Product description

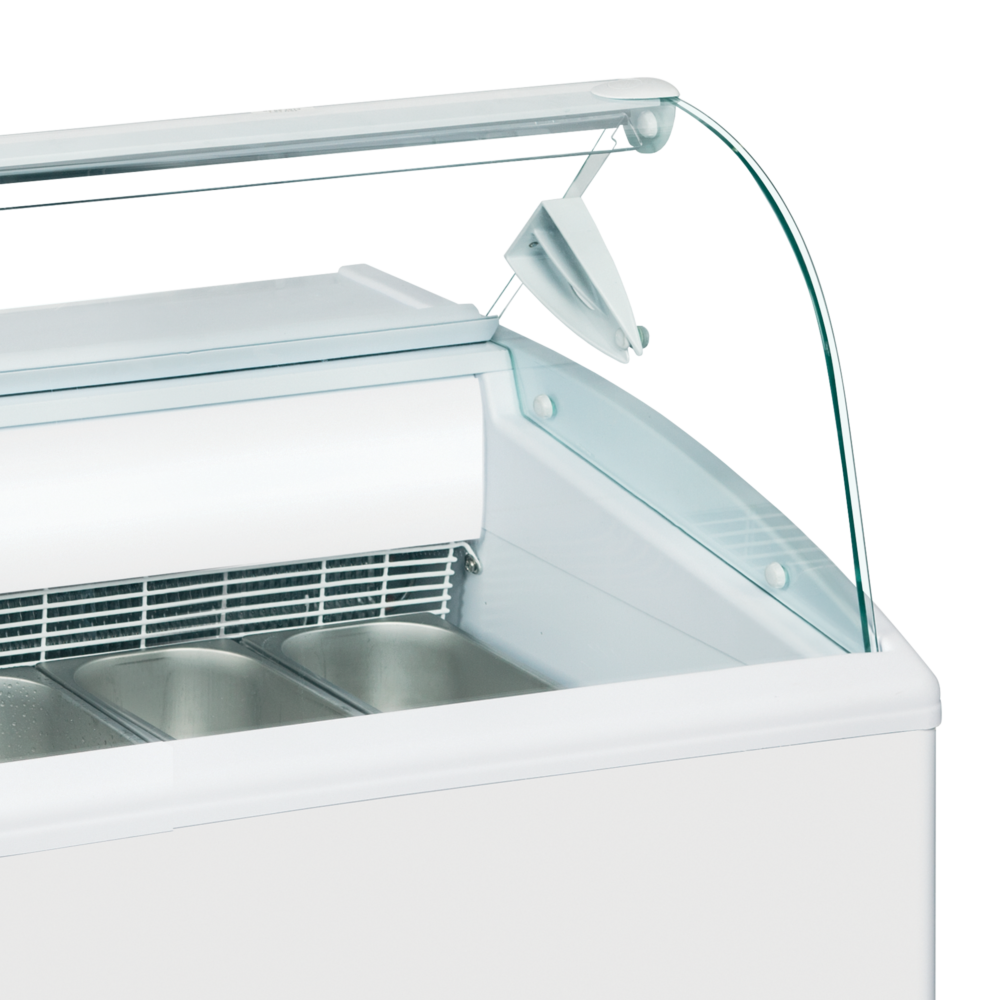

Ice cream display with curved glass canopy

ISA have a superb reputation in the ice cream world for making quality ice cream displays. The Isetta LX comes in 3 different sizes to suit most needs holding between 4 and 7 flavours of ice cream. A curved glass canopy and internal light help create an attractive display and make the most of the ice cream you are selling. Refrigerated under storage can easily be accessed through the rear door (except 4LX).

The ISA ISETTA 6LX is a compact static-cooled scoop ice cream display that holds -16 to -14 °C across a 0.36 m² display area, finished in white inside and out, running on R290 refrigerant with automatic electric defrost and energy class B.

SPECIFICATION 38 facts · tap for all External W × D × H1184 x 800 x 1176 mmWidth1184 mmDepth800 mmGross / net weight119 / 97 kgGross weight119 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand ISAsite
GTIN / EAN 7026100621205site
Product code 20311site
Sub title Scoop Ice Cream Displaycatalogue
Type Static Cooled Ice Cream Display Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight10

Depth 800 mmsite
External (W×D×H) 1184 × 800 × 1176 mmcatalogue
External W × D × H 1184 x 800 x 1176 mmsite
Gross / net weight 119 / 97 kgsite
Gross weight 119 kgcatalogue
Height 1176 mmsite
Internal W × D × H mmsite
Packed (W×D×H) 1294 × 899 × 1132 mmcatalogue
Packed W × D × H 1294 x 899 x 1132 mmsite
Width 1184 mmsite

Capacity3

Display area 0.36 m²site
Serving capacity / 6 Napoli Pans (5L)site
Under-counter storage / 8 Napoli Pans (5L)site

Performance9

Climate class 4site
Cooling type Staticsite
Defrost type Automatic, electricsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 85 gsite
Temperature range -16 to -14site
Thermometer Yessite

Power & energy4

Annual energy consumption 2475 kWh/yearsite
Energy consumption 6.8 kWh/24hsite
Input power 810 Wsite
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings2

Exterior finish Whitesite
Interior light LEDsite

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this static cooled ice cream display freezer earns its place

The ISETTA 6LX is a compact scoop ice cream display built to put a tight, well-chosen flavour range in front of customers at the counter. The 0.36 m² display area suits a focused selection rather than a full parade, and the white exterior and white interior keep the cabinet clean-looking and simple to wipe down in a busy service spot.

Cooling is static, holding the display between -16 and -14 °C — the band that keeps scooping ice cream firm and ready to serve. Defrost is automatic and electric, so there is no manual routine to run. The cabinet is rated to climate class 4 and carries energy class B with an EEI of 18.9%; at its rated 2,482 kWh a year that works out to about £621 a year at 25p/kWh, which keeps running costs modest for a cabinet on all season.

It weighs 97 kg net and 119 kg packed, so it needs a firm floor and a straightforward delivery route. The cabinet draws 810 W through a standard 13 amp supply at 220-240 V, and uses R290 refrigerant with an 85 g charge.

BEFORE YOU BUY

Questions, answered straight

It operates between -16 and -14 °C, the band that keeps scooping ice cream firm and ready to serve. Static cooling holds that temperature across the 0.36 m² display.

It is rated at 2,482 kWh a year, which is about £621 a year at 25p/kWh. It carries energy class B and an energy efficiency index of 18.9%, among the more efficient bands for a display freezer.

It draws 810 W through a standard 13 amp supply at 220-240 V, so it runs from a normal socket on a suitable circuit. It uses R290 refrigerant with an 85 g charge.

Defrost is automatic and electric, so there is no manual defrost routine to run. Cooling is static, holding a steady display temperature between cycles.

It weighs 97 kg net and 119 kg packed, so it needs a firm floor and a clear delivery route into position.

Yes, our engineers can install and service the cabinet. Call 01792 732702 to arrange servicing or discuss a maintenance plan.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): mm
External Dimension (WxDxH): 1184 x 800 x 1176 mm
Packed Dimension (WxDxH): 1294 x 899 x 1132 mm

Cooling and Functions

Type of Cooling: Static
Type of Defrost: Automatic, electric
Refrigerant: R290
Refrigerant Charge: 85 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 6.8 kWh/24h
Temperature Range: -16 to -14 °C
Annual Energy Consumption: 2475 kWh/year m³
Input Power: 810 W
Voltage / Frequency: 220-240/50 V/Hz

Measures and Content

Temperature Range: -16 to -14 °C
Climate Class: 4
Gross / Net Weight: 119 / 97 kg
Gross / Net Volume: / l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.36 m² m²

Design and Material

Serving Capacity: / 6 Napoli Pans (5L)
Storage capacity (under): / 8 Napoli Pans (5L)
Exterior Finish: White
Interior Finish: White
Interior Light: LED
If you have any questions about the ISA ISETTA 6LX Scoop Ice Cream Display then please get in touch.
