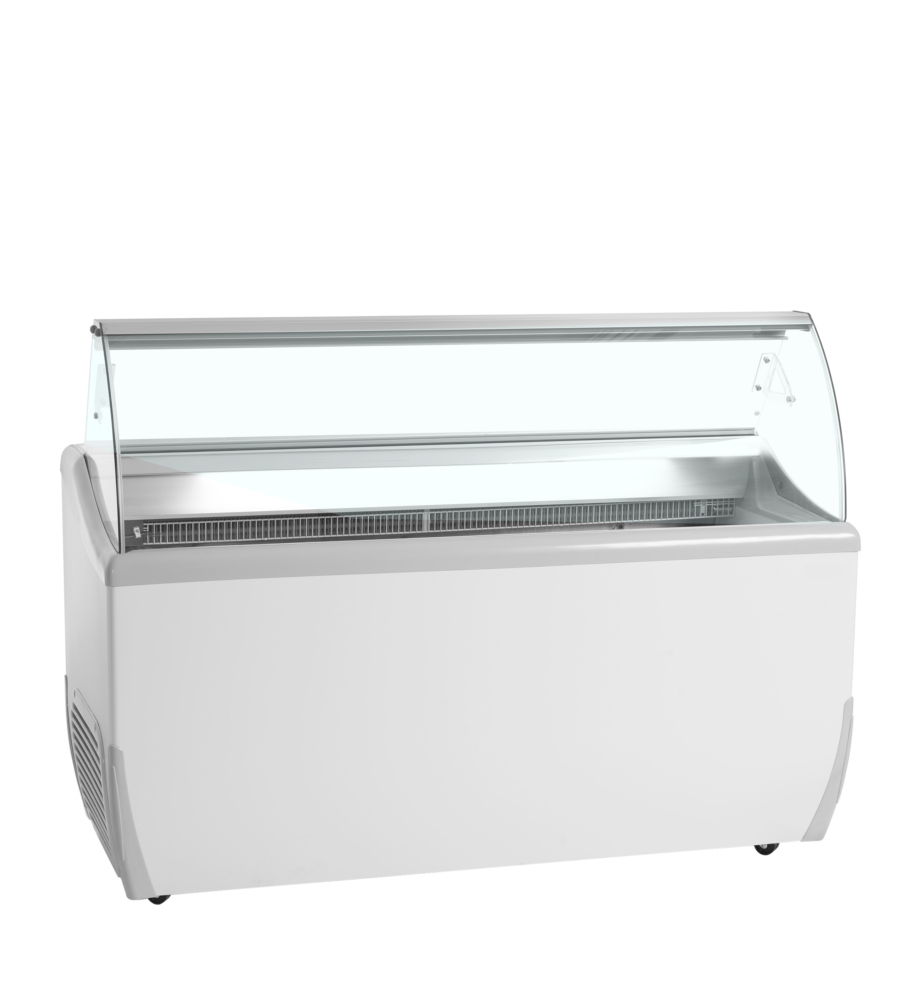

Framec J9E Scoop Ice Cream Display

£2,117.00

+vat

Brand:

SKU: 19352

Energy Arrow

Product summary

  • Fully automatic
  • Static cooling
  • Castors
  • Interior light with switch
  • Digital controller and temperature display
  • Lift up rear door
  • Accepts Napoli pans (not supplied)

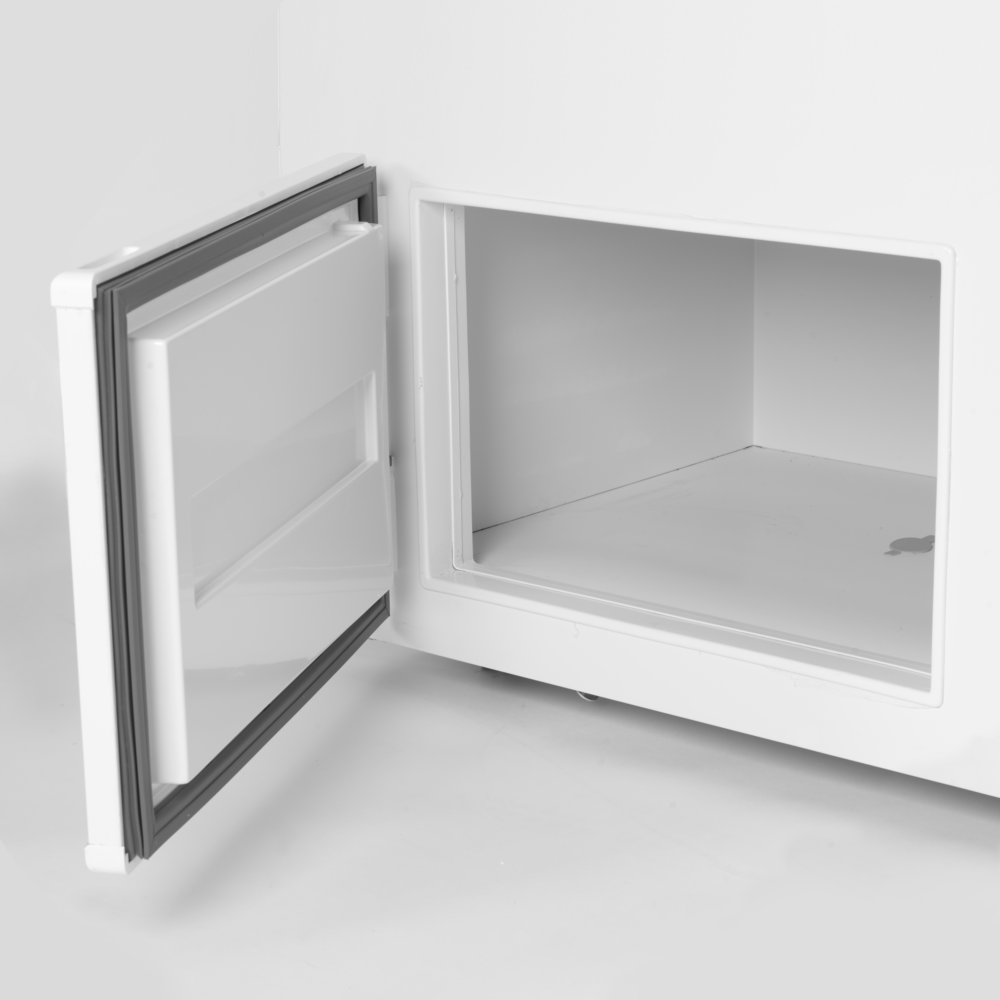

  • Easy access understorage
  • Curved glass canopy
  • Optional scoop wash

Product description

Our favourite ice cream scooping display. The J-Range from Framec is really popular in the ice cream world giving both superb quality and excellent value for money. The unit looks great with its curved glass canopy, curved in corners and rounded edges. A handy rear shelf helps with serving ice cream and spacious refrigerated understorage is easily accessible through the rear door. A reliable and well built ice cream display that will give years of excellent service.

The Framec J9E is a static-cooled scoop ice cream display freezer for parlours and kiosks, holding -20 to -14 °C with 357 litres net capacity, running from a standard 13 A supply on natural R290 refrigerant.

SPECIFICATION 46 facts · tap for all External W × D × H1656 x 723 x 1253 mmWidth1656 mmDepth723 mmGross / net weight131 / 110 kgGross weight131 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand Framecsite
GTIN / EAN 5708181607654site
Product code 19352site
Sub title Scoop Ice Cream Displaycatalogue
Type Static Cooled Ice Cream Display Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 723 mmsite
External (W×D×H) 1656 × 723 × 1253 mmcatalogue
External W × D × H 1656 x 723 x 1253 mmsite
Gross / net weight 131 / 110 kgsite
Gross weight 131 kgcatalogue
Height 1253 mmsite
Internal (W×D×H) 1532 × 450 × 240 mmcatalogue
Internal W × D × H 1532 x 450 x 240 mmsite
Packed (W×D×H) 1735 × 760 × 1310 mmcatalogue
Packed W × D × H 1735 x 760 x 1310 mmsite
Width 1656 mmsite

Capacity4

Display area 0.53 m²site
Gross volume 423 litrescatalogue
Serving capacity / 9 Napoli Pans (5L)site
Under-counter storage / 16 Napoli Pans (5L)site

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Staticsite
Defrost type Automatic, electricsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 150 gsite
Temperature range -20 to -14site
Thermometer Yessite

Power & energy6

Annual energy consumption 4318 kWh/yearsite
Energy consumption 11.83 kWh/24hsite
Energy efficiency index 27.8 %site
Input power 540 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Castors 4 double castorssite
Exterior finish Whitesite
Interior light LEDsite
Lock Nosite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this static cooled ice cream display freezer earns its place

The Framec J9E is a scoop ice cream display freezer for parlours and kiosks that want tubs on show and within easy reach. It presents 0.53 m² of display across 423 litres of gross capacity (357 litres net usable), finished in white, giving a compact serving footprint that suits a counter run in a busy summer trade.

It holds -20 to -14 °C using static cooling with automatic electric defrost, so the display stays servable without a manual defrost routine. An electronic controller manages the temperature, rated running noise is 45 dB, and the cabinet carries a climate class 4 rating. Cooling uses natural hydrocarbon R290 refrigerant with a 150 g charge.

Externally it measures 1656 × 723 × 1253 mm (W×D×H) and weighs 110 kg net (131 kg gross). It ships packed at 1735 × 760 × 1310 mm, worth checking against your delivery route and doorway before it arrives. It runs from a standard 13 A supply drawing 540 W at 220-240 V.

BEFORE YOU BUY

Questions, answered straight

It runs at -20 to -14 °C, the frozen band for servable scoop ice cream. Static cooling and automatic electric defrost hold that band without a manual routine.

Rated energy use is 4317.9 kWh a year, which is about £1080 a year at 25p/kWh. It carries energy class C with an energy efficiency index of 27.8%.

The cabinet is 1656 mm wide and 1253 mm high installed, and ships packed at 1735 × 760 × 1310 mm (W×D×H). Measure your route against the packed size before delivery.

It connects to a standard 13 A supply and draws 540 W at 220-240 V, 50 Hz. No special installation is needed beyond a suitable socket.

It presents 0.53 m² of display area with 423 litres gross capacity and 357 litres net usable.

Yes — our engineers handle installation and servicing; call 01792 732702 to arrange. It uses R290 refrigerant and an electronic controller, both standard for our service team.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1532 x 450 x 240 mm
External Dimension (WxDxH): 1656 x 723 x 1253 mm
Packed Dimension (WxDxH): 1735 x 760 x 1310 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Automatic, electric
Refrigerant: R290
Refrigerant Charge: 150 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 11.83 kWh/24h
Temperature Range: -20 to -14 °C
Annual Energy Consumption: 4318 kWh/year m³
EEI: 27.8 %
Input Power: 540 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Temperature Range: -20 to -14 °C
Climate Class: 4
Gross / Net Weight: 131 / 110 kg
Gross / Net Volume: 423 / 357 l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.53 m² m²

Design and Material

Serving Capacity: / 9 Napoli Pans (5L)
Storage capacity (under): / 16 Napoli Pans (5L)
Castors: 4 double castors
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: No
If you have any questions about the Framec J9E Scoop Ice Cream Display then please get in touch.
