Framec J7E Scoop Ice Cream Display

£1,781.00

+vat

- +

Brand:

SKU: 19333

Energy Arrow

Product summary

  • Fully automatic
  • Static cooling
  • Castors
  • Interior light with switch
  • Digital controller and temperature display
  • Lift up rear door
  • Accepts Napoli pans (not supplied)
  • Easy access understorage
  • Curved glass canopy
  • Optional scoop wash

Product description

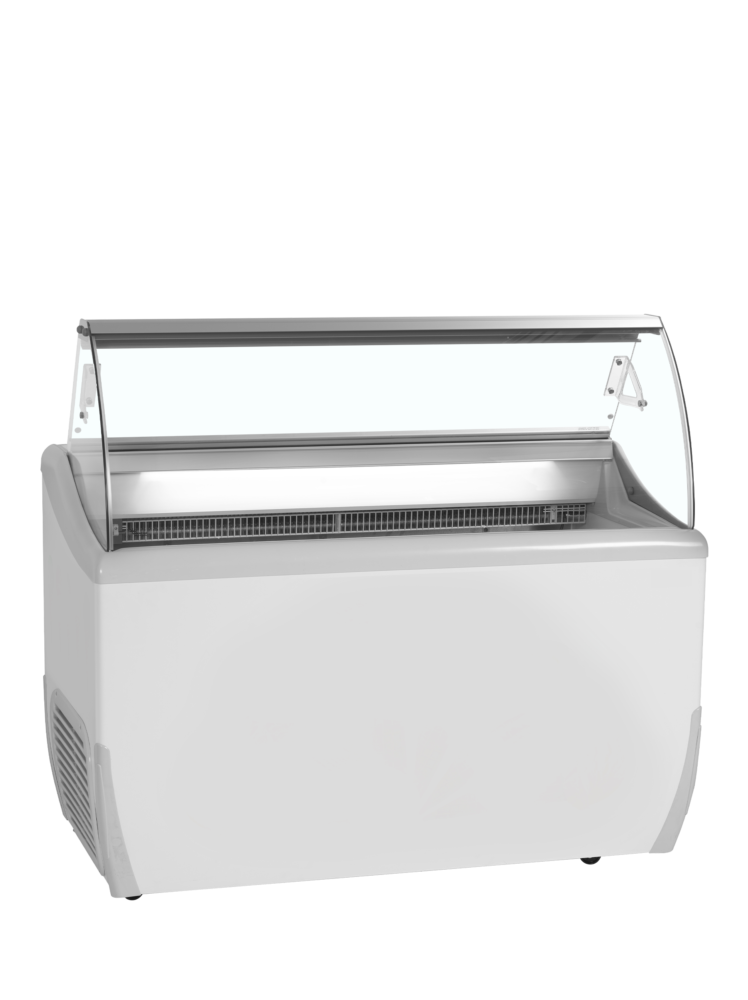

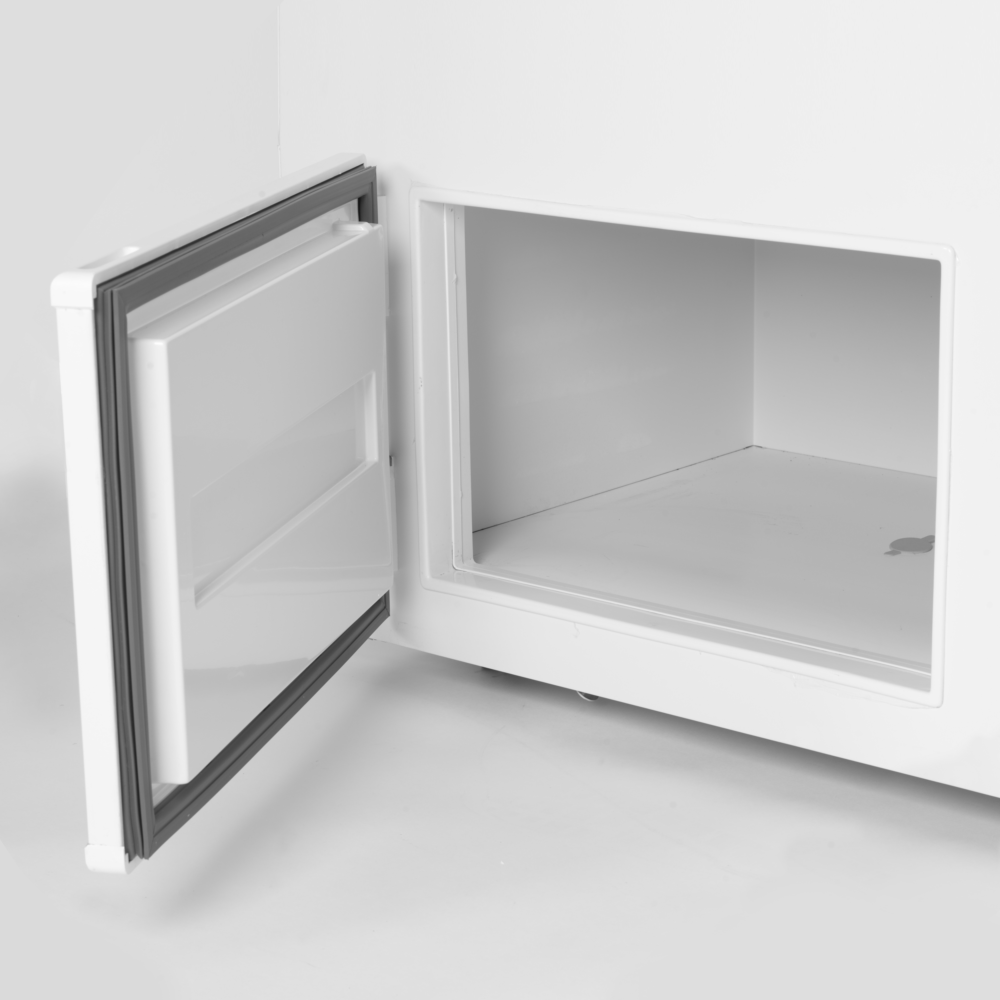

Our favourite ice cream scooping display. The J-Range from Framec is really popular in the ice cream world giving both superb quality and excellent value for money. The unit looks great with its curved glass canopy, curved in corners and rounded edges. A handy rear shelf helps with serving ice cream and spacious refrigerated understorage is easily accessible through the rear door. A reliable and well built ice cream display that will give years of excellent service.

The Framec J7E is a static-cooled scoop ice cream display freezer holding -20 to -14 °C across 0.42 m² of glass-fronted display, measuring 1341 mm wide, running at 45 dB and drawing from a standard 13 A supply.

SPECIFICATION 46 facts · tap for all External W × D × H1341 x 723 x 1253 mmWidth1341 mmDepth723 mmGross / net weight119 / 98 kgGross weight119 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand Framecsite
GTIN / EAN 5708181607463site
Product code 19333site
Sub title Scoop Ice Cream Displaycatalogue
Type Static Cooled Ice Cream Display Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 723 mmsite
External (W×D×H) 1341 × 723 × 1253 mmcatalogue
External W × D × H 1341 x 723 x 1253 mmsite
Gross / net weight 119 / 98 kgsite
Gross weight 119 kgcatalogue
Height 1253 mmsite
Internal (W×D×H) 1217 × 450 × 240 mmcatalogue
Internal W × D × H 1217 x 450 x 240 mmsite
Packed (W×D×H) 1420 × 760 × 1310 mmcatalogue
Packed W × D × H 1420 x 760 x 1310 mmsite
Width 1341 mmsite

Capacity4

Display area 0.42 m²site
Gross volume 317 litrescatalogue
Serving capacity / 7 Napoli Pans (5L)site
Under-counter storage / 12 Napoli Pans (5L)site

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Staticsite
Defrost type Automatic, electricsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 130 gsite
Temperature range -20 to -14site
Thermometer Yessite

Power & energy6

Annual energy consumption 3223 kWh/yearsite
Energy consumption 8.83 kWh/24hsite
Energy efficiency index 26.3 %site
Input power 500 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Castors 4 double castorssite
Exterior finish Whitesite
Interior light LEDsite
Lock Nosite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this static cooled ice cream display freezer earns its place

The Framec J7E is a scoop ice cream display freezer built to show off a spread of tubs behind curved glass. It offers 0.42 m² of display area and a white finish inside and out, so the product does the talking at the counter. The format suits a parlour or café serving scooped ice cream straight to customers, keeping the range visible and ready to serve.

It holds a -20 to -14 °C band using static cooling, which keeps tubs at a steady scooping temperature, and defrost is automatic and electric so there is no manual routine to run. Control is electronic, and the cabinet runs at 45 dB. It is energy class C at 3222.9 kWh a year — about £806 a year in electricity at 25p/kWh — using R290 refrigerant with a 130 g charge, and is built to climate class 4 for warmer serving environments.

The freezer measures 1341 × 723 × 1253 mm (W×D×H) and ships packed at 1420 × 760 × 1310 mm, so check the delivery route for the 760 mm packed depth. It runs from a standard 13 A supply at 220–240 V / 50 Hz, rated 500 W. Net weight is 98 kg (119 kg gross), so plan for two people to position it on a level, well-ventilated spot.

BEFORE YOU BUY

Questions, answered straight

It runs a -20 to -14 °C band, kept steady by static cooling so ice cream stays at a workable scooping consistency. Control is electronic.

It offers 0.42 m² of glass-fronted display area, enough to show a spread of tubs for scoop-to-order service.

It is energy class C at 3222.9 kWh a year, which is about £806 a year in electricity at 25p/kWh. Real figures vary with ambient temperature and how often it is opened.

The cabinet is 1341 × 723 × 1253 mm and ships packed at 1420 × 760 × 1310 mm. Measure the route for the 760 mm packed depth and site it level with airflow around it.

No. Defrost is automatic and electric, so there is no manual routine to run.

A standard 13 A supply at 220–240 V / 50 Hz, rated 500 W. Craven Cooling can arrange servicing after installation — call 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1217 x 450 x 240 mm
External Dimension (WxDxH): 1341 x 723 x 1253 mm
Packed Dimension (WxDxH): 1420 x 760 x 1310 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Automatic, electric
Refrigerant: R290
Refrigerant Charge: 130 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 8.83 kWh/24h
Temperature Range: -20 to -14 °C
Annual Energy Consumption: 3223 kWh/year m³
EEI: 26.3 %
Input Power: 500 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Temperature Range: -20 to -14 °C
Climate Class: 4
Gross / Net Weight: 119 / 98 kg
Gross / Net Volume: 317 / 264 l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.42 m² m²

Design and Material

Serving Capacity: / 7 Napoli Pans (5L)
Storage capacity (under): / 12 Napoli Pans (5L)
Castors: 4 double castors
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: No
If you have any questions about the Framec J7E Scoop Ice Cream Display then please get in touch.
